Integrated CIP Cleaning System for Tanks & Pipelines | Electric Heated
Integrated CIP system with electric-heated stainless steel tanks, circulation pumps, and PLC control for cleaning process tanks, pipelines, and fillers. Built to order in 304 or 316L with single- to four-tank configurations, acid and caustic stages, and flow, temperature, and conductivity monitoring. Factory-direct engineering support and custom skid builds for dairy, beverage, and liquid food plants.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L

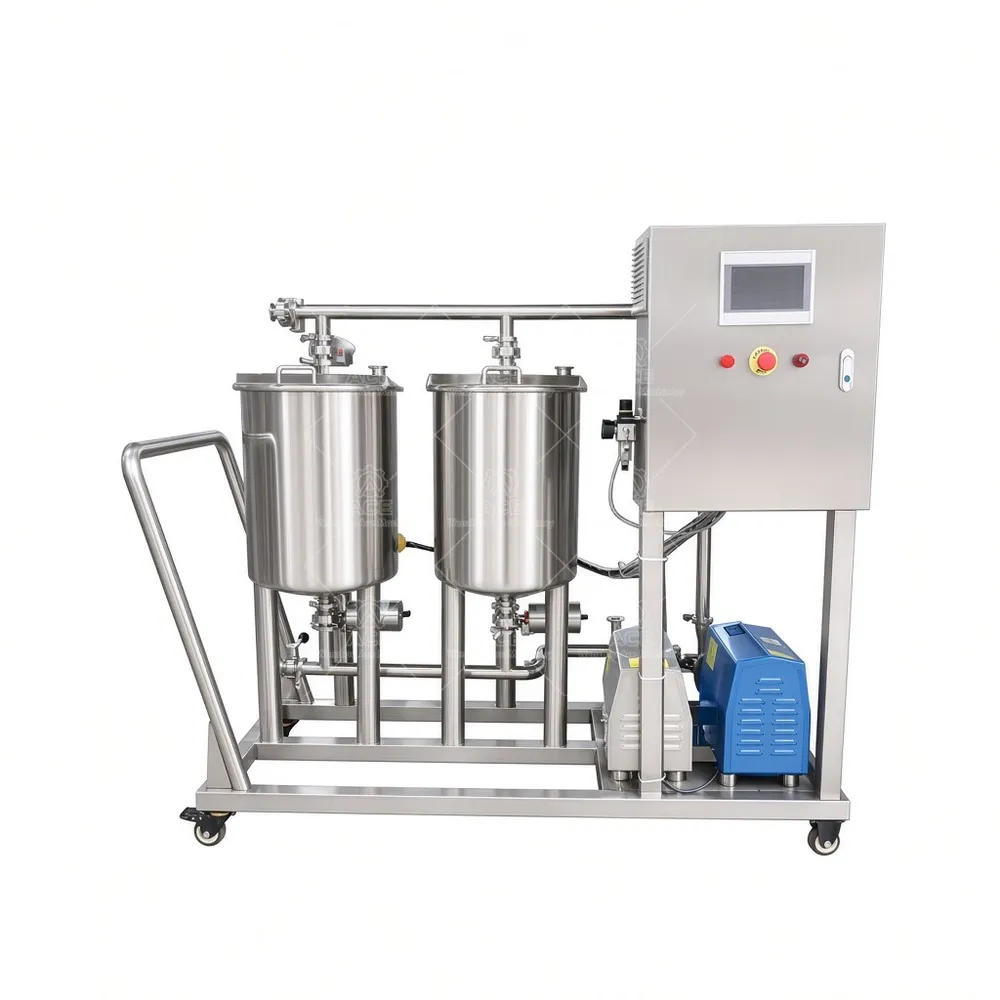

- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,538.81 through $8,121.86
Guaranteed Safe Checkout

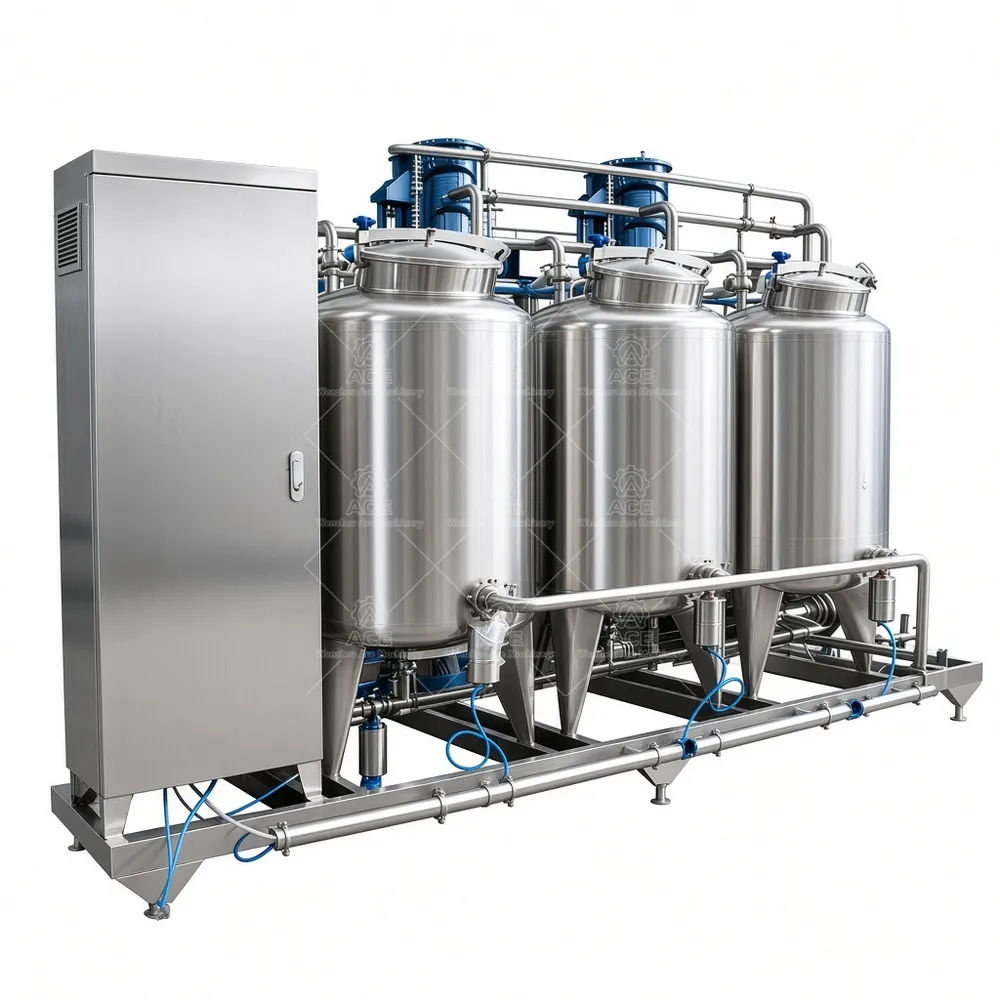

A CIP system is only as good as its weakest circuit. We build integrated clean-in-place units around the actual pipe layout, tank count, and soil load of your plant — not around a catalog page. The skid usually holds one to four stainless tanks (caustic, acid, hot water, and often a recovery tank), a supply pump, a return pump, and the instrumentation that tells the operator whether the loop is actually clean.
What Happens During a Cleaning Cycle
Caustic solution is heated and circulated through the spray balls, tank walls, and process piping at a set flow and temperature. The return line carries soil back to the tank, where it is filtered or drained. An acid stage follows when mineral scale is present, then a hot-water rinse and a final rinse to neutral. Conductivity, temperature, flow, and level readings are what confirm the cycle ran as intended — not the timer alone.

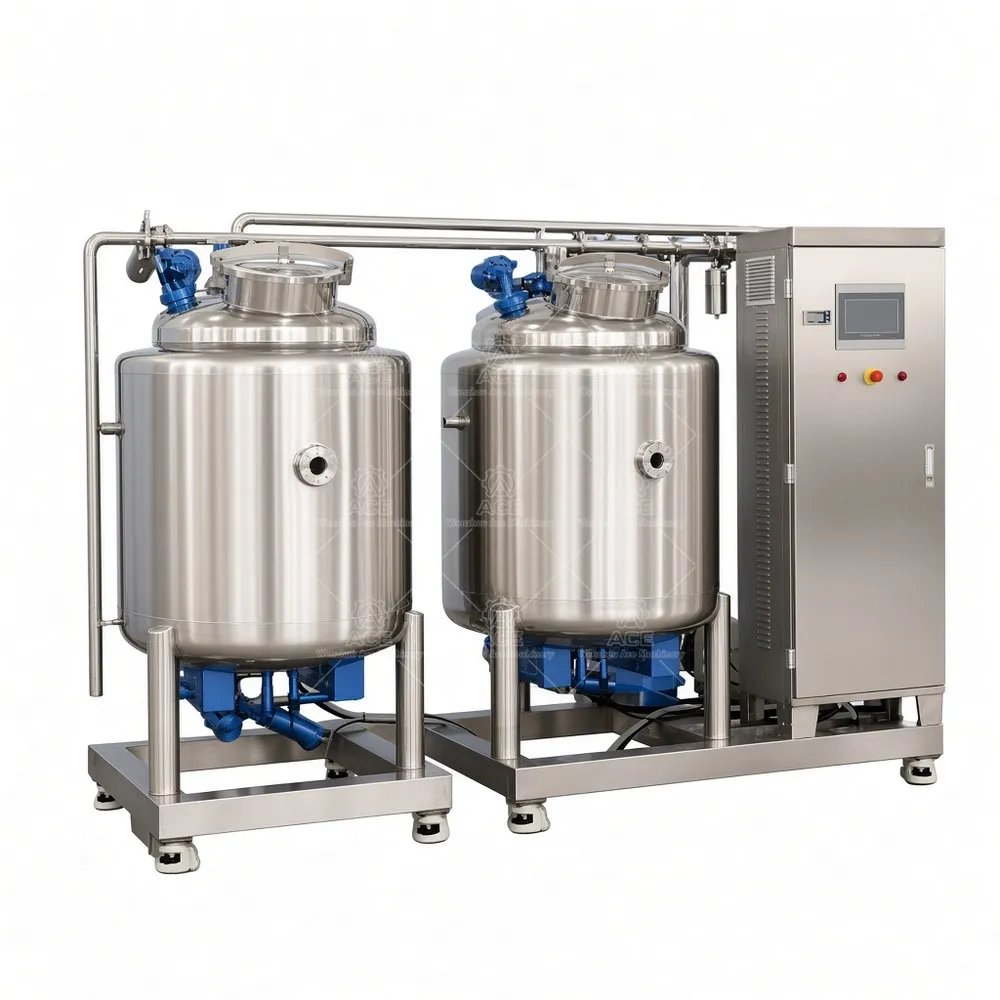

Tank Configuration and Cleaning Capacity

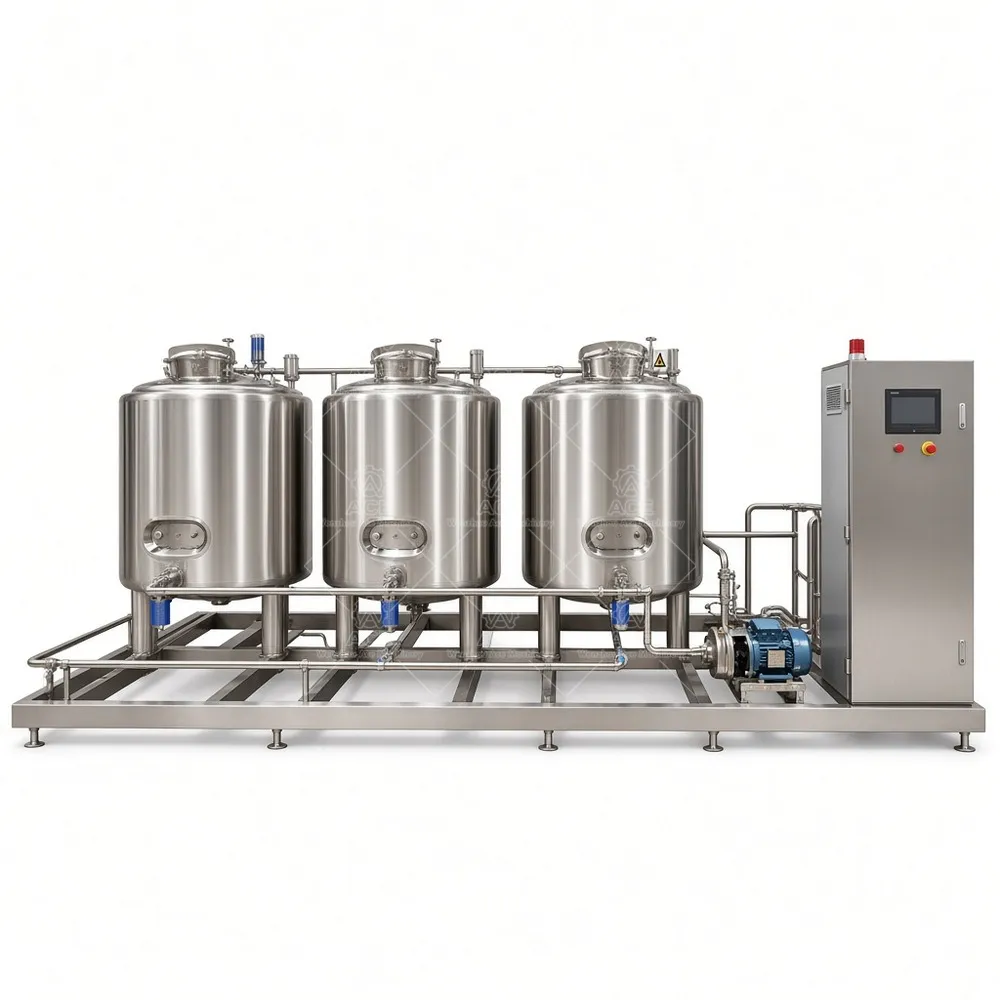

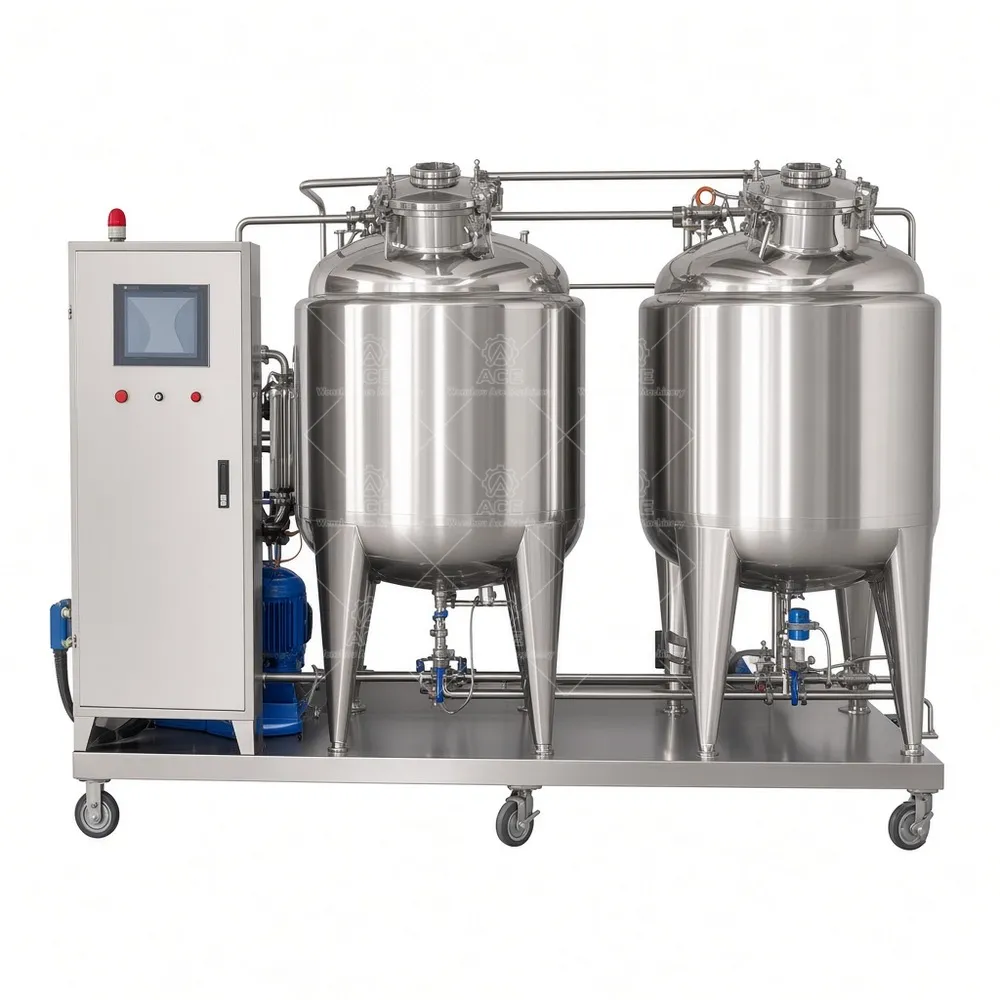

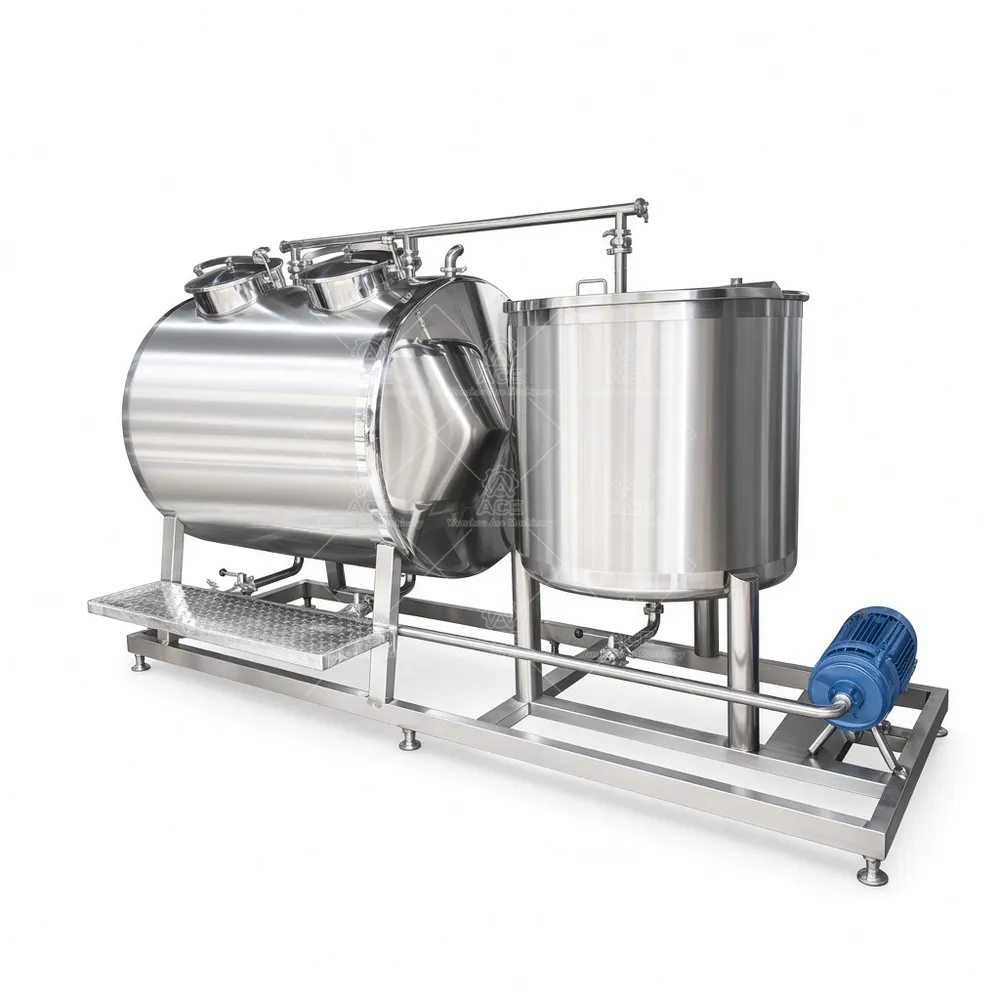

Single-tank units suit small dairies and beverage lines with light soil. Two- and three-tank arrangements let you recover caustic and run acid without cross-contamination. Tank volume follows the wetted surface area and the number of circuits, not the plant\’s overall production rate — a common sizing mistake we see is buying tank volume the pump cannot support at the required flow velocity.
Heating, Pumping, and Control
Electric heating is common where steam is unavailable or where the load is under roughly 100 kW; steam injection or a plate heat exchanger is more economical at larger duties. Pumps are selected for the highest-resistance circuit at 1.5–2.1 m/s in the pipes. Control ranges from manual push-button stations to semi-automatic timers and full PLC with recipe storage and data logging, so a shift supervisor can verify what ran and when.
Specifications
| Item | Typical Range |
|---|---|
| Tank capacity | 200–5,000 L per tank |
| Tank quantity | 1–4 (caustic, acid, hot water, recovery) |
| Stainless grade | 304 or 316L, mirror or 2B finish |
| Heating | Electric immersion, steam, or heat exchanger |
| Pump flow / pressure | 5–50 m³/h, up to 0.6 MPa |
| Operating temperature | Ambient to 90 °C |
| Control | Manual, semi-auto, or PLC with HMI |
| Power | 380 V/50 Hz or 480 V/60 Hz, 3-phase |
Where These Units Run
Dairy receiving lines and pasteurizers, brewery fermenters and bright tanks, beverage fillers, sauce and liquid-food kettles, cosmetic mixing vessels, and pharmaceutical process piping all use the same basic principles, though pharmaceutical and cosmetic users typically demand documentation packages and higher surface finishes that we quote case by case.
FAQ
Can one skid serve two production areas? Yes, with a properly sized header and isolation valves, but pressure drop across long runs must be calculated first.
Do we need a recovery tank? It pays back quickly on plants cleaning daily; weekly cleaning operations rarely justify it.
Can the unit be customized? Tank volumes, circuit counts, skid dimensions, and control level are all built to order at our factory.
Send us your industry and product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. Our engineers will recommend a configuration and quote it directly from the factory.
