Factory Automatic Stainless Steel CIP Cleaning Cart with Pump and Sterilizer
Factory-direct stainless steel CIP cleaning carts and skids for dairy, beverage, brewery, sauce, cosmetic and pharmaceutical lines. Configure single or multi-tank cleaning, caustic/acid/hot water circuits, electric or steam heating, CIP pumps, valves, monitoring and manual, semi-automatic or PLC control. Share tank volume, piping layout, cleaning capacity, heat source and automation level for a tailored quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,551.90 through $9,656.61
Guaranteed Safe Checkout

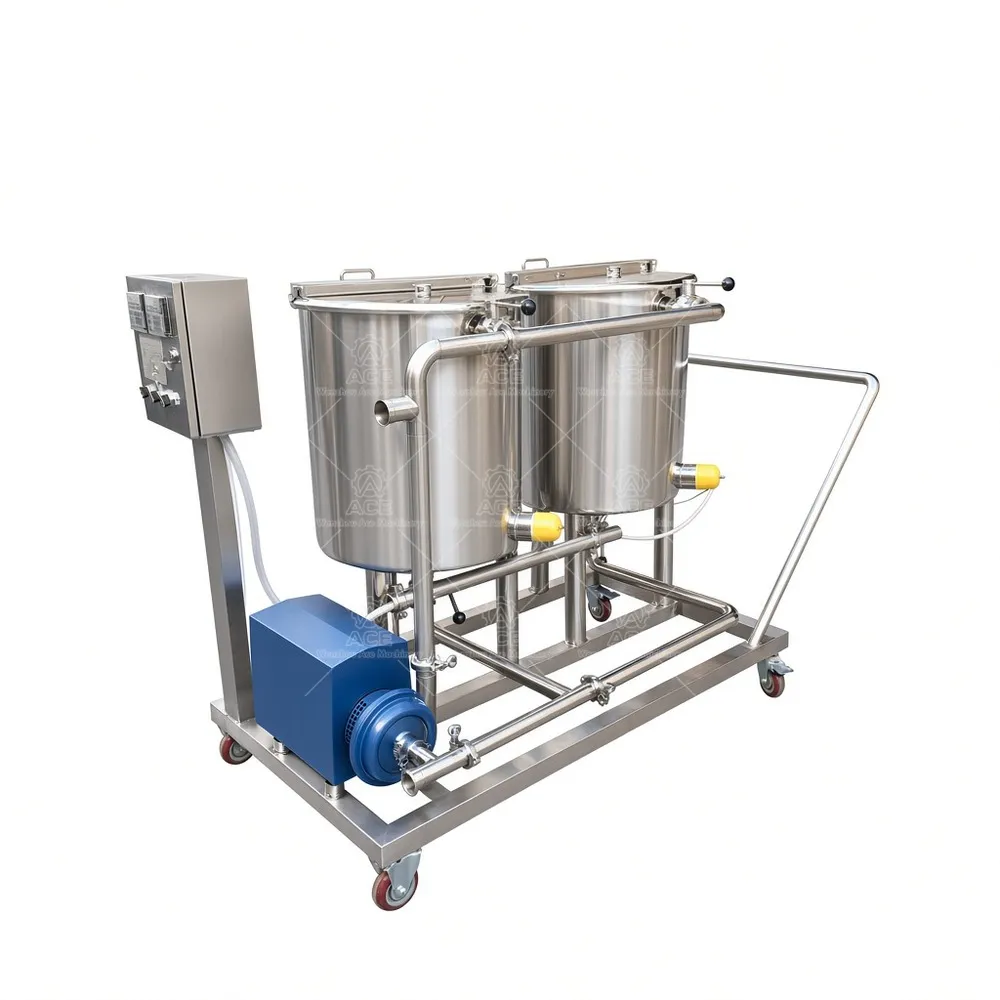

Automatic CIP Cleaning Cart with Pump and Sterilizer
We build this stainless steel CIP cart for plants that need a repeatable cleaning cycle without tying up a full fixed skid. Production engineers usually call us after manual cleaning costs too much downtime, or when a new line needs caustic, acid, and hot-water rinses routed through one pump set.

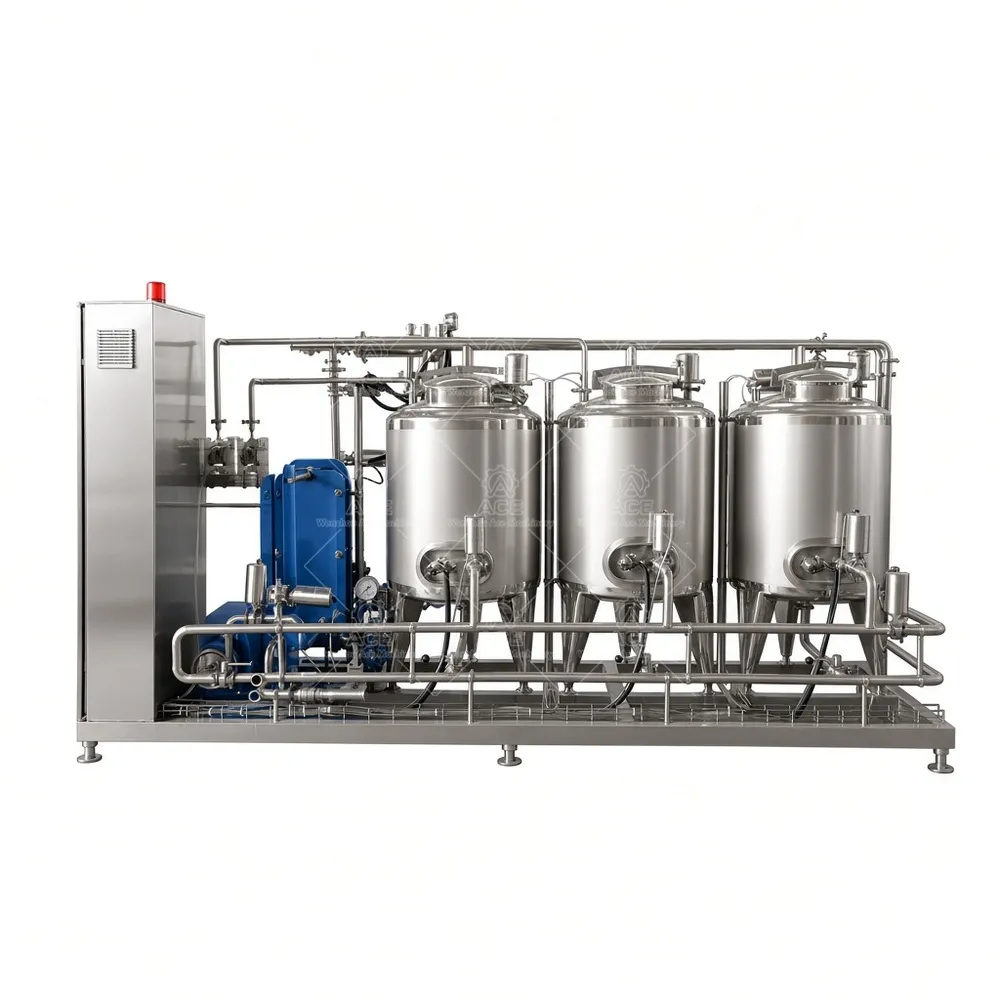

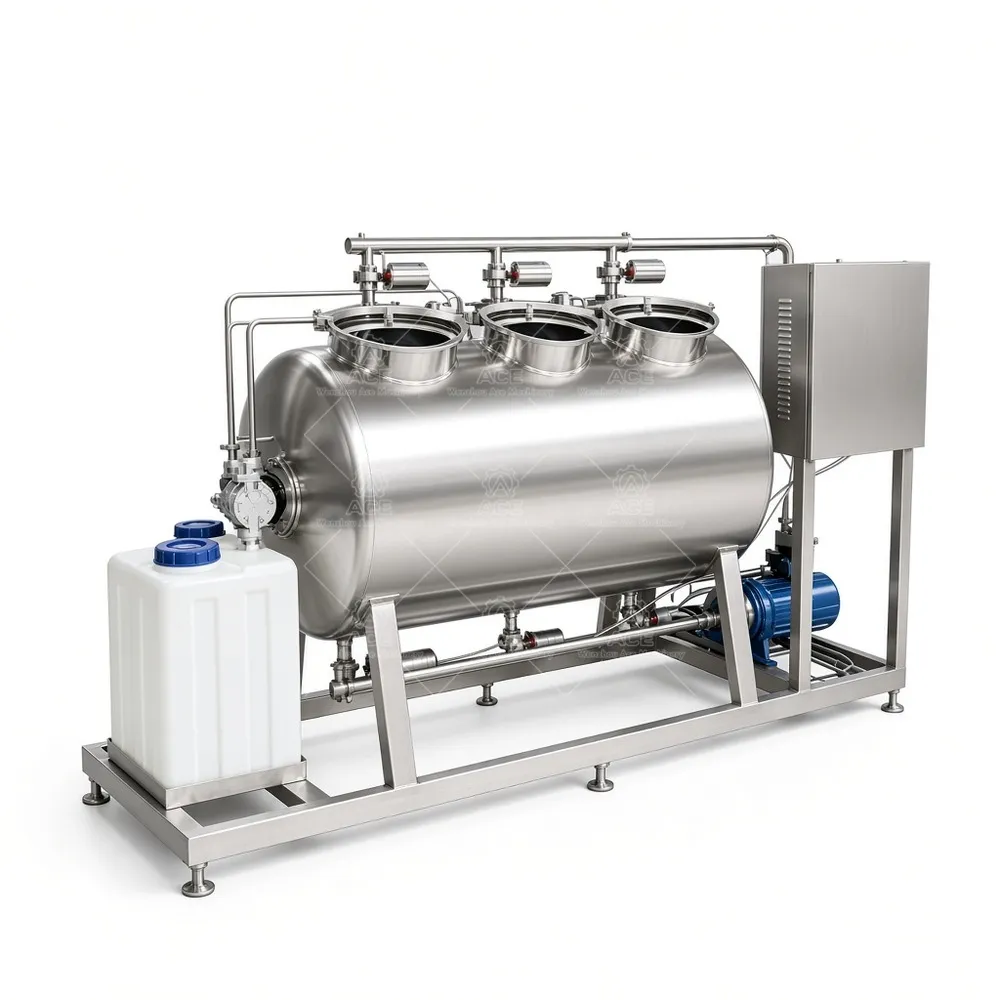

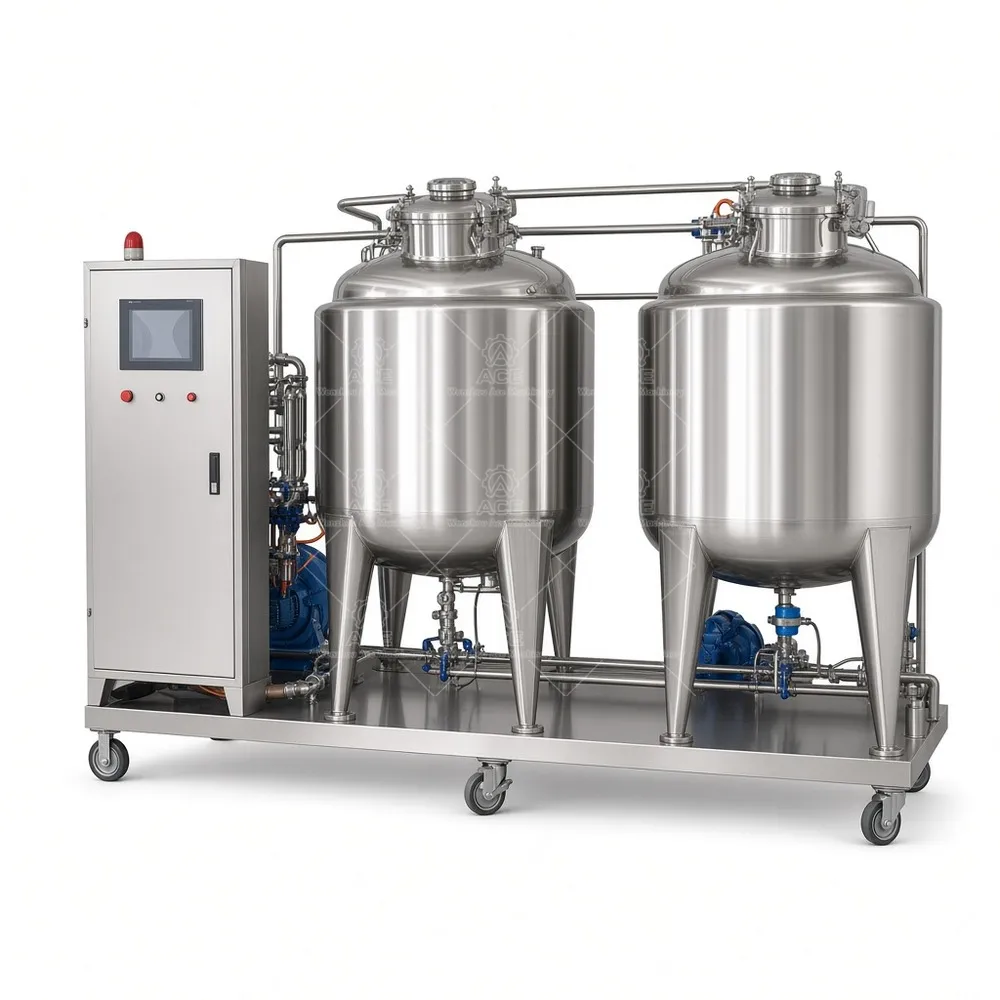

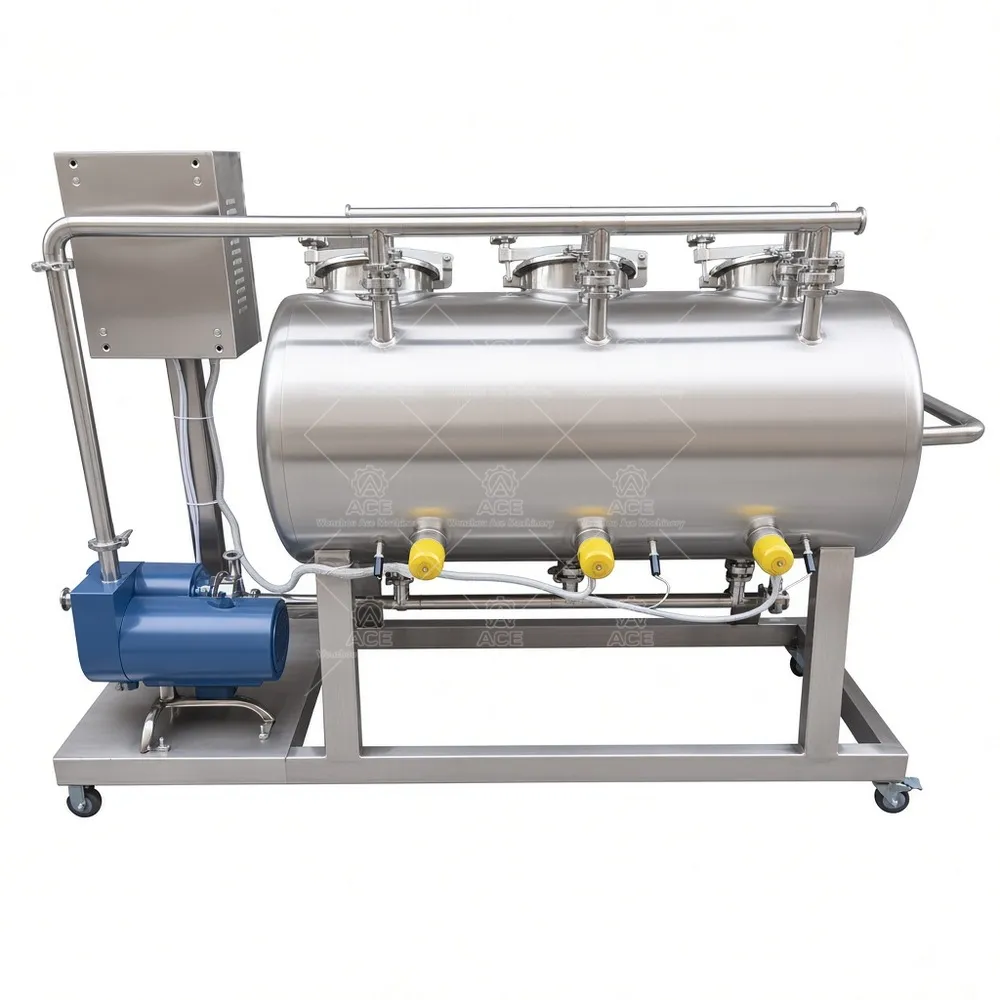

The cart moves to the duty point, connects to the tank or piping circuit, and circulates cleaning solution through spray balls, lines, valves, or vessels. Return flow goes back to the selected tank. Operators set temperature, time, and flow; the control package confirms the step sequence. We can supply single, double, triple, or multi-tank layouts with caustic, acid, and hot-water compartments. Electric or steam heating, CIP supply and return pumps, stainless piping, valves, fittings, and temperature, flow, pressure, or level monitoring are selected per project.
Final capacity, pump curve, heating duty, circuit count, and footprint depend on the largest cleaning loop, soil load, chemicals, and utilities. We confirm every selected feature before quoting; values are typical ranges, not a guaranteed standard build.
Technical specifications
| Item | Typical range / option |
|---|---|
| Cleaning tank capacity | 100–5,000 L per tank; custom |
| Number of tanks | 1–4; single, double, triple or multi-tank |
| Stainless grade | 304 or 316L wetted parts |
| Heating | Electric immersion or steam coil/plate; project-specific |
| Pump flow and pressure | Centrifugal CIP pump; 10–80 m³/h at 0.2–0.6 MPa, project-specific |
| Operating temperature | Up to 90°C, model-dependent |
| Control system | Manual, semi-automatic or PLC/HMI |
| Cleaning circuits | 1–8; custom manifold |
| Power | 380/415/480 V, 3-phase, 50/60 Hz |
| Dimensions | Cart or skid footprint; custom |
| Custom options | Tank volume, circuits, automation, passivation, documentation |
Where it fits
These carts suit dairy processing, beverage and brewery vessels, winery tanks, sauce and liquid-food kettles, cosmetic mixing tanks, and pharmaceutical process equipment. Materials, finish, documentation, and validation support are matched to your requirements; we do not claim a universal compliance rating.
Tank count follows chemical separation and rinse recovery. Two tanks often cover caustic and hot water; acid adds a third. Pump flow must suit the longest circuit and spray device. Steam heating needs boiler capacity; electric heating needs electrical capacity. PLC control suits repeatable recipes; manual control suits low-changeover sites.
FAQ
How do I size the tank? Start with the largest wetted circuit, chemical concentration, rinse volume, and batch frequency.
Can one cart serve several lines? Yes, with isolated circuits and a documented hookup plan. Check pump head at the farthest spray ball.
Send your industry and product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade, and site requirements. We will recommend tank volume, pump curve, heating duty, and control package, then quote the build.
