Mobile Acid-Alkaline CIP Cleaning Machine for Beverage Juice Pipeline & Tank
Mobile acid-alkaline CIP truck for beverage and juice plants, with stainless steel construction, circulation and return pumps, heating options, and project-specific tank, piping, control, and monitoring configurations. Factory-direct engineering support helps match cleaning capacity to tanks, pipelines, and production routines.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,390.63 through $9,320.32
Guaranteed Safe Checkout

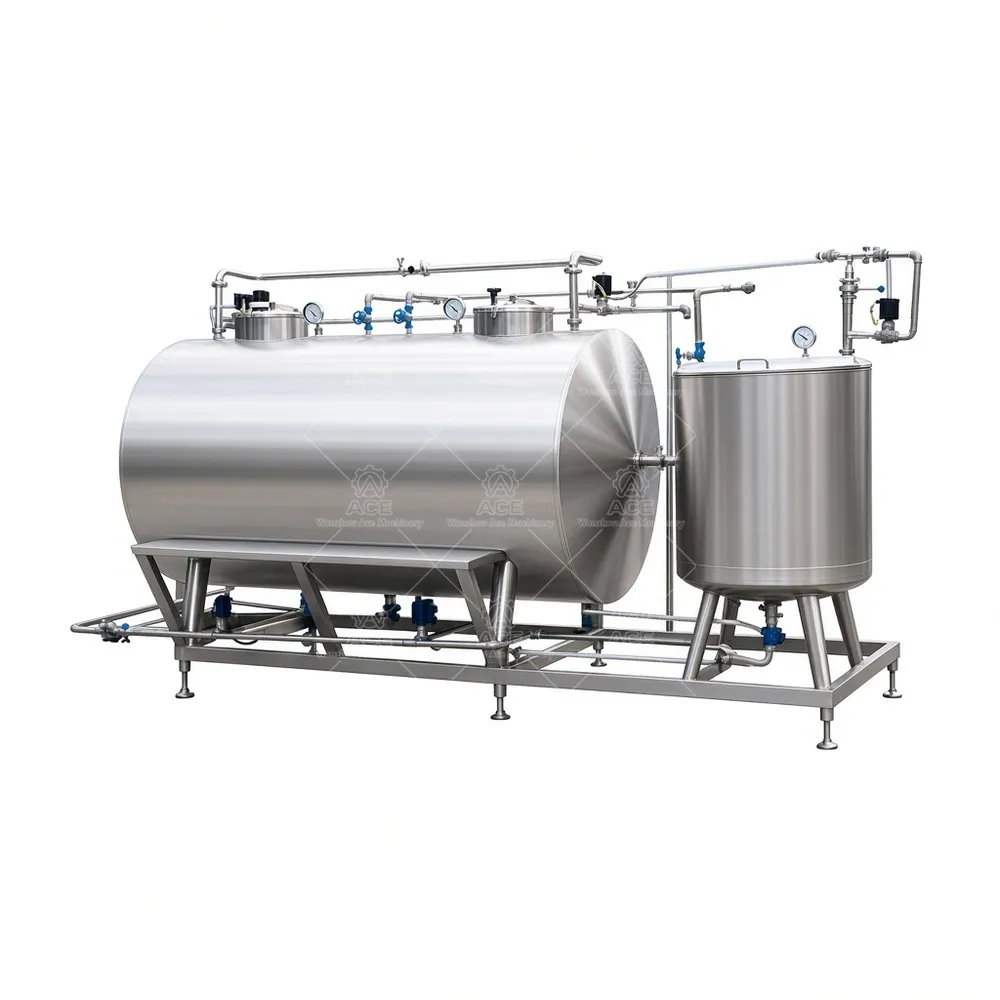

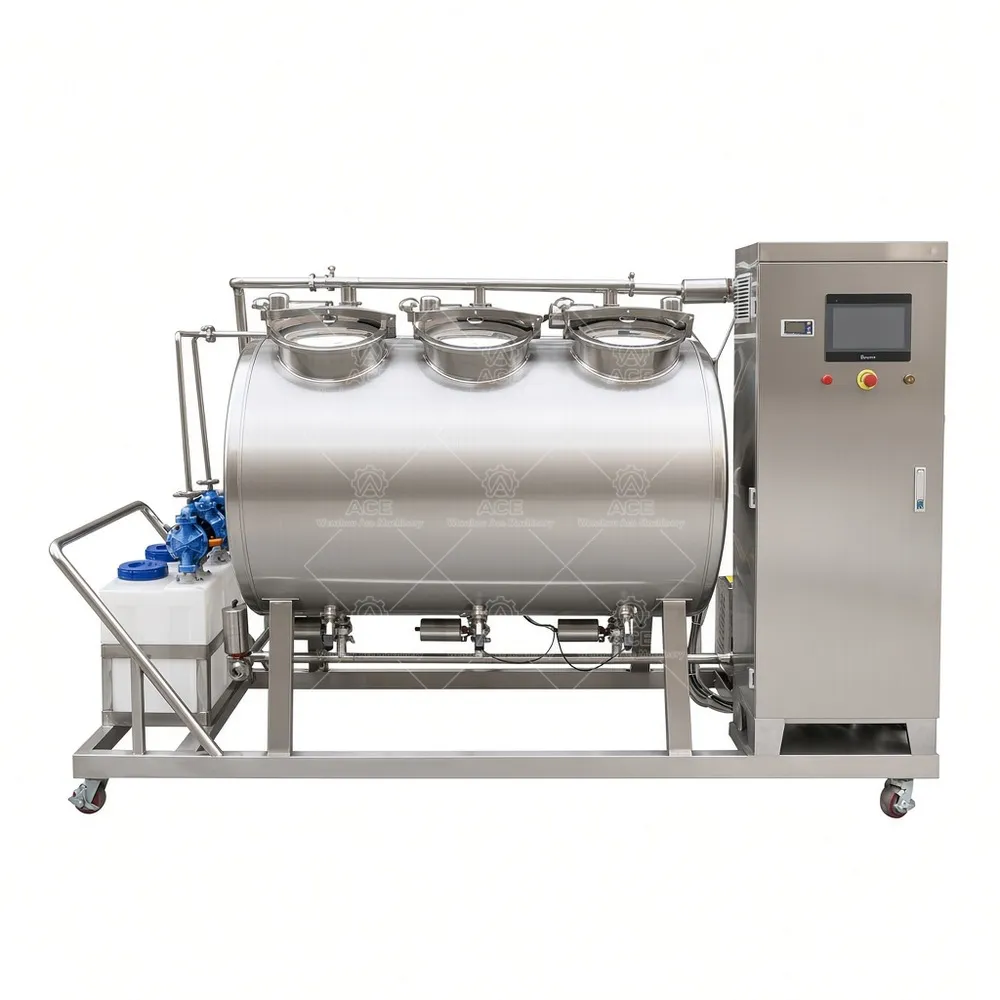

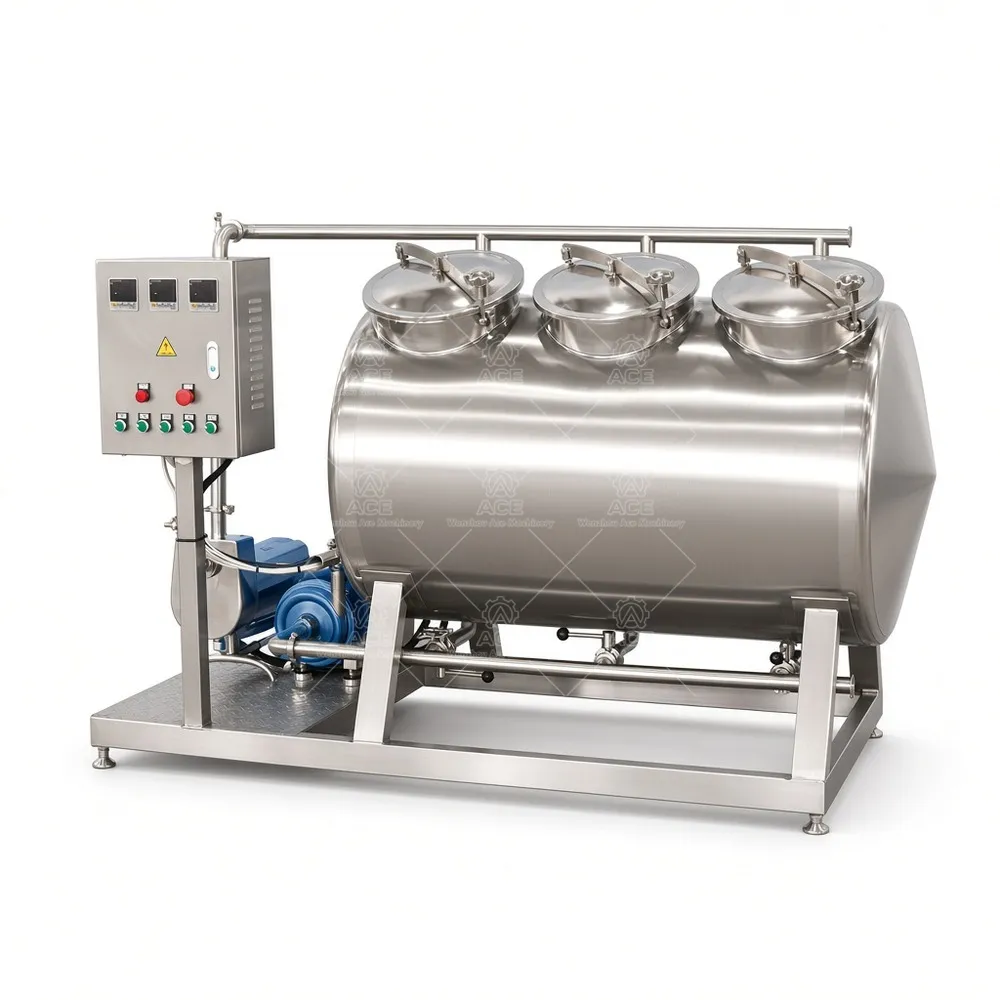

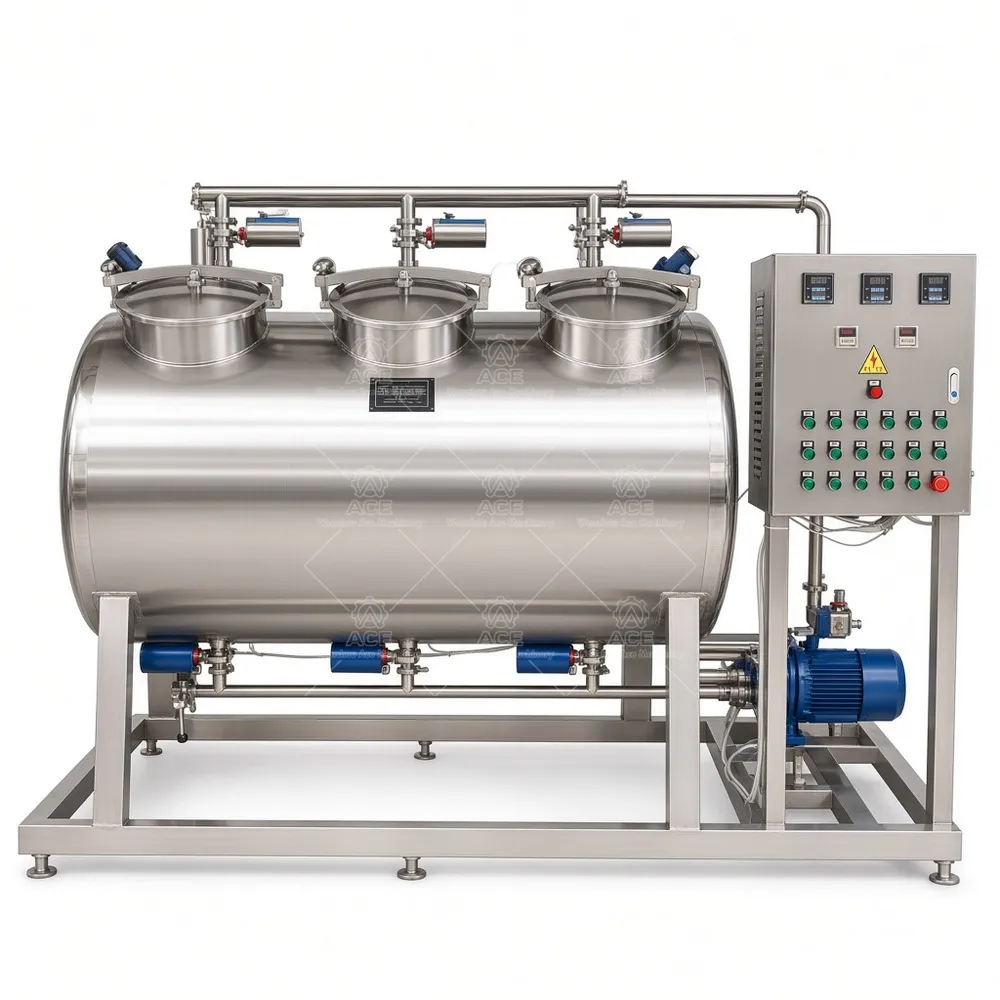

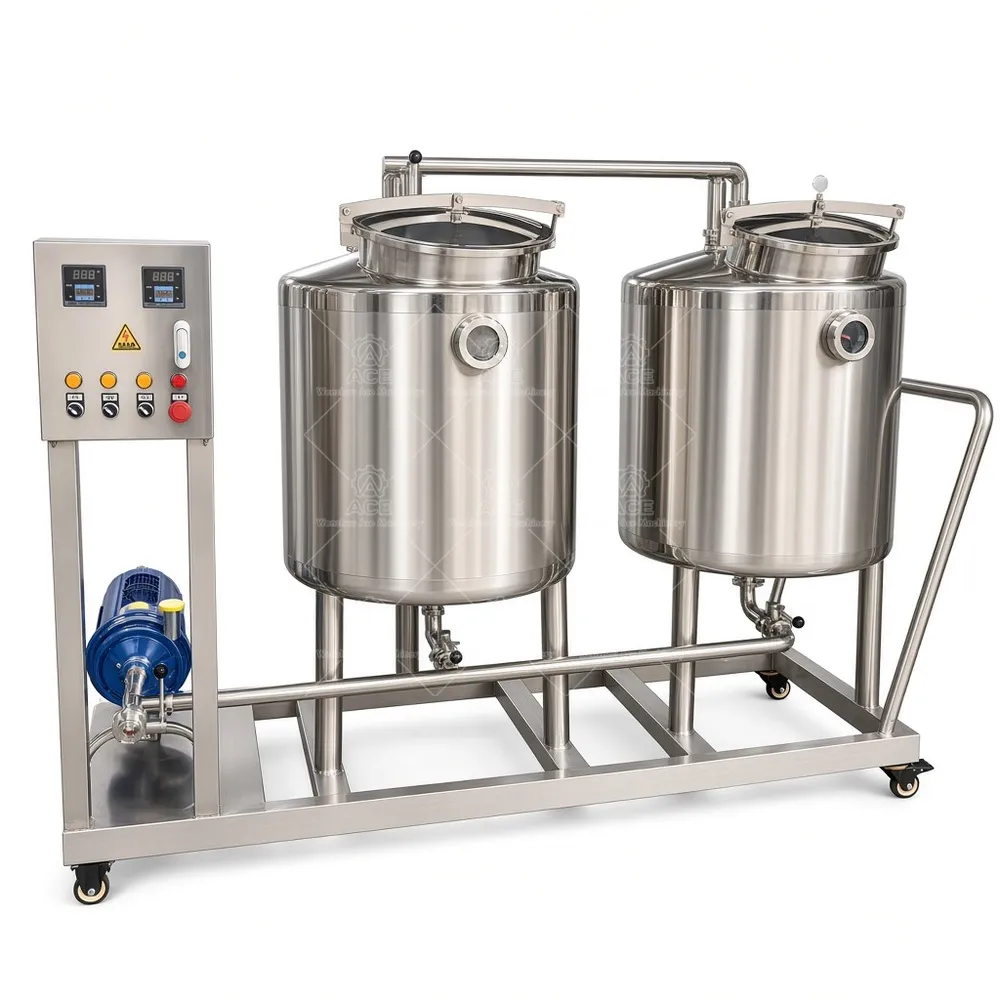

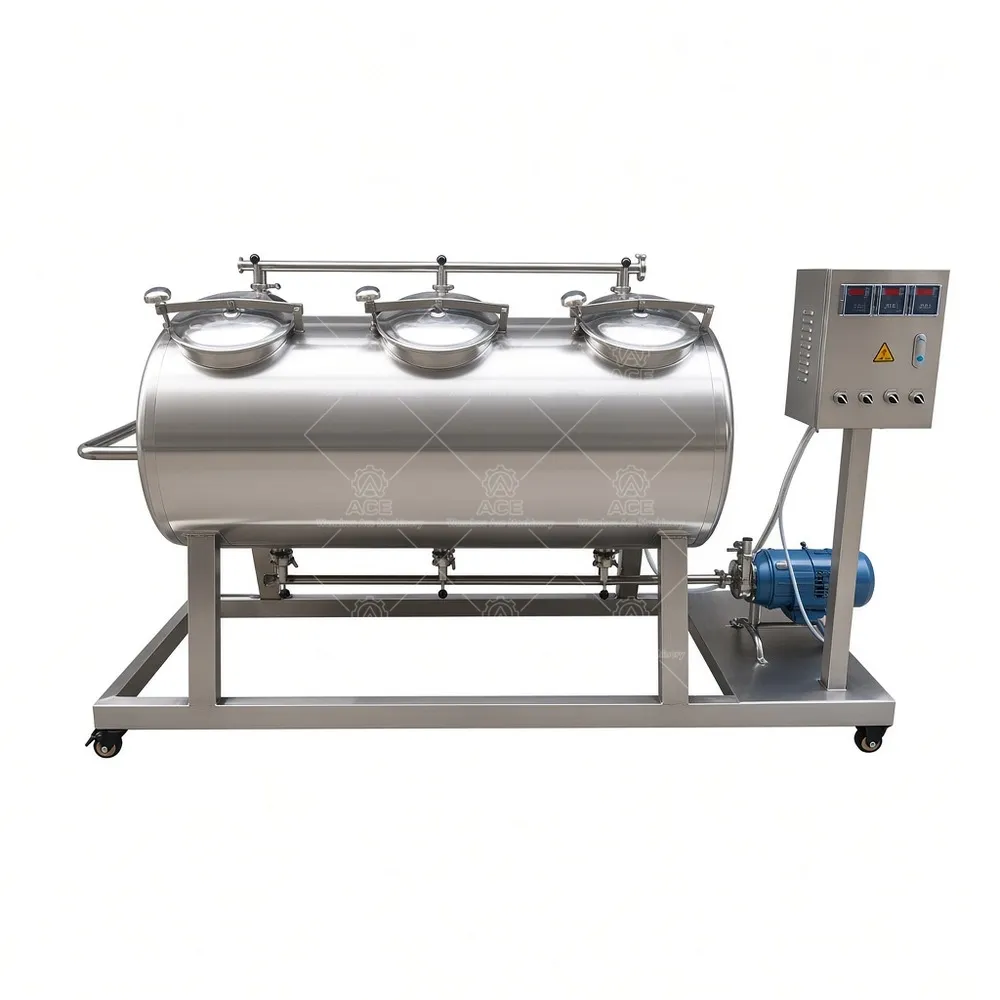

This mobile acid-alkaline CIP truck is built for beverage, juice, dairy, and liquid-food plants that need repeatable cleaning of tanks, pipelines, fillers, and process loops without a fixed central CIP room. The stainless steel frame carries one or more solution tanks, a circulation pump, return pump, heat source, valves, and monitoring instruments. We confirm the wetted materials, tank volume, pump curve, and control level against your line before fabrication.
Cleaning usually runs in stages: pre-rinse, alkaline wash, intermediate rinse, acid wash where required, final rinse, and drain. Temperature, flow, pressure, and level matter more than a single flow number. Low flow can leave shadow areas in long pipe runs; excessive flow can damage valves or gaskets. The pump and return line should be sized to the longest circuit and the tank spray device, not just the truck’s tank size.
Tank configuration is project-specific. Single-tank units suit simpler rinse and wash routines; two- and three-tank arrangements separate alkaline, acid, and hot water. Electric or steam heating, manual valves, semi-automatic controls, or PLC operation can be reviewed. Our engineering team checks circuit volume, soil load, rinse water quality, floor space, drainage, and available utilities.
Typical specifications
| Item | Project scope |
|---|---|
| Cleaning tank capacity | Confirmed per project |
| Number of tanks | Single, double, triple, or multi-tank options |
| Stainless steel grade | 304 or 316L as confirmed |
| Heating method | Electric or steam, subject to availability |
| Pump flow and pressure | Sized to longest cleaning circuit |
| Operating temperature | Application-dependent, confirmed per project |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple loops |
| Power supply | Site voltage confirmed |
| Dimensions | Custom mobile skid or truck layout |
| Custom options | Tank capacity, heating, pumps, loops, automation |
Where it fits
Dairy, beverage, brewery, winery, sauce, liquid food, cosmetic, and pharmaceutical plants use CIP for tanks, pipelines, heat exchangers, fillers, and transfer lines. Cleaning requirements vary by residue and plant practice; we avoid assuming a single standard fits every process.
Buyer questions
How do I size the tanks? Start with circuit volume, rinse steps, and required wash concentration, not floor space alone.
Can it be customized? Yes—tank capacity, pump curves, heating, circuits, and controls are reviewed per project. Only confirmed features are included in the final scope.
Request a quotation
Send your industry and product, tank and pipeline details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend a practical configuration and prepare a factory-direct quotation.
