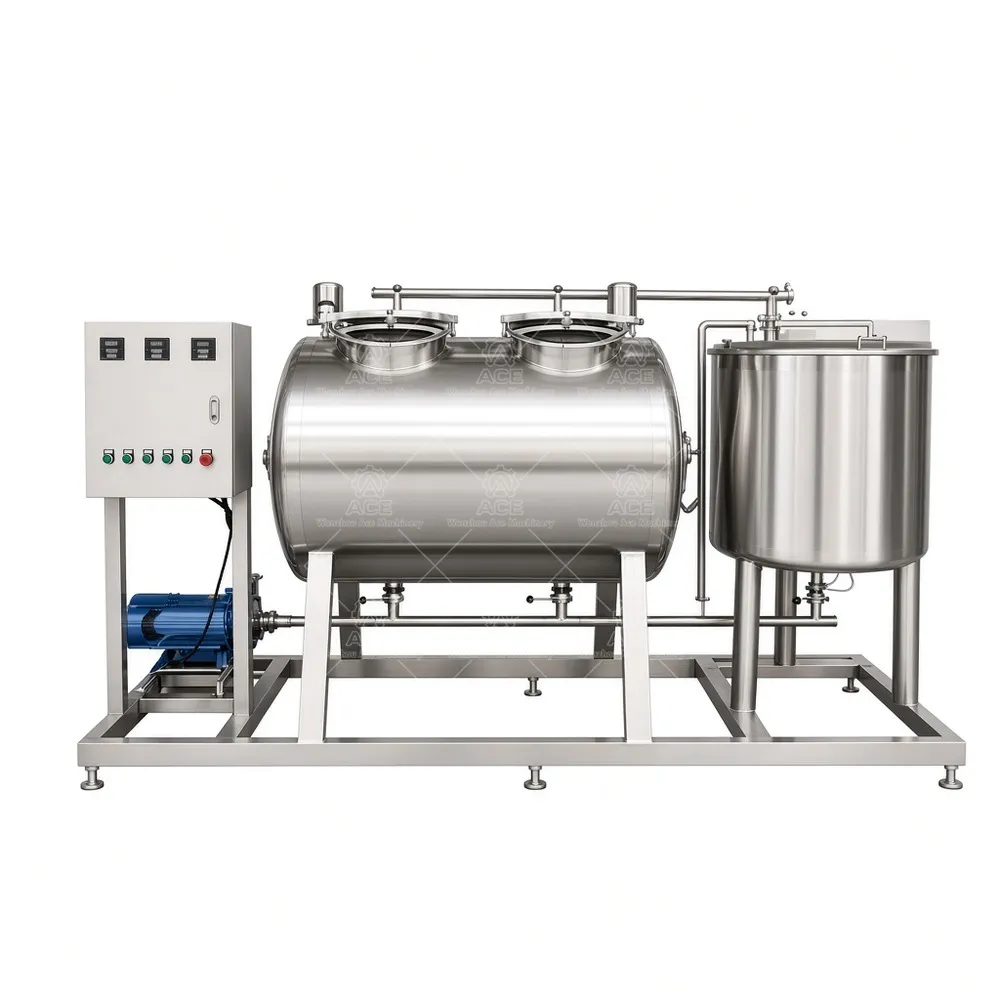

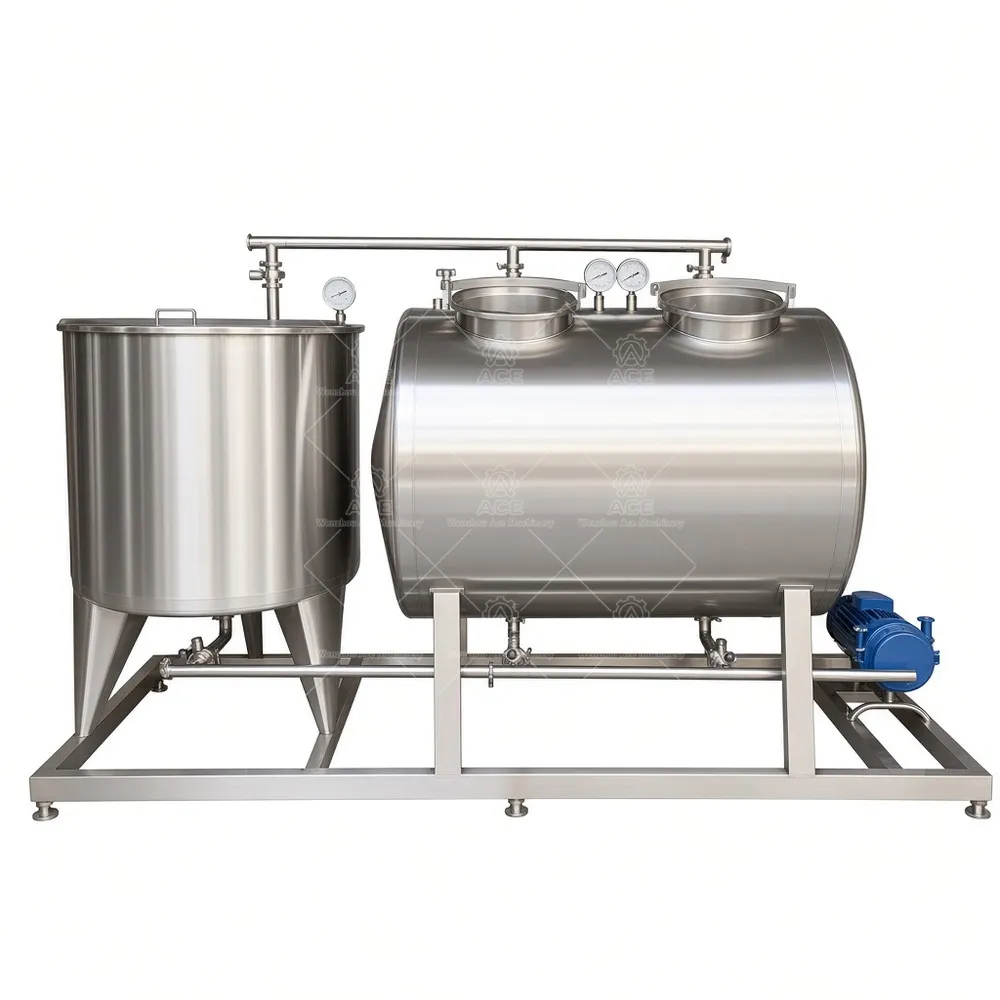

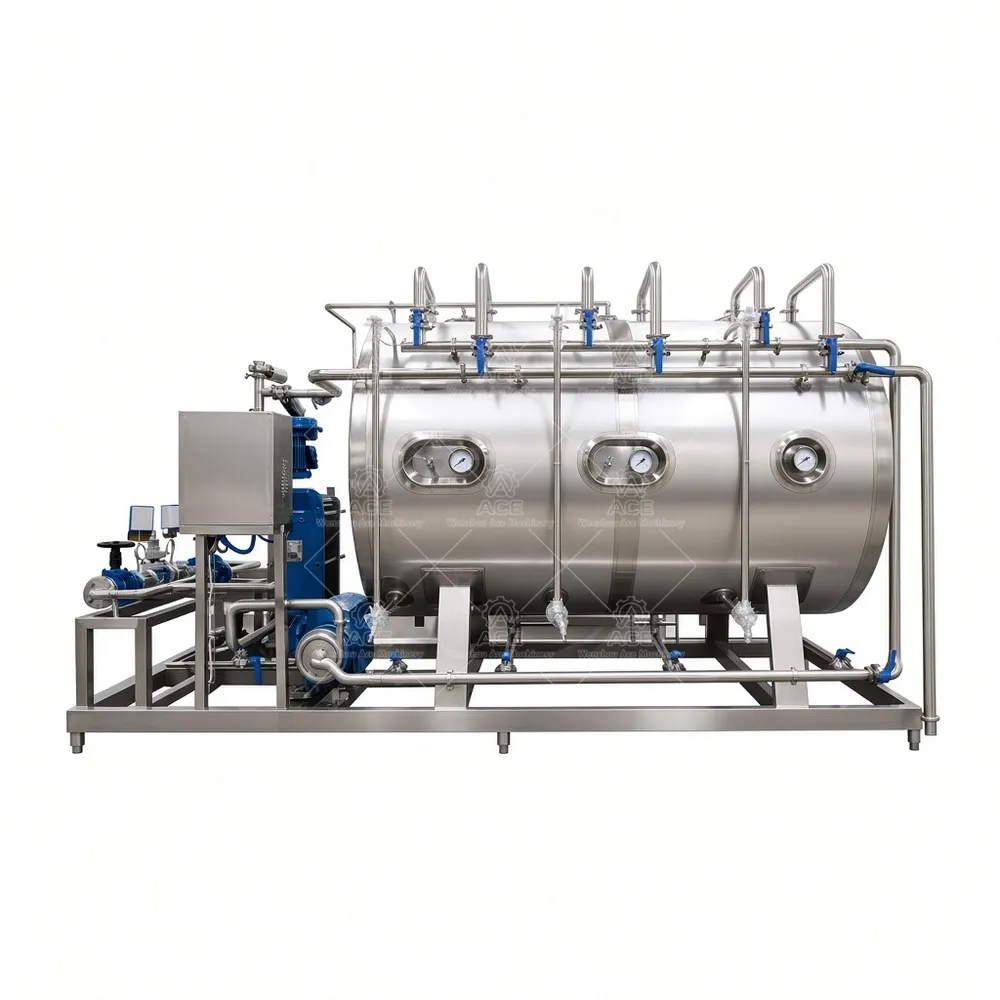

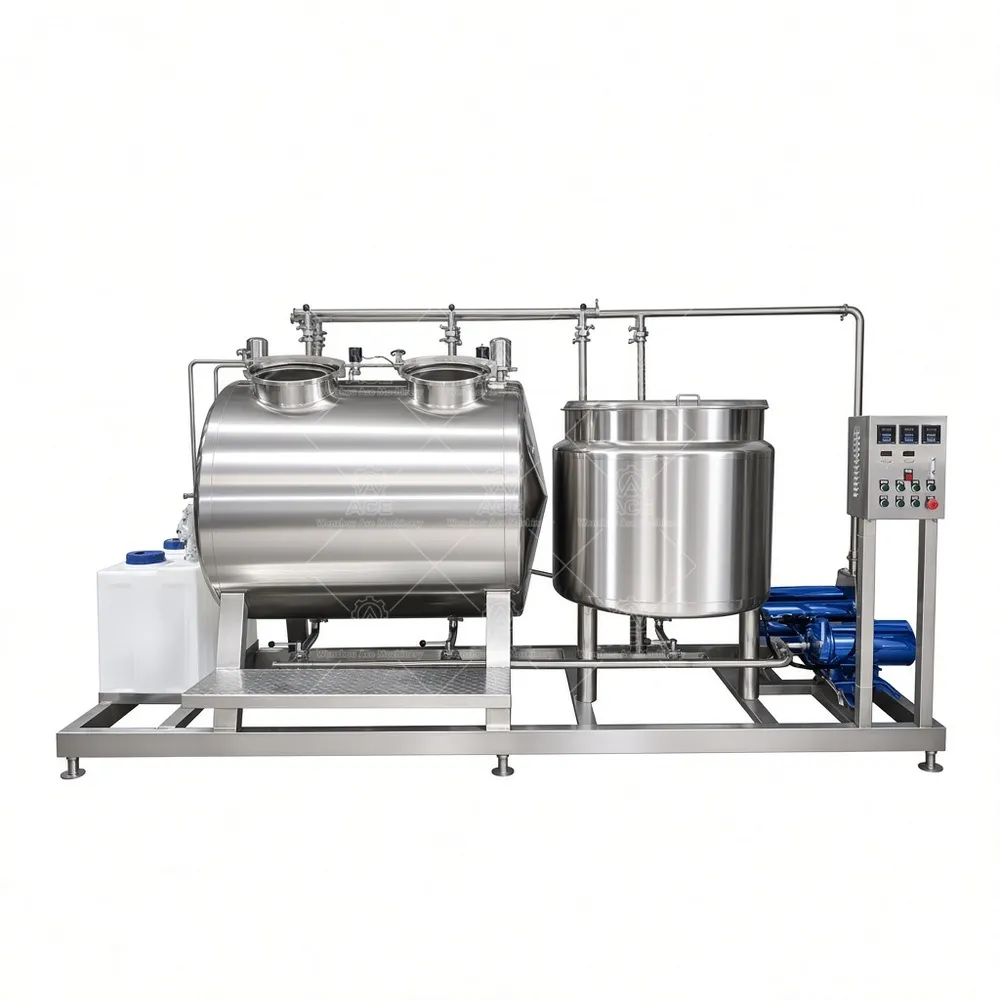

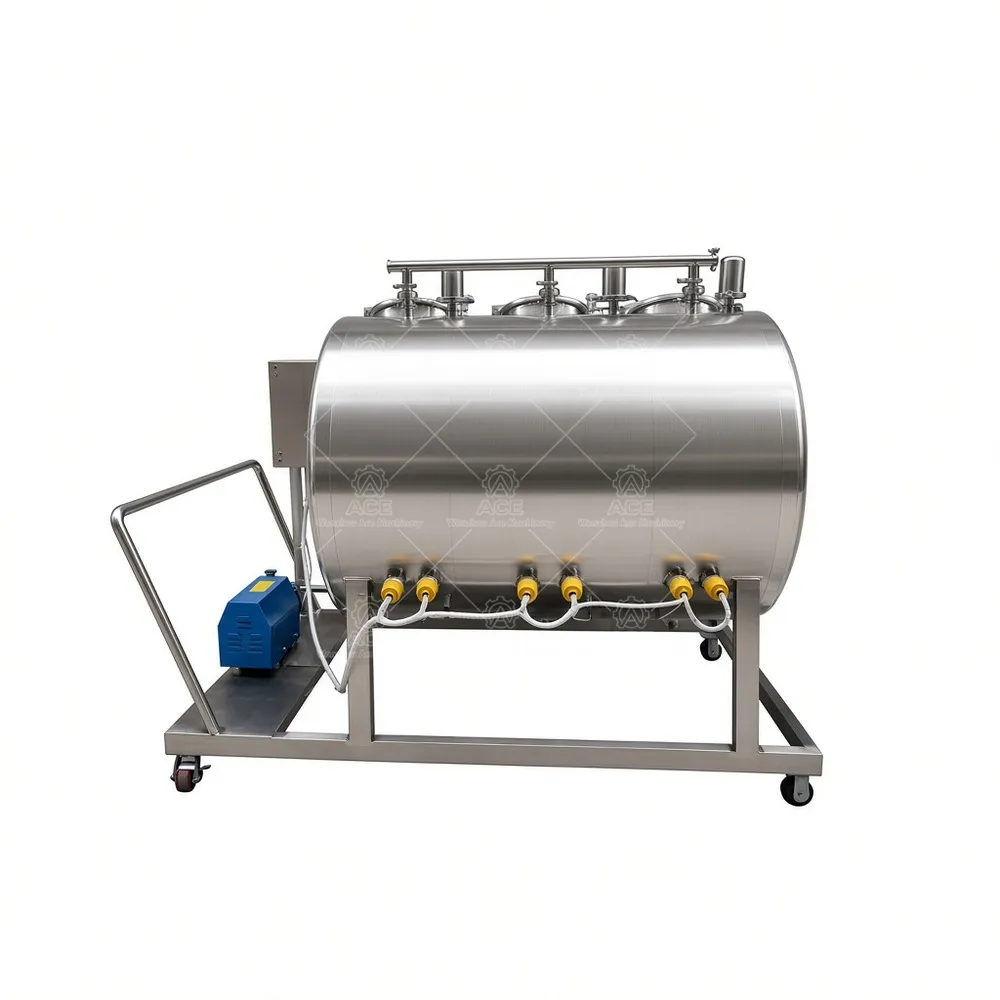

200L Stainless Steel CIP System for Milk Beer Wine Lines, 1-Year Warranty
This 200 L stainless steel CIP cleaning system supports sanitary cleaning of milk, beer, wine, and liquid food lines. We build single- or multi-tank configurations with electric or steam heating, matched pumps, instrumentation, and manual, semi-automatic, or PLC control. Share your line volume, soil load, utilities, and automation target so we can confirm tank capacity, circuits, and final specifications.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,605.82 through $9,692.10
Guaranteed Safe Checkout
200 L CIP System for Sanitary Process Lines
This 200 L stainless steel CIP cleaning system is for dairies, breweries, wineries, and liquid food plants that need a repeatable clean-in-place cycle without building a custom skid from scratch. The unit circulates detergent, rinse water, and hot water through tanks, a CIP supply pump, valves, and sanitary piping to clean product lines, vessels, fillers, and heat exchangers. Return flow, temperature, and concentration need to be controlled; otherwise cleaning looks complete while residue remains in low points or dead legs.
We build the skid around the cleaning task. A single tank suits simple rinse and caustic cycles. Two or three tanks separate acid, caustic, and hot water or rinse. More tanks reduce changeover time but take floor space. Electric heating is straightforward where steam is unavailable; steam heating usually gives faster recovery. Pump flow and pressure must match circuit volume and spray devices, not just tank size.
Control can be manual, semi-automatic, or PLC-based. We confirm what is actually included for each project: level, temperature, flow, pressure, conductivity, return pump, valves, and alarm logic. Optional configurations such as multi-tank layouts, acid and caustic tanks, hot water tanks, electric or steam heating, return pumps, instrumentation, and custom automation are examples only; final scope is confirmed for the model or project. The table below is a starting point, not a fixed catalog promise.
| Item | Specification |
|---|---|
| Cleaning tank capacity | 200 L nominal; other sizes available |
| Number of tanks | Single, double, triple, or multi-tank, project-specific |
| Stainless grade | 304 or 316L, selected for chemical and environment |
| Heating | Electric or steam, optional |
| Pumps | CIP supply and return pumps; flow and pressure project-specific |
| Working temperature | Application-specific; hot wash typically up to 80 C, confirm for the duty |
| Control | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | One or multiple, with valves and manifold as required |
| Power | Custom to site supply |
| Dimensions | Layout-dependent |
| Custom options | Tank size, circuits, automation, and skid layout |
Typical applications include milk and dairy lines, beer and wine transfer piping, sauce and syrup processing, liquid food, cosmetics, and pharmaceutical process equipment where stainless construction and documented cleaning cycles are required. Chemical compatibility, surface finish, and cleaning validation requirements vary by plant; we review them before recommending materials.
FAQ
Can one system clean several circuits? Yes, with a properly sized manifold and valve arrangement. We need the number of circuits, pipe diameters, lengths, and elevation changes.
Is 200 L enough? It depends on circuit volume, soil load, and rinse strategy. For long lines or multiple vessels, a larger tank or multi-tank layout may be more practical.
What should buyers prepare? Product type, soil, line volume, cleaning chemical, target temperature, available steam or power, floor space, and automation level. Send these details and we will recommend tank capacity, pump duty, controls, and a factory-direct quotation.
