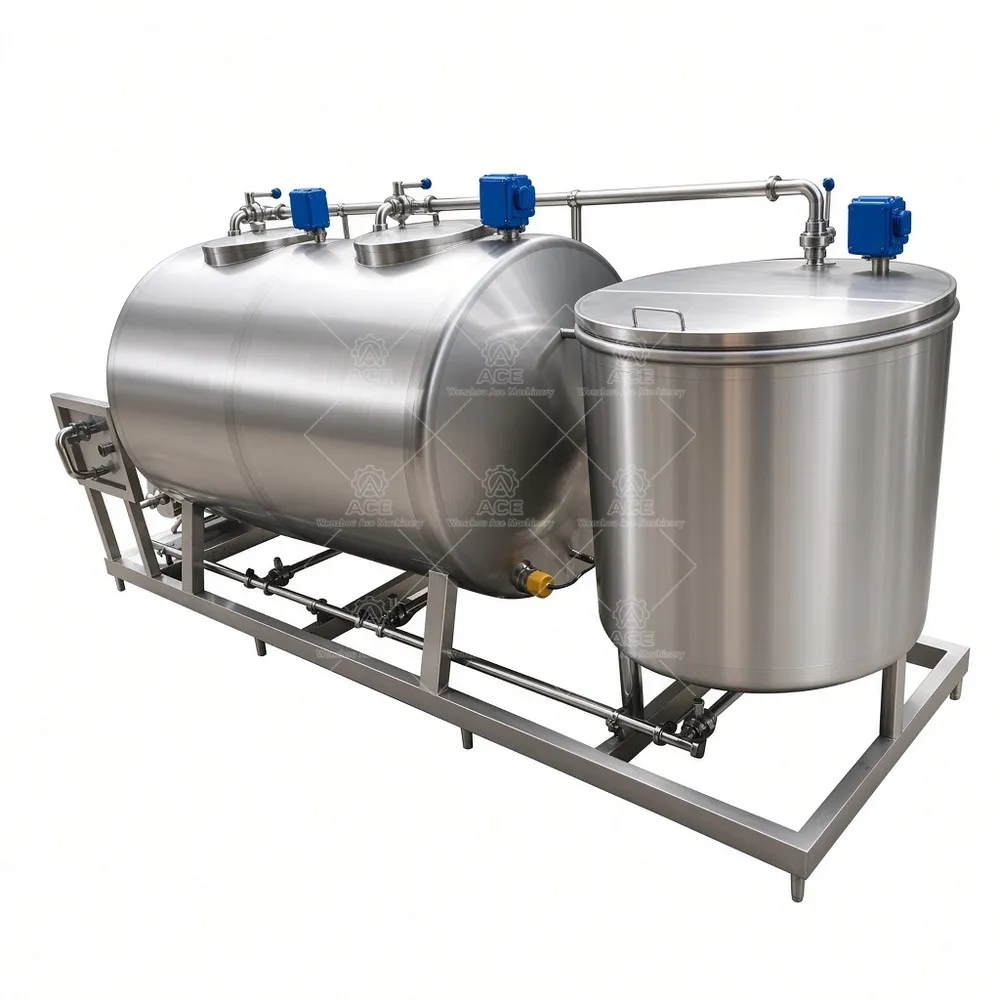

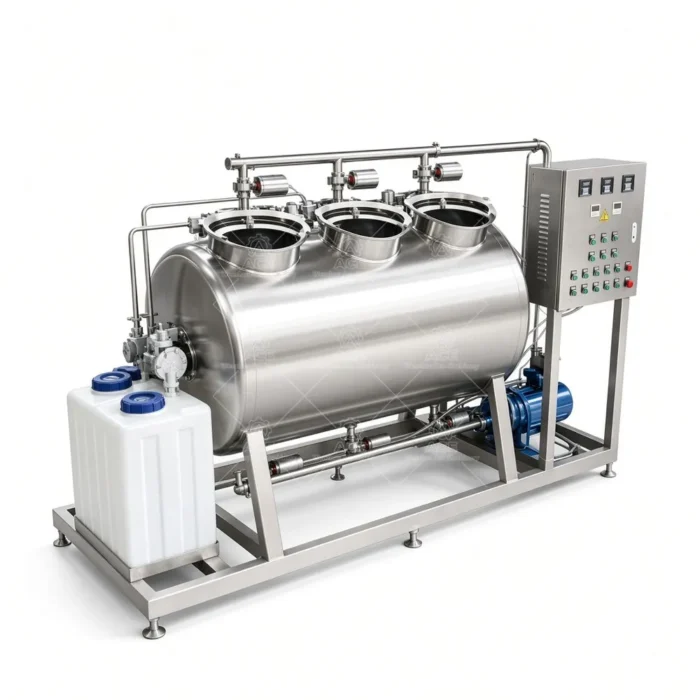

CIP Cleaning System for Dairy, Beverage, Wine and Juice Plants
This CIP cleaning system supports dairy, beverage, wine, soft drink and juice production with customizable stainless steel tanks, heating, pumps, valves and PLC or manual control. We size caustic, acid, hot water and rinse stages around your circuits, soil load and changeover schedule. Share tank and piping details for a factory-direct configuration and engineering review.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,978.34 through $9,787.03
Guaranteed Safe Checkout
CIP Cleaning System for Dairy, Beverage and Juice Plants
We build clean-in-place systems for repeatable cleaning of tanks, lines, fillers, pasteurizers and heat exchangers. The skid circulates detergent, rinse water and sanitizer through a defined circuit at controlled temperature, flow and contact time. Cleaning starts with the soil, not the tank count. Dairy protein and milk stone usually call for caustic, acid and hot rinse. Juice and soft drink plants focus on sugar and flavor residue. Wineries and breweries often need separate circuits for fermenters, bright tanks and transfer lines. We size caustic, acid and hot water tanks around circuit volume, soil load and changeover schedule.
How the cycle works
Supply pump, return pump, flow switch and temperature sensor form the core loop. A typical sequence is pre-rinse, caustic wash, intermediate rinse, acid wash where required, final rinse and sanitizing. PLC recipes store setpoints by circuit. Manual and semi-automatic panels remain available for smaller plants.
Technical specifications
| Parameter | Project range |
|---|---|
| Cleaning tank capacity | 100–5,000 L per tank; custom sizes |
| Tank quantity | 1–4+ tanks: caustic, acid, hot water, rinse or recovery |
| Stainless grade | 304 or 316L wetted parts, based on product and chemicals |
| Heating | Electric immersion or steam heat exchanger |
| Pump flow and pressure | Sized by circuit volume and pressure drop |
| Operating temperature | Set by cleaning recipe and chemical limits |
| Control | Manual, semi-automatic or PLC/HMI recipe control |
| Cleaning circuits | Single or multiple supply and return circuits with valve manifolds |
| Power | Customer-specific voltage and phase |
| Dimensions | Skid layout based on tanks, pumps and access clearance |
| Custom options | Tank capacity, circuits, automation, monitoring, piping and skid layout |
Applications
Dairy, beverage, brewery, winery, sauce, liquid food, cosmetics and pharmaceutical plants use CIP for tanks, piping, valves, pumps, fillers and heat exchangers. Requirements vary by residue, surface finish and circuit design; we review these before recommending a configuration.
FAQ
How many tanks? Two tanks cover caustic and rinse for many simple circuits. Acid, hot water and recovery tanks are added when soil or changeover demands it.
Can solutions be reused? Yes, where concentration monitoring is included and soil load supports it.
What speeds a quote? Circuit volume, pipe diameter, residue, cycles per day, heat source and automation level.
Request a CIP configuration
Tell us your industry and product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade and installation location. We will recommend tank arrangement, pump duty, control level and stainless construction. Factory-direct fabrication and engineering support are available for custom skids.
