PLC CIP Washing System with Electric Heating & Auto Temperature Control
PLC-controlled CIP washing system with electric heating, automatic temperature control, and manual override for stainless process lines. Configure single- or multi-tank skids with caustic, acid, and rinse tanks, supply and return pumps, plus flow, pressure, level, and temperature monitoring. Factory-direct engineering support for dairy, beverage, brewery, food, cosmetic, and pharmaceutical cleaning circuits. Send tank and piping details for a tailored quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L

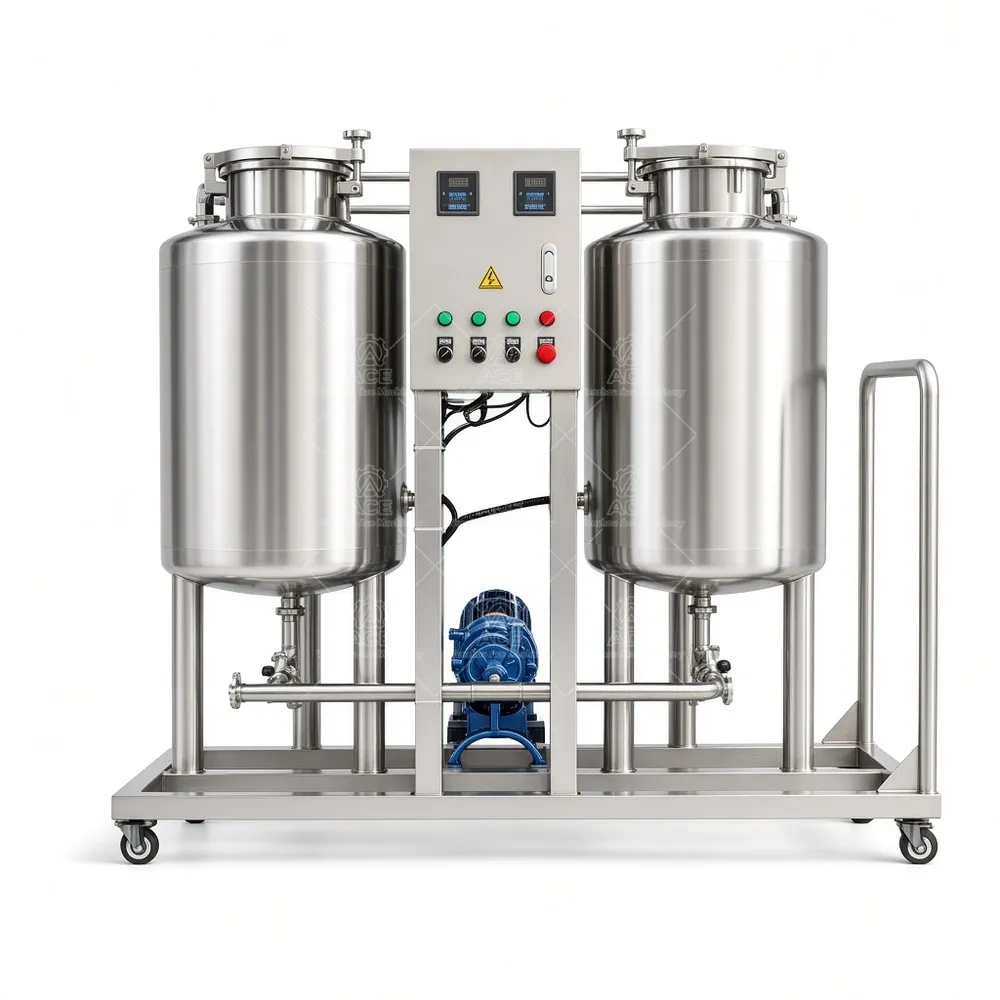

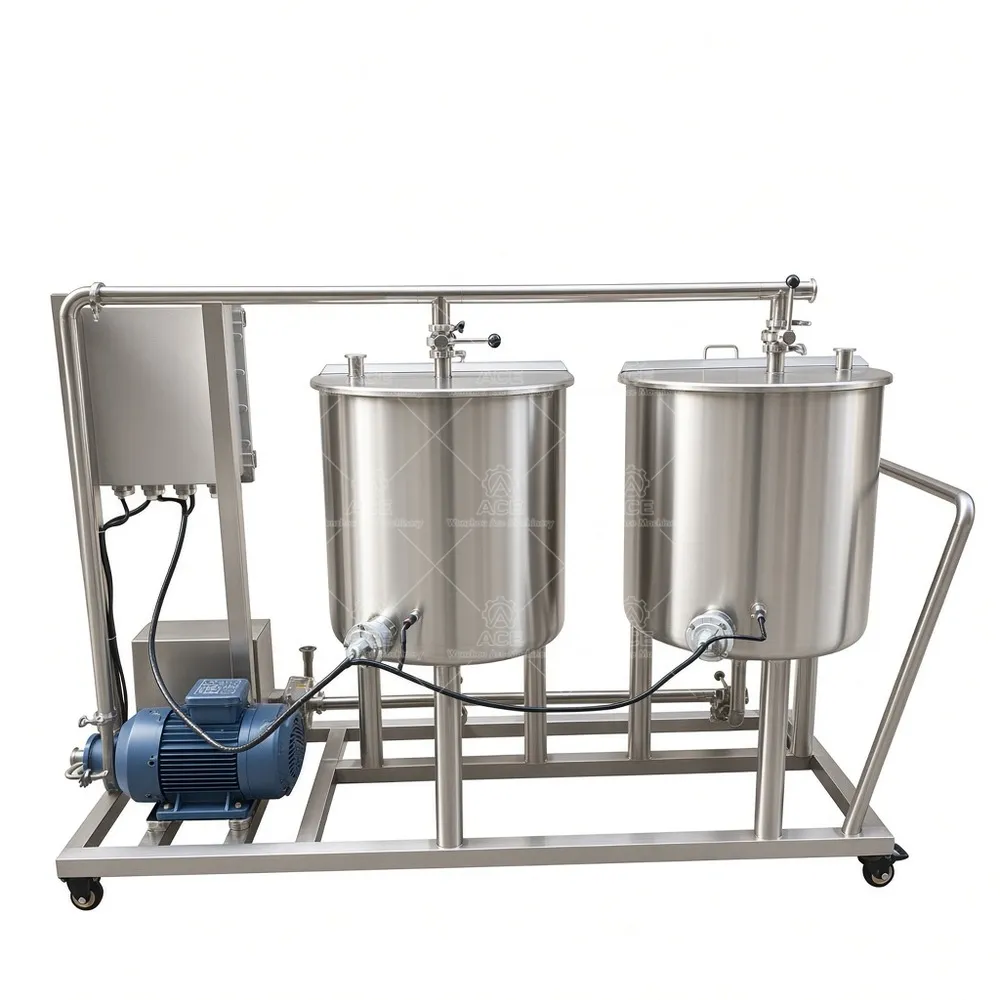

- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,660.41 through $9,554.83
Guaranteed Safe Checkout

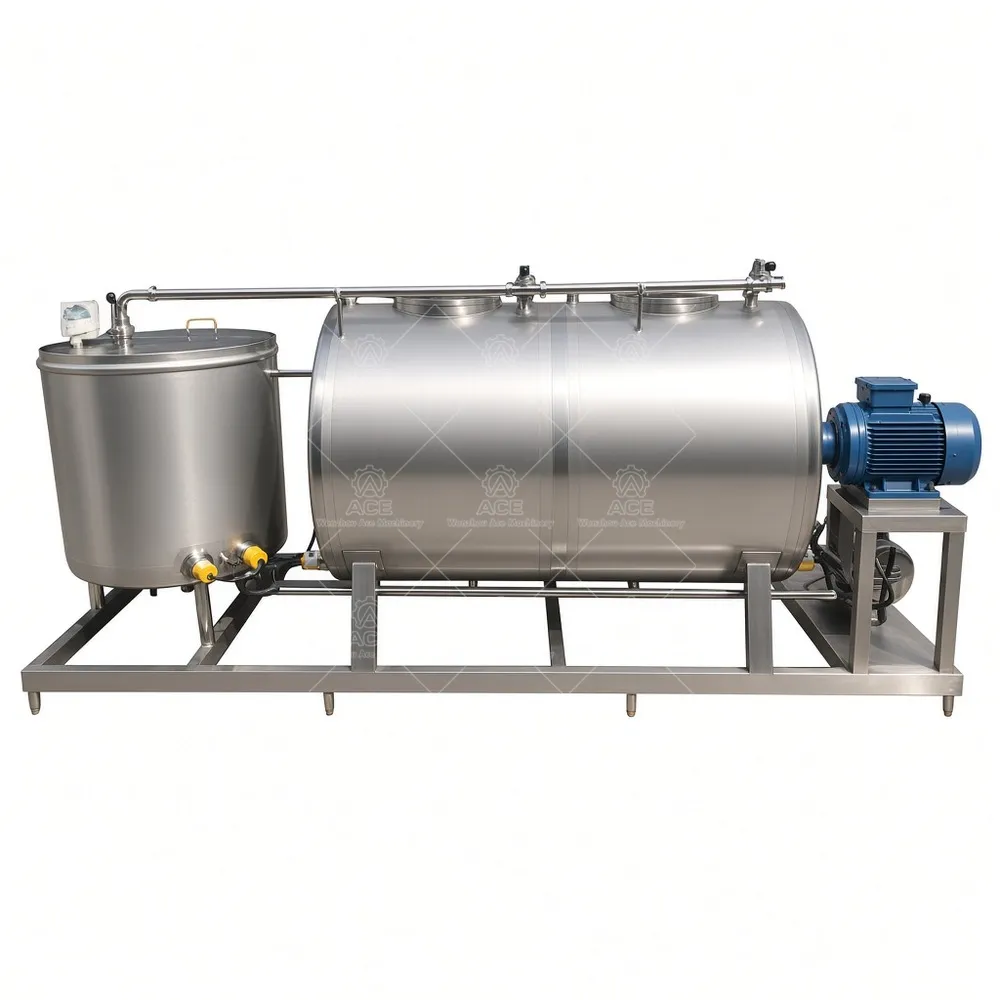

PLC CIP Washing System for Stainless Process Lines
We build this CIP skid for repeatable cleaning of tanks, piping, fillers, and heat exchangers without manual valve changes at every step. The PLC panel handles temperature, cycle sequence, and wash routing; manual override remains for setup and troubleshooting. Electric heating fits plants without stable steam; steam coils are available when plant steam is reliable.
A typical cycle runs pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and drain. Flow, temperature, pressure, and level feedback confirm each step. Size the pump around your longest circuit and largest tank. Oversized pumps waste energy and can stress small loops; undersized pumps leave dead legs.
Options

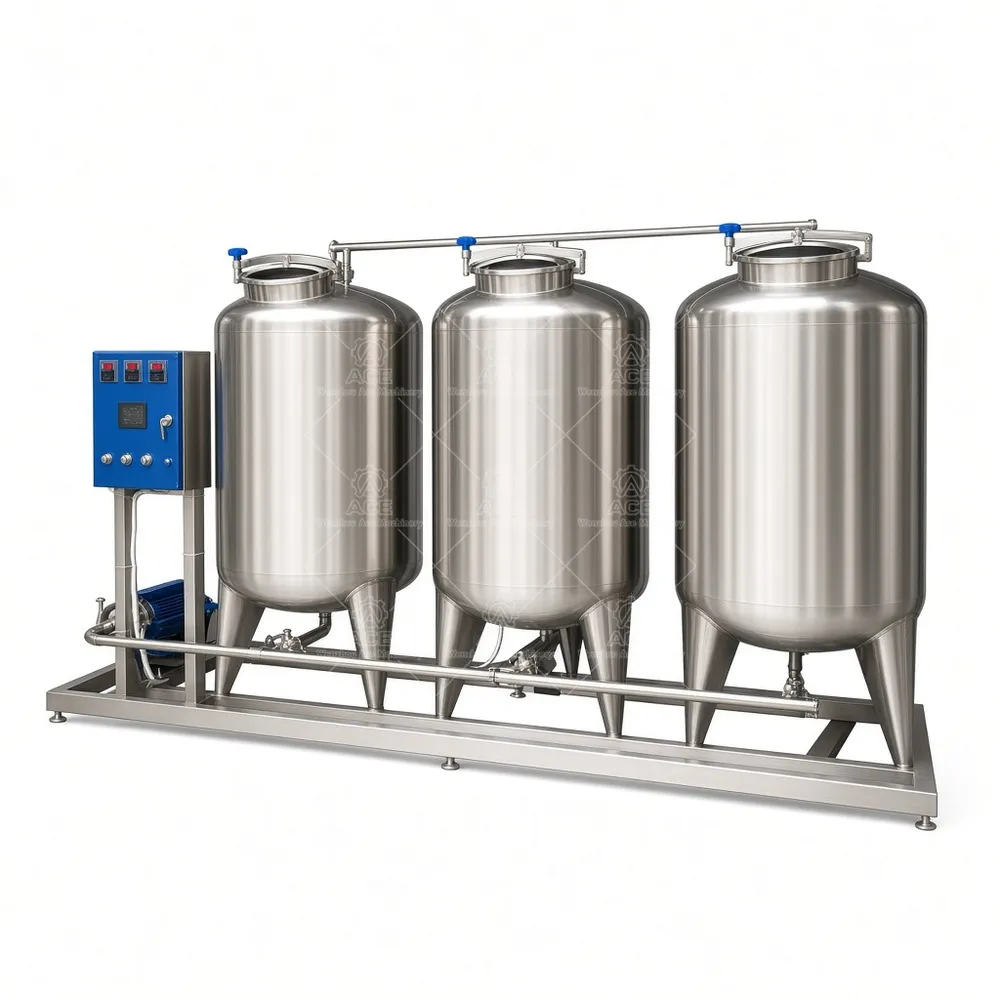

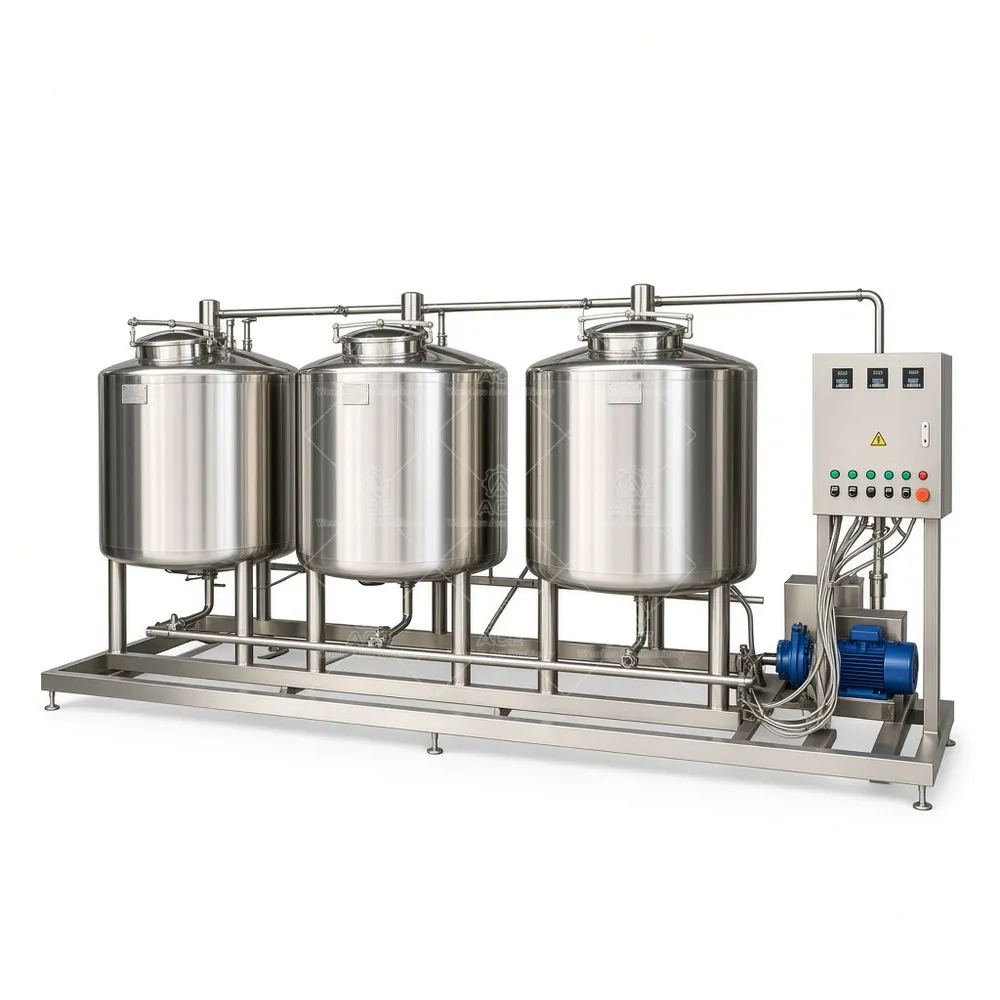

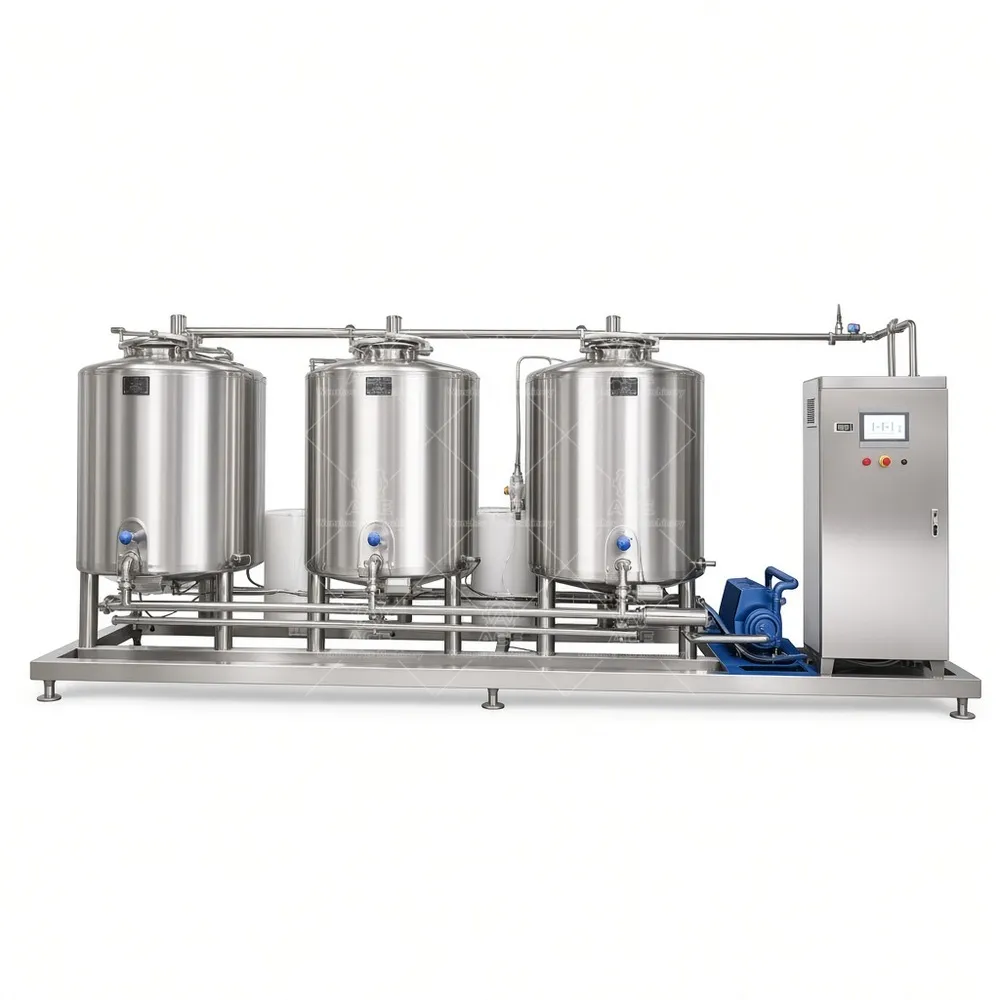

- Single, two, three, or four-tank skids
- Caustic, acid, and hot water tanks
- Electric or steam heating
- Supply and return pumps, stainless piping, valves
- Manual, semi-automatic, or PLC control
These are possible configurations, not guaranteed standard features. Final scope depends on soil load, circuits, water quality, and utilities.
Technical specifications
| Parameter | Typical range / option |
|---|---|
| Tank capacity | 100–5,000 L per tank, project-specific |
| Tank quantity | 1–4, more by layout |
| Stainless grade | SS304 / SS316L wetted parts |
| Heating | Electric immersion or steam coil |
| Pump flow / pressure | 5–80 m³/h, 2–8 bar, sized to circuit |
| Temperature | Ambient to 90°C, chemistry-dependent |
| Control | PLC with HMI; manual or semi-auto options |
| Cleaning circuits | Single or multiple supply/return routes |
| Power | 380–480 V, 3 phase, 50/60 Hz |
| Dimensions | Skid-mounted, built to layout |
| Custom options | Tank size, loops, automation, materials |
Applications
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical plants use CIP for tanks, lines, pumps, valves, fillers, and exchangers. Soil type sets chemistry and temperature: milk residue, sugar syrup, beer stone, pulp, cream, and API residues behave differently.
FAQ
How do I size tank capacity? Start with the largest circuit volume and surface area, then add rinse water and chemical inventory. Small lines may use one 500 L tank; larger plants often need separate caustic, acid, and rinse tanks.
Can the PLC handle multiple loops? Yes, with the right valve manifold and I/O count. Send a P&ID or loop list so we can map supply and return paths.
Request a quote
Tell us your industry and product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend tank volume, pump size, and control scope. Factory-direct fabrication and engineering support are available.
