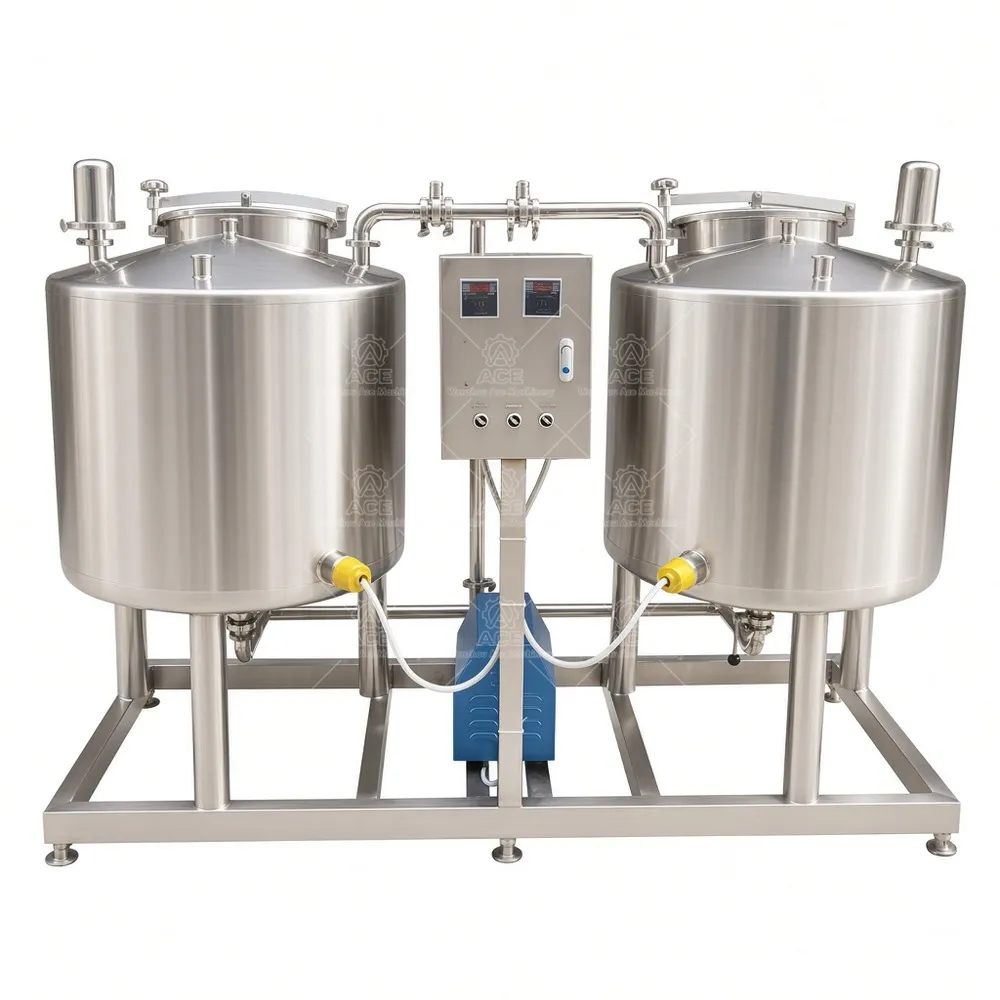

Stainless 100L Double-Tank CIP Cleaning Machine for Dairy, Beer & Beverage
Stainless steel 100L double-tank CIP cleaning machine for sanitary lines in dairy, beer, beverage, and liquid food plants. We configure tank count, heating, pump flow, instrumentation, and PLC or manual control around your circuits. Share your piping, cleaning capacity, heat source, and automation needs for a factory-direct recommendation and quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,329.03 through $8,802.90
Guaranteed Safe Checkout
What this CIP system does
We build this stainless steel 100L double-tank CIP cleaning machine for sanitary pipelines and process equipment in dairy, beer, beverage, and liquid food plants. It circulates detergent, rinse water, and optional sanitizer through tanks, lines, valves, fillers, heat exchangers, and spray devices. A typical cycle covers pre-rinse, alkaline wash, intermediate rinse, acid wash when needed, and final rinse.
Before quotation, we confirm the real scope: acid/alkali tanks, hot water tank, electric or steam heating, circulation and return pumps, stainless piping, valves, instrumentation, and manual, semi-automatic, or PLC control. Tank count, capacity, circuits, and automation are project choices, not a fixed standard build.
Choosing tank configuration and cleaning capacity
Start with circuit volume and soil load, not tank liters alone. A 100 L tank suits small skids and pilot lines; larger plants often need more buffer capacity and separate acid, alkali, and hot water tanks. Count circuits, measure the longest return line, and define flow and pressure at the spray ball or nozzle. Undersized pump flow and poor drainability are common mistakes.
Technical specifications
| Item | Typical range / options |
|---|---|
| Cleaning tank capacity | 100 L per tank; custom sizes available |
| Number of tanks | Double tank; single, triple, or multi-tank optional |
| Stainless steel grade | 304 or 316L, depending on chemistry and contact requirements |
| Heating | Electric or steam heating |
| Pump flow and pressure | Sized to circuit volume, pipe size, and spray device |
| Working temperature | Set by detergent and process validation |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple supply/return circuits |
| Power supply | 220/380/440 V, 3-phase, 50/60 Hz; project specific |
| Dimensions | Layout-dependent; confirmed with skid arrangement |
| Custom options | Tank volume, circuits, automation, instrumentation, skid design |
Applications
Used in dairy processing, breweries, wineries, beverage plants, sauce and liquid food production, cosmetics, and pharmaceutical manufacturing. Cleaning recipe and materials must match soil, detergent, temperature, and surface finish. We review wetted materials, gaskets, and controls against the actual line.
FAQ
Can one system clean multiple circuits? Yes, with correct headers, valves, and pump sizing. We map circuits before finalizing the skid.
Is 100 L enough? It depends on circuit volume, soil load, and dilution. Send pipe lengths, tank sizes, and residue details.
Electric or steam heating? Choose by utilities, heat-up time, and temperature control. Both are possible.
Request a configuration and quote
Tell us your industry, processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend tank configuration, pump flow, instrumentation, and control scope, then provide a factory-direct quotation with engineering support.
