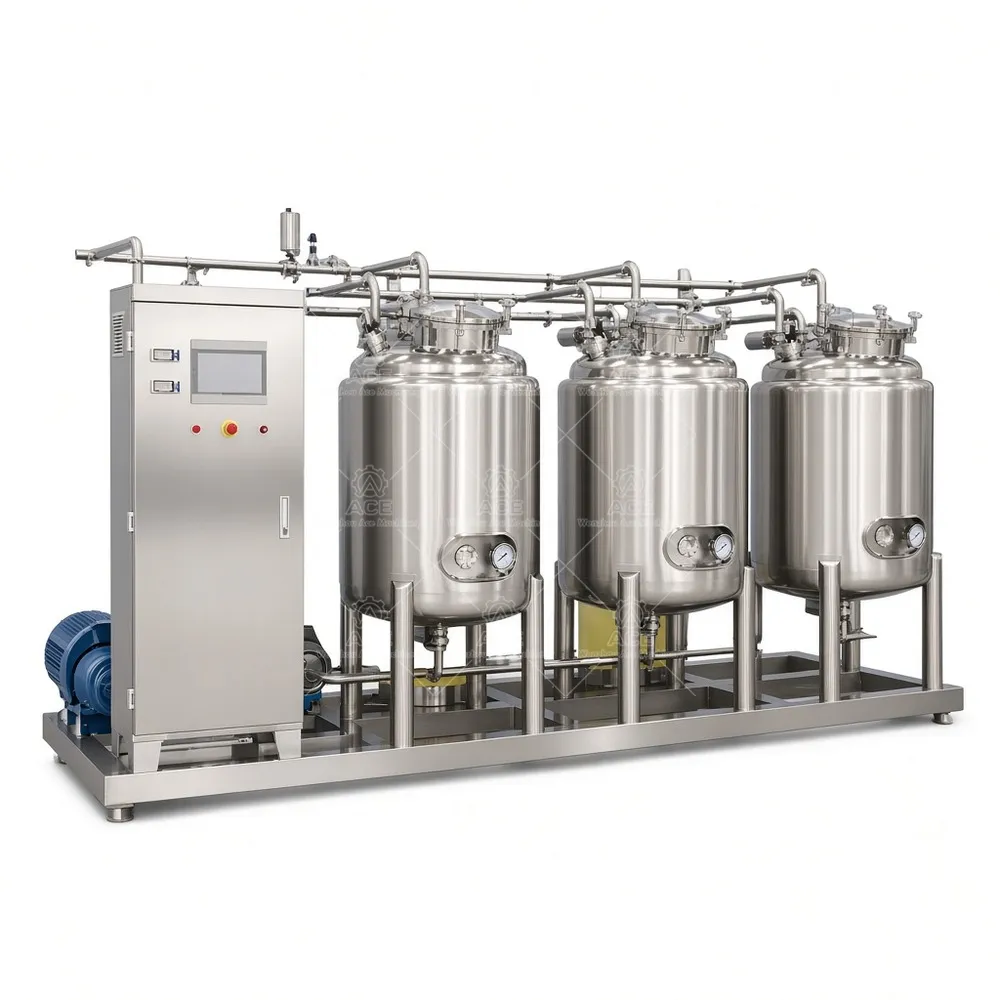

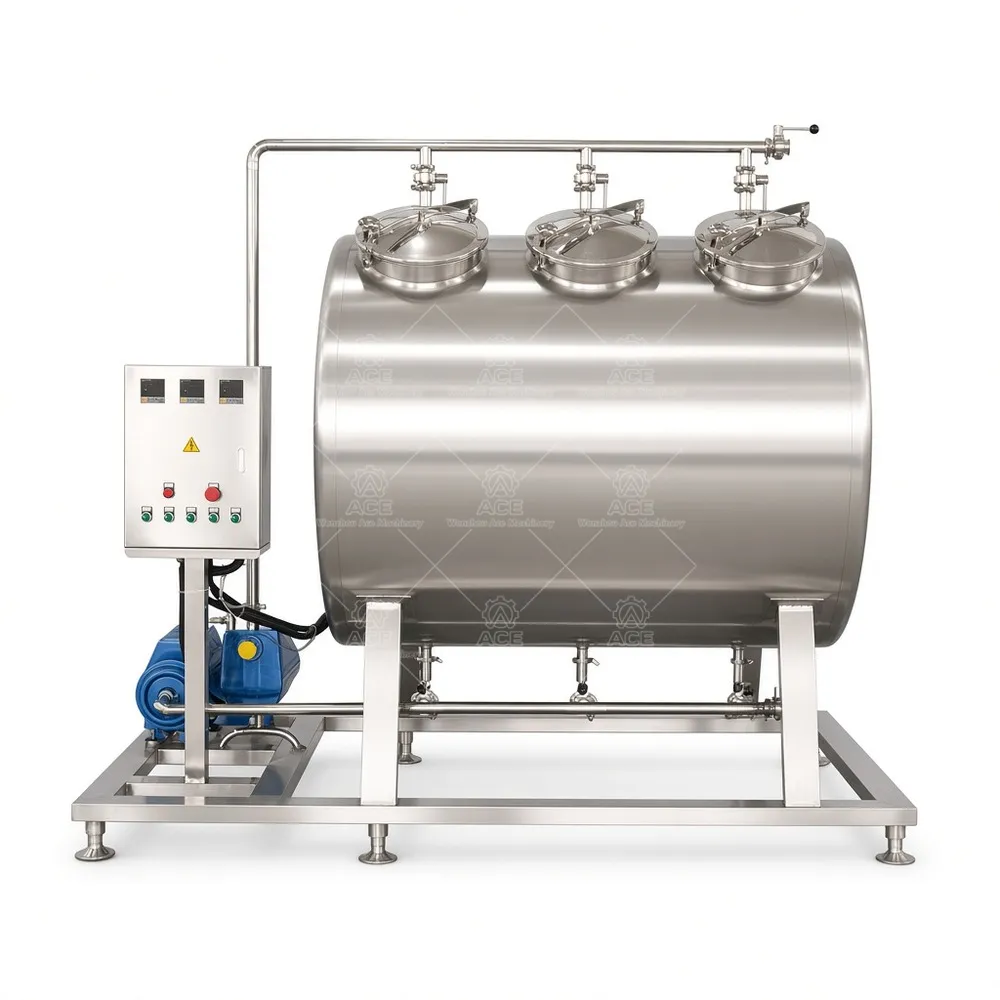

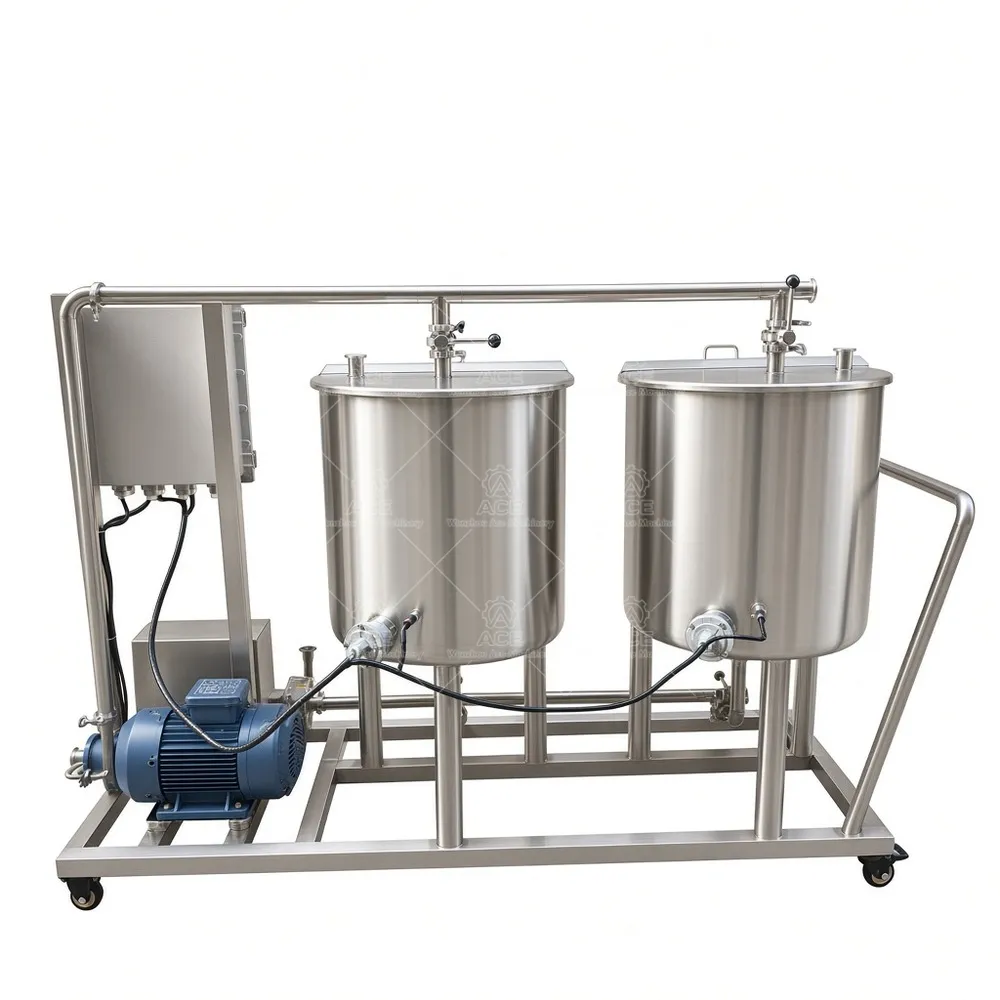

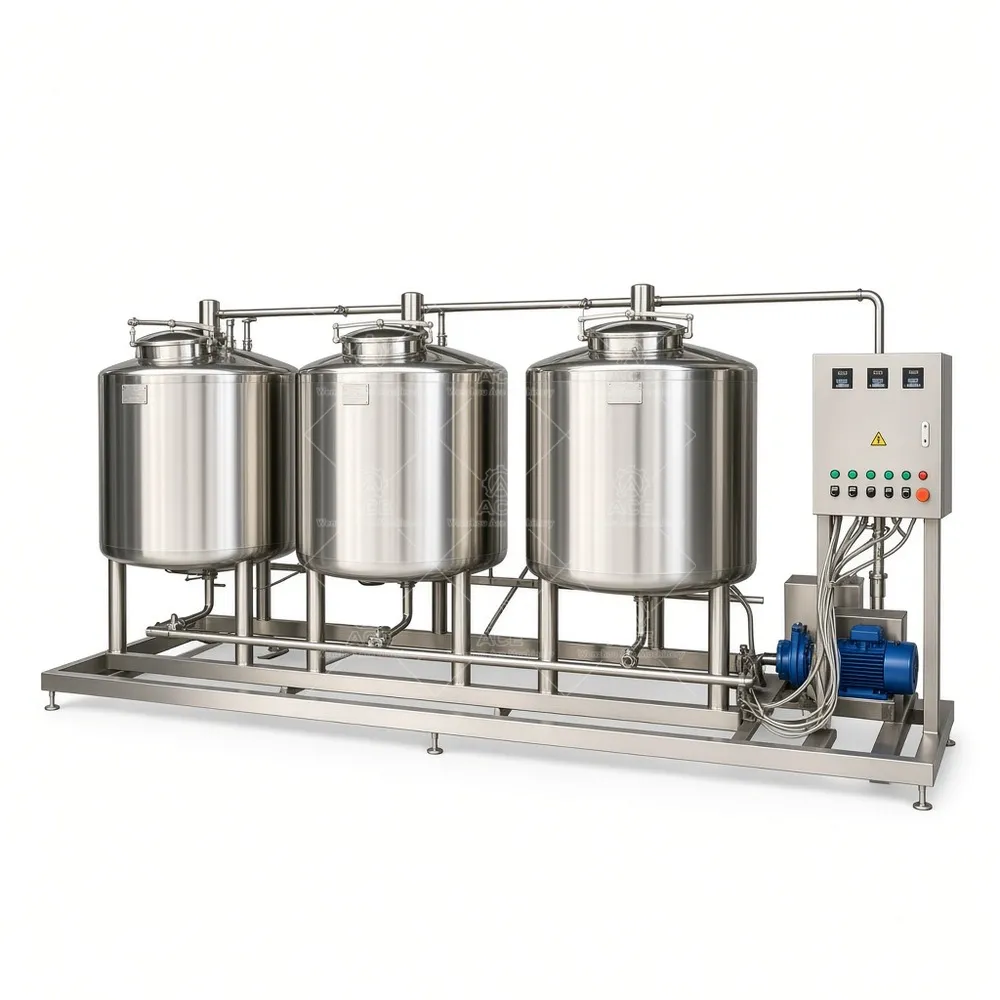

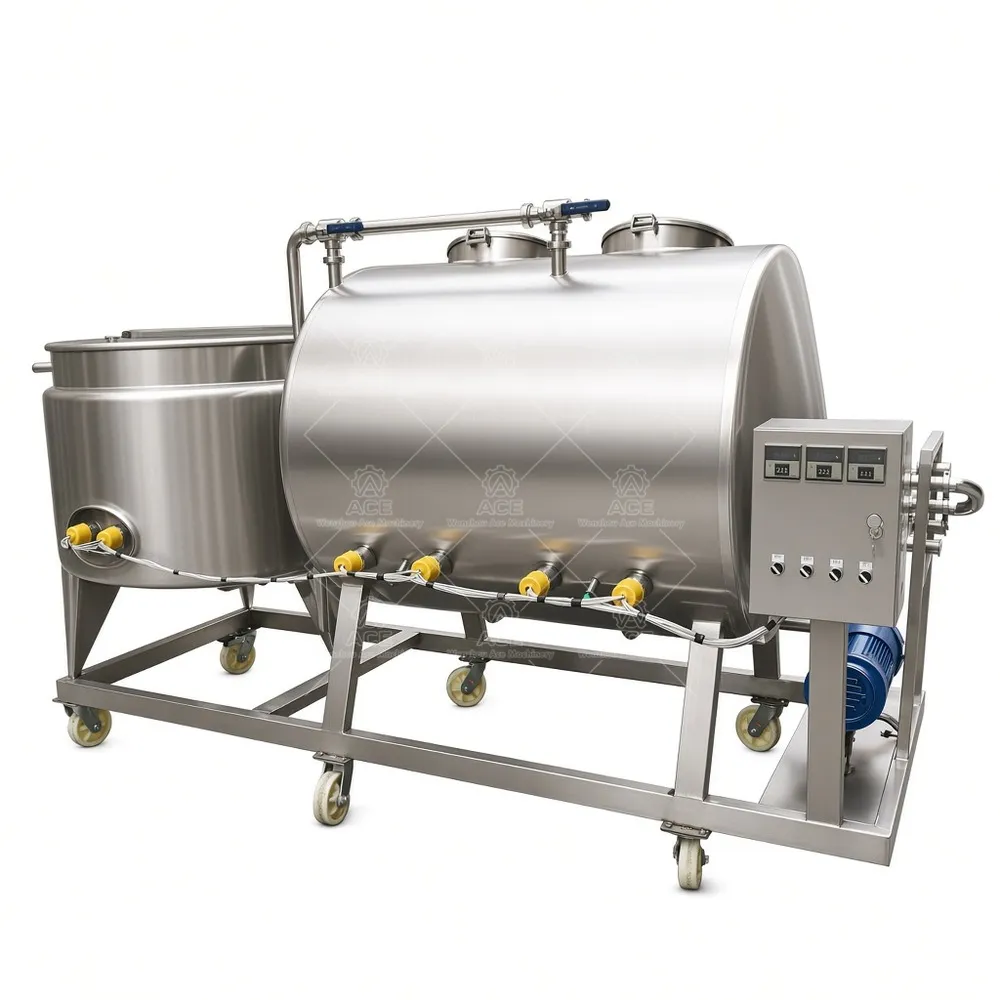

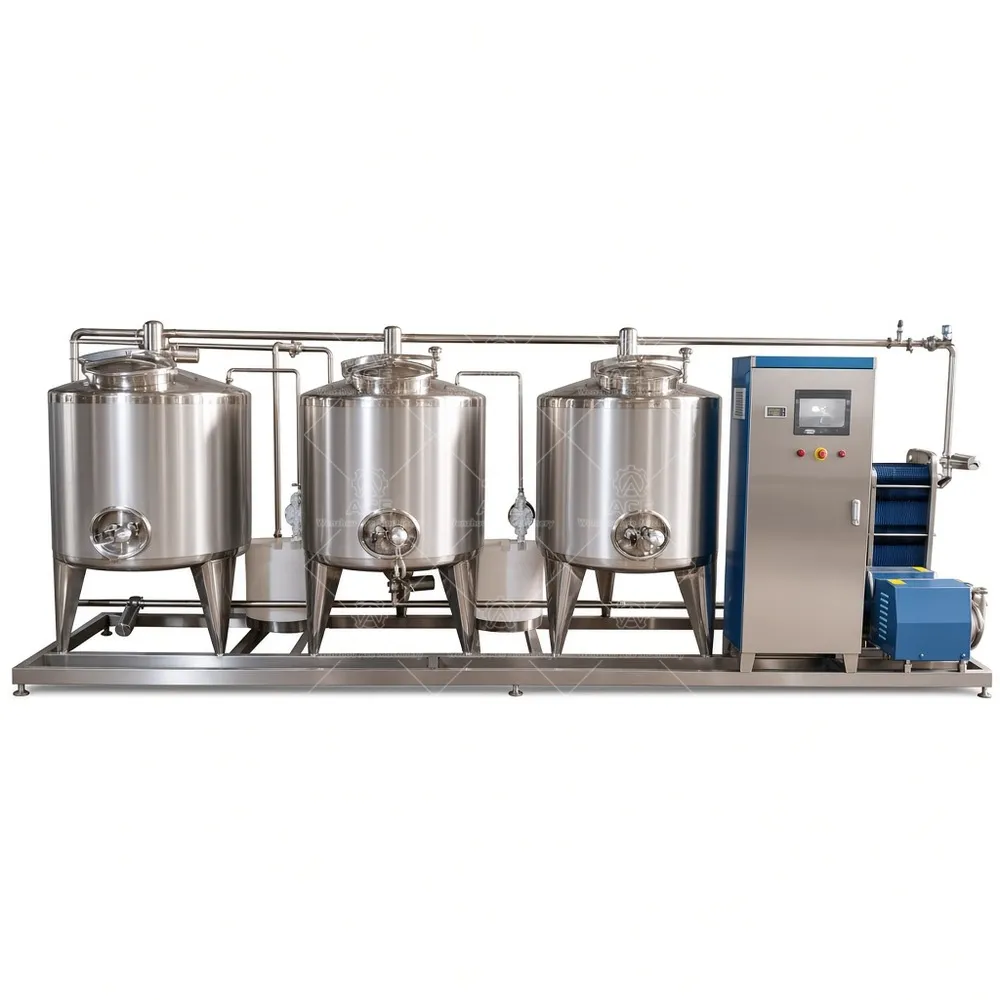

Semi-Automatic CIP Cleaning System for Dairy, Soft Drink and Juice Plants
This semi-automatic CIP cleaning system is built for dairy, soft drink, and juice operations that need repeatable cleaning of tanks, lines, and fillers. We supply stainless-steel skids with configurable tanks, pumps, heating, and monitoring. Share your circuits, soils, utilities, and automation target so our engineers can size the caustic, acid, and rinse stages for your plant.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,128.46 through $8,722.38
Guaranteed Safe Checkout
Semi-Automatic CIP for Dairy, Soft Drink and Juice Plants
Dairy, beverage, and juice plants use this semi-automatic CIP system for repeatable pre-rinse, caustic wash, intermediate rinse, acid wash, and final rinse. We build the skid around your circuits, not a catalog footprint. Operators run the sequence from pushbuttons, timers, and alarms; PLC control and data logging are available when your team needs recipes and records.
We size the pump against the pressure drop of the longest circuit, then match tank volume, return flow, and heater duty. That avoids a common mistake: buying tank capacity before mapping lines, valves, and spray devices.
Configuration Options
- One to four tanks for caustic, acid, hot water, and rinse water
- Electric or steam heating; 304 or 316L stainless steel
- Supply and return pumps, sanitary piping, valves, strainers, and instruments
- Temperature, flow, pressure, and level monitoring
- Semi-automatic or PLC control; custom tank size and cleaning circuits
Available features depend on the confirmed model and project scope.
Technical Specifications
| Item | Range or Option |
|---|---|
| Cleaning tank capacity | 200–5,000 L per tank, project-specific |
| Number of tanks | 1–4 or more |
| Stainless steel | 304 or 316L |
| Heating | Electric or steam |
| Pump flow and pressure | Sized to circuit; confirmed at quotation |
| Working temperature | Application-specific, typically up to 80°C |
| Control | Semi-automatic, PLC optional |
| Cleaning circuits | Single or multiple, per layout |
| Power supply | 220/380/440 V, 50/60 Hz, project-specific |
| Dimensions | Skid-mounted, custom footprint |
| Custom options | Tank size, circuits, heating, controls, documentation |
Applications
Typical use covers milk receiving, pasteurizers, cheese vats, fermentation tanks, mix vessels, fillers, juice lines, syrup rooms, brew kettles, transfer piping, sauce lines, and liquid-food processing. Cosmetics and pharmaceutical projects usually need additional material and documentation review; we confirm that scope early. Cleaning chemistry, cycle time, and verification needs vary by product and plant.
FAQ
How many tanks do I need? Two tanks suit simple caustic and rinse duty; acid wash or frequent changeovers may justify three or four. Can one skid serve several lines? Yes, with a manifold and valve schedule sized to avoid dead legs. What should I prepare for a quote? Circuit drawings, tank and pipe sizes, product residues, chemicals, available steam or power, and automation target.
Get an engineered recommendation. Send your industry and product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the tank configuration, pump duty, and controls, then provide a custom quotation.
