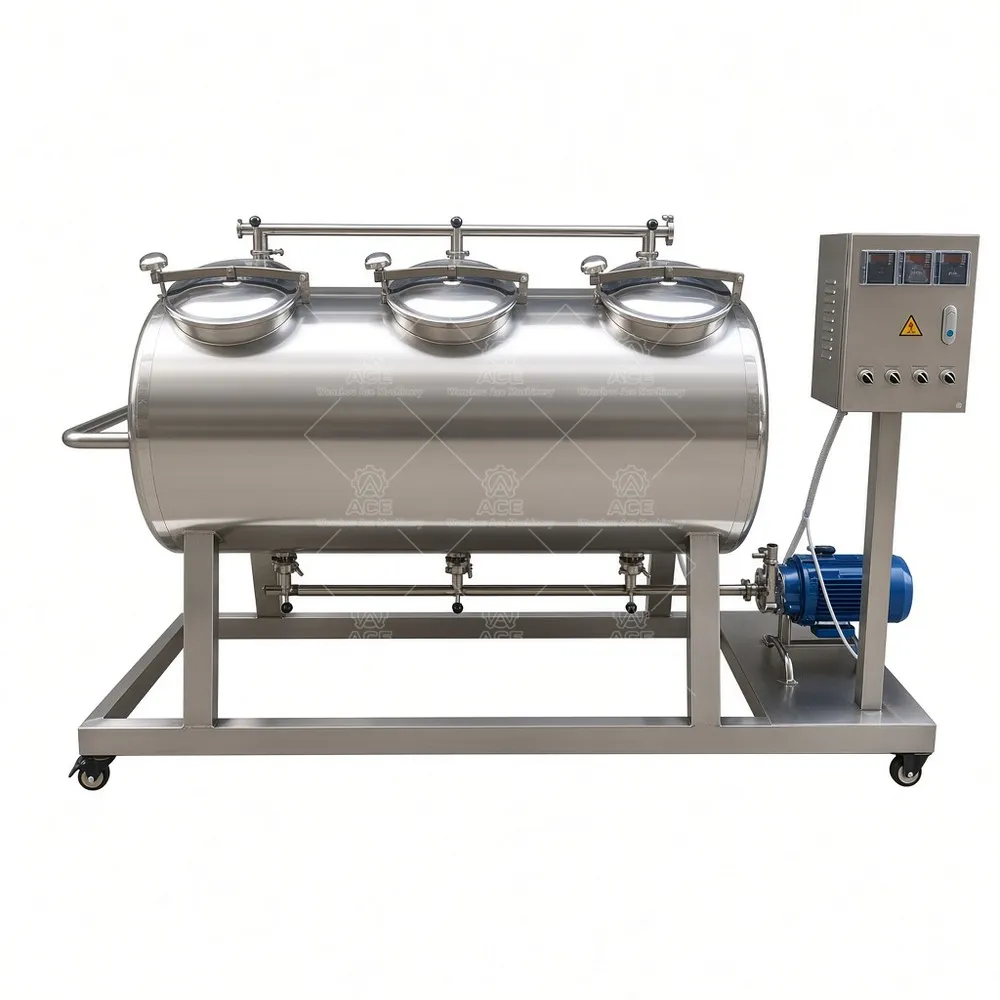

Automatic 3 Vessel CIP Cleaning System with Portable CIP Pump
Our three-vessel automatic CIP system combines caustic, acid and rinse tanks with a matched supply pump, return pump and optional portable CIP pump. We size tank volume, heating, piping and controls around your vessels, lines and spray devices. Tell us your industry, cleaning capacity and automation needs for a practical configuration and quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,026.34 through $7,657.67
Guaranteed Safe Checkout

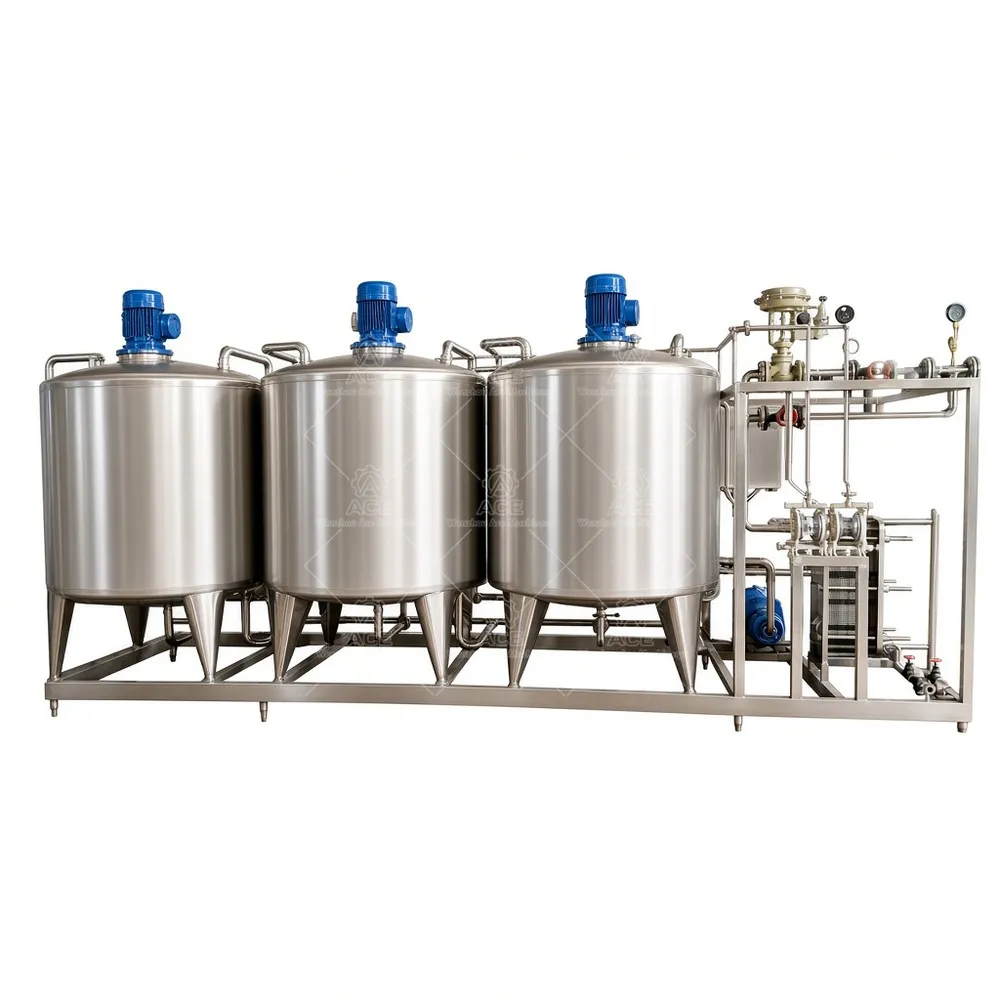

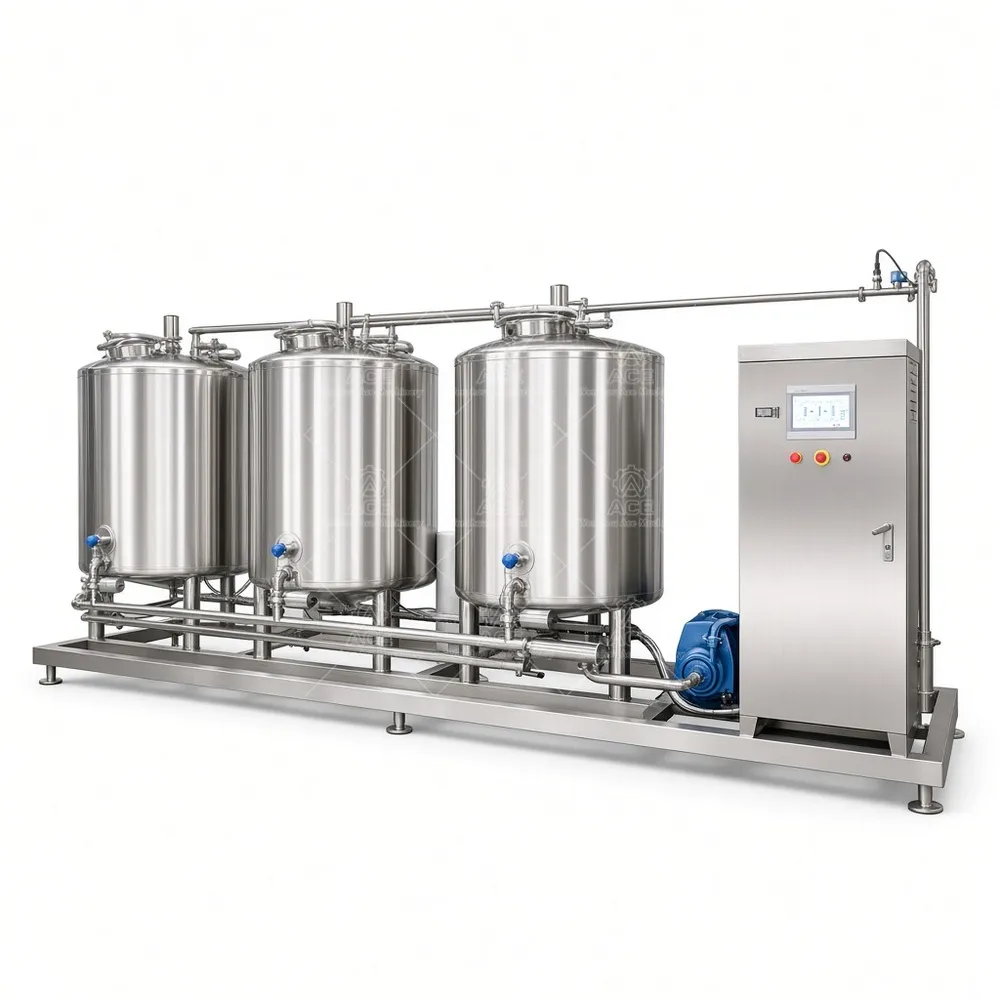

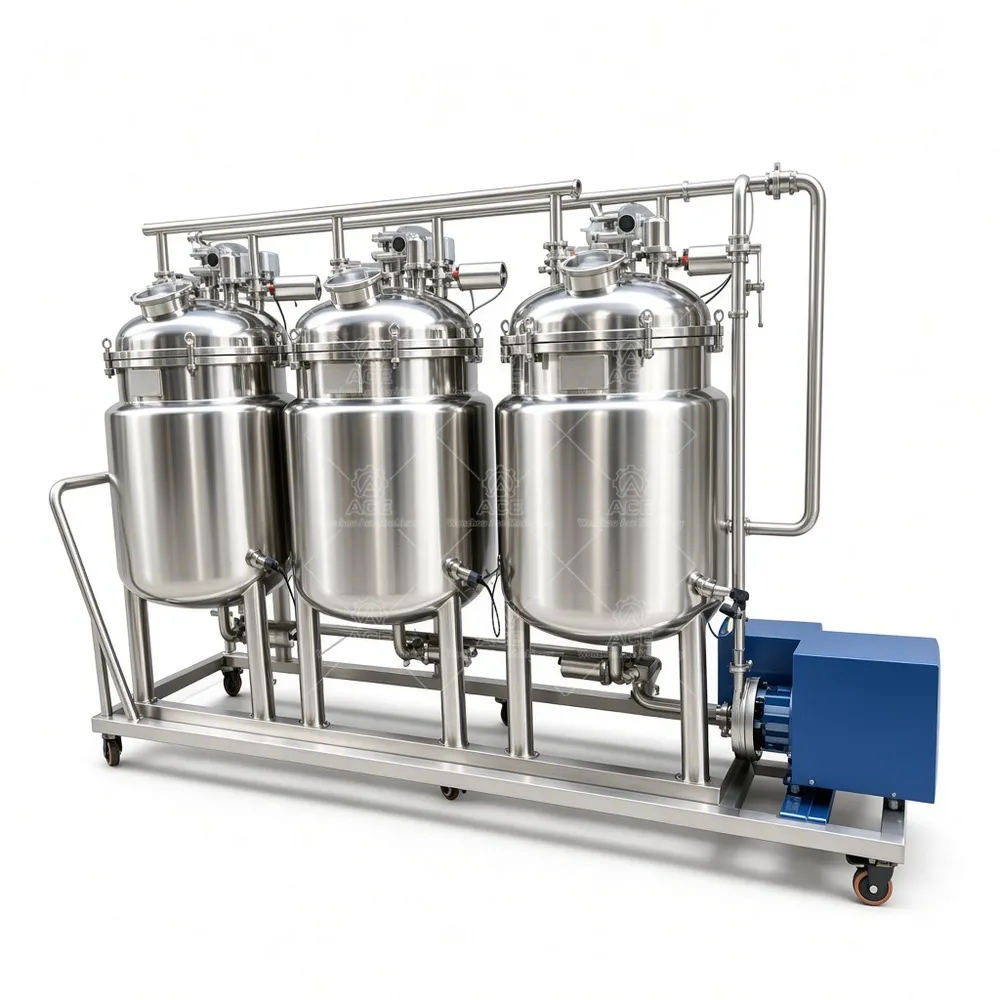

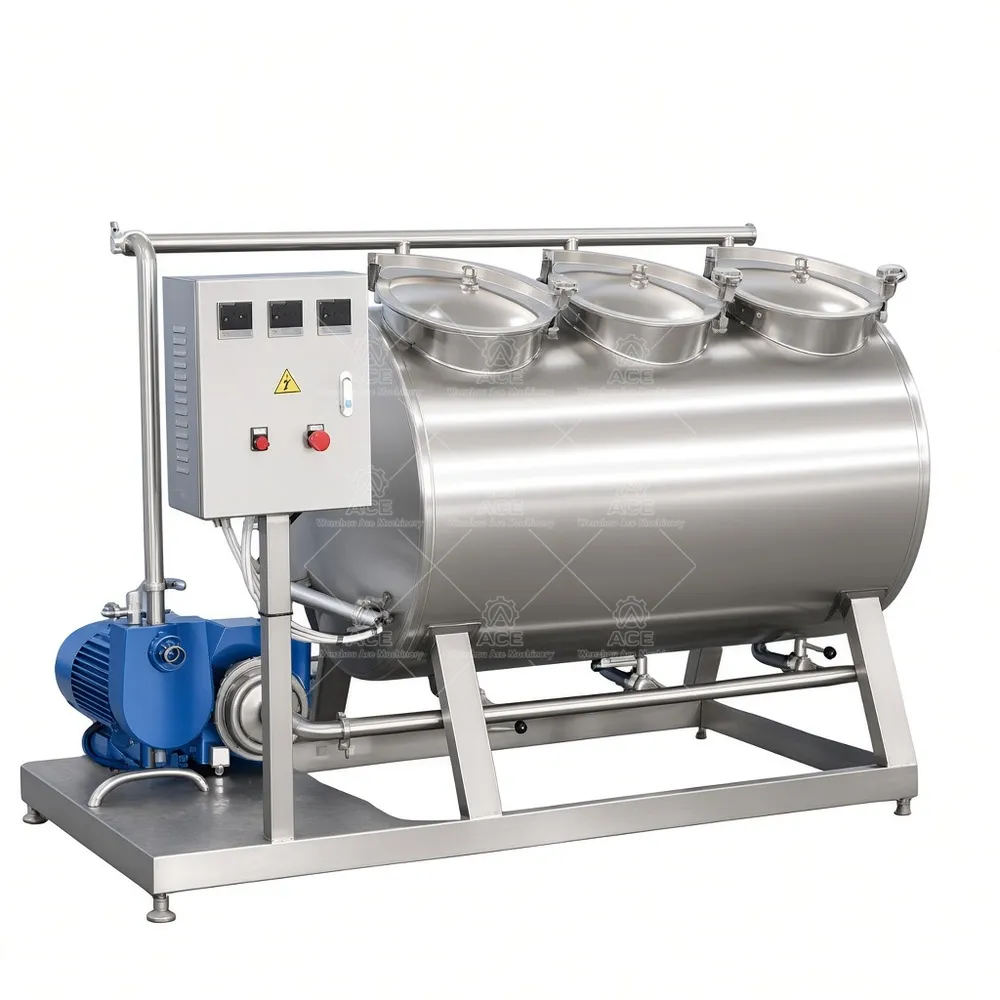

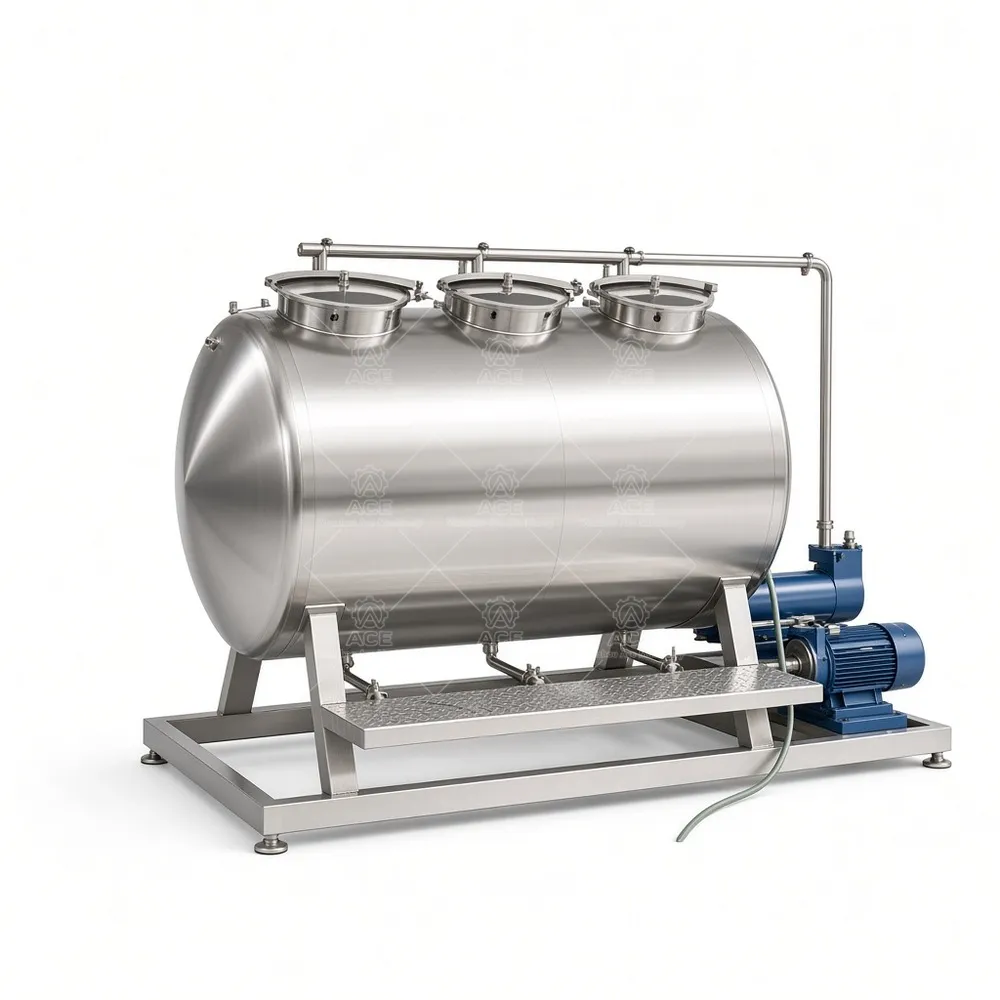

Three-vessel automatic CIP system, built around real cleaning loops

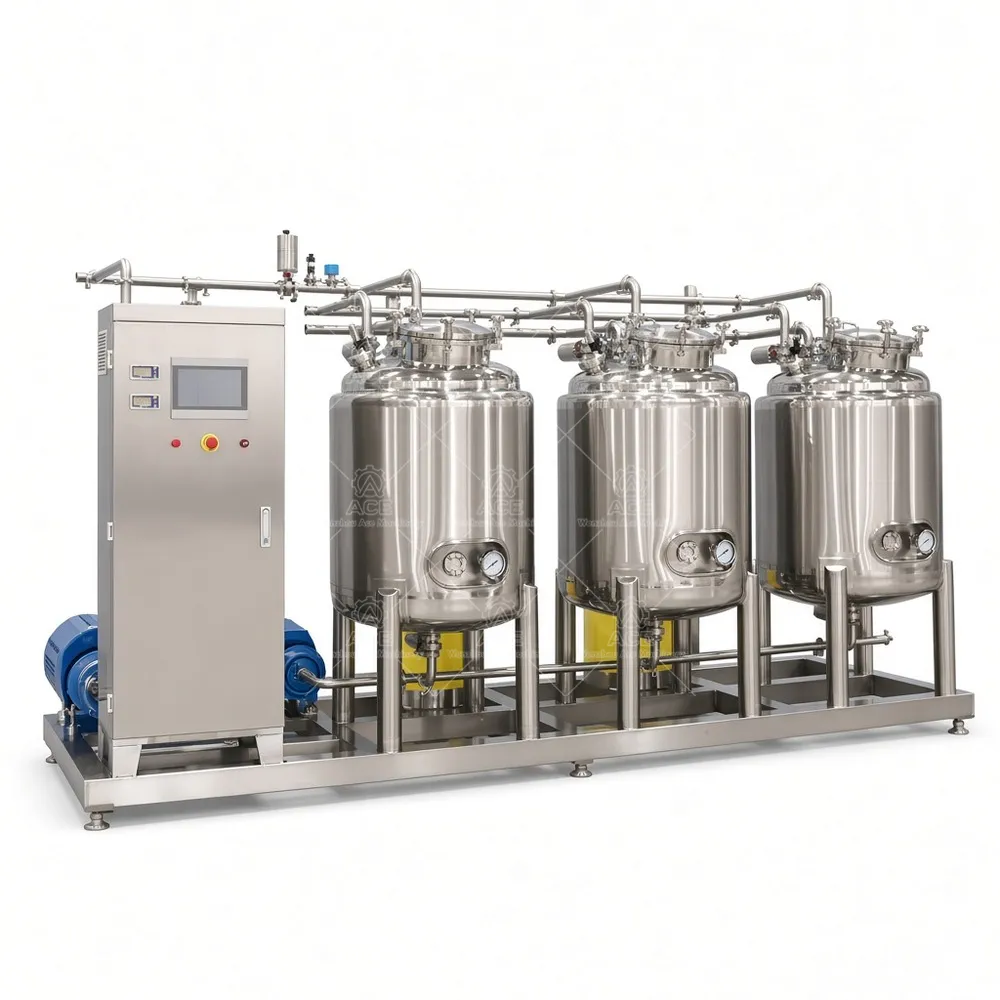

A CIP system is not just tanks and a pump. It has to deliver the right flow, temperature and chemical concentration to every spray ball, valve cluster and return line. Our three-vessel machines usually combine caustic, acid and rinse tanks, with a supply pump and return pump sized around your worst-case circuit. A portable CIP pump can support remote loops or tank transfers where a fixed skid is not practical.
Cleaning cycles are straightforward: pre-rinse, caustic wash, intermediate rinse, acid wash if needed, final rinse and drain. Temperature, conductivity, flow and pressure tell operators whether the loop is actually cleaning. We size tanks, piping and pump curves from your vessel volumes, pipe diameters, spray device requirements and changeover schedule. If you clean 10 m3 tanks and 2 in lines, that is a different machine from a 200 L cosmetic reactor loop.
Configuration choices
Single, dual, three or multi-tank layouts are available. Acid and caustic tanks, hot-water tanks, electric or steam heating, stainless piping, valves and fittings, and manual, semi-auto or PLC HMI control can be specified. Monitoring for temperature, flow, pressure and level is optional by project. The table below shows typical ranges, not standard features; final scope is confirmed per order.
| Item | Typical range or option |
|---|---|
| Cleaning tank capacity | 100 to 5,000 L per tank, project-specific |
| Number of tanks | 1, 2, 3 or more |
| Stainless grade | 304 or 316L |
| Heating | Electric or steam, optional |
| Pump flow and pressure | 10 to 50 m3/h at 2 to 6 bar, depending on circuit |
| Working temperature | Ambient rinse up to about 80 C wash, confirm by chemical |
| Control system | Manual, semi-automatic or PLC with HMI |
| Cleaning circuits | 1 to 8 or more, by project |
| Power | 380, 415 or 440 V, 3 phase, 50 or 60 Hz |
| Dimensions | Skid or cart layout, custom to site |
| Custom options | Tank size, loops, automation, portable pump, documentation |
Where it fits
Dairy, beverage, brewery, distillery, sauce and liquid food lines use CIP to clean tanks, fillers, pasteurizers, piping and pumps. Cosmetics and pharmaceutical process equipment may require tighter documentation and surface requirements; tell us the cleaning agent and validation expectations early. Stainless grade, clamp or welded connections, drain slope and dead-leg control matter as much as tank volume.
FAQ
How do I choose tank capacity? Start with cleaning solution volume per loop, line fill and tank recovery. Too small wastes time; too large wastes chemical and heat.
Can the portable pump be used separately? Yes, where the circuit and electrical area classification allow it. Confirm motor enclosure and hose and valve arrangement.
What do you need for a quote? Tell us your industry and product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade and installation location. We will recommend the configuration and quote the equipment.
