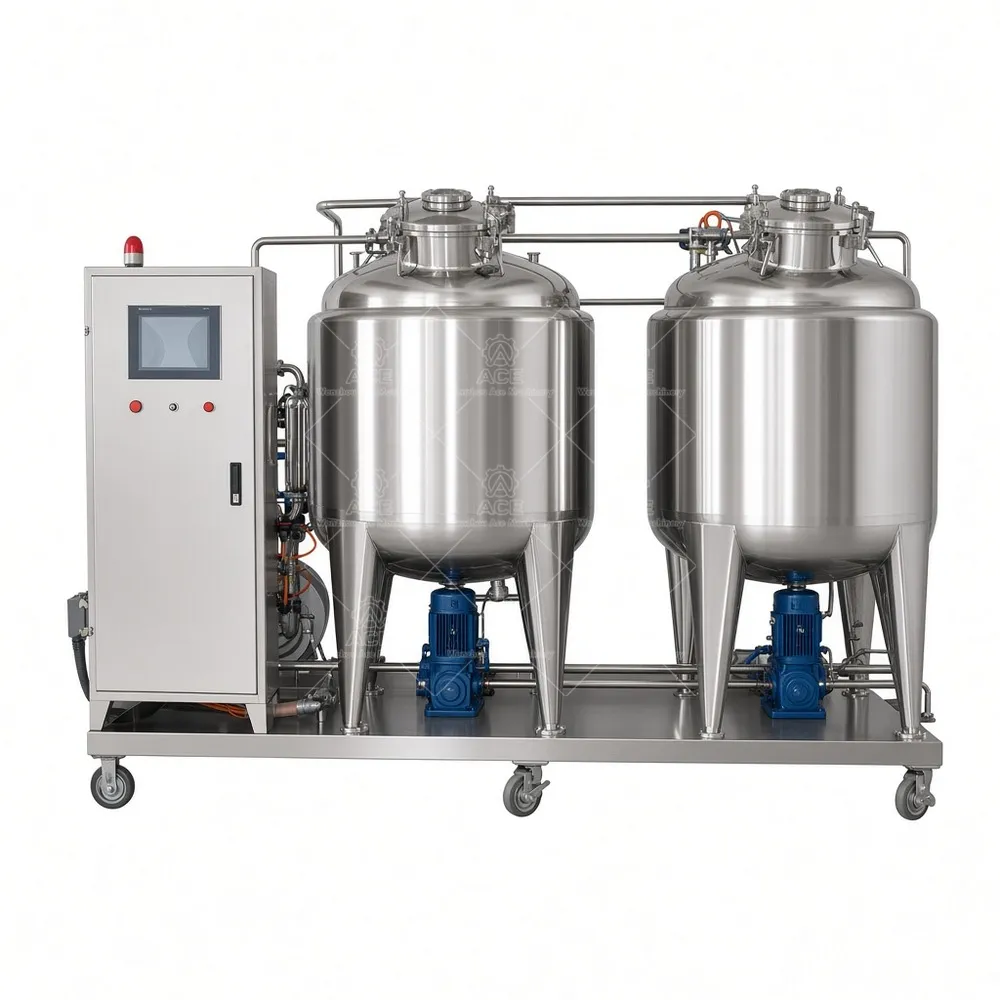

100L 304/316L Mobile Dual Tank CIP Cleaning System for Beverage & Dairy
This 100L mobile dual-tank CIP system is built in 304 or 316L stainless steel for beverage and dairy cleaning. It supports electric or steam heating, manual to PLC control, and custom tank capacity. Factory-direct engineering and project-specific configuration are available.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,901.17 through $10,022.63
Guaranteed Safe Checkout
This 100L mobile dual-tank CIP system is built for beverage and dairy plants that need a compact, movable cleaning skid. Each tank is 100 L in 304 or 316L stainless steel. We build the skid in-house and support the engineering from sizing to startup. We configure the unit around your cleaning circuits, not the other way around. Final specifications are confirmed at order.
CIP circulates detergent, rinse water, and sanitizer through tanks, pipes, fillers, and heat exchangers without dismantling the line. A typical cycle: pre-rinse, alkaline wash, intermediate rinse, acid wash if needed, final rinse, drain. Cycle time and flow depend on soil load and circuit volume.
Available options include single, dual, triple, or multi-tank layouts; acid/alkaline wash tanks; hot water tanks; electric or steam heating; CIP circulation and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; and manual, semi-automatic, or PLC control. Custom tank capacity, cleaning circuits, and automation are quoted per project. We only supply options confirmed for your model.
Typical values; final specifications confirmed per project.
| Cleaning tank capacity | 100 L per tank (custom sizes available) |
|---|---|
| Number of cleaning tanks | 2 (1, 3, or more optional) |
| Stainless steel grade | 304 or 316L |
| Heating method | Electric or steam (optional) |
| Pump flow and pressure | 5–10 m³/h at 2–4 bar (typical) |
| Operating temperature | Up to 80°C (typical) |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple (custom) |
| Power supply | 220/380/415 V, 50/60 Hz (project-specific) |
| Dimensions | Approx. 1500 × 800 × 1400 mm (varies) |
| Customization options | Tank capacity, heating, pump, controls, piping, mobile frame |
Applications include dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical production. Cleaning needs vary by residue and line design; we review those details before sizing.
FAQ
How do I choose tank capacity? Start with circuit volume and soil load. 100L suits small to medium loops; larger circuits may need more capacity.
Can I add heating later? Usually not practical on a mobile skid; specify electric or steam upfront.
What control level? Manual for simple single-circuit cleaning; PLC for repeatable recipes.
Can the skid be customized? Yes—tank size, pump, piping, controls, and frame are project-specific.
Request a quote
Tell us your industry and product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the configuration and provide a custom quote.
