500L Stainless Steel Split Dual Tank CIP Cleaning Unit on Wheels
A 500L split-type dual tank CIP unit on a wheeled stainless frame, built for dairies, breweries, and liquid food plants that need a repeatable wash cycle at the line. Two 250L vessels, electric or steam heating, matched supply and return pumps, and manual, semi-automatic, or PLC control. Factory-direct builds with custom tank volumes and circuits.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,207.31 through $8,803.01
Guaranteed Safe Checkout
What a split dual-tank CIP cart is actually for
Most plants that call us about this unit have the same problem: the process line is clean on paper, but the cleaning loop is a bucket, a hose, and a pump someone drags across the floor. A 500L split-type CIP unit puts caustic, acid, and rinse water in stainless tanks on a wheeled frame, with the pump and instruments mounted on board, so one operator can run a repeatable wash cycle on tanks, fillers, pasteurizers, piping, and valves.

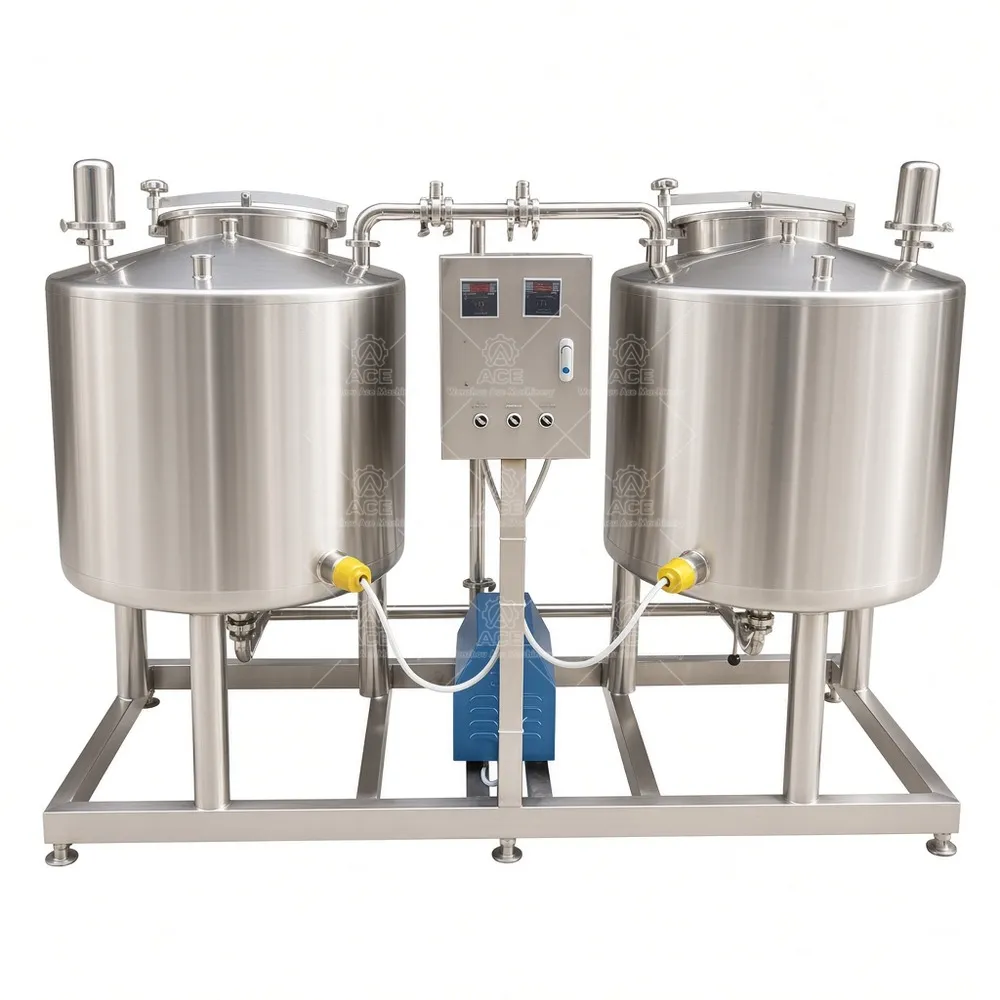

We build it as two separate vessels on a common frame. That split is not cosmetic. Each tank scales roughly 250L, and either can be exchanged for a 300L or 400L shell when a customer\’s loop volume grows. Narrow doorways and mezzanine access are common at dairy and beverage sites, and a unit that cannot get to the line is useless.
How the cycle runs
Pre-rinse, caustic wash at 70–80 °C, intermediate rinse, acid wash when the product needs it, final rinse. Supply and return pumps move the solution through the circuit; a flow switch and pressure gauge tell the operator whether the spray balls are actually being fed. Temperature, level, and conductivity are the readings that matter — conductivity is what tells you the caustic has been flushed out, not a fixed timer.
Typical configuration (confirmed per order)
| Cleaning tank capacity | 2 × 250 L total 500 L; other volumes on request |
|---|---|
| Number of tanks | Two (single, three, and four-tank builds available) |
| Stainless grade | 304 standard; 316L for chloride or pharma service |
| Heating | Electric immersion elements or steam coil/tube bundle |
| Pump flow and pressure | Typically 10–20 m³/h at 0.3–0.6 MPa, sized to circuit length |
| Operating temperature | Ambient to 80 °C, verified against caustic concentration |
| Control | Manual pushbutton, semi-automatic, or PLC with HMI and data logging |
| Cleaning circuits | Single loop standard; 2–4 loops with changeover valves |
| Power | 380V/50Hz or 440V/60Hz, three-phase |
| Dimensions | Approx. 1800 × 900 × 1600 mm; confirmed on drawing |
Where these units go
Dairy receiving bays and CIP circuits, brewery fermenters and bright tanks, winery transfer lines, sauce and liquid-food kettles, cosmetic mixing vessels, and pharmaceutical process equipment where the client\’s own validation protocol governs. We supply the stainless circuit and documentation; the cleaning validation stays with your quality team.
Before you ask for a price
How do I size the tanks? Add up the internal volume of the loop plus a 10–15% margin. Undersized tanks starve the pump; oversized tanks waste caustic and heat.
Steam or electric? Steam if you already have a header and want fast recovery. Electric if the unit moves between areas without a steam drop.
Corner to watch: return pump capacity. Buyers match the supply pump and forget the return, then wonder why the tank overflows on a long loop.
Send us these details
Your industry and product, tank and pipe volumes, required cleaning capacity, heat source, automation level, stainless grade, and installation site. We will come back with a configuration, drawing, and factory-direct quote.
