500L Integrated CIP System | 304/316 Stainless, Dairy & Juice
This 500L integrated CIP system is built in 304 or 316L stainless steel for dairy, soft drink, juice and similar liquid processing lines. We configure tanks, heating, pumps, valves and controls around your cleaning circuits. Share your soil load, pipe runs, heat source and automation target, and our engineers will recommend a practical clean-in-place layout and quote.
- Tank Capacity: [100L–5000L or specify actual capacity]

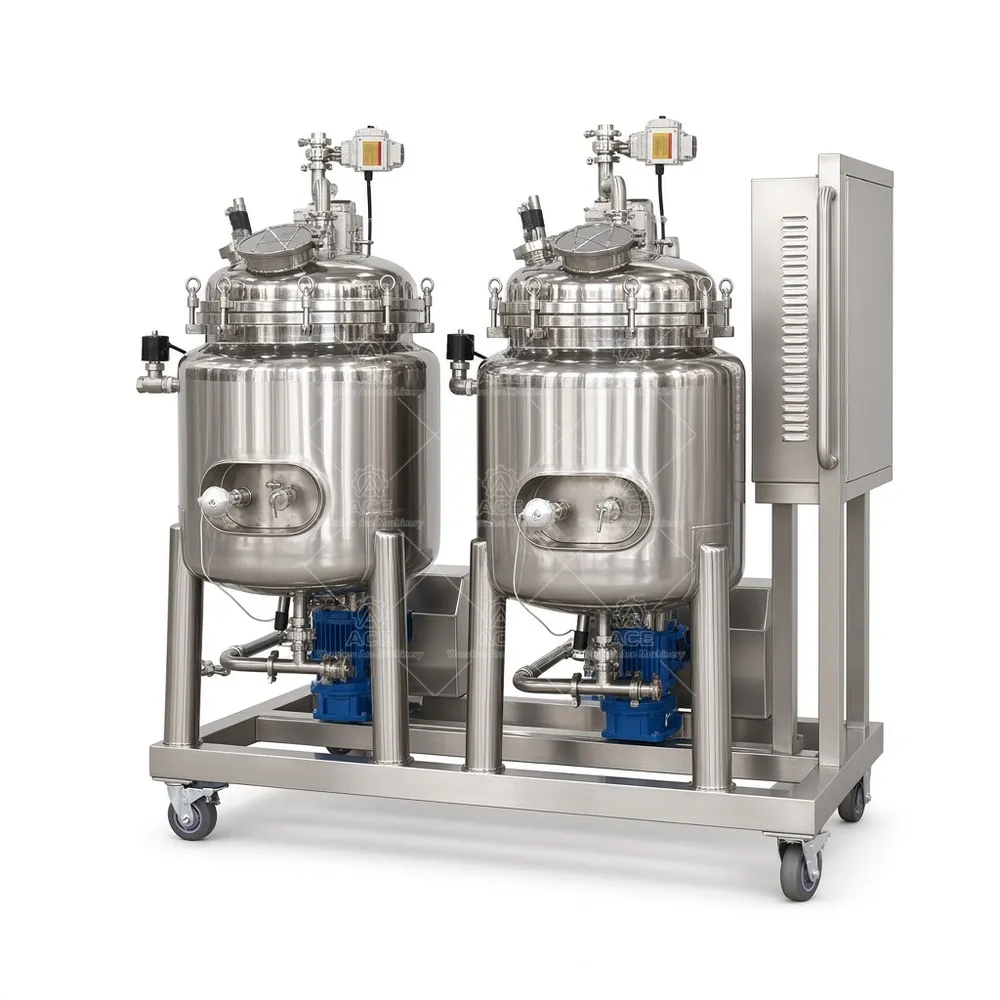

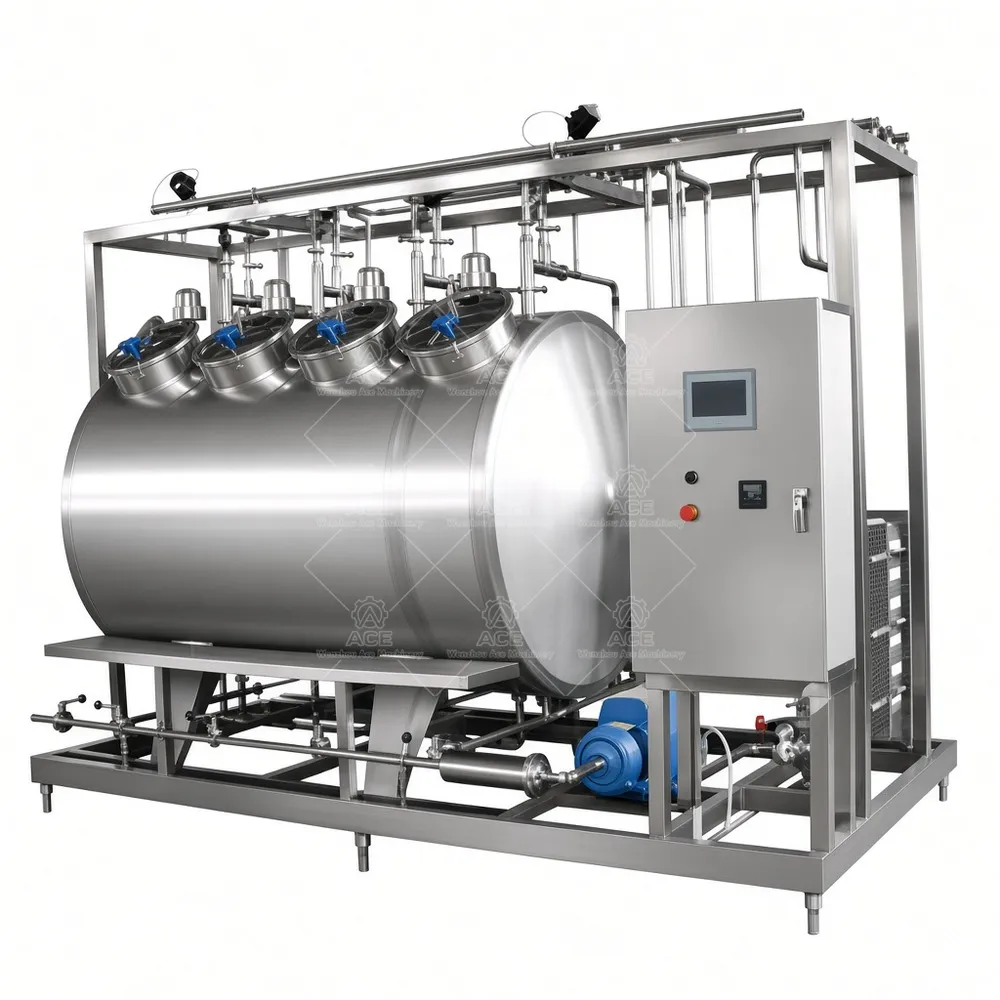

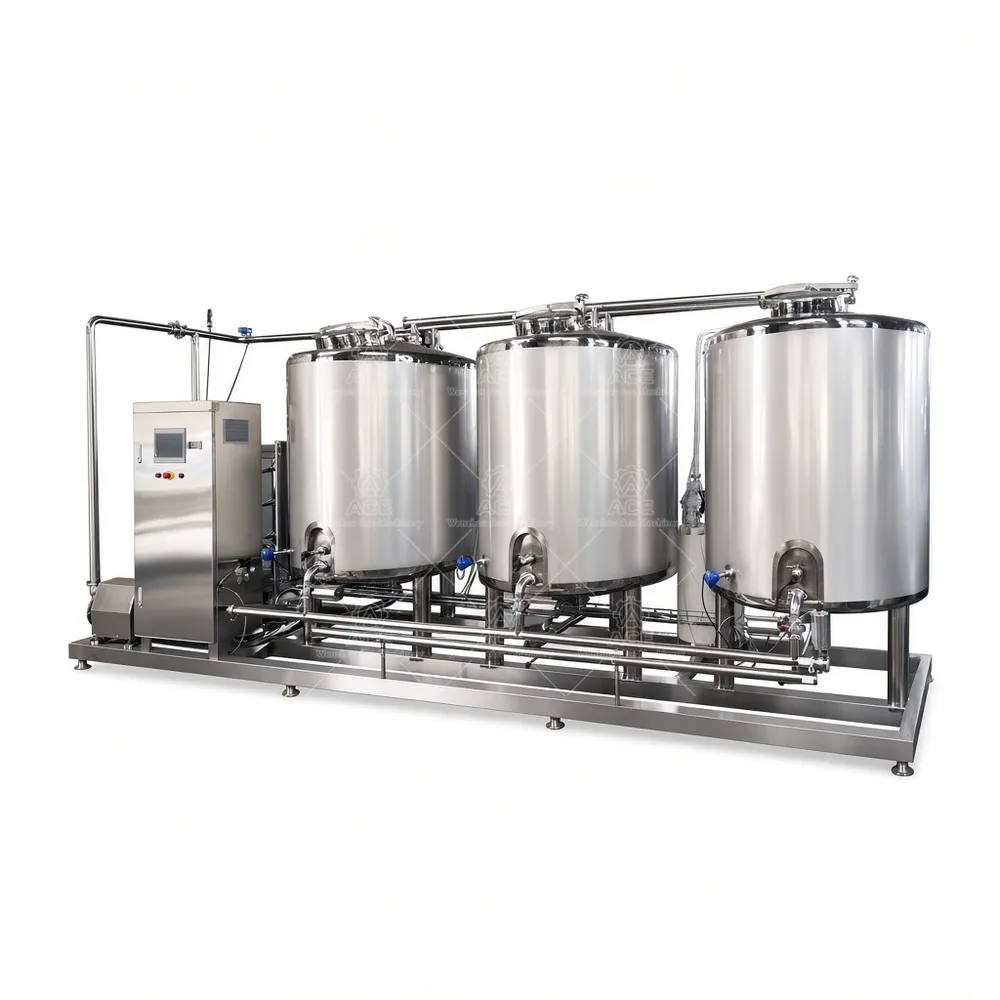

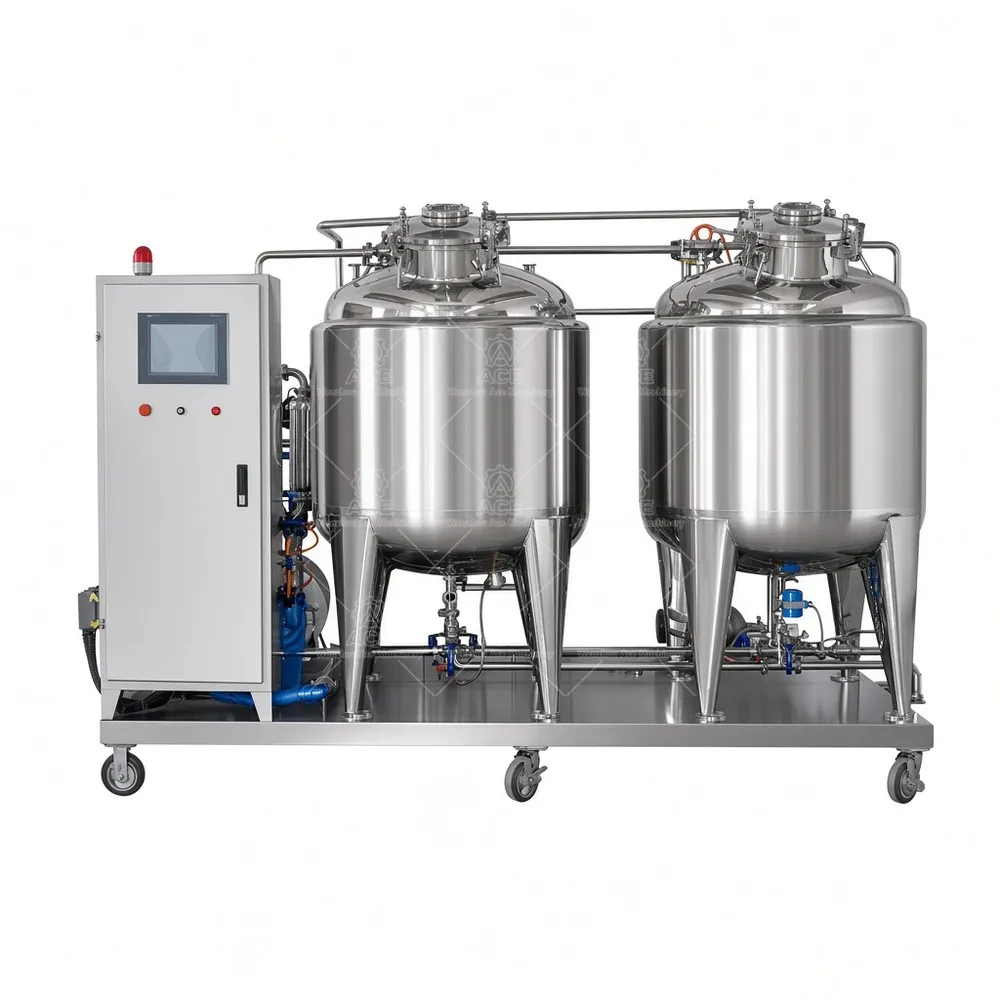

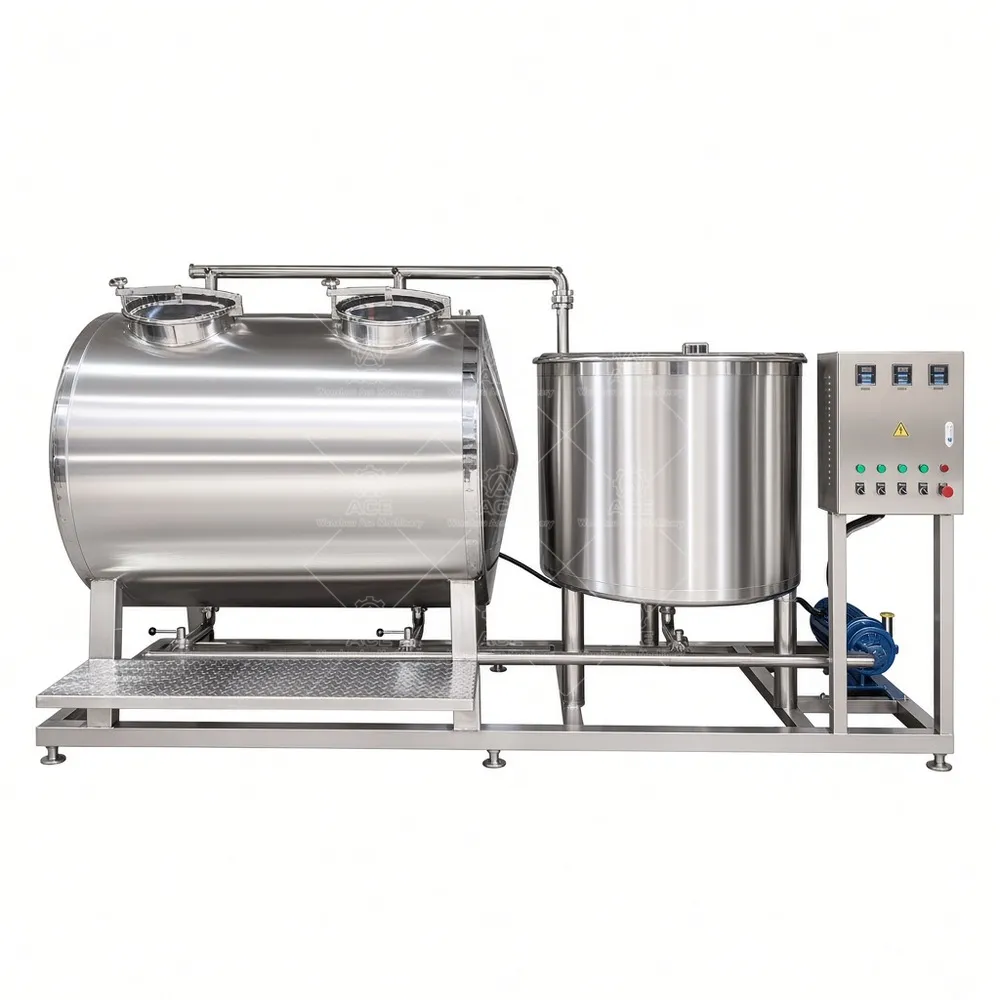

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,169.25 through $7,459.86
Guaranteed Safe Checkout
Integrated CIP for Dairy, Beverage and Juice Lines
CIP is not a tank with a pump. It is a repeatable cleaning circuit: solution strength, temperature, flow and contact time all have to line up with the soil you are removing. This 500 L integrated clean-in-place system is built for dairy, soft drink, juice and similar liquid processing plants that need a compact, skid-based cleaning station with room for project-specific changes.
We fabricate wetted parts in 304 or 316L stainless steel. Tank count, heating, pump set, valving and controls are configured around your circuits. A single-tank unit may suit one product loop; a two- or three-tank arrangement lets you separate alkaline wash, acid wash and rinse without mixing chemistry. Electric or steam heating is selected against your available utilities and target wash temperature. Flow, pressure and return-line design matter as much as tank volume; undersized return piping can stall a CIP cycle even when the pump looks correct on paper.
Controls can be manual, semi-automatic or PLC/HMI based. Temperature, conductivity, flow, pressure and level instrumentation are available where the cleaning recipe calls for verification. We also consider access for chemical handling, drain routing, pump maintenance and sampling.
Typical configuration options
Single, double, triple or multi-tank CIP; caustic and acid tanks; hot water tank; electric or steam heating; CIP supply and return pumps; stainless piping, valves and fittings; monitoring; manual, semi-auto or PLC control; custom tank capacity, cleaning loops and automation. These are project options, not guaranteed standard features. We confirm each item on the quotation.
Technical specifications
| Item | Project specification |
|---|---|
| Cleaning tank capacity | 500 L nominal; custom sizes available |
| Tank quantity | 1, 2, 3 or more, configured to cleaning circuits |
| Stainless grade | 304 or 316L wetted construction |
| Heating | Electric or steam, selected by utility and duty |
| Pump flow and pressure | Sized to circuit; confirmed at quotation |
| Working temperature | Set by cleaning chemistry; confirm target |
| Control | Manual, semi-automatic or PLC/HMI |
| Cleaning circuits | Single or multiple loops, project-defined |
| Power | Site-specific; confirm voltage and frequency |
| Dimensions | Layout-dependent; skid arrangement available |
| Custom options | Tank volume, loops, automation, instrumentation |
Where it fits
Dairy processors use CIP on lines, tanks and fillers. Beverage and juice plants clean mixers, transfer piping and filling circuits. Breweries and distilleries often need separate loops for fermenter and packaging areas. Sauce, liquid food, cosmetic and pharmaceutical operations may need additional documentation and material review; we quote those requirements case by case without assuming compliance.
FAQ
Can one 500 L system serve several lines? Yes if the circuits and return paths are designed for it. Share line lengths, diameters and drain points; we check whether valves and pump pressure suit the worst-case loop.
Do we need acid and caustic tanks? Not always. It depends on soil, water hardness and cleaning regime. Some plants start with one tank and add chemical separation later if recipes require it.
Send your industry and product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade and installation location. We will review the circuit, recommend tank and pump sizing, and return a factory-direct quote with the open items clearly marked.
