Customizable Stainless Steel CIP Cleaning System for Juice Plants
Source customizable CIP cleaning systems for juice, dairy, beverage and liquid processing plants. We build stainless steel single- or multi-tank skids with electric or steam heating, supply and return pumps, monitoring and manual, semi-automatic or PLC control. Share your circuits, cleaning capacity, heat source and automation needs for an engineered quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L

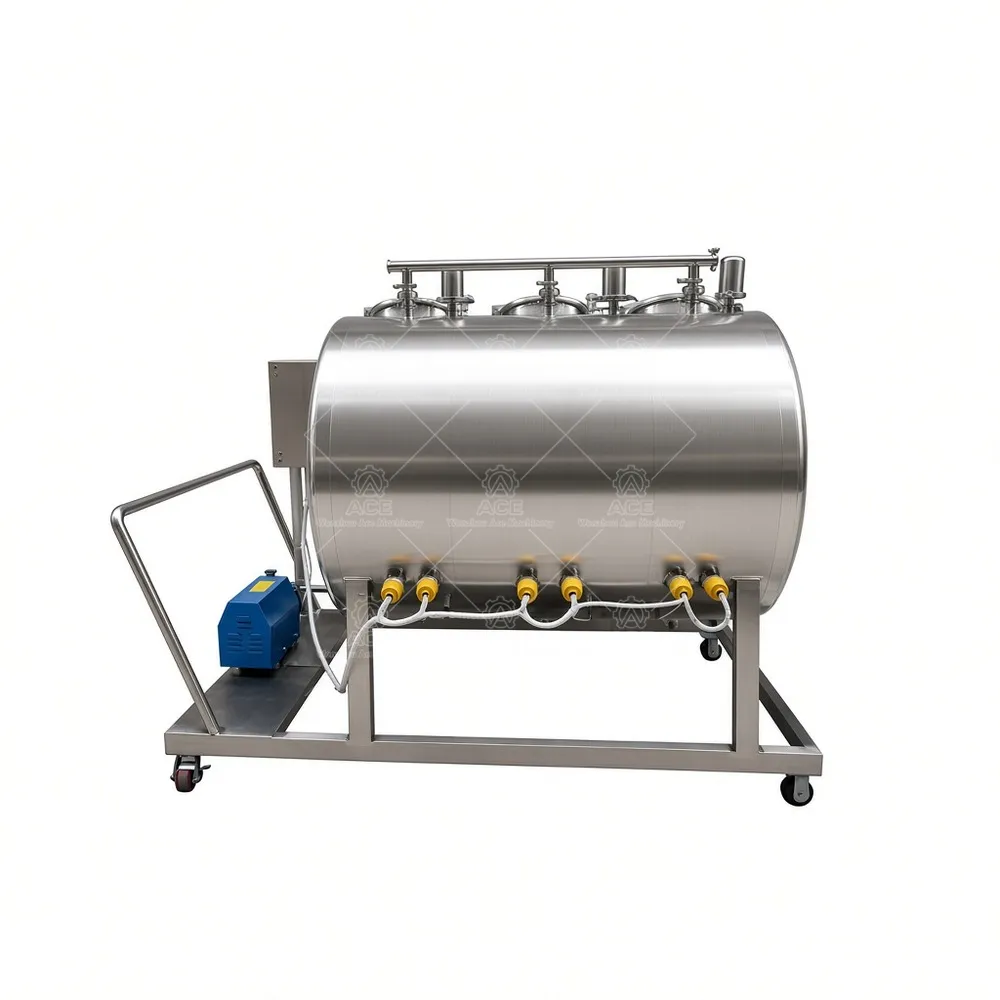

- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,885.28 through $9,593.23
Guaranteed Safe Checkout
Customizable CIP Cleaning System for Juice and Liquid Processing
We build CIP systems for plants that need repeatable cleaning without pulling lines apart after every run. A juice factory may clean pasteurizers, filling heads, transfer piping, tanks and blend loops on one schedule; a dairy or pharma line will set different temperatures, flow and chemical steps. The unit is configured around that duty, not sold as a one-size skid.
A clean-in-place cycle usually moves pre-rinse, caustic wash, intermediate rinse, acid wash where needed, final rinse and sanitation through the circuit. Supply and return pumps maintain flow; sensors track temperature, pressure, flow and tank level. Control can be manual, semi-automatic or PLC-based, depending on how much recipe control and recordkeeping your team wants.
Typical configuration choices

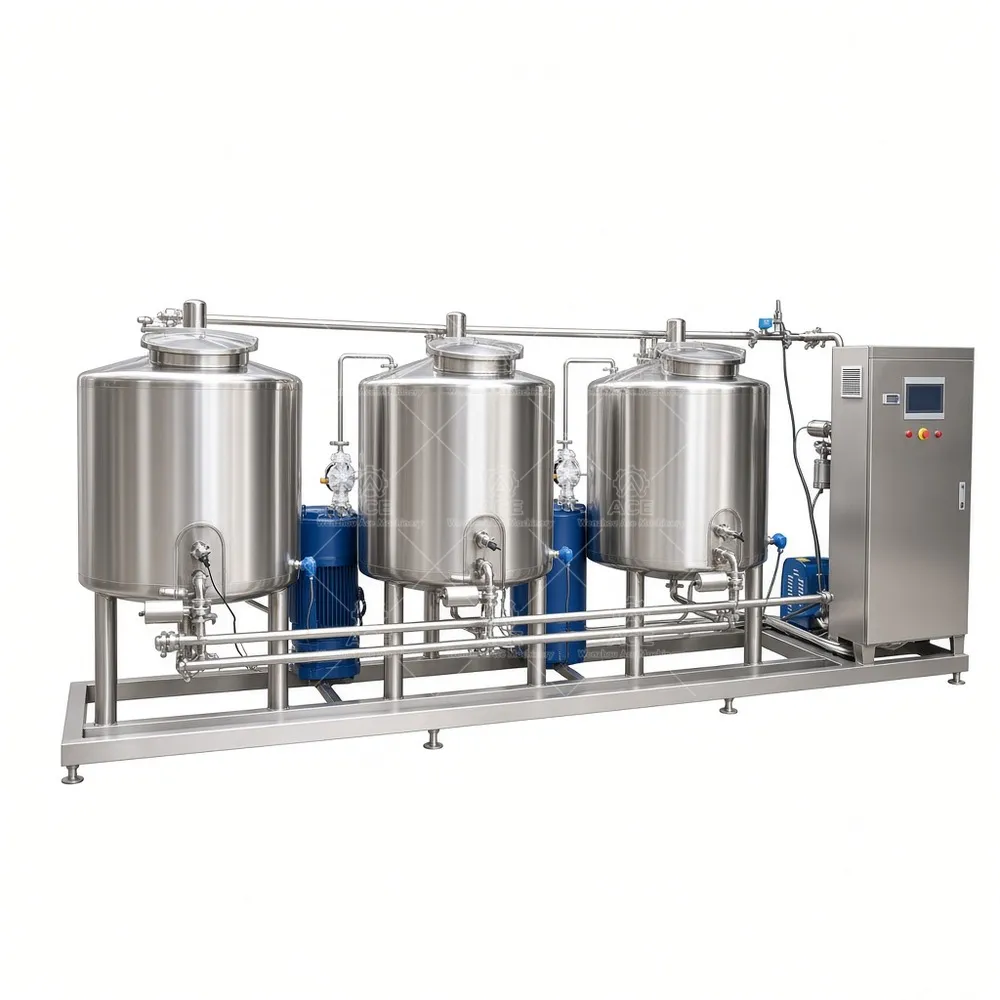

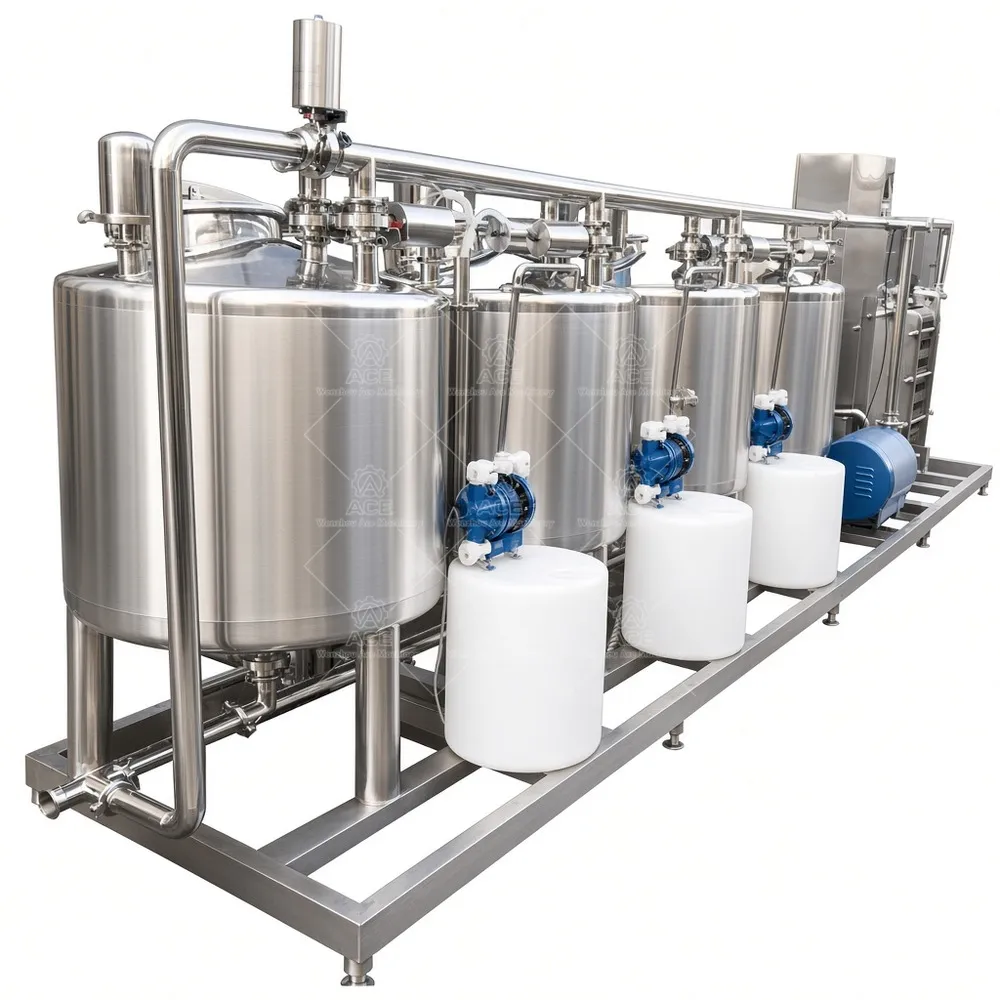

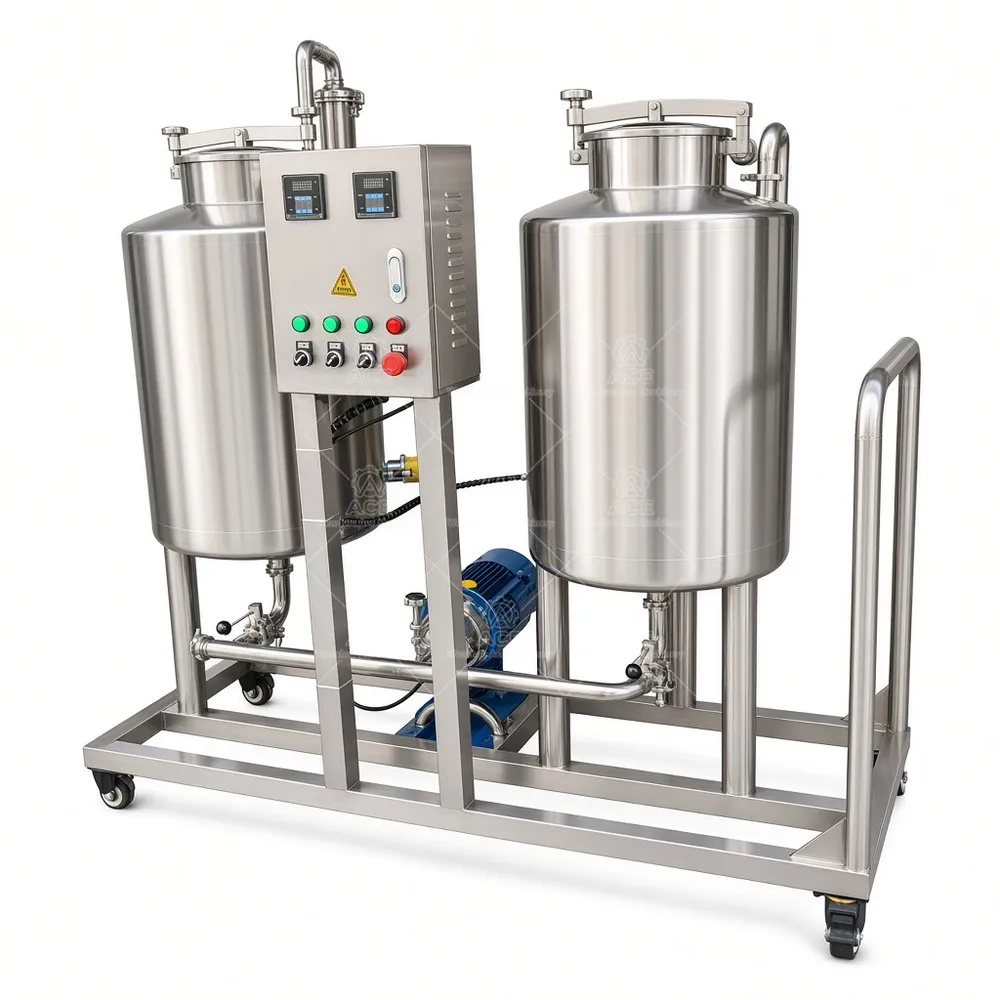

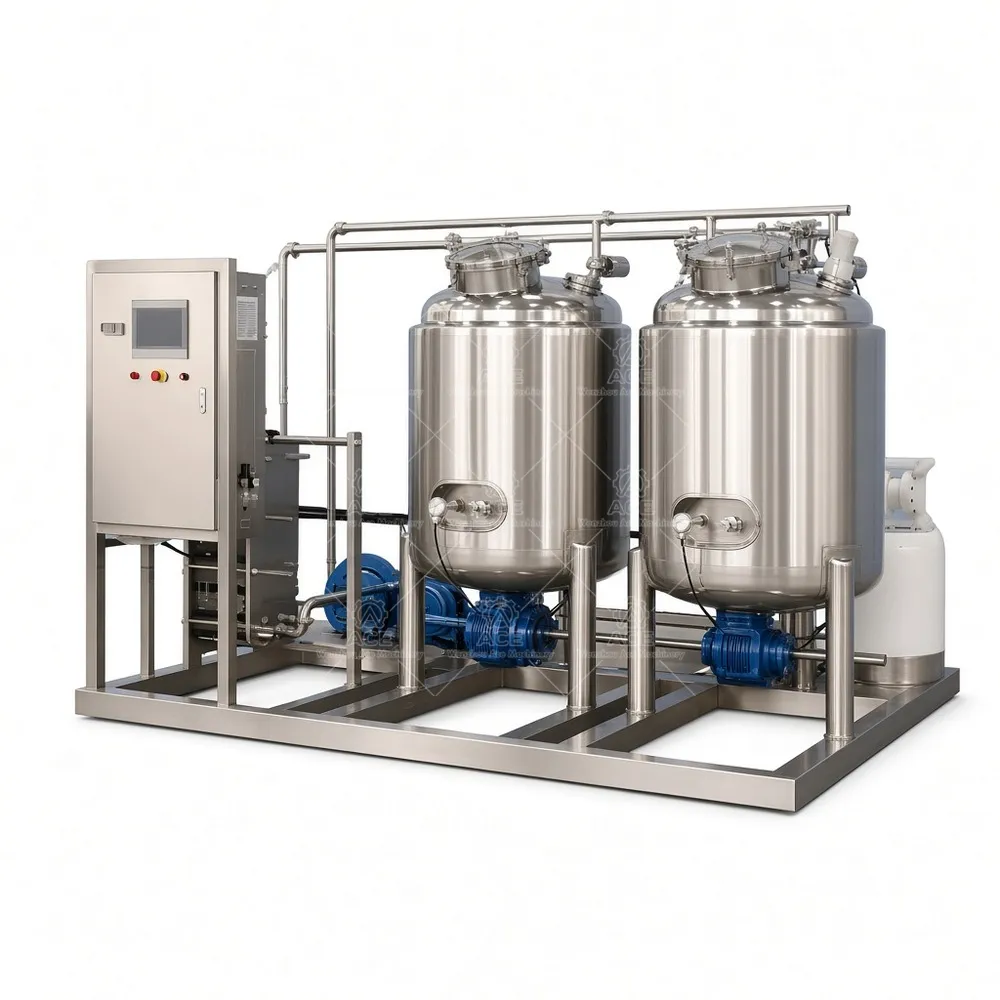

- Single-, two-, three- or multi-tank CIP skids
- Caustic and acid solution tanks, plus hot water tank
- Electric or steam heating
- CIP supply and return pumps, stainless piping, valves and fittings
- Temperature, flow, pressure and level monitoring
- Custom tank volumes, cleaning circuits and automation
These are project options, not a fixed standard list. We confirm wetted materials, circuit count, cleaning volume and heat source before quoting. Our workshop fabricates the skid, tanks and piping, and our engineers review layout, utilities and P&ID details with your team.
Technical specifications
| Cleaning tank capacity | Project-specific; sized from circuit volume and soil load |
| Number of cleaning tanks | 1 to 4 or more, based on chemical steps |
| Stainless grade | 304 or 316L wetted parts as specified |
| Heating method | Electric or steam, per design |
| Pump flow and pressure | Selected for circuit length, diameter and spray devices |
| Operating temperature | Set by detergent and process, monitored and controlled |
| Control system | Manual, semi-automatic or PLC/HMI |
| Cleaning circuits | Single or multiple, with supply and return routing |
| Power supply | Customer voltage and frequency confirmed |
| Dimensions | Layout-dependent skid or frame design |
| Custom options | Tank size, circuits, automation, monitoring, materials |
Where CIP systems are used
These systems serve dairy processing, beverage production, breweries, distilleries, sauce manufacturing, liquid food processing, cosmetics and pharmaceutical production. Cleaning requirements differ by residue, surface finish, circuit dead legs and chemical compatibility. We review those details before recommending tank count or cleaning capacity.
FAQ
How many tanks do I need? Two or three tanks are common when caustic, acid and hot water must stay separate. One tank can work for simpler duties with careful changeover.
Can it clean existing lines? Usually, after we check pipe diameter, length, pump curves, spray coverage and dead legs.
What should I send for a quote? Your industry and product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade and installation location.
Tell us those details. We will recommend the tank configuration, pump duty and control level, then provide a custom factory-direct quote.
