Double-Tank Beverage CIP Cleaning System | Pipeline CIP Machine
Double-tank CIP cleaning system for beverage lines, tanks, and fillers. Configure caustic and acid or rinse vessels, electric or steam heating, supply and return pumps, stainless piping, and manual, semi-automatic, or PLC control. Share tank size, line layout, soil load, heat source, and automation target for a factory-direct configuration and quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,257.90 through $7,564.55
Guaranteed Safe Checkout

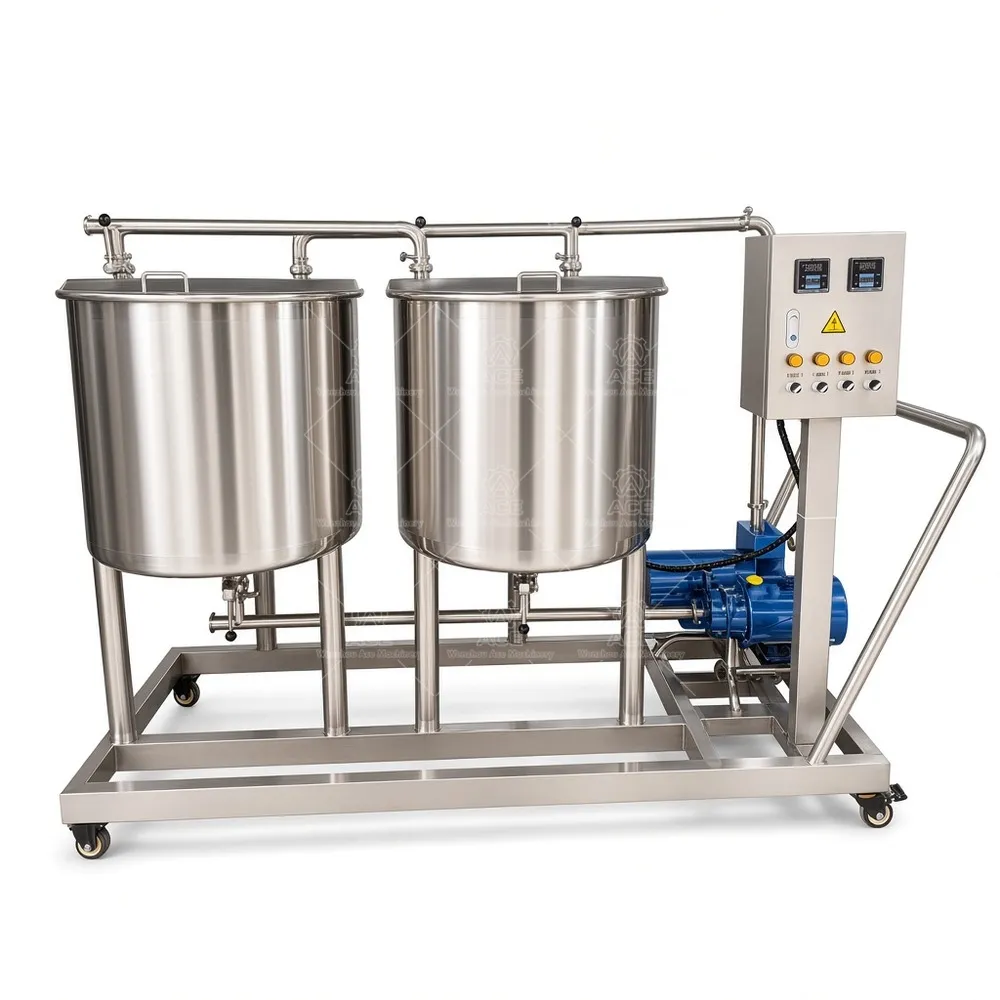

Double-Tank Beverage CIP Cleaning System
We build double-tank CIP skids for beverage plants that need repeatable cleaning of tanks, fillers, transfer lines, and valves without pulling operators off production. The two vessels often carry caustic wash and acid or rinse solution, but tank duty, circuit layout, and control level are confirmed before quoting. Tank volume, pump curves, heating, and instrumentation are matched to pipe diameter, loop length, and soil load.
How a cleaning cycle works
Solution leaves the selected tank through the supply pump, passes the supply manifold into the process line, and returns through the return pump. Temperature, flow, pressure, and level monitoring can be included where specified. Manual, semi-automatic, or PLC control is available. We check dead legs, drainability, valve clusters, and return-line slope because those details determine real cleaning performance.
Specifications
| Item | Configured range |
|---|---|
| Cleaning tank capacity | Project-specific; sized by loop volume and rinse demand |
| Number of tanks | Two-tank layout; multi-tank options quoted on request |
| Stainless steel grade | 304 or 316L, confirmed against cleaning chemicals and product contact |
| Heating method | Electric or steam heating, selected by utility availability |
| Pump flow and pressure | Supply and return pumps matched to pipe size and spray devices |
| Operating temperature | Set by wash chemistry and plant procedure |
| Control system | Manual, semi-automatic, or PLC-based operation |
| Cleaning circuits | Single or multiple loops with stainless piping and valves |
| Power supply | Local voltage and frequency confirmed at order |
| Dimensions | Skid layout based on tank size, pumps, and access clearance |
| Custom options | Tank capacity, heating, instrumentation, automation, and piping |
Options are quoted only when confirmed for the model or project. This includes acid and caustic tanks, hot-water vessels, electric or steam heat, circulation and return pumps, stainless fittings, and monitoring.
Where it fits
These skids suit dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical cleaning duties. Requirements differ by residue, chemistry, temperature, and documentation. We review the process before recommending a layout.
Buyer questions
How do I choose tank capacity? Start with loop volume, solution change frequency, and rinse water available. Can we add a hot-water tank? Yes, if utility capacity and control sequence are defined. What do you need for a quote? Product, piping layout, cleaning loops, heat source, automation target, steel grade, and installation location.
Tell us your industry, processed product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade, and installation requirements. We will recommend the tank volume, pump set, heating, and control configuration and provide a custom quote.
