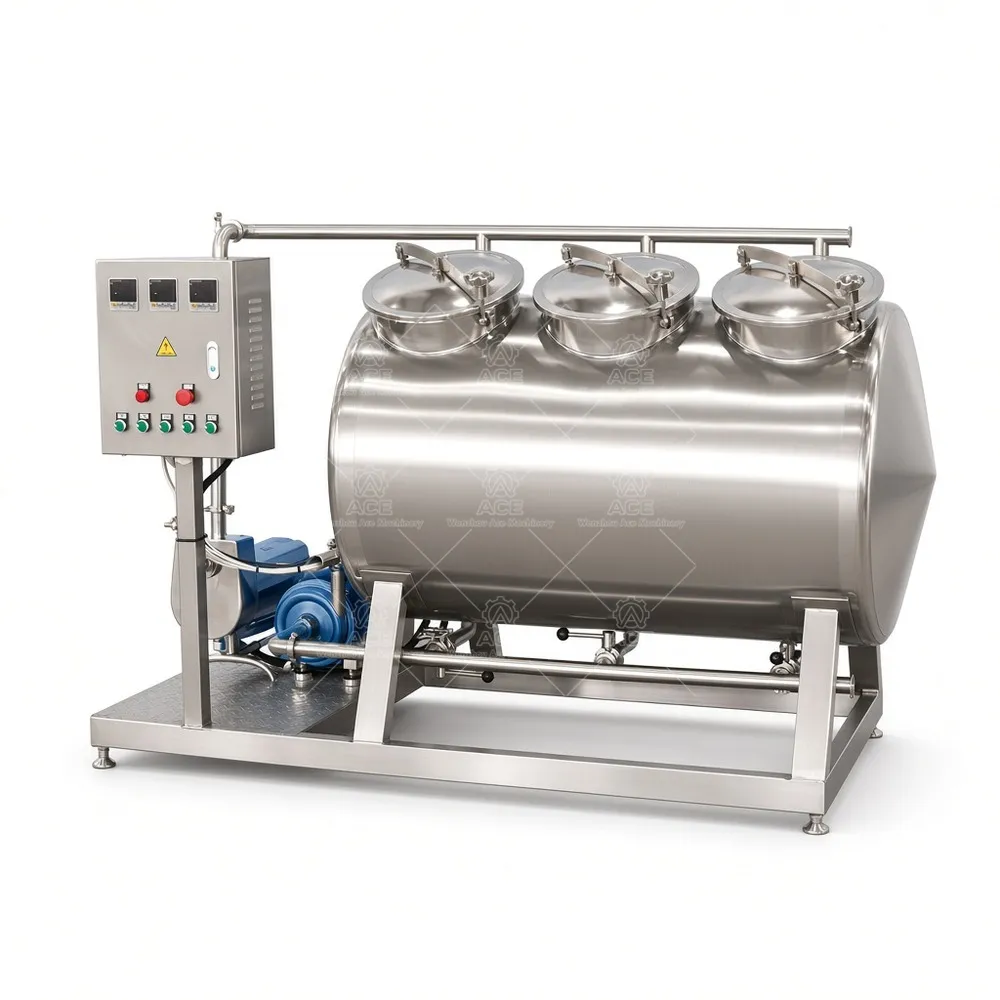

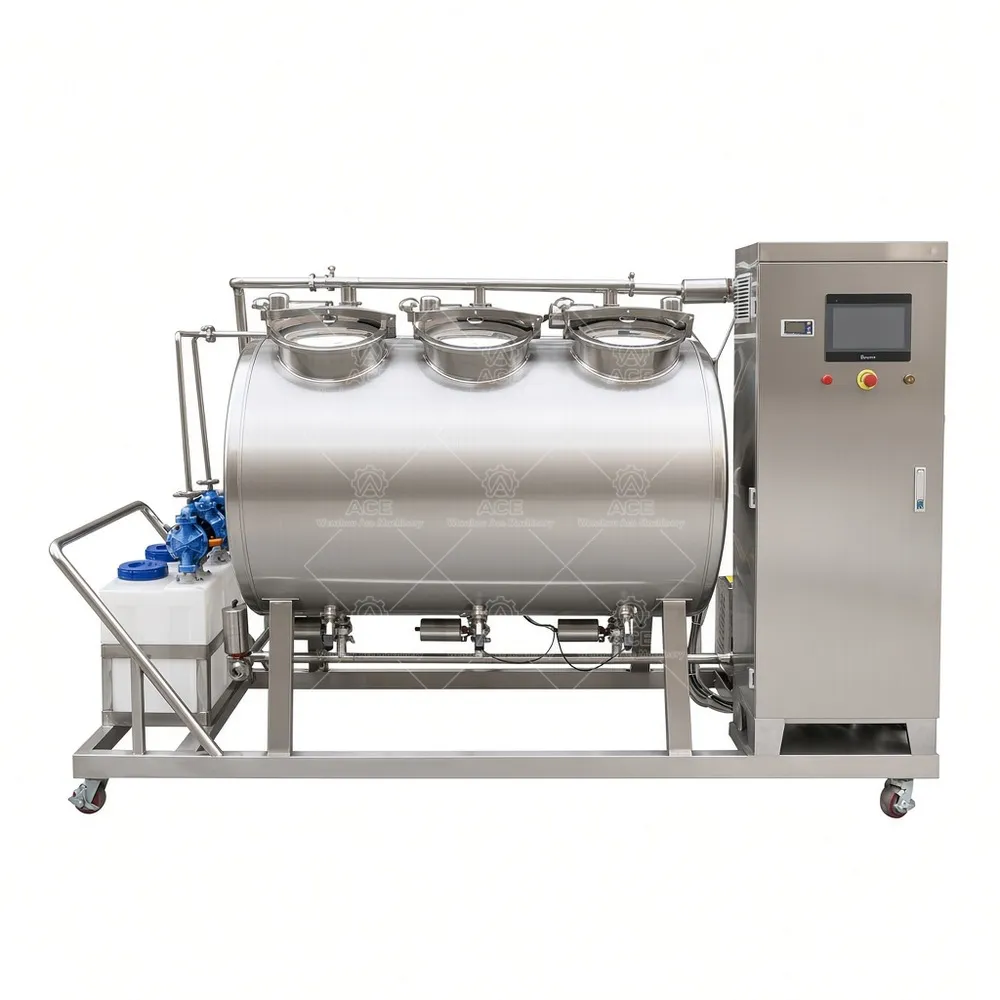

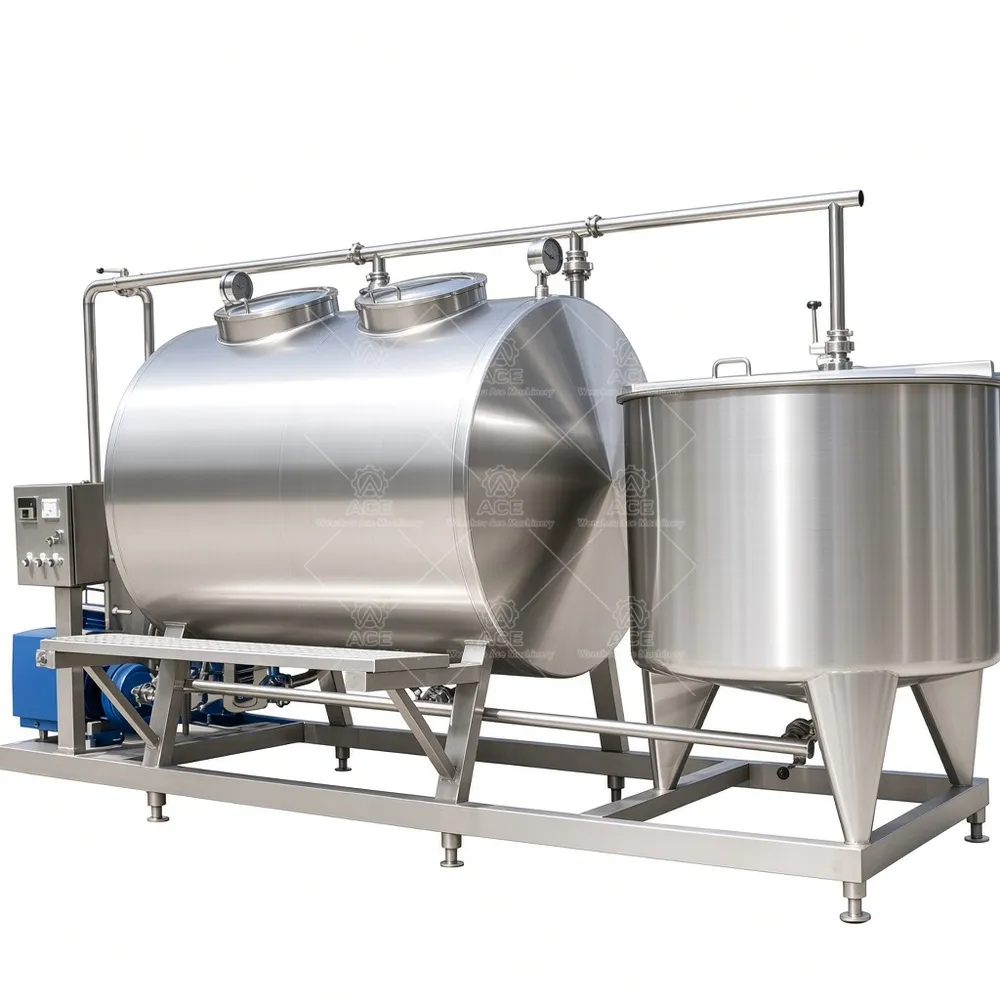

1000L Custom Stainless Steel CIP Cleaning System for Brewery Dairy Juice
Get a 1000L stainless steel CIP cleaning system built for brewery, dairy, and juice operations. Choose single- or multi-tank layouts, caustic and acid wash, hot water, pump sizing, and PLC or manual control. Share your circuits, soil load, heat source, and automation target for an engineering review and customized quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,066.24 through $7,766.61
Guaranteed Safe Checkout
What a 1000L CIP System Does on Your Line
A CIP skid is not just a tank with a pump. It sets wash concentration, temperature, flow, and time for tanks, fillers, pasteurizers, and transfer lines. Our factory builds 1000L stainless steel CIP systems around the actual cleaning circuits, not a catalog sheet. We confirm tank count, pump head, pipe diameter, and return route before release.
Typical cycles include pre-rinse, caustic wash, intermediate rinse, acid wash where required, and final rinse. Hot water can be integrated for sanitizing steps subject to your process validation. Dairies and juice plants often deal with protein and sugar soils that need different temperatures and flow. Brewery CIP usually calls for reliable return flow and drain control.
Configuration Choices
- Single-, two-, three-, or multi-tank CIP with caustic, acid, and hot water tanks
- Electric or steam heating; plate or coil heat exchange
- Supply and return pumps sized to circuit pressure drop
- Manual, semi-automatic, or PLC/HMI control
- Temperature, flow, pressure, conductivity, and level instrumentation
Options are project-specific. We quote only after the duty is confirmed. Factory-direct fabrication, engineering review, and stainless construction are available for the agreed scope.
| Item | Specification |
|---|---|
| Cleaning tank capacity | 1000L nominal, customized by project |
| Number of tanks | 1–4 or more per project |
| Stainless grade | 304 or 316L |
| Heating method | Electric or steam |
| Pump flow and pressure | Selected for circuit pressure drop |
| Operating temperature | Up to project setpoint |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Tanks, lines, pumps, valves, fillers, heat exchangers |
| Power supply | Local standard |
| Dimensions | Layout-specific |
| Custom options | Tank size, circuits, automation, monitoring |
Applications
Dairy, beverage, brewery, winery, sauce, liquid food, cosmetic, and pharmaceutical producers use CIP to clean tanks, piping, pumps, valves, fillers, and heat exchangers. Cleaning parameters must suit the soil, surface finish, and plant hygiene plan. We do not treat a generic CIP specification as a compliance certificate.
FAQ
Can one 1000L tank serve multiple circuits? Yes, if pump flow, return routing, and changeover procedures match. We review line volumes and pressure drop.
What should buyers prepare? Circuit list, pipe diameters, soil type, required wash temperature, hot water or steam availability, floor space, and control preference.
How do I get a quote? Send industry, product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade, and installation location. Our engineers will recommend tank volume, pump duty, and configuration for review.
