Automatic CIP Cleaning System for Beverage and Beer Filling Lines
Automatic CIP cleaning systems for beverage and beer filling lines, built with stainless steel tanks, pumps, valves, and PLC or manual controls. Configure one to four tanks, electric or steam heating, and monitoring for temperature, flow, pressure, and level. Share your circuits, soil load, and utility details for an engineered quotation.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,019.26 through $8,651.94
Guaranteed Safe Checkout
Automatic CIP Cleaning for Beverage and Beer Lines
When filling lines switch from beer to syrup or dairy residues, cleaning has to be repeatable. A CIP system circulates detergent, rinse water, and sanitizer through tanks, pipes, valves, fillers, and transfer lines without dismantling the circuit. Our units are built for plant teams that want documented cycles and less manual handling.
The cycle usually runs pre-rinse, caustic wash, intermediate rinse, acid wash where required, final rinse, and sanitizer. Temperature, flow, pressure, and level matter more than tank size alone. Low flow at the end of a loop leaves soil behind; oversized pumps waste chemical and energy. We size the pump and return path around your circuit volume, pipe diameter, fittings, and soil load.
Configurations Built to Your Circuit

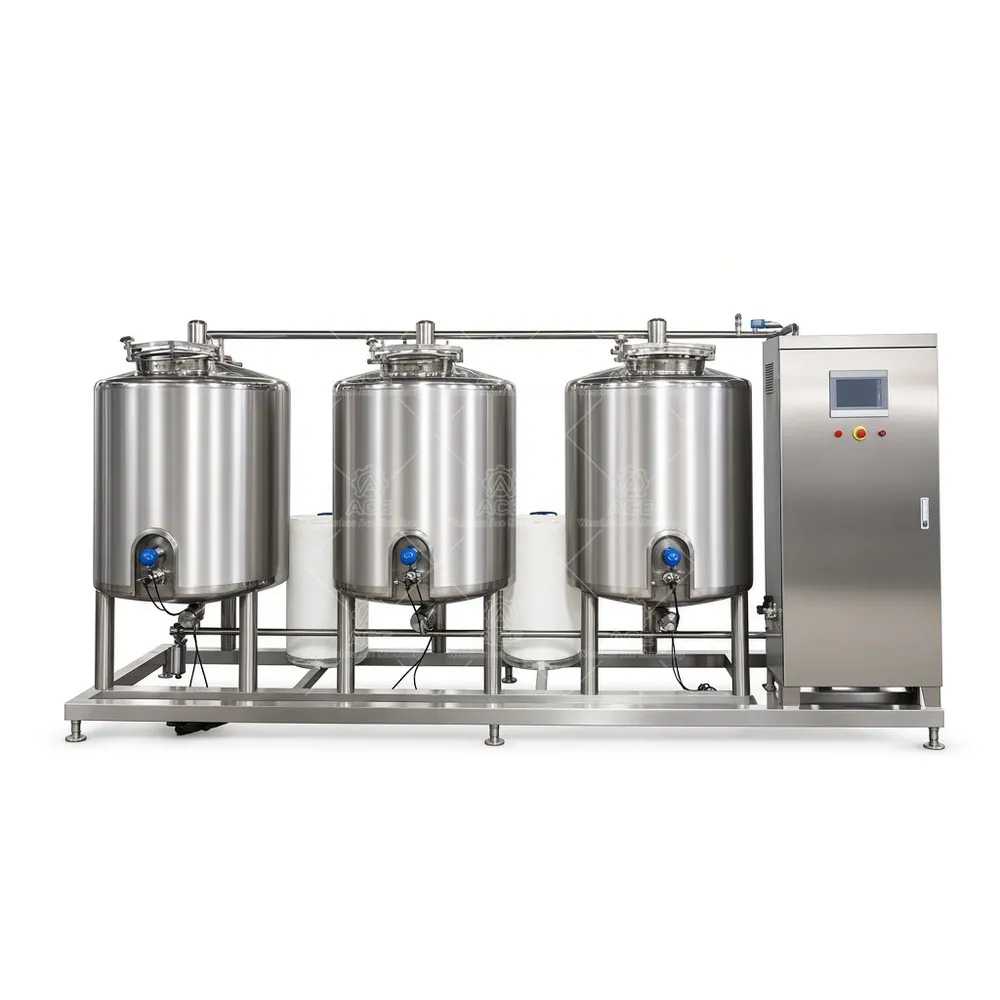

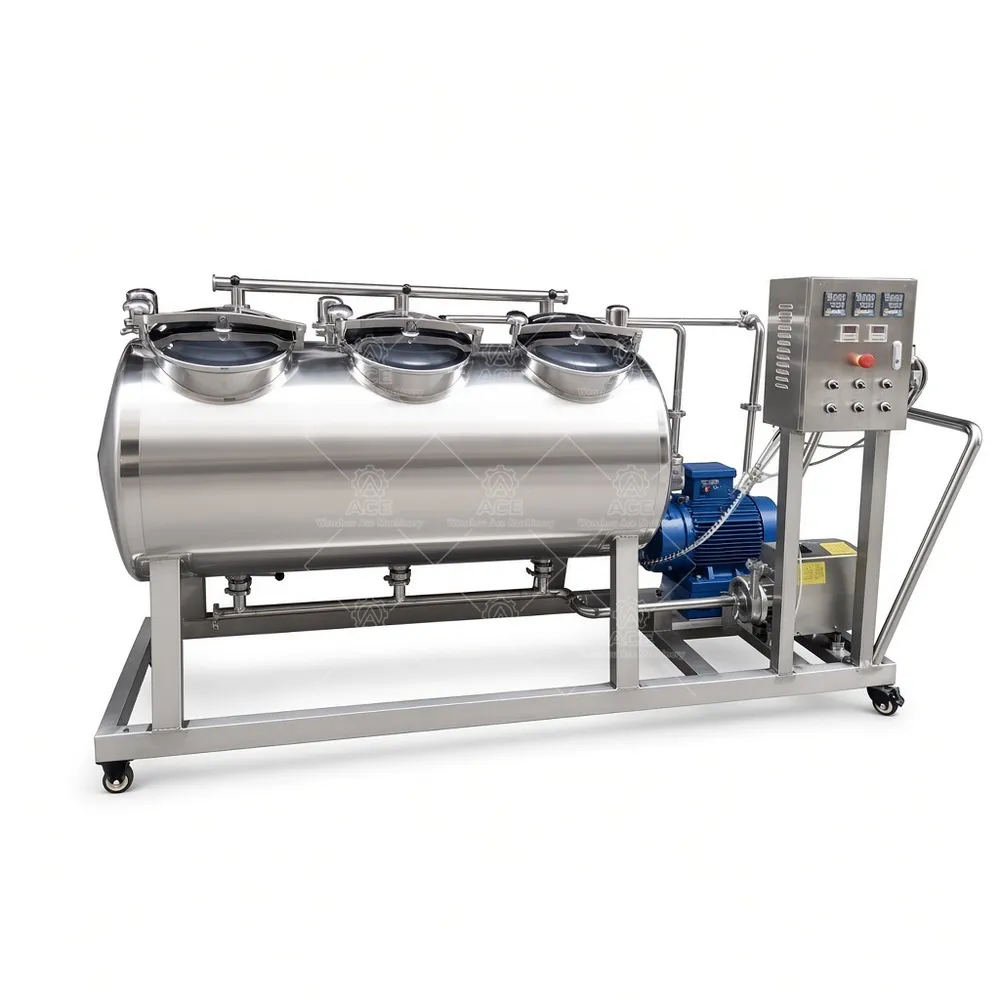

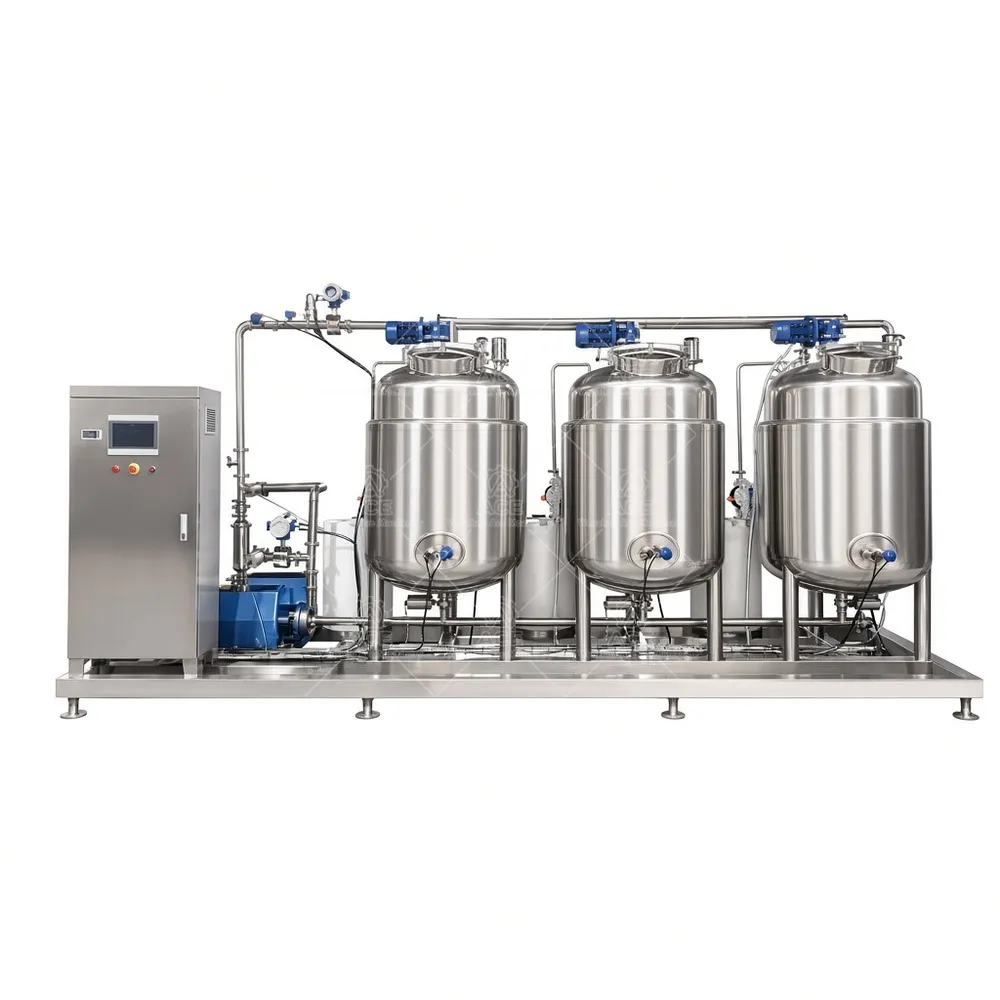

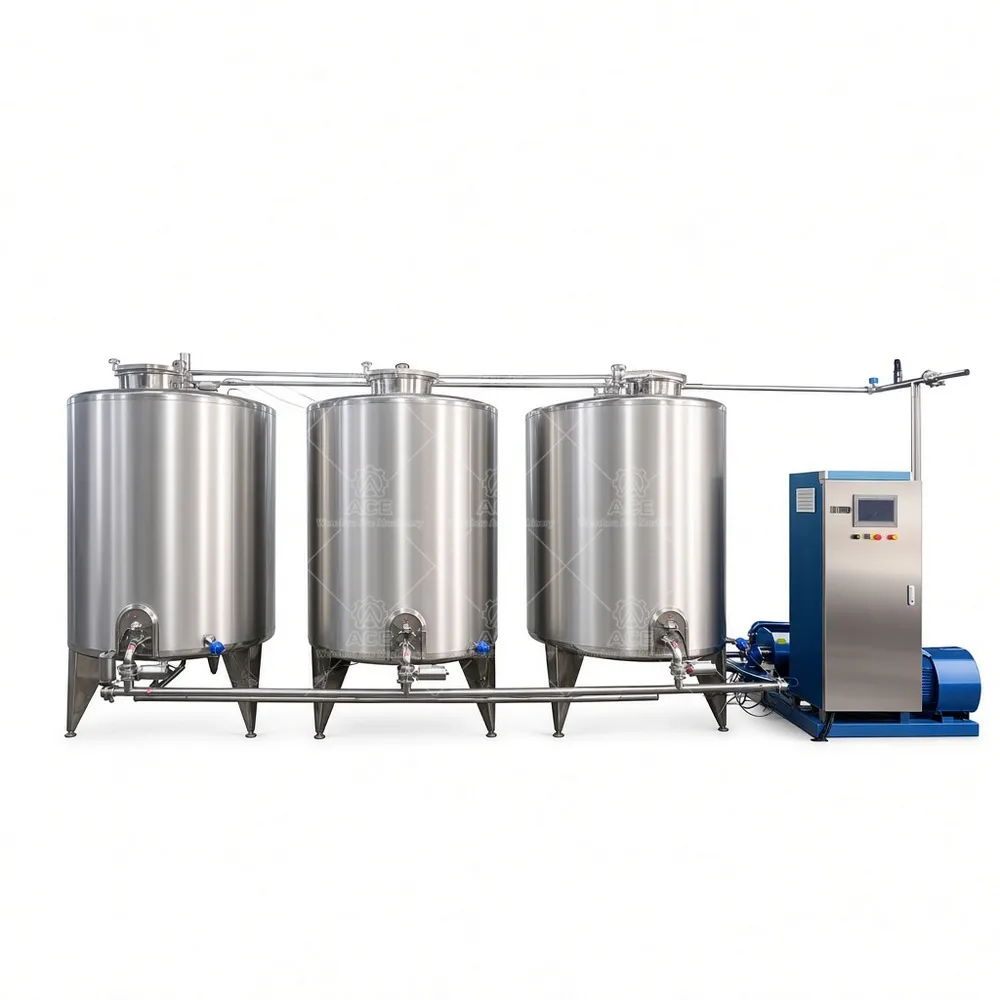

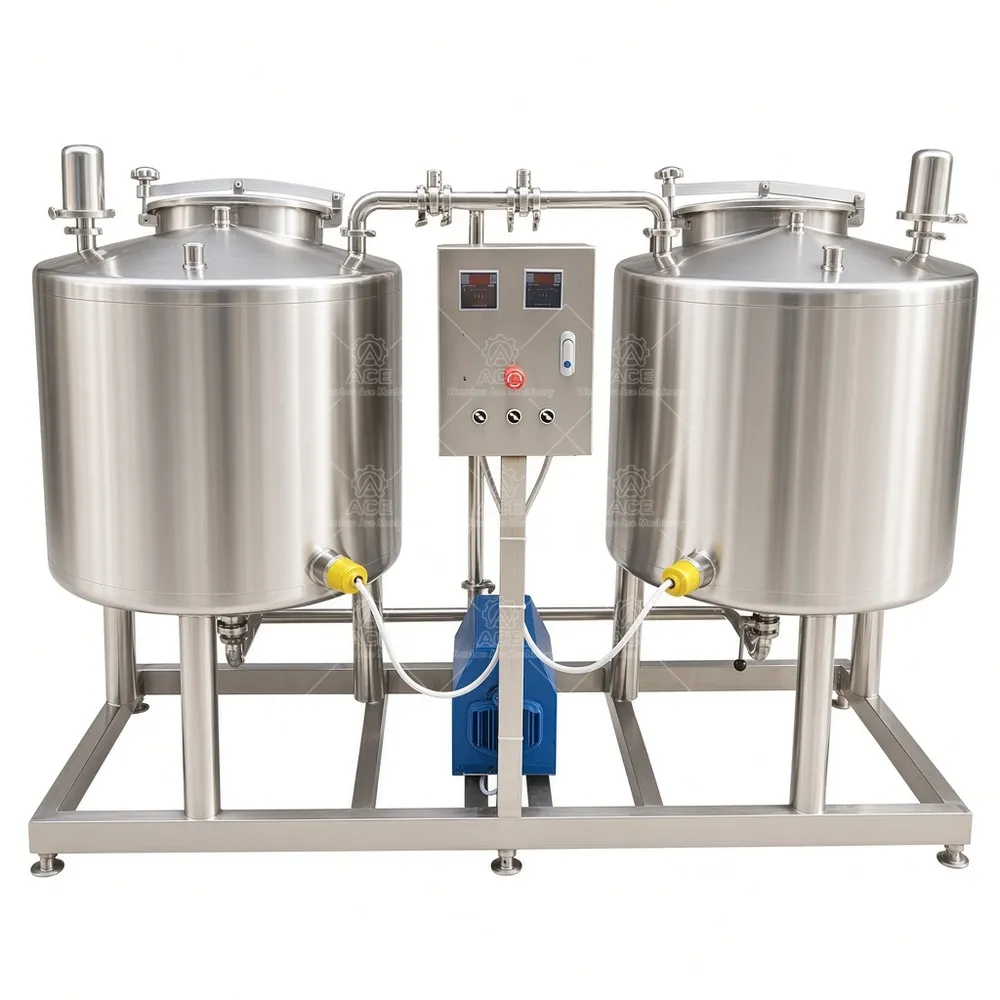

Single-, two-, three-, and multi-tank arrangements are available. Acid and caustic tanks, hot-water tanks, electric or steam heating, supply and return pumps, stainless piping, valves, and fittings can be included per project. Controls range from manual and semi-automatic to PLC operation. Factory-direct fabrication and engineering support keep tank, piping, and control details aligned. We confirm capacity, cleaning circuits, and automation against your layout before quoting; no standard package is assumed.
Where CIP Systems Fit
These systems are used in dairy processing, beverage production, breweries, distilleries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical production. Each application has different soil, chemistry, temperature, and rinse requirements. We review those details with your process team.
Technical Specifications
| Item | Project-specific range |
|---|---|
| Cleaning tank capacity | Custom, typically 100-5,000 L per tank |
| Number of tanks | 1-4 or more; acid, caustic, hot water optional |
| Stainless grade | 304 or 316L, confirmed by product and chemistry |
| Heating | Electric or steam |
| Pump flow and pressure | Sized to circuit |
| Operating temperature | Per detergent and process requirement |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple loops |
| Power | Customer utility supply |
| Dimensions | Layout-dependent |
| Customization | Tank volume, circuits, automation, skid layout |
FAQ
What details size a CIP system? Tank and pipe volumes, circuit drawings, soil type, required flow, chemical concentrations, heat source, and automation level.
Can we add tanks later? Often yes, if skid space and piping allow. We review the original layout before recommending expansion.
How do we request a quotation? Send your industry and processed product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade, and installation location. Our engineers will recommend a configuration and prepare a custom quote.
