100L Mobile CIP Cart Stainless Steel Clean in Place System with Washer Pump
This 100L mobile CIP cart brings a stainless clean-in-place loop to small batches, pilot lines, and tight plant spaces. It combines a cleaning tank, washer pump, piping, and controls for pre-rinse, wash, rinse, and sanitizer cycles. Available configurations include single or multi-tank layouts, electric or steam heating, and manual, semi-automatic, or PLC control.
- Tank Capacity: [100L–5000L or specify actual capacity]

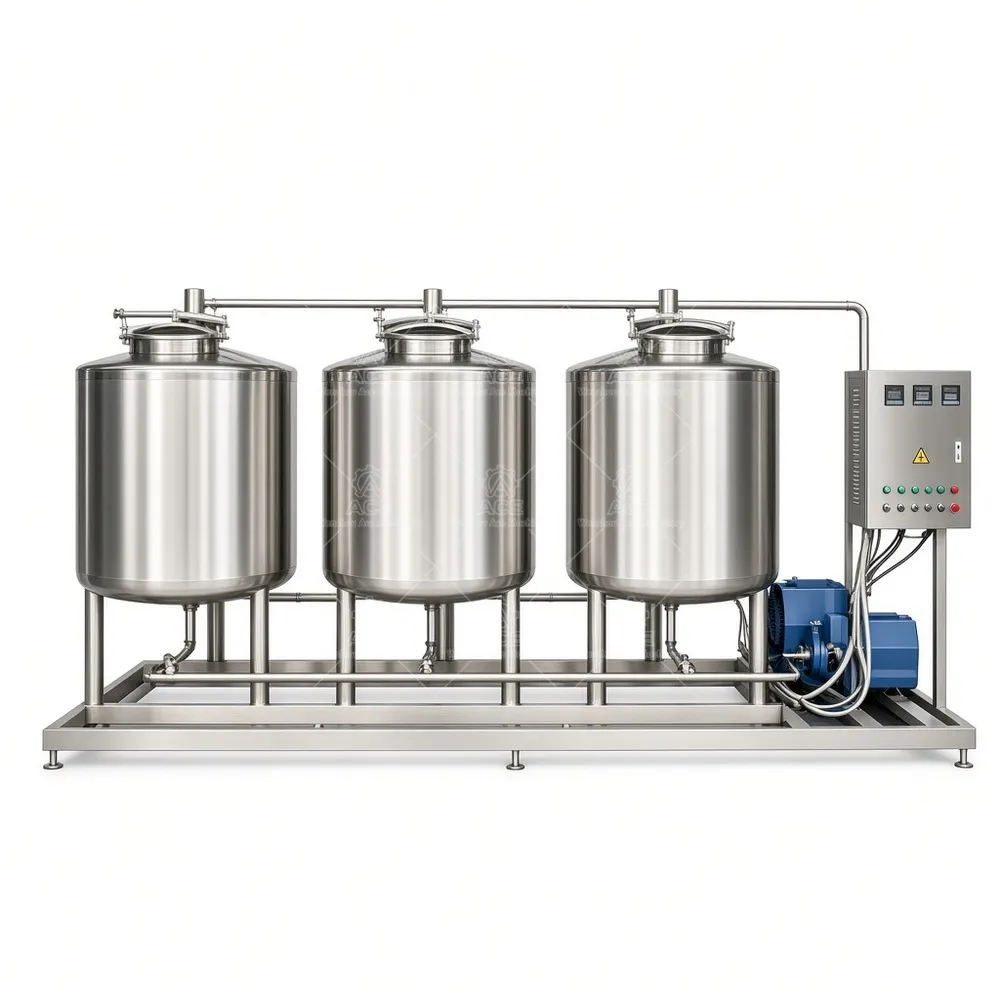

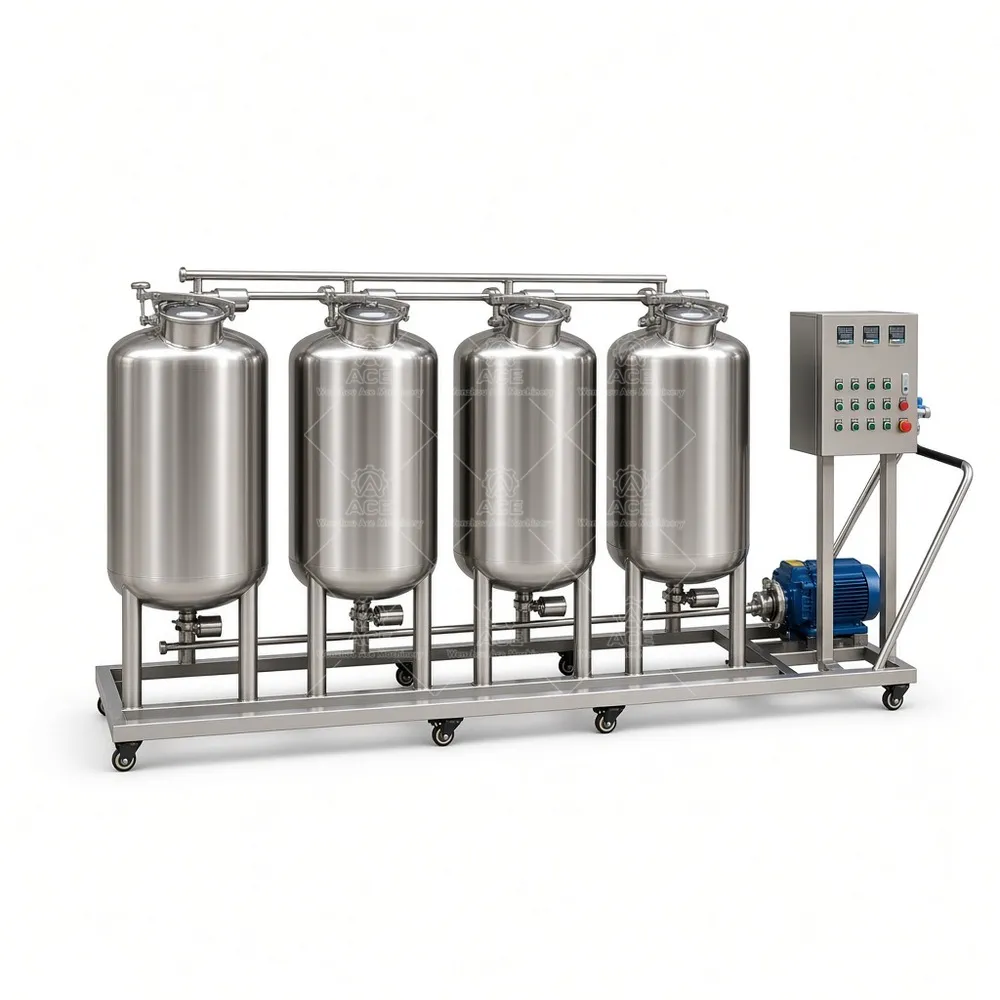

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,503.53 through $8,098.85
Guaranteed Safe Checkout

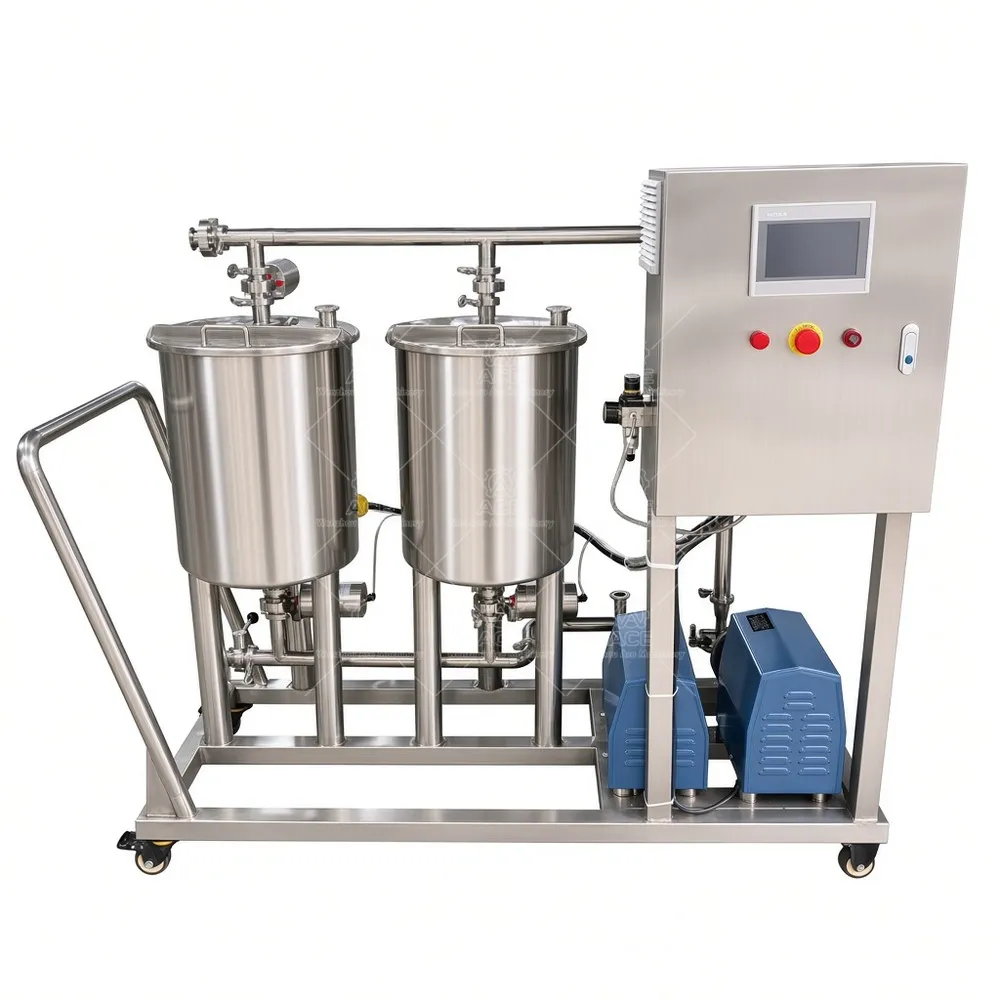

A mobile CIP cart gives a plant a dedicated cleaning loop without tying up a fixed skid. Our 100L unit suits small batches, pilot lines, and single-circuit cleaning where floor space is tight. The cart carries a stainless tank, pump, piping, and controls so operators can move it to the vessel or line that needs cleaning.
Clean-in-Place circulates cleaning solution through tanks, pipes, valves, fillers, and heat exchangers, then rinses and sanitizes the wetted path. A typical cycle includes pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and sanitizer. Temperature, flow, and contact time matter more than tank size alone. We size tank and pump around circuit volume, soil load, and flow velocity.
Configuration options

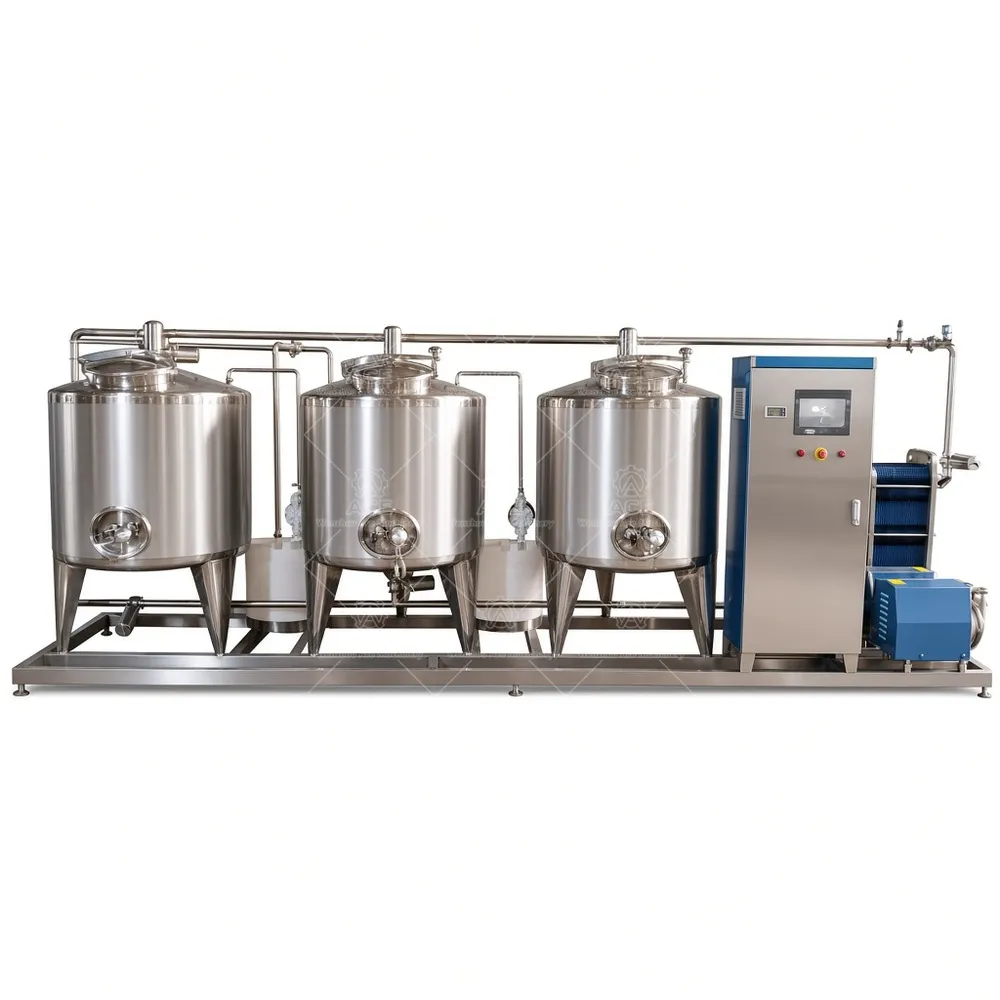

We build single-, double-, triple-, and multi-tank carts. Options include caustic and acid tanks, hot-water tanks, electric or steam heating, supply and return pumps, stainless piping and valves, and temperature, flow, pressure, and level monitoring. Controls can be manual, semi-automatic, or PLC-based. Custom tank volumes, circuits, and automation are quoted against line details. These are project options, not standard features on every cart.
Technical specifications
| Parameter | Typical range |
|---|---|
| Cleaning tank capacity | 100 L, custom sizes available |
| Number of tanks | Single, double, triple, or multi-tank |
| Stainless grade | 304 or 316L, project dependent |
| Heating | Electric or steam |
| Pump flow and pressure | Selected for circuit volume and pressure drop |
| Operating temperature | Set by cleaning chemistry and rinse stage |
| Control | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple loops |
| Power | Customer site requirement |
| Dimensions | Cart layout and tank count dependent |
| Customization | Tank size, circuits, automation, skid layout |
Applications
These carts are used in dairy processing, beverage production, breweries, distilleries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical production. Cleaning duty changes with product residue, pipe diameter, and line length, so we confirm the circuit before quoting.
FAQ
How do I choose tank count? Count separate cleaning circuits and incompatible chemistries. A single tank suits one wash and rinse program; extra tanks reduce changeover and rinse water use.
What details speed a quote? Send circuit volume, pipe size, soil type, heat source, automation level, stainless grade, and installation location.
Request a quote
Tell us your industry and product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the cart configuration, pump duty, and controls for your process.
