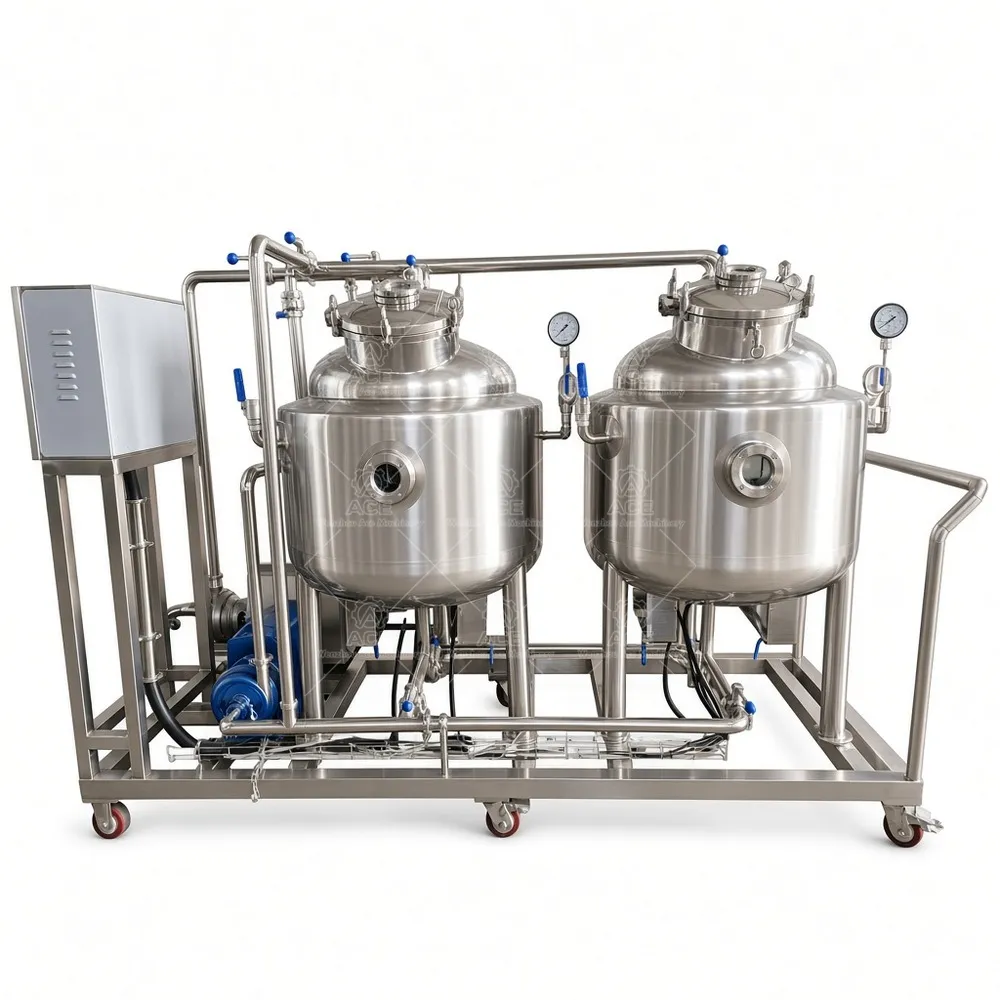

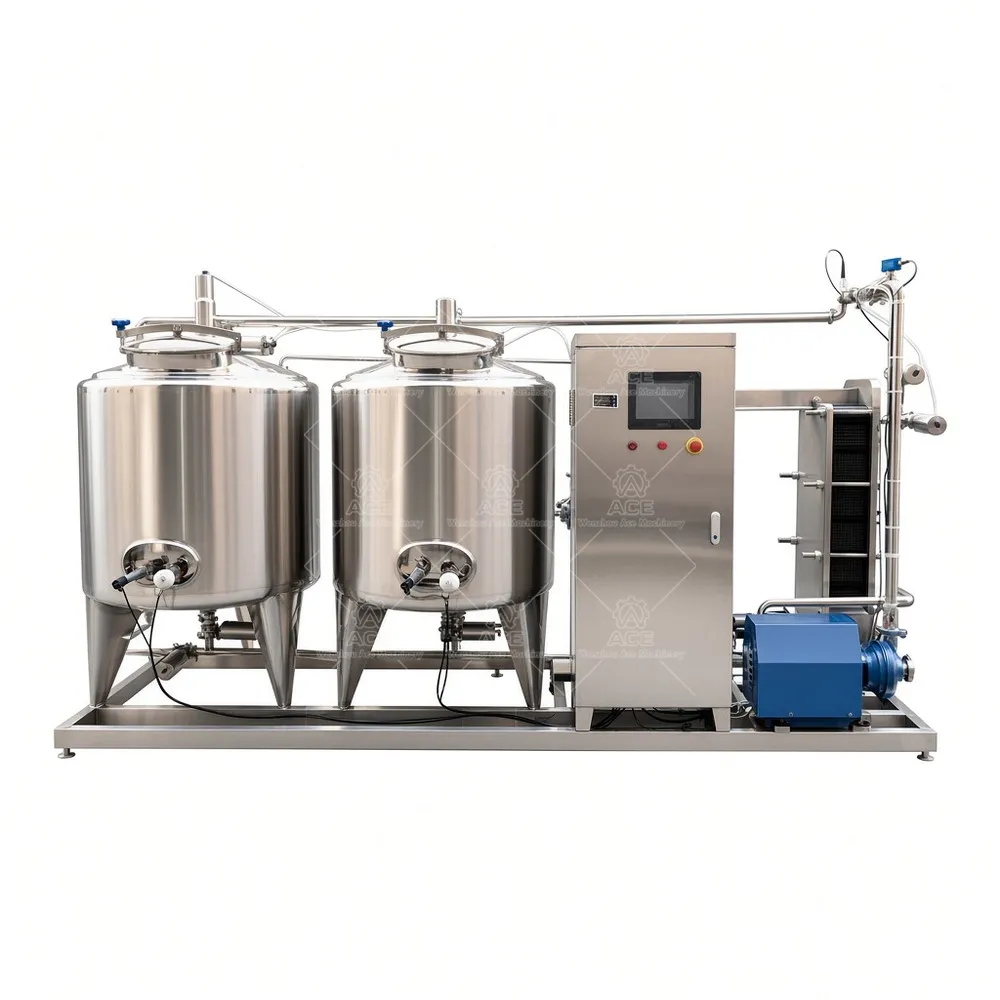

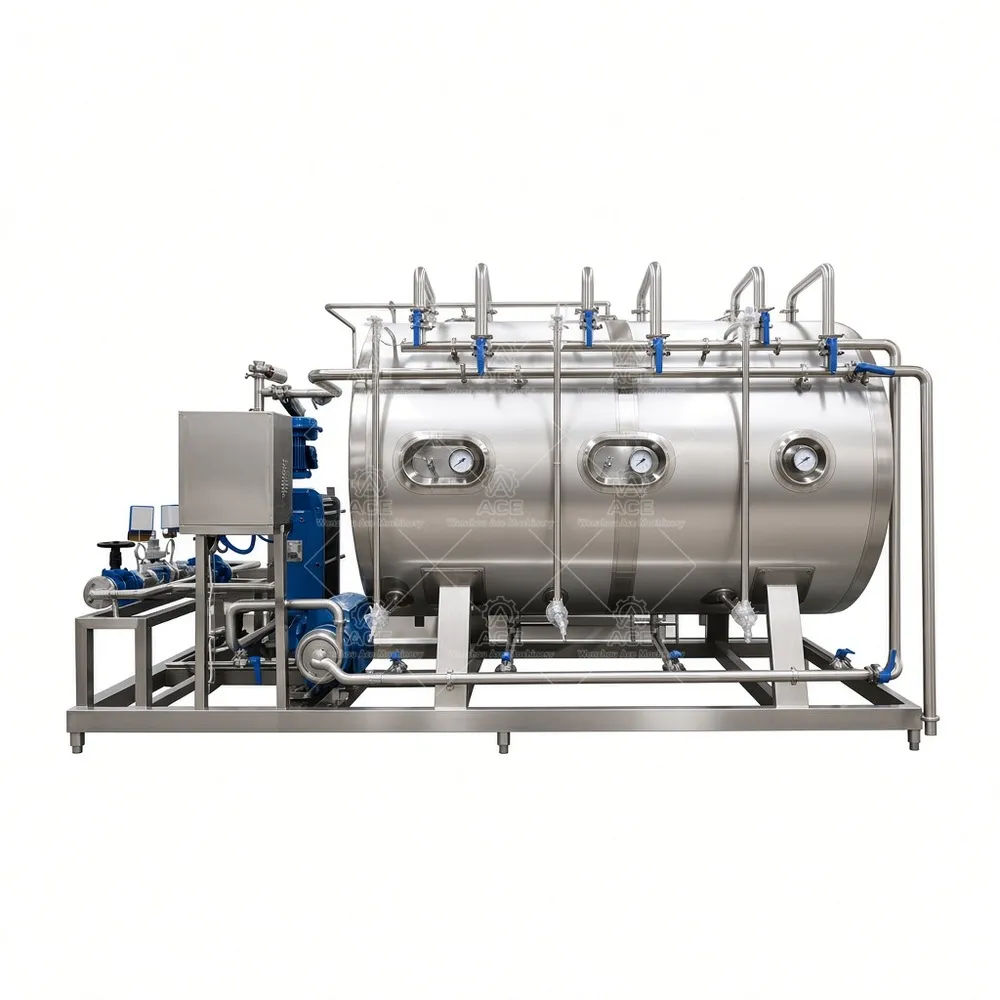

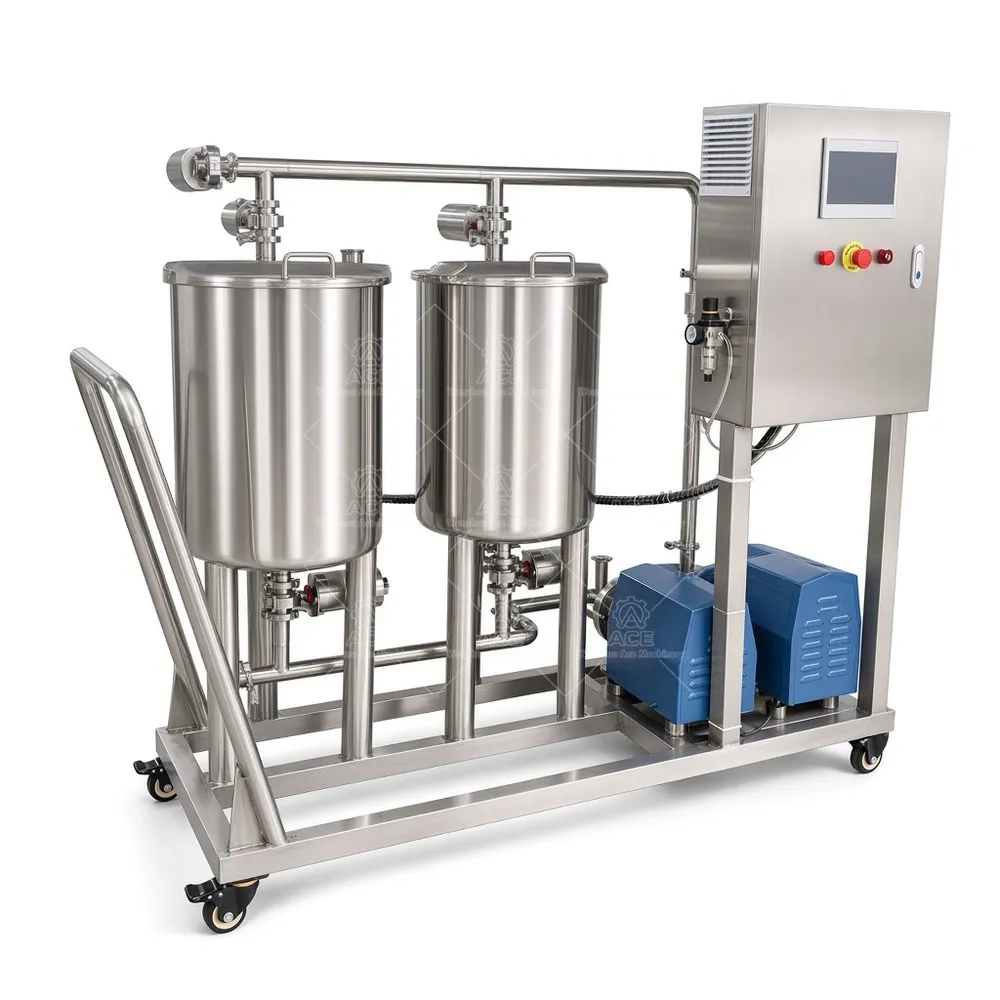

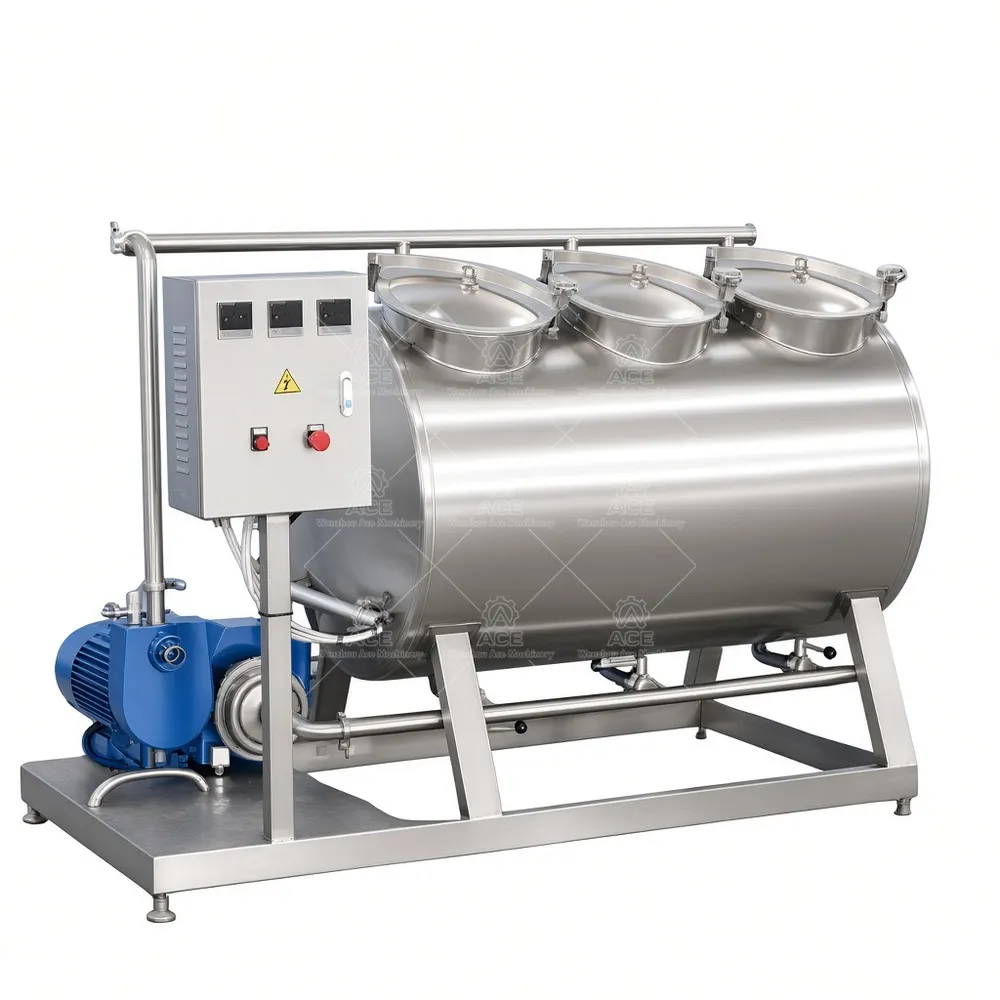

Portable CIP System for Stainless Steel Tanks Small Mobile Cleaning Skid
This mobile CIP system is a compact stainless steel skid for cleaning tanks, lines, and filling equipment in dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical plants. It supports single- or multi-tank configurations, electric or steam heating, circulation and return pumps, monitoring, and manual, semi-automatic, or PLC control. Factory-direct engineering support and custom capacities are available.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,683.57 through $8,466.75
Guaranteed Safe Checkout
Mobile CIP System for Stainless Steel Tank Cleaning
A mobile CIP skid earns its place when tank cleaning is a bottleneck and floor space is tight. Our small portable unit moves between vessels, lines, and filling rooms on casters, letting one system serve several circuits without permanent piping changes. We build stainless steel skids around your soil load, tank geometry, and schedule.
Clean-in-place circulates rinse water, detergent, and sanitizer through spray balls or tank nozzles, then returns solution to the CIP tank. A typical sequence is pre-rinse, caustic wash, intermediate rinse, acid wash if needed, and final rinse. Pump flow, pressure, temperature, and contact time matter more than tank size alone. We size the tank and pump around your largest circuit and heaviest residue.
Configuration Choices
- Single-, double-, triple-, or multi-tank skids
- Caustic and acid wash tanks
- Hot water tank with electric or steam heating
- CIP circulation and return pumps
- Stainless piping, valves, and fittings
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC control
- Custom tank volumes, cleaning circuits, and automation
These are available options, not standard features on every model. We confirm each item against your process before quotation.
Technical Specifications
| Parameter | Typical Range or Option |
|---|---|
| Cleaning tank capacity | 50–1,000 L per tank, project-specific |
| Number of tanks | 1–4 or more |
| Stainless grade | 304 or 316L |
| Heating method | Electric or steam |
| Pump flow and pressure | 5–30 m³/h; up to 6 bar |
| Operating temperature | Ambient to 176°F (80°C) |
| Control system | Manual, semi-auto, PLC/HMI |
| Cleaning circuits | 1–8, expandable |
| Power | 220/380/460 V, 50/60 Hz |
| Dimensions | Skid-mounted, custom footprint |
| Custom options | Tank size, pump, heat source, controls, piping |
Applications
Dairy processors use mobile CIP for milk tanks, pasteurizers, and lines. Breweries and distilleries clean fermenters, bright tanks, and transfer piping. Beverage plants, sauce manufacturers, liquid food processors, cosmetics producers, and pharmaceutical manufacturers also rely on CIP for stainless vessels and piping. Requirements vary with residue type, surface finish, water quality, and cleaning chemistry. We review those details before recommending a circuit layout.
FAQ
How do I size tank volume and cleaning capacity? Start with the largest vessel’s volume and soil load, then add rinse and recirculation allowance. A smaller tank with a high-flow pump can outperform a large tank with weak flow. We check spray device coverage and return-line pressure before finalizing.
What information speeds up a quote? Tank drawings, piping diameter and length, residue type, cleaning chemical, heat source, available floor space, and automation target.
Request a Custom Quote
Tell us your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless grade, and installation location. Our engineers will recommend the skid configuration and prepare a factory-direct quotation.
