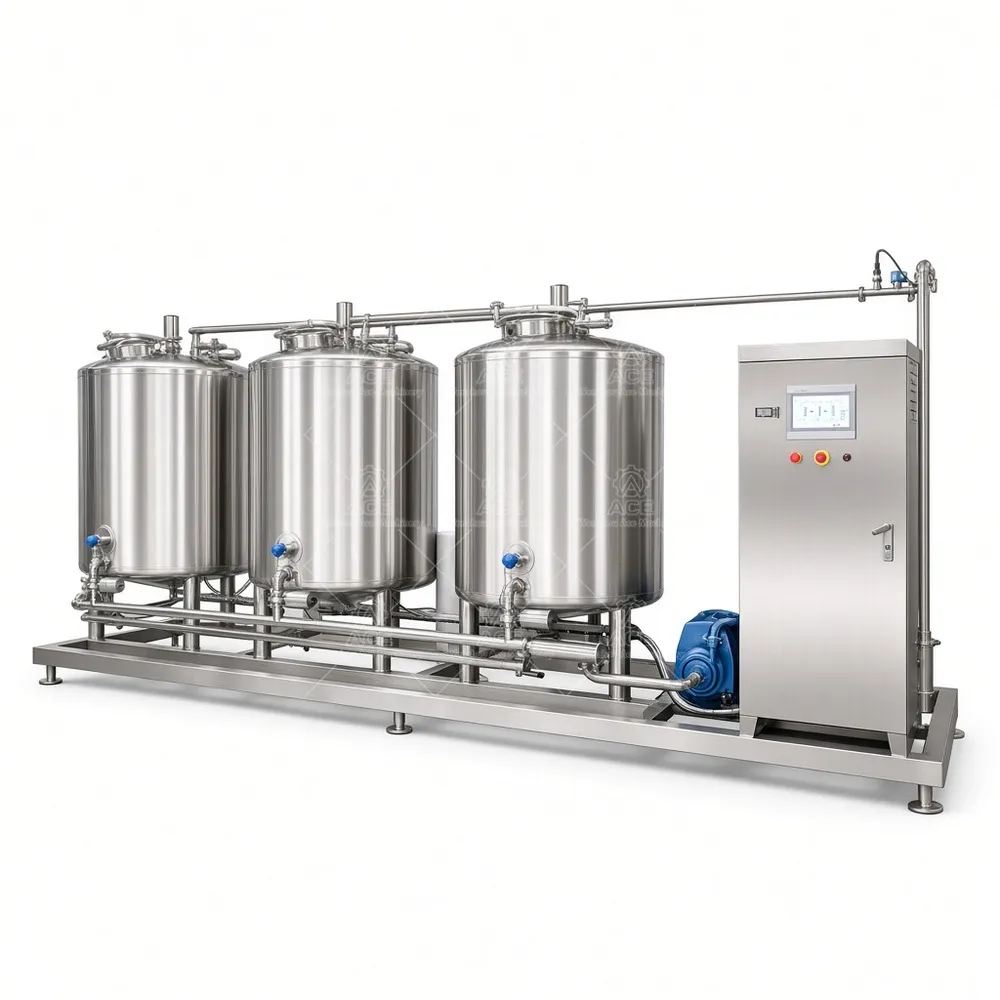

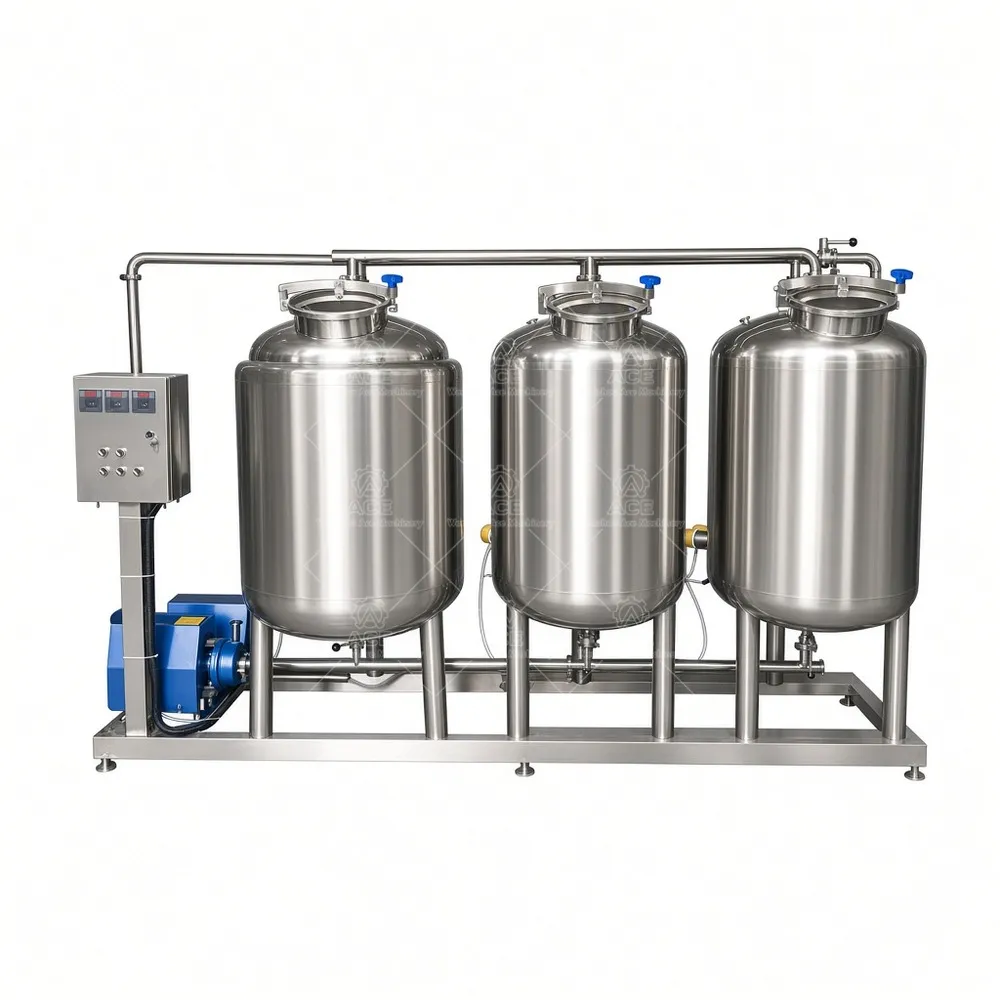

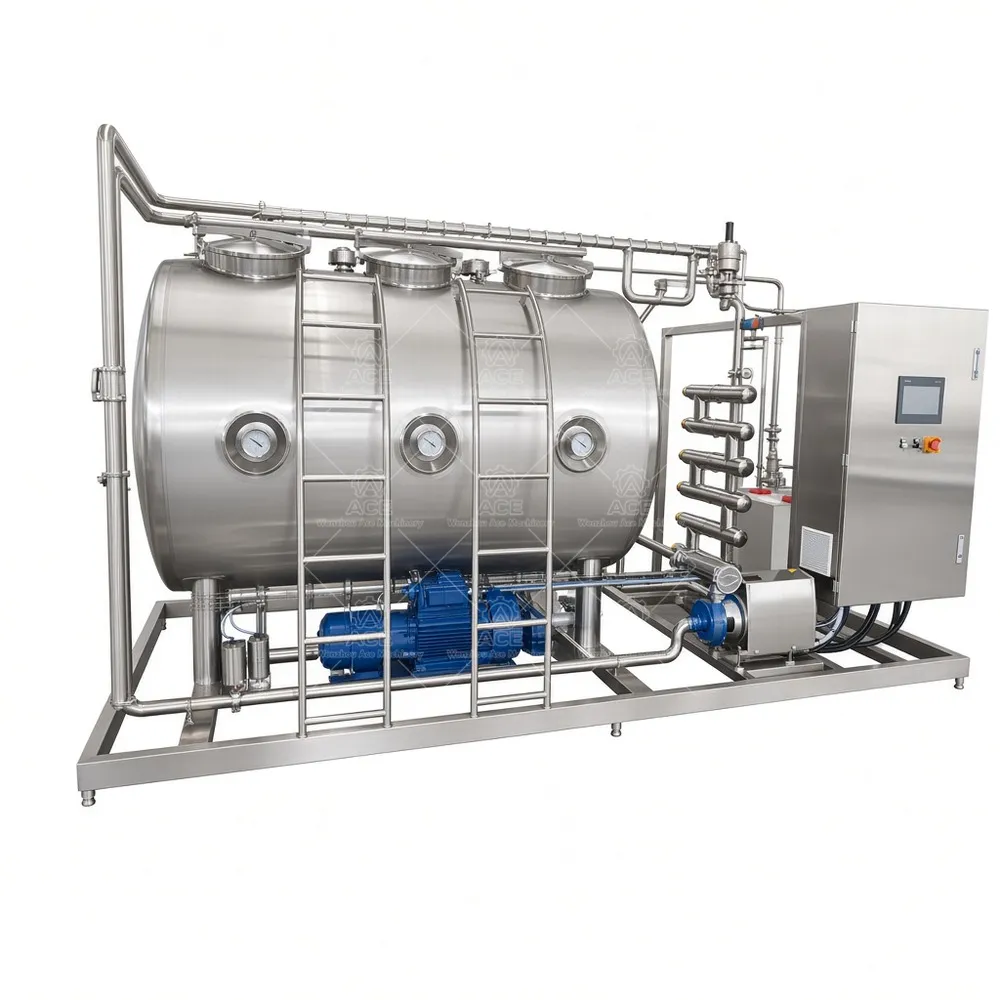

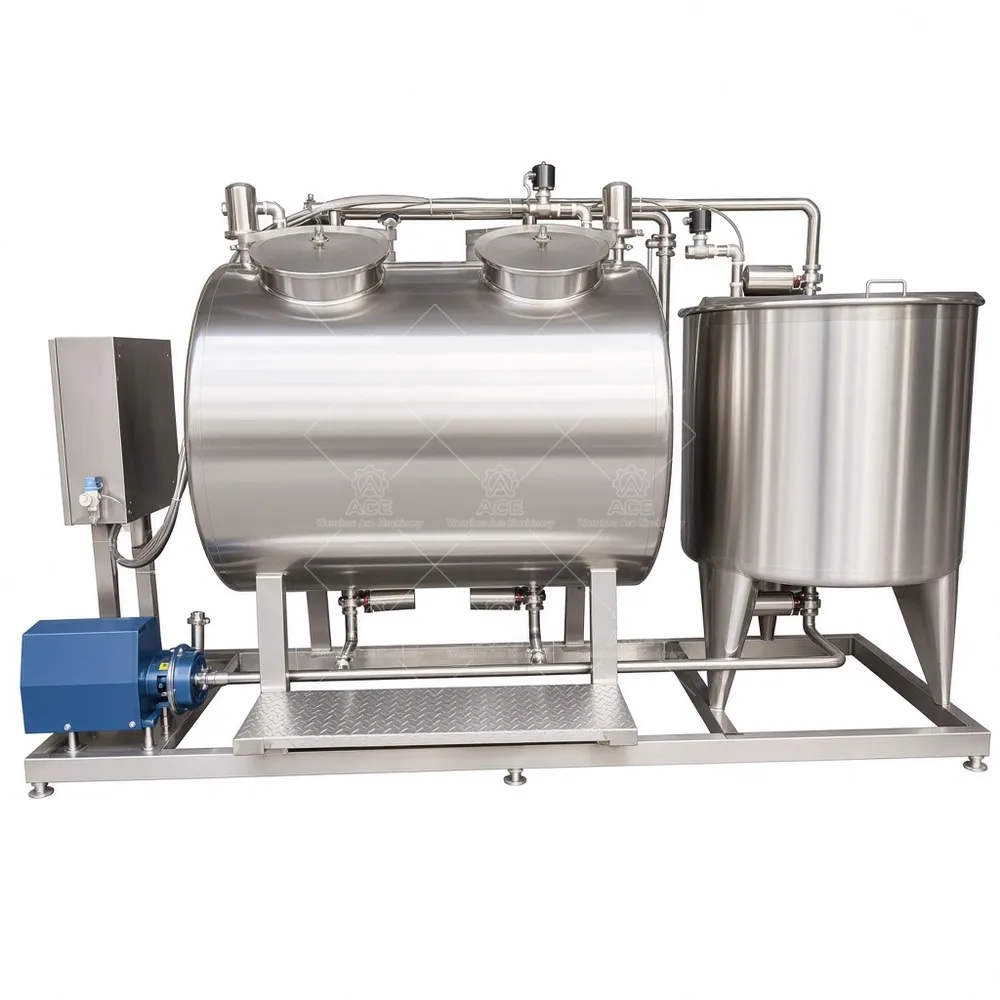

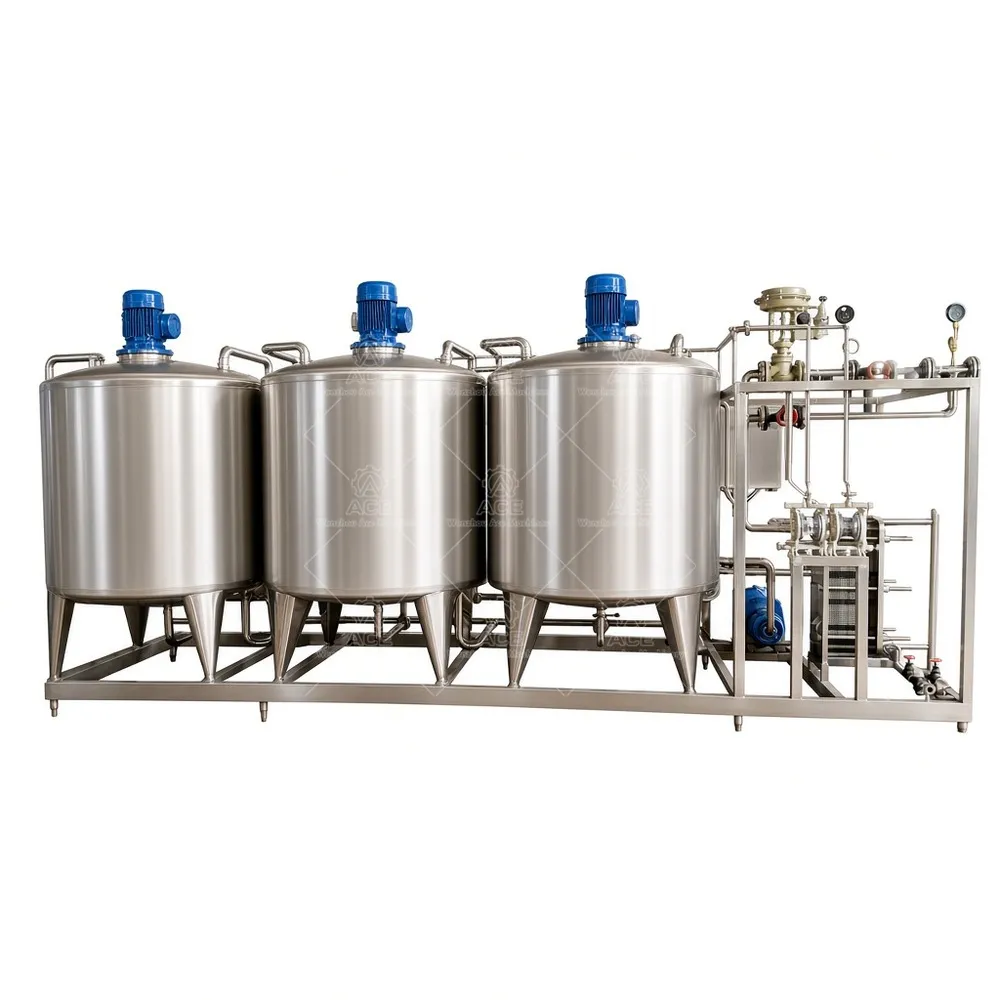

50 to 200 Liter CIP Cleaning System for Brewery Brewing Machine
We build 50 L, 100 L, and 200 L CIP cleaning systems for breweries and process plants. Each skid is sized around tank volume, loop length, soil load, heating, pump duty, and control level. Options include single or multi-tank designs, acid and caustic tanks, electric or steam heat, stainless piping, and manual to PLC control. Send your line details for a configured quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,518.23 through $8,273.59
Guaranteed Safe Checkout
CIP Cleaning Systems for Brewery and Process Lines
A CIP skid is more than a tank and a pump. It sets the cleaning cycle your vessels, mains, filler, and heat exchanger can repeat shift after shift. We build 50 L, 100 L, and 200 L systems for breweries and processors that need a practical balance between tank volume, loop length, and floor space.
We size the circuit around soil load, pipe diameter, rinse water quality, and turnaround target. A single-tank unit suits simple rinse and caustic cycles. Two or three tanks let you separate acid, caustic, and hot water. Electric or steam heating, supply and return pumps, stainless piping, valves, and instrumentation are selected per project. The list below shows available options, not a fixed standard package.
How the cleaning cycle works
Cleaning solution leaves the tank, passes through the supply pump and piping, and returns from the vessel or line to the tank. Temperature, flow, pressure, and level are monitored according to the control level you choose. Operators can run manual, semi-automatic, or PLC-based sequences. We confirm whether the loop serves fermenters, bright tanks, brewhouse vessels, transfer lines, fillers, or a mix.
Typical specifications
| Item | Range or option |
|---|---|
| Cleaning tank capacity | 50 L, 100 L, 200 L, custom |
| Number of tanks | Single, double, triple, or multi-tank |
| Stainless steel grade | 304 or 316L wetted parts |
| Heating method | Electric or steam, project-specific |
| Pump flow and pressure | Sized to loop length and fittings |
| Operating temperature | Typical up to 80 C, confirm for your cycle |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple, as required |
| Power supply | 220/380/415 V, confirm at quote |
| Dimensions | Depend on tank size and skid layout |
| Custom options | Tank volume, circuits, automation, skid design |
Where these systems are used
Dairy processors, beverage plants, breweries, distilleries, sauce and liquid food lines, cosmetics production, and pharmaceutical processing use CIP systems to clean tanks, piping, pumps, valves, fillers, and heat exchangers. Cleaning needs differ by product residue, surface finish, loop geometry, and water chemistry. We review those details before recommending tank count and pump duty.
FAQ
How do I choose tank capacity? Start with loop volume, rinse stages, and required wash concentration. A larger tank is not automatically better; it can increase heat-up time and chemical use.
Can one skid serve several lines? Yes, with proper valving and circuit design. We check pressure loss and return flow before confirming the layout.
What do you need for a quote? Send your industry and product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend a configuration and prepare a project-specific quotation.
Important: The configurations above are options, not guaranteed standard features. We confirm scope, materials, utilities, and control level against the actual model or project before quoting.
