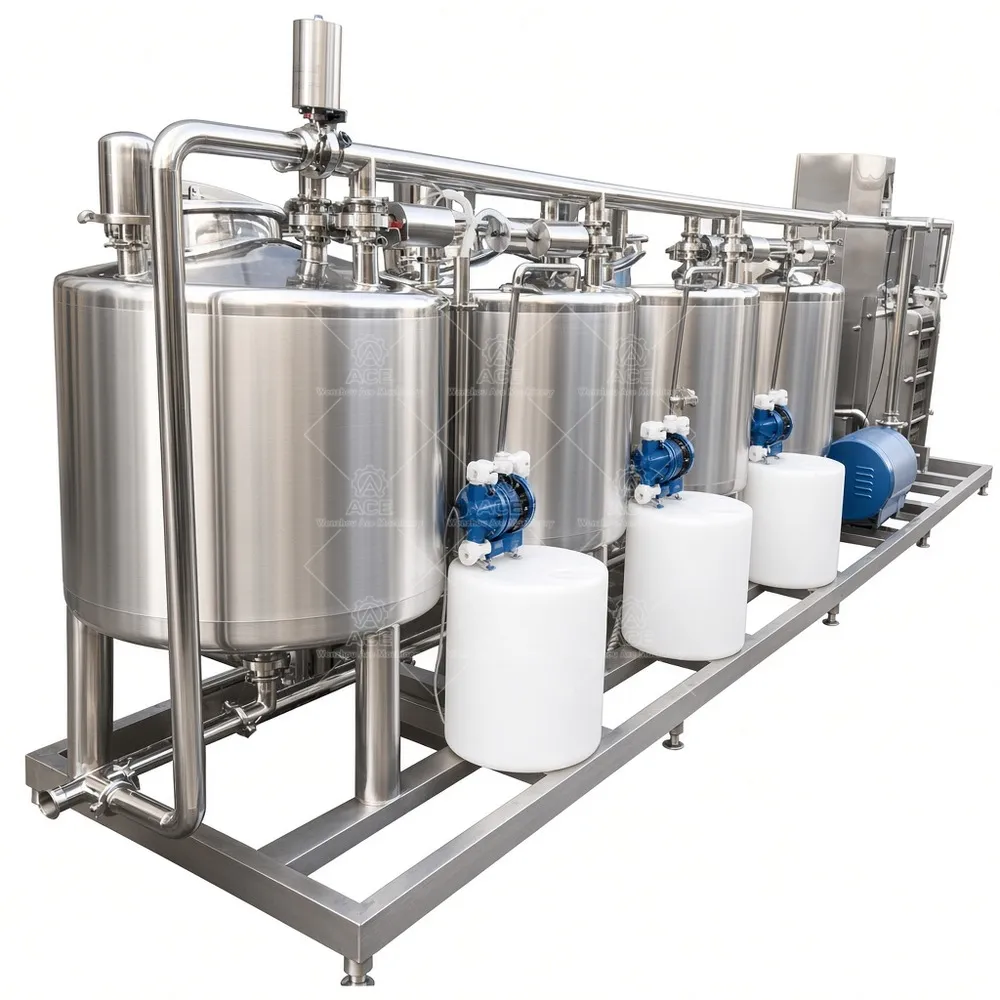

Fully Automatic CIP Cleaning System for Dairy & Beverage Plants
Fully automatic CIP cleaning systems built for dairy, beverage, and liquid food plants. Stainless skids with caustic, acid, and hot water tanks, PLC recipe control, and pump sizing matched to your largest cleaning circuit. Factory-direct engineering support and custom configurations.
- Tank Capacity: [100L–5000L or specify actual capacity]

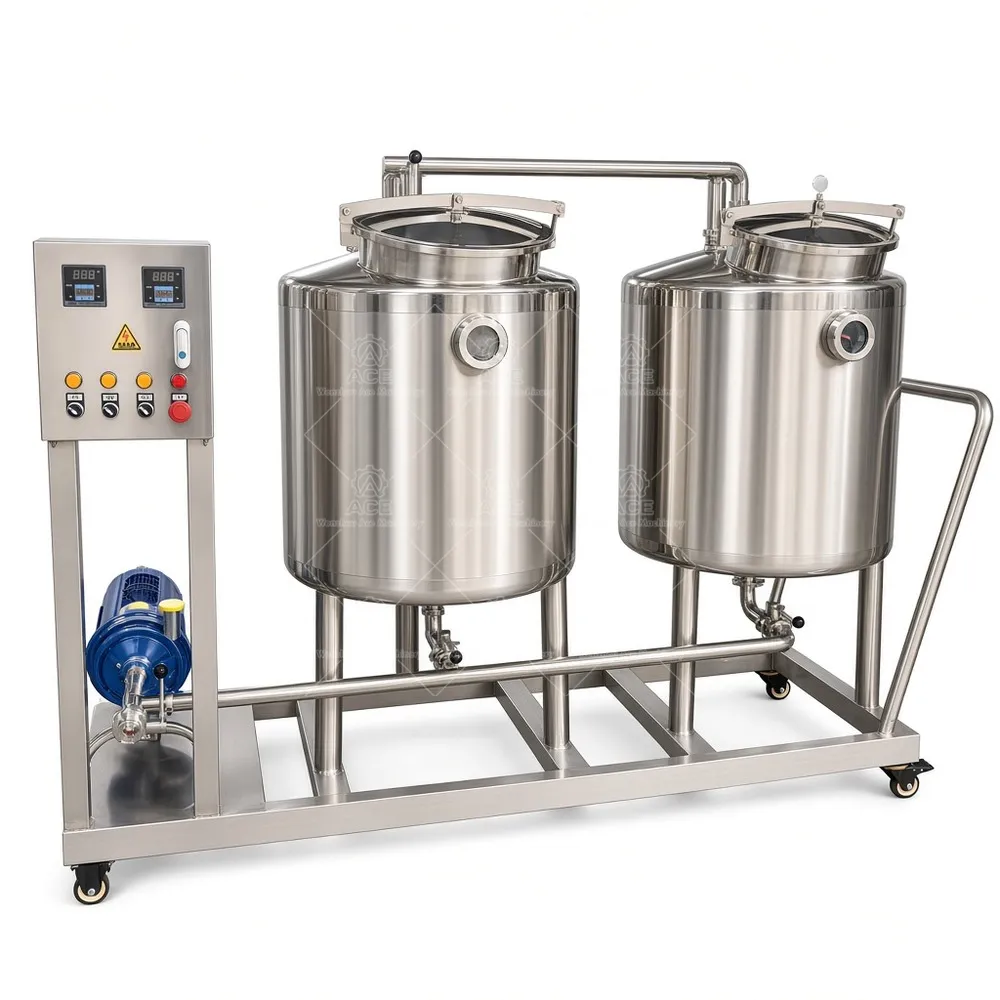

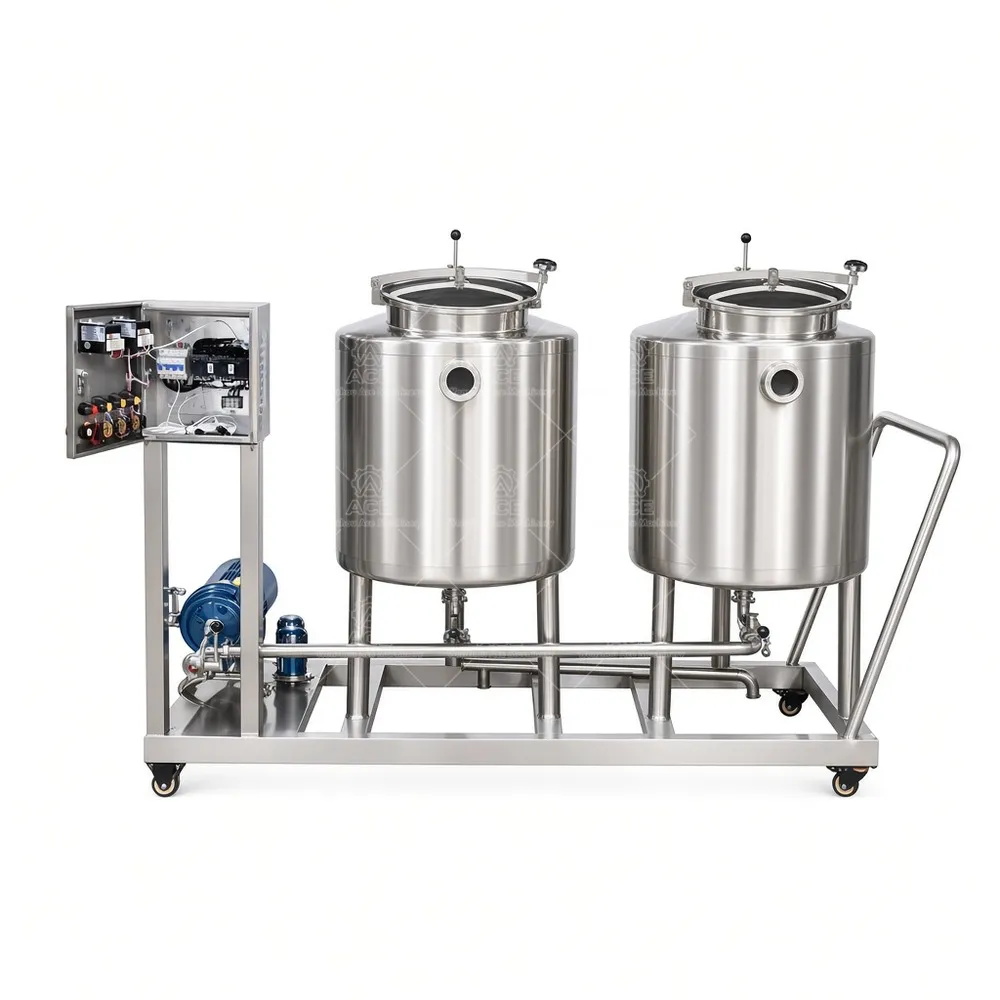

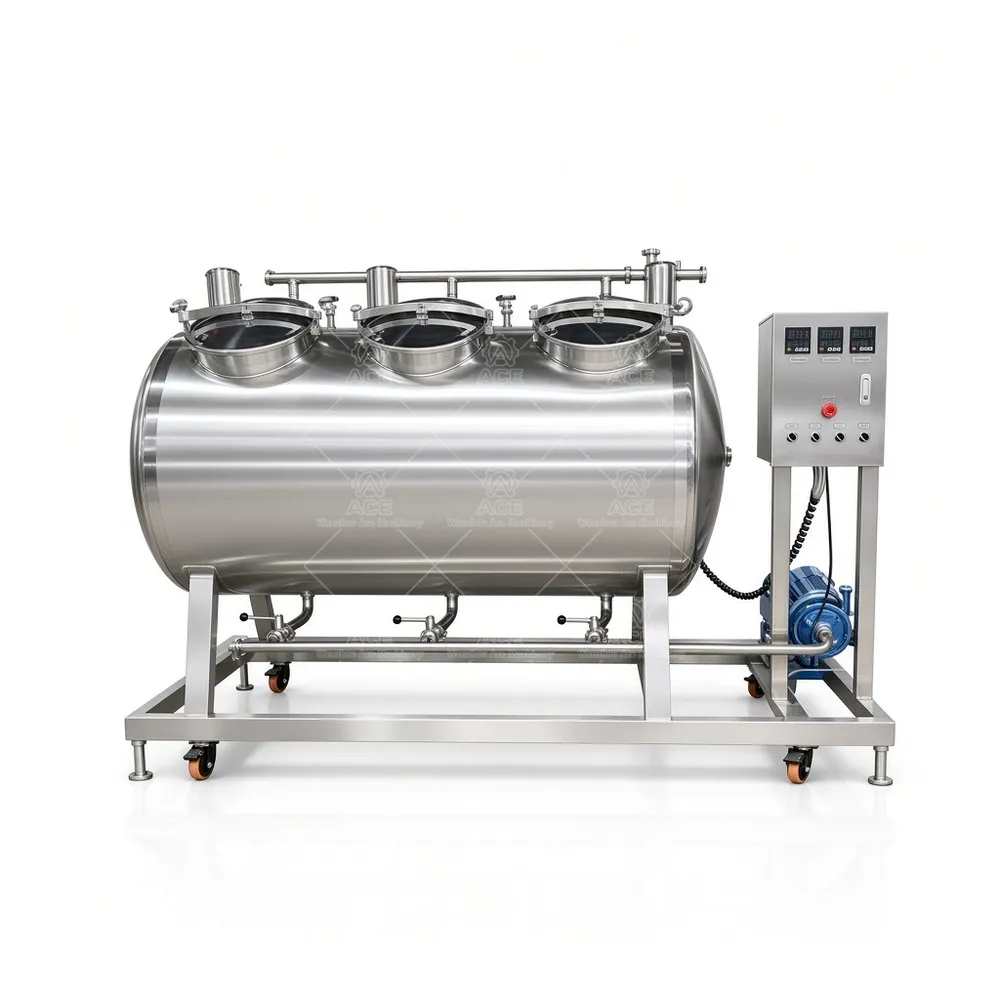

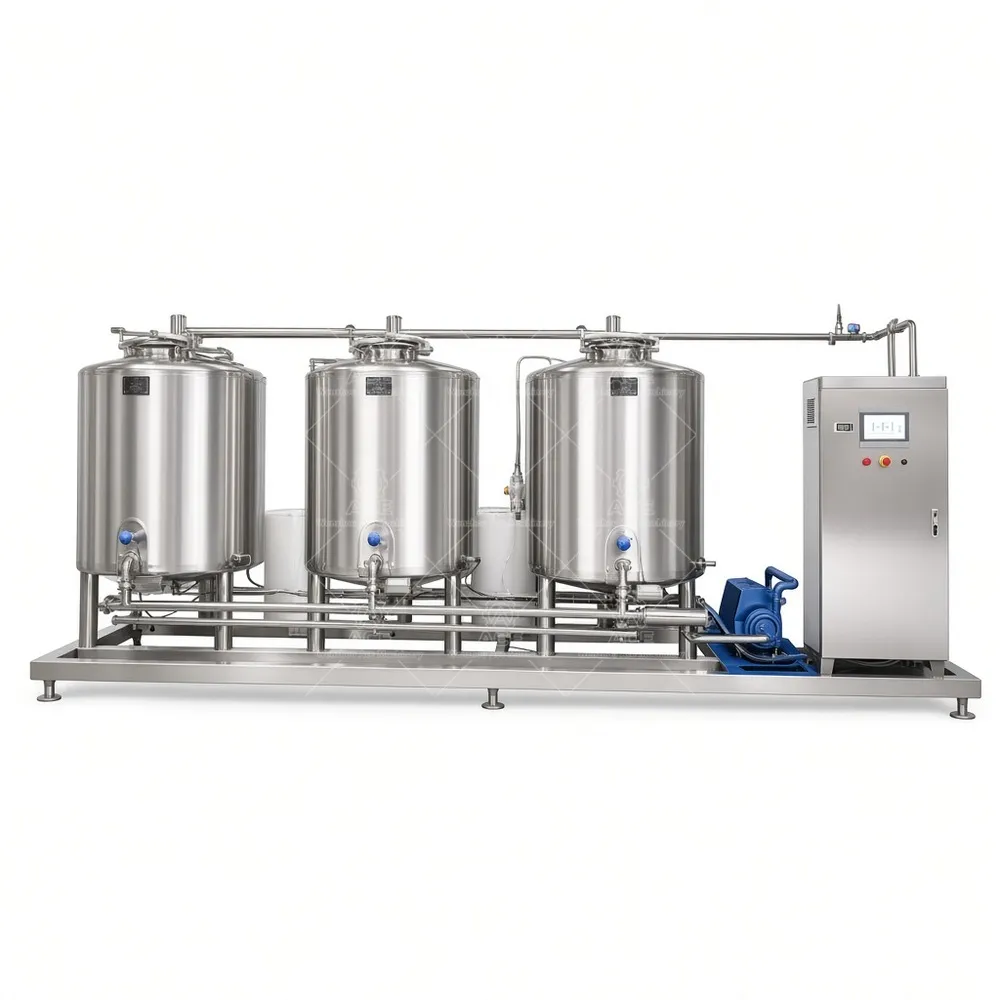

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,718.18 through $8,232.46
Guaranteed Safe Checkout
What the system actually does
A CIP skid is a small process plant in its own right: balance tanks, a supply pump, a return pump, a heater, and the instrumentation that decides whether a wash was real or just looked like one. Cleaning solution leaves the tank, travels the main line and risers, passes through spray balls, and comes back through the return pump. Conductivity tells the PLC where product ends and cleaning chemistry begins. Temperature, flow, and time hold the cycle.
Flow is where most undersized units fail. If the pump is sized to average demand instead of the largest circuit, spray pressure drops and the headspace of a tall tank stops getting wetted. We size against the worst case, then confirm against your pipe diameter and total run.
Typical configuration
| Item | Range / option |
|---|---|
| Cleaning tank capacity | 300–10,000 L per tank, project specific |
| Tank quantity | Single, double, triple, or multi-tank |
| Stainless grade | 304 or 316L, wetted surfaces |
| Heating | Electric or steam, with temperature control |
| Pump flow / pressure | Sized to circuit volume and spray device |
| Operating temperature | Ambient to 80 °C, depending on chemistry |
| Control | Manual, semi-automatic, or PLC with recipe storage |
| Monitoring | Temperature, flow, pressure, level, conductivity |
| Power | 3-phase, voltage per destination |
| Dimensions | Skid-mounted, finalized after layout review |

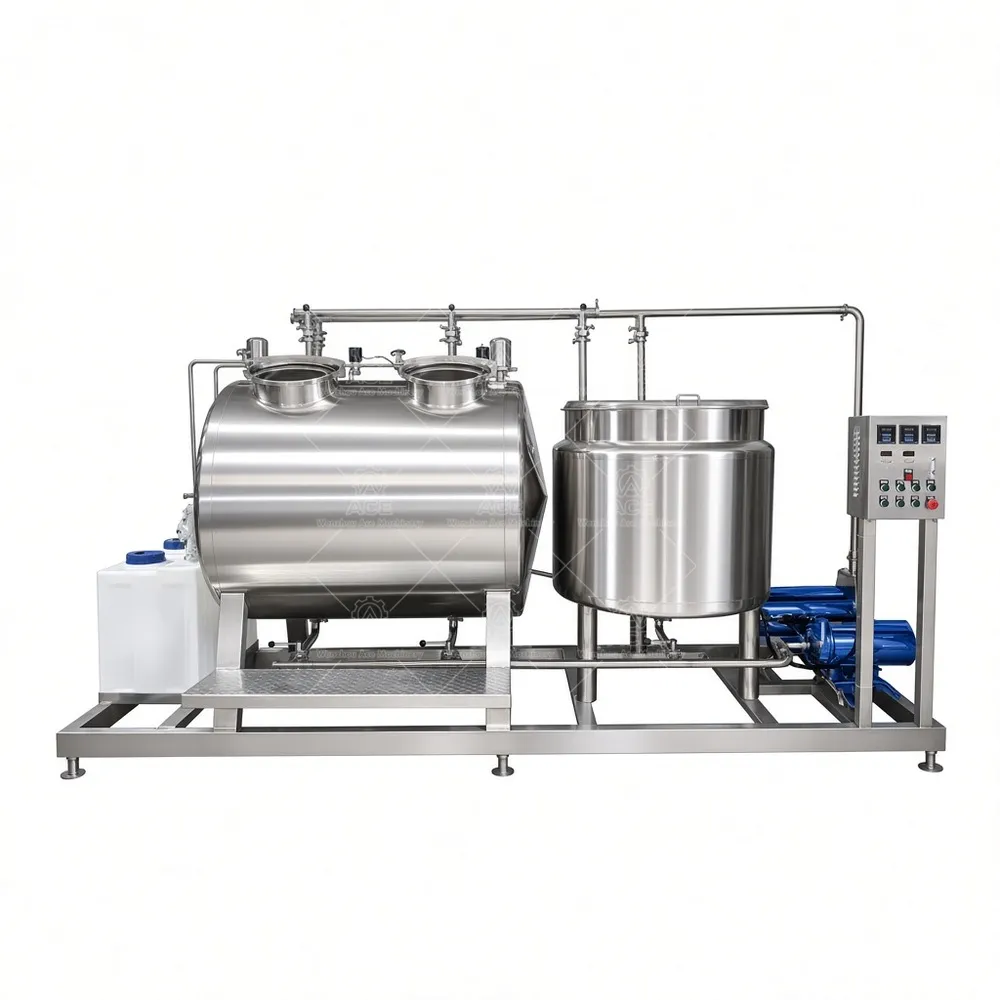

Caustic, acid, and hot water tanks are usually separated so recovery and rinse steps stay independent. Options listed here are configuration choices, not a fixed standard build — we confirm every item against your project before quoting.
Where these units run
Dairy lines, beverage and brewery vessels, sauce and liquid food plants, and cosmetic or pharmaceutical process equipment all use the same geometry of cleaning: a circuit that must reach every wetted surface at a defined flow and temperature. Requirements differ by product residue and by how the tanks drain.
Questions we get before a quote
How many tanks do I need? Two-tank setups (caustic and rinse) cover most dairies. Add an acid tank when you run hard-water rinses or scale-prone products, and a hot water tank if sanitizing is done thermally.
Can it clean lines only? Yes. Supply and return headers can be set up for line-only flushing, with the vessels isolated by valves.
How much automation is realistic? PLC control pays back when recipes change often or when operators vary. Single-product plants run manual units without trouble.
Send us your process details
Tell us your industry and product, tank and pipe sizes, the cleaning flow you need, your heat source, desired automation level and stainless grade, plus the installation site. Our engineering team will recommend tank volume, pump sizing, and circuit layout and return a customized quote.
