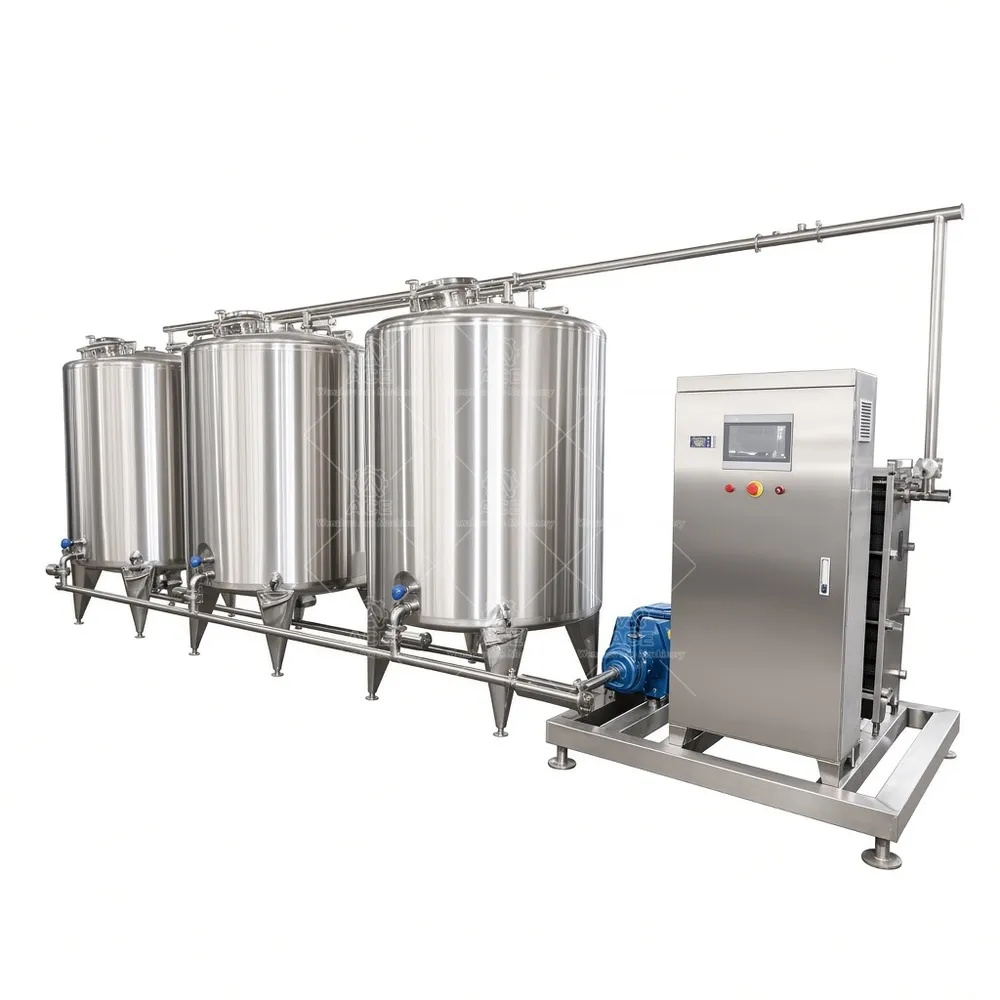

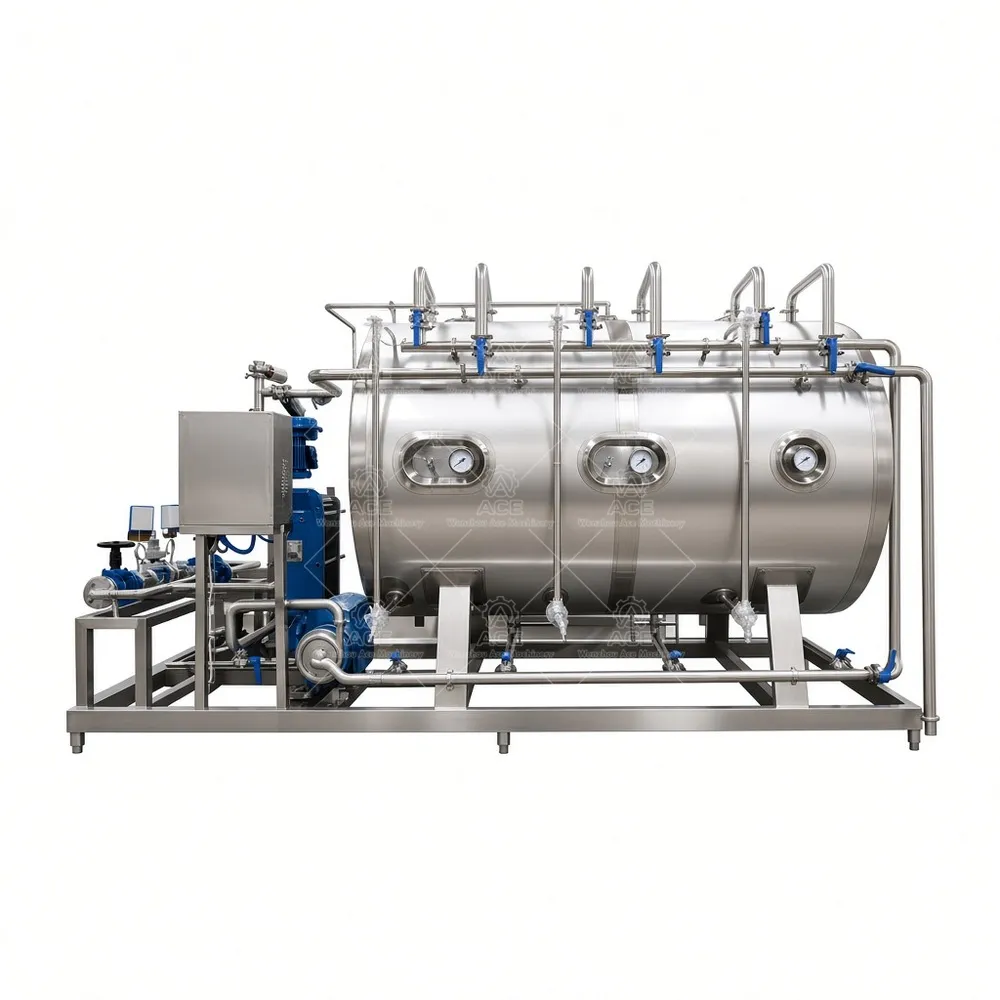

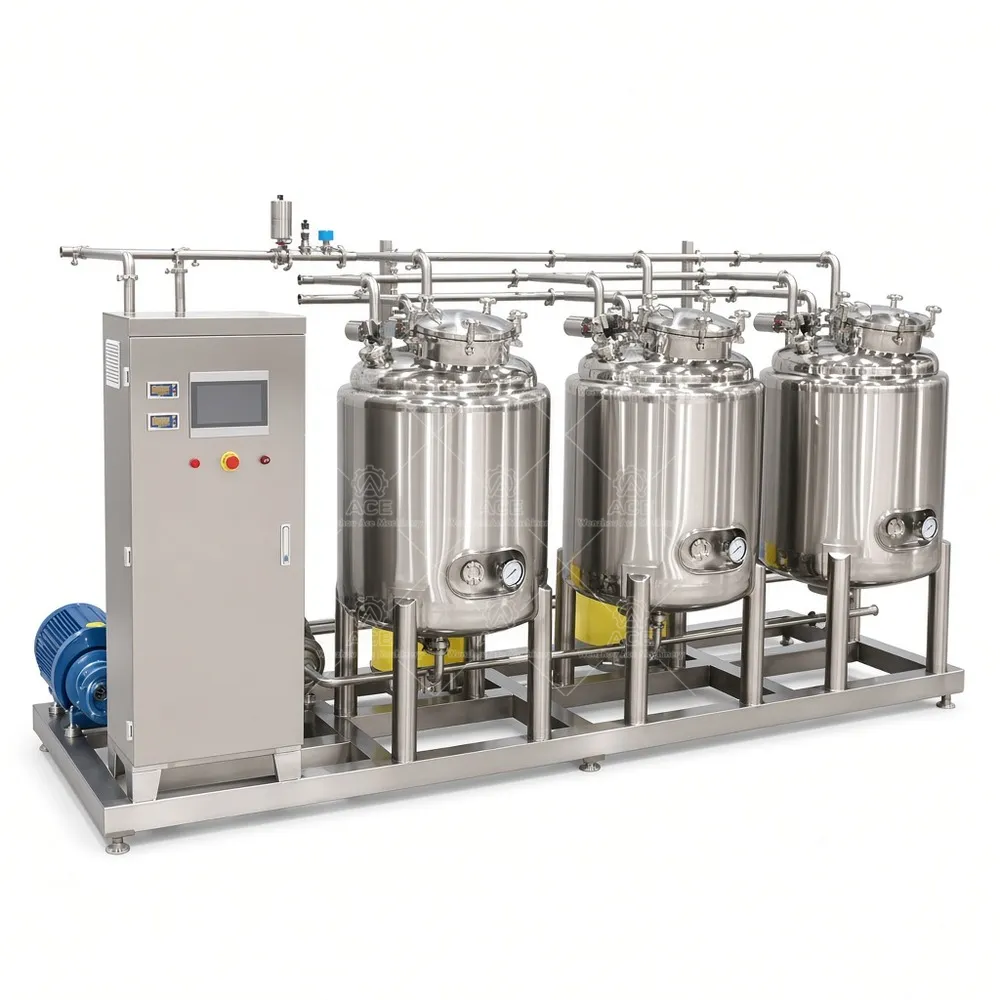

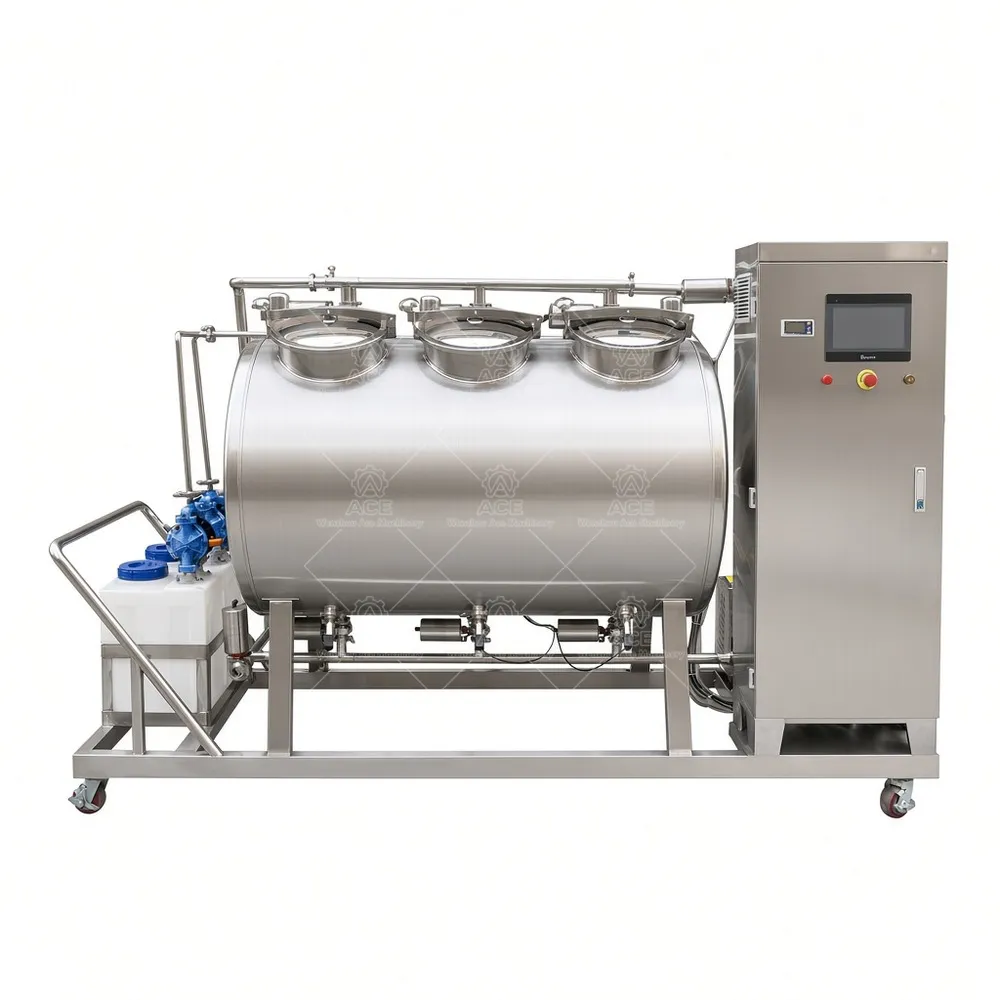

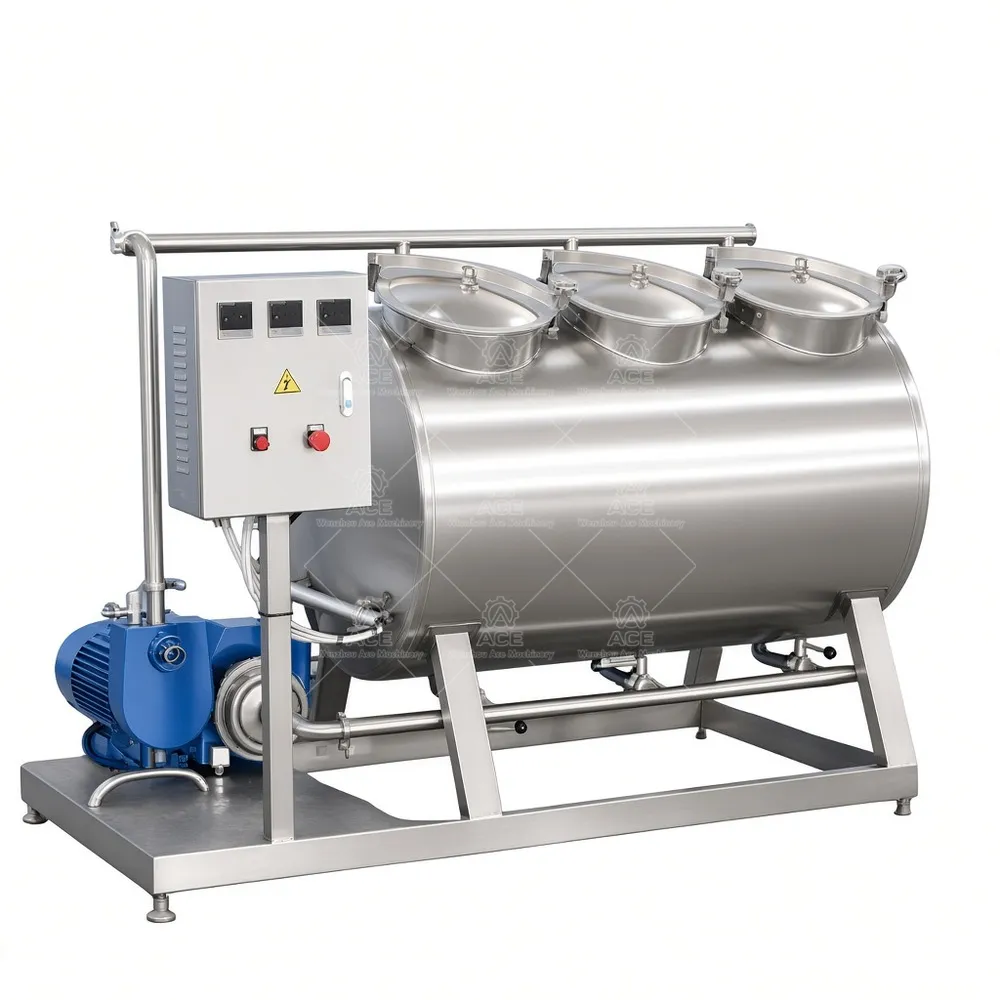

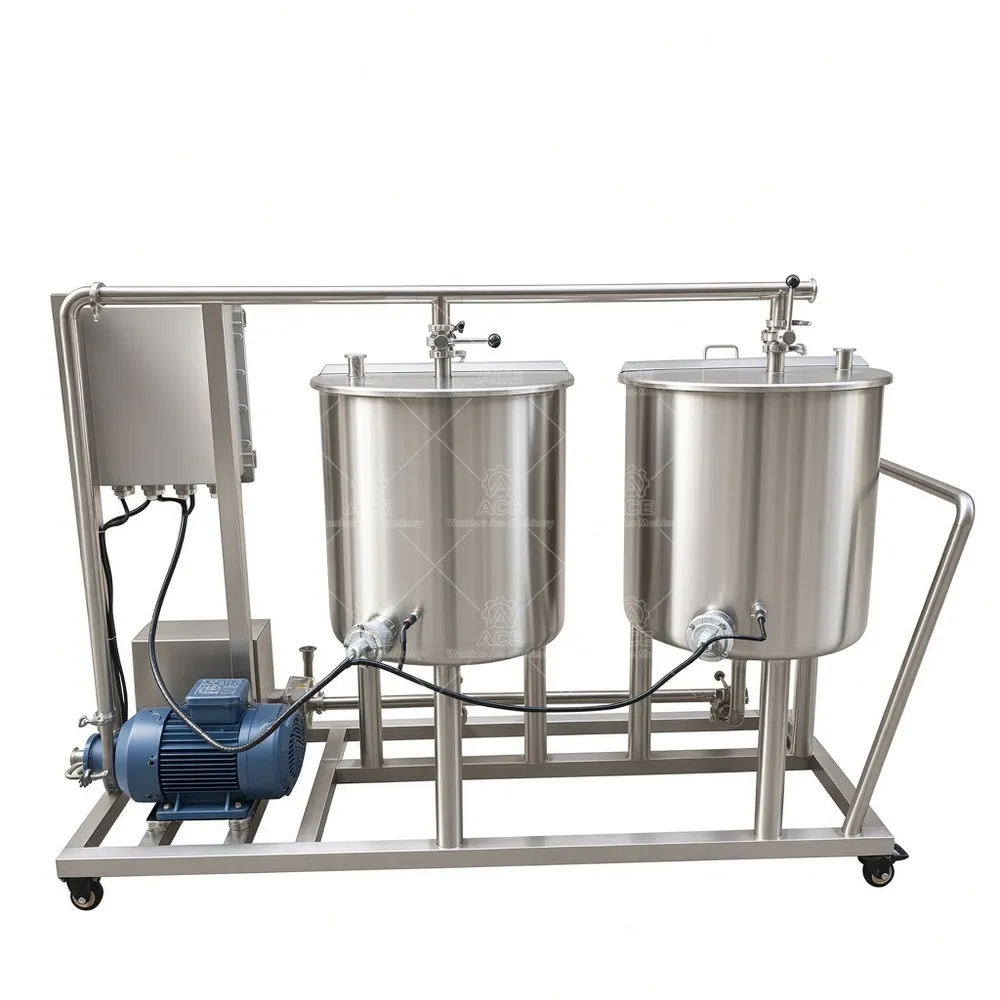

Automatic CIP Washer System for Multi-Station Washing Custom Built
Our automatic CIP washer systems are configured for multi-station washing in dairy, beverage, brewery, and process plants. We build stainless steel skids with caustic, acid, and hot water tanks, electric or steam heating, circulation and return pumps, and manual, semi-automatic, or PLC control. Share your circuits, cleaning capacity, heat source, and automation needs for a factory-direct quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,569.82 through $9,802.16
Guaranteed Safe Checkout
Automatic CIP Washer System for Multi-Station Washing
We build CIP washer packages around the plant layout, not around a catalog page. A multi-station system usually needs separate supply and return routing, verified pump head, and enough tank volume to hold wash chemistry between cycles. The control package can be manual, semi-automatic, or PLC-based, depending on operator involvement and records required by your process.
The cleaning cycle is straightforward in principle: pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and drain. Actual sequence, temperature, flow, and contact time are set by the soil load, pipe diameter, tank spray devices, and production schedule. We confirm these details before quoting a skid.
Common Configuration Choices
- Single-, double-, triple-, or multi-tank CIP skids
- Caustic and acid wash tanks; hot water tank
- Electric or steam heating
- CIP circulation and return pumps
- Stainless piping, valves, and fittings
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC control
- Custom tank capacity, cleaning circuits, and automation
These options are not a standard feature list. We confirm each item against the model and project scope.
Typical Specification Range
| Typical specification range | Confirm per project |
| Cleaning tank capacity | 100–5,000 L per tank; project-specific |
| Number of tanks | 1–5 or more |
| Stainless grade | 304 / 316L |
| Heating | Electric or steam |
| Pump flow and pressure | 5–50 m³/h; pressure per circuit |
| Operating temperature | Up to 80°C typical; confirm chemistry |
| Control system | Manual, semi-auto, PLC/HMI |
| Cleaning circuits | 1–20+; expandable with I/O |
| Power | 380/415/480 V, 3 phase, 50/60 Hz |
| Dimensions | Custom skid layout |
| Custom options | Tank size, circuits, automation, monitoring |
Use points include dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical process lines. Each has different soil, chemistry, and rinse requirements; we verify materials and instrumentation against the duty.
FAQ
How do I size CIP tank capacity? Start with circuit volume, pump flow, rinse demand, and the number of stations. A larger tank is not automatically better if the recipe and recovery plan are unclear.
Can we add stations later? Often yes, if the pump, header, and control I/O are sized with spare capacity. Share the future layout early.
What controls do we need? Manual suits simple, low-change operation. PLC control helps when recipes, alarms, and cycle records matter.
Request a Custom Quote
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend a configuration and prepare a factory-direct quote with engineering support.
