Large CIP Deoxygenated Water Tank – Custom Stainless Steel Tank Body
Large CIP deoxygenated water tank body for food, beverage, dairy, and pharmaceutical plants. We fabricate single- to multi-tank systems with optional electric or steam heating, CIP pumps, stainless piping, and manual or PLC control. Custom capacities and configurations are quoted per project based on cleaning capacity, heat source, and automation needs. Request a quote with your tank and piping details.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,841.91 through $8,310.87
Guaranteed Safe Checkout

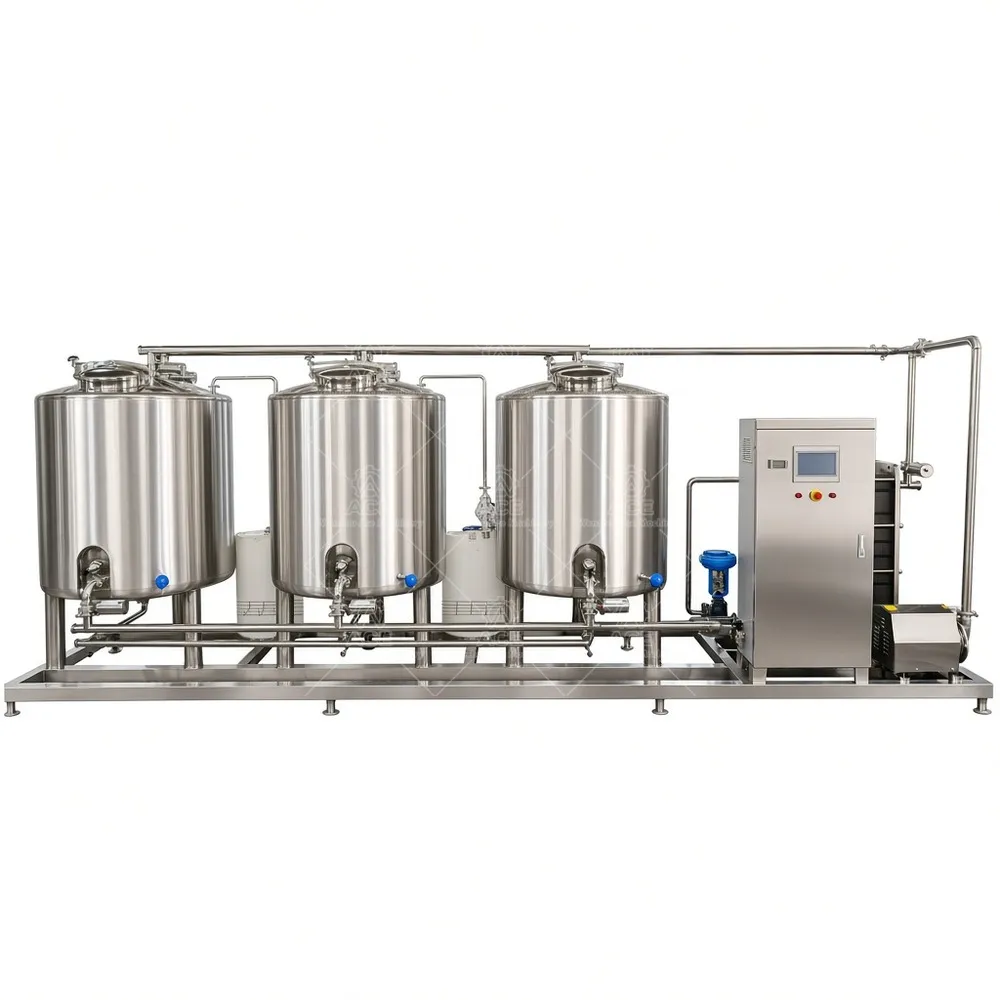

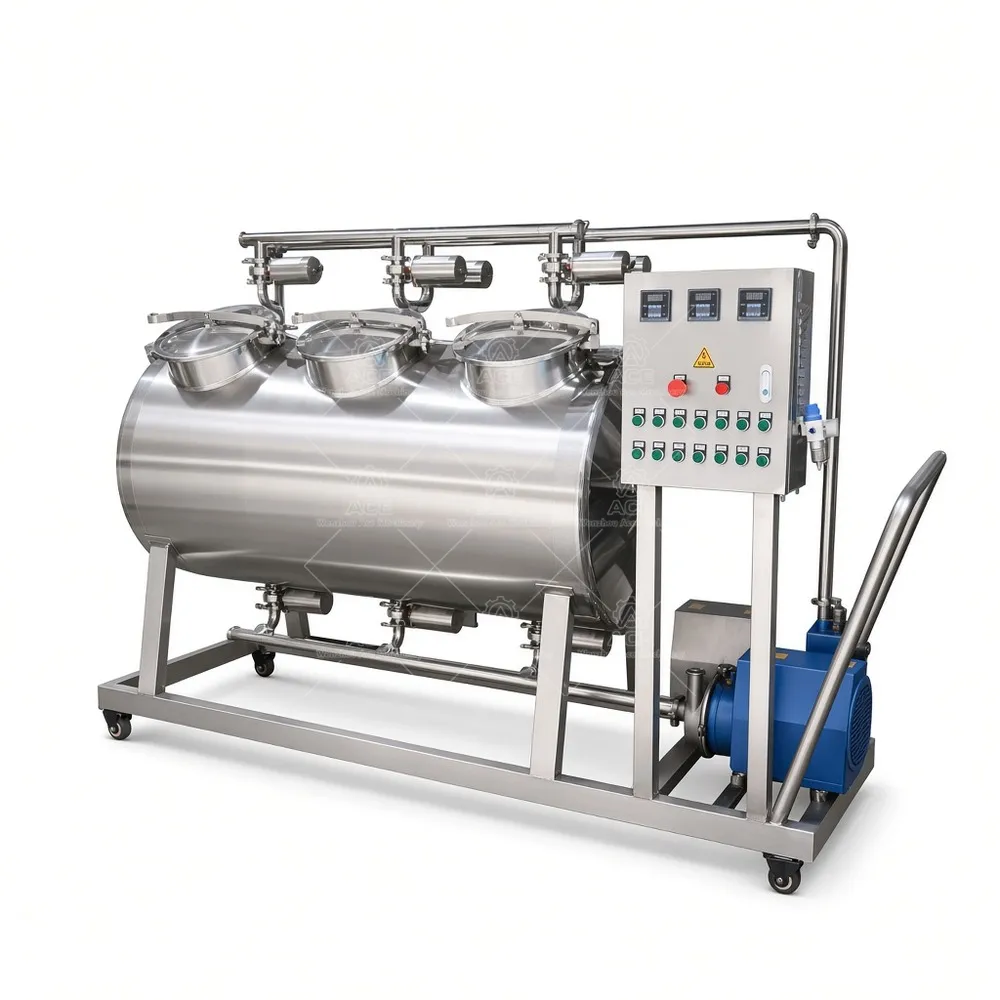

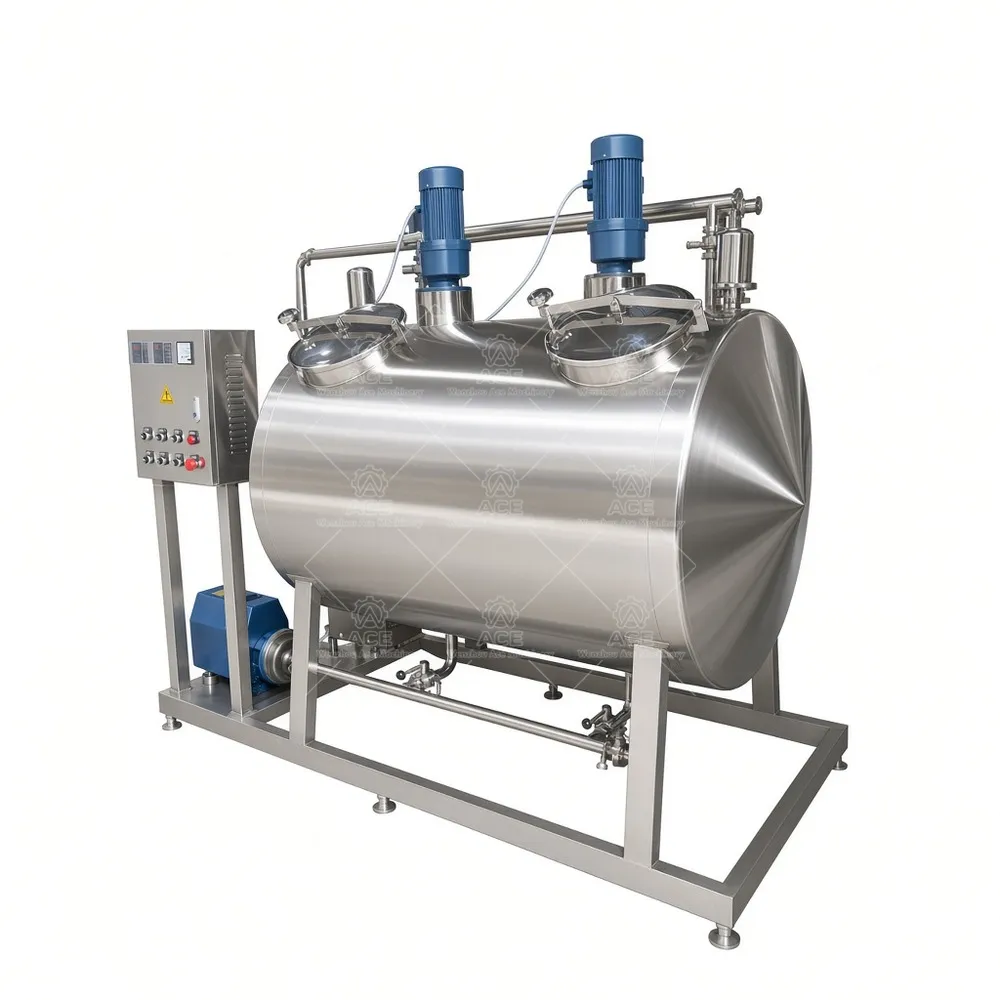

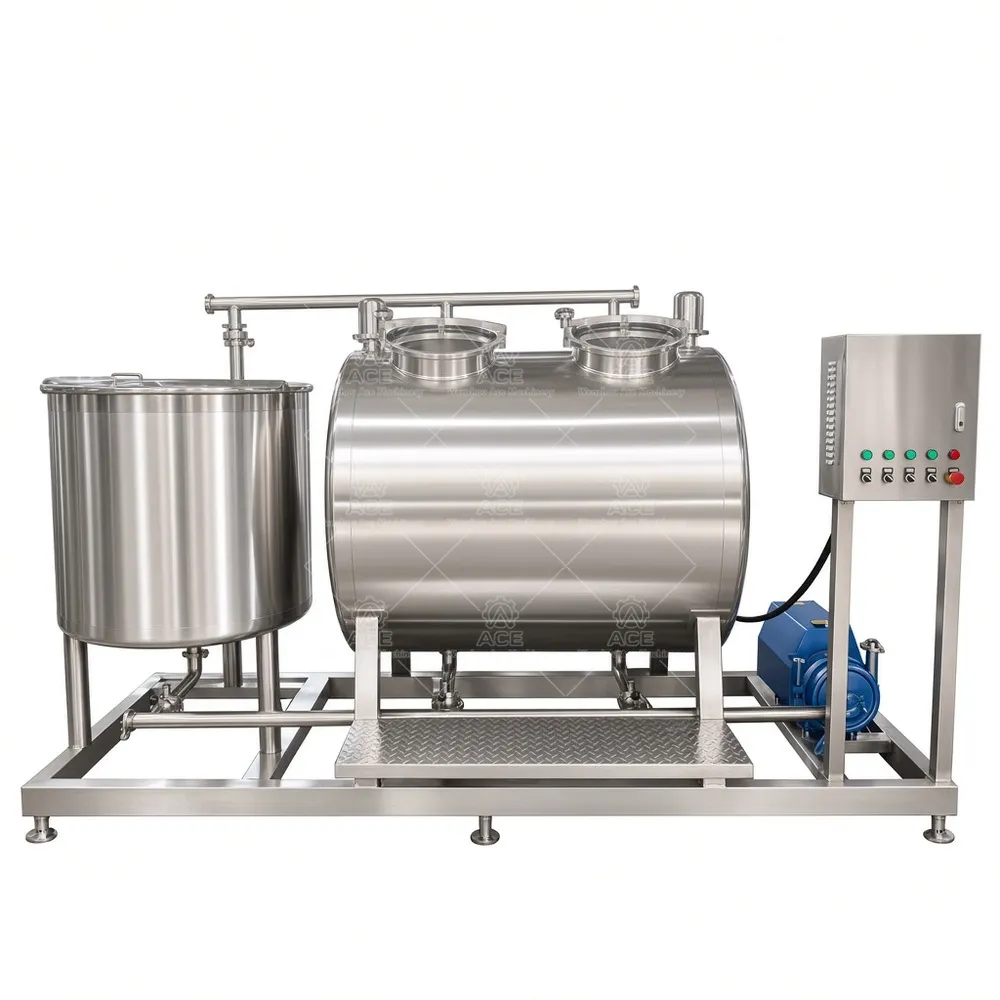

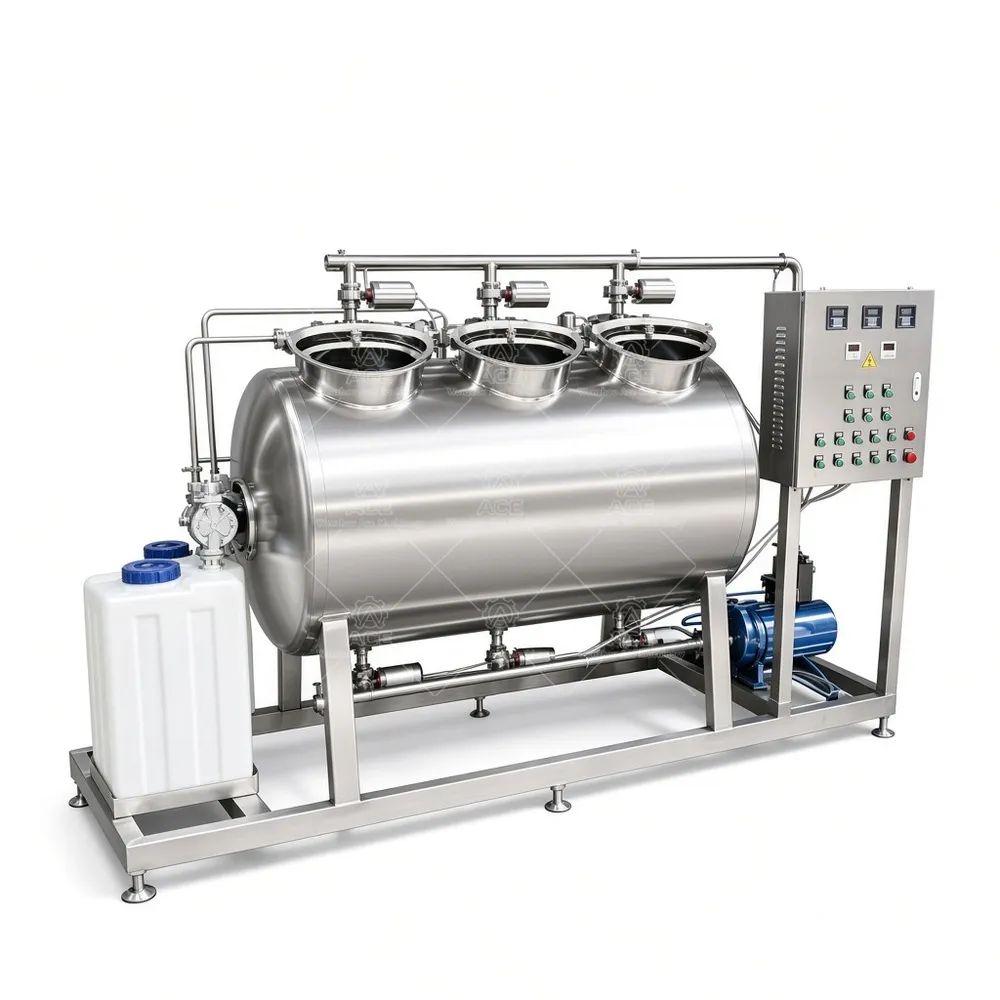

Large CIP Deoxygenated Water Tank
We manufacture large stainless steel tank bodies for clean-in-place (CIP) systems and deoxygenated water service. This equipment is built for food, beverage, dairy, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical plants that need a reliable reservoir for cleaning solutions and process water.
A CIP system circulates cleaning chemicals through tanks, piping, pumps, valves, fillers, heat exchangers, and process lines without disassembly. A typical cycle runs pre-rinse, alkaline wash, intermediate rinse, acid wash, final rinse, and optional sanitizing. The tank body we supply holds the wash and rinse solutions at the required temperature and concentration. The cleaning circuit can cover fermentation tanks, mixing vessels, filling machines, and transfer lines.
Choosing the right tank configuration starts with your cleaning schedule and soil load. A single tank suits simple rinse-only or one-chemical cleaning. Two tanks separate alkaline and acid solutions. Three or more tanks allow dedicated rinse, wash, and sanitize stages with less downtime. We fabricate single-, double-, triple-, and multi-tank units. Capacity, pump flow, heating, and instrumentation are quoted per project—not taken from a fixed catalog.
Available options include electric or steam heating, CIP supply and return pumps, stainless piping and valves, and temperature, flow, pressure, and level monitoring. Control can be manual, semi-automatic, or PLC-based. We confirm each feature against your process before quoting.
Technical Specifications
| Parameter | Typical range / configuration |
|---|---|
| Cleaning tank capacity | 500–20,000 L or larger, custom |
| Number of tanks | 1–4+ (single, double, triple, multi-tank) |
| Stainless steel grade | 304 or 316L |
| Heating method | Electric or steam, direct or indirect |
| Pump flow and pressure | Sized to circuit; typical 10–50 m³/h at 2–6 bar |
| Operating temperature | Up to 80°C (higher on request) |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | 1–4+ independent circuits |
| Power supply | 220–480 V, 50/60 Hz, 3-phase |
| Dimensions | Per layout and capacity |
| Customization | Tank volume, footprint, connections, automation |
Values are application-specific. Final specifications are confirmed per project.
Applications
Our CIP and deoxygenated water tanks are used in dairy processing, beverage production, breweries, distilleries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical production. Each application has its own cleaning chemistry, temperature, and validation requirements. We build to your stated process conditions and material grade.
FAQ
What information do I need to size a CIP system? Provide the number and volume of vessels to be cleaned, pipe length and diameter, cleaning frequency, chemical types, and required temperatures. From that, we can estimate pump flow and tank capacity.
Can I add heating later? It depends on the tank design. We prefer to specify the heat exchanger or steam injection during fabrication. Retrofits are possible but cost more.
How do I choose between 304 and 316L? 304 works for many food and beverage rinses. 316L is common where chlorides, aggressive chemicals, or pharmaceutical cleaning agents are present. We can advise based on your chemical list.
Request a Custom Quote
Tell us your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless steel grade, and installation location. We’ll recommend the tank configuration, pump size, and control approach for your plant. Factory-direct engineering support is included from specification through shipment.
