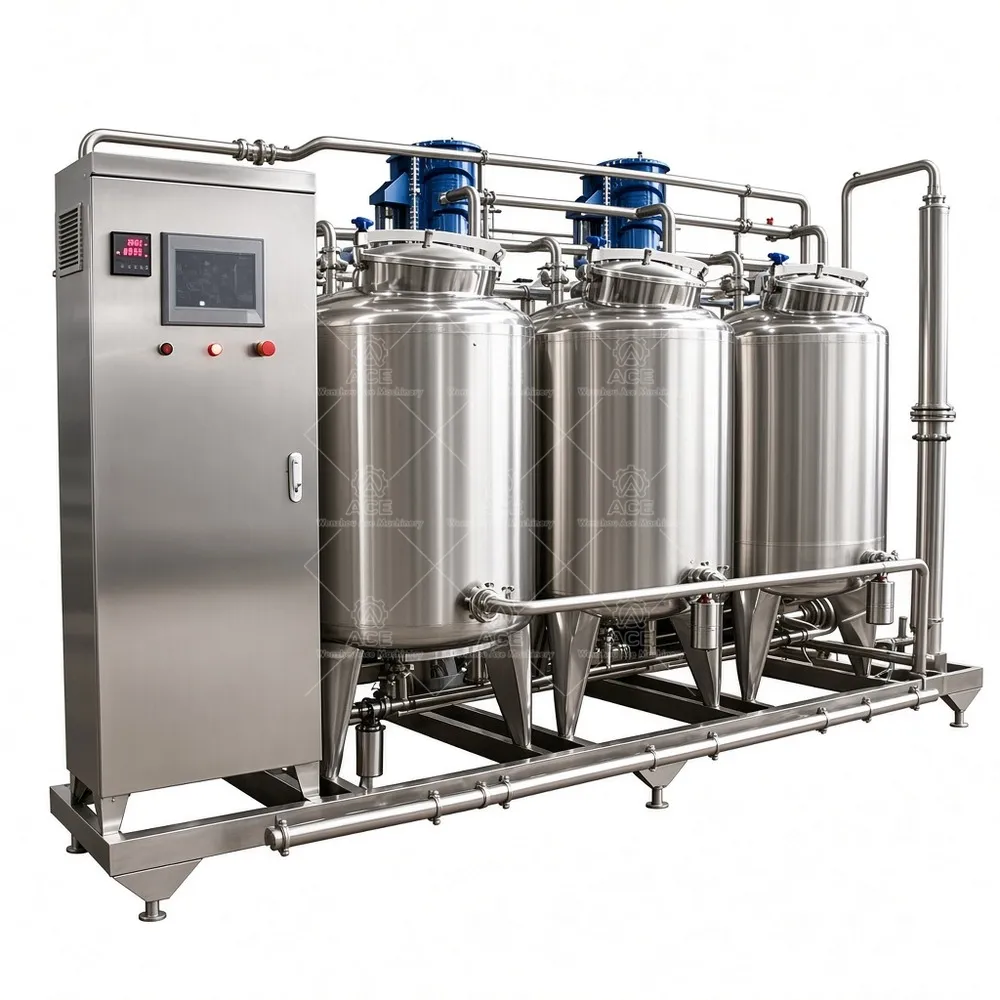

Fully Automatic Mobile 3-Tank Stainless Steel CIP System for Beverage & Dairy
Our mobile three-tank CIP system provides flexible cleaning for beverage and dairy plants. The stainless steel skid includes heated wash, rinse, and sanitize tanks with pump and controls. Customizable tank sizes, heating options, and automation levels match your production needs. Factory-direct engineering support helps you specify the right system for your circuits.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,103.24 through $8,612.68
Guaranteed Safe Checkout
Mobile Three-Tank CIP Systems for Beverage and Dairy Plants
When a production line needs reliable cleaning between batches, a mobile CIP system offers flexibility without tying up floor space. Our three-tank stainless steel units are built for dairies, breweries, and beverage plants that require separate wash, rinse, and sanitize cycles. The mobile frame allows movement between process areas, which suits plants with multiple filling lines or seasonal changes.
What a Mobile Three-Tank CIP System Does
Clean-in-place (CIP) removes product residue from tanks, pipes, fillers, and heat exchangers without dismantling. A three-tank configuration typically separates alkaline wash, acid wash, and rinse water. Some plants add a fourth tank for sanitizer or recovered water. The mobile skid carries the tanks, pump, heat exchanger, and controls on a stainless steel frame. We build these units for dairies, beverage producers, and breweries that need to move cleaning capacity between process areas.
How the Cleaning Cycle Works
The process starts with a pre-rinse to flush loose soil. Then a heated alkaline solution circulates through the circuit at a set flow and temperature. After the wash step, an intermediate rinse removes detergent. An acid wash follows if mineral scale is a concern. A final rinse and sanitizing step complete the cycle. Temperature, flow, and conductivity are monitored at key points. The control system logs cycle data for traceability. We typically recommend a supply pump sized for the largest circuit and a return pump to maintain back pressure.
Typical Applications
These systems clean fermenters, bright beer tanks, pasteurizers, fillers, mixers, and transfer lines. In dairy plants, they handle milking lines, raw milk tanks, and pasteurizers. Beverage producers use them for syrup rooms, carbonators, and filling valves. Sauce and liquid food processors rely on CIP for kettles and holding tanks. Cosmetics and pharmaceutical plants may require additional documentation and surface finish verification.
Technical Specifications (Example – Confirm for Your Project)
| Parameter | Typical Range |
|---|---|
| Tank capacity | 100–1,000 L per tank (customizable) |
| Number of tanks | 2, 3, or 4 |
| Stainless steel grade | 304 or 316L |
| Heating method | Electric or steam |
| Pump flow | 5–30 m³/h |
| Pump pressure | 2–6 bar |
| Operating temperature | Ambient to 85°C (wash solution) |
| Control system | Manual, semi-auto, or PLC with HMI |
| Cleaning circuits | 1–4 (expandable) |
| Power supply | 380V/50Hz or 480V/60Hz, 3-phase |
Selection Factors
Choose tank capacity based on the volume of cleaning solution needed for the largest circuit and the number of circuits cleaned per shift. A three-tank system is common for plants that alternate alkaline and acid washes. If you clean multiple products with different soil types, consider a four-tank setup with dedicated rinse and sanitizer tanks. Pump selection depends on pipe diameter, total circuit length, and pressure drop. Heating capacity must match the temperature rise and flow rate. For steam heating, we need your steam pressure and condensate return details.
FAQ
Can the system be moved between buildings? Yes, the mobile frame includes casters and lifting points. For outdoor movement, we recommend a covered frame and IP-rated controls.
How do you verify cleaning effectiveness? We recommend ATP swabs or conductivity checks after the rinse step. The PLC can log temperature and flow to support your verification protocol.
What stainless steel grade should I choose? 304 works for most dairy and beverage applications. 316L is preferred for high-chloride environments or pharmaceutical production.
Request a Custom CIP System
Tell us your industry and processed products, tank and piping details (diameters, lengths, number of circuits), required cleaning capacity (circuits per shift), heat source (electric or steam), desired automation level, stainless steel grade, and installation location. We will recommend the tank volumes, pump size, and control configuration for your plant. Our engineers can review your P&ID and provide a factory-direct quote.
