304/316L Stainless Steel CIP Cleaning System for Dairy & Beverage
Factory-built stainless steel CIP systems in 304 or 316L for dairy and soft drink lines. Single to multi-tank skids with caustic, acid and hot water tanks, electric or steam heating, matched supply and return pumps, and manual, semi-automatic or PLC control. Custom tank volumes, circuits and automation quoted per project.
- Tank Capacity: [100L–5000L or specify actual capacity]

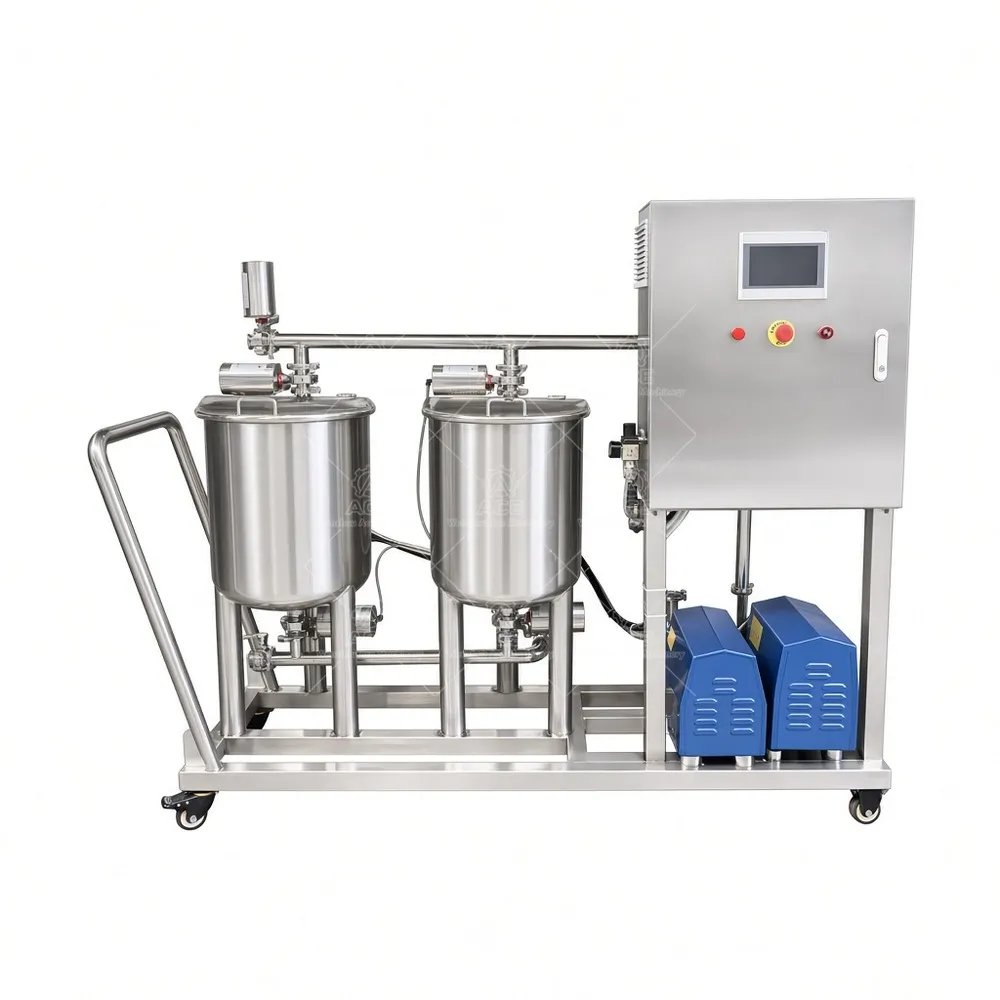

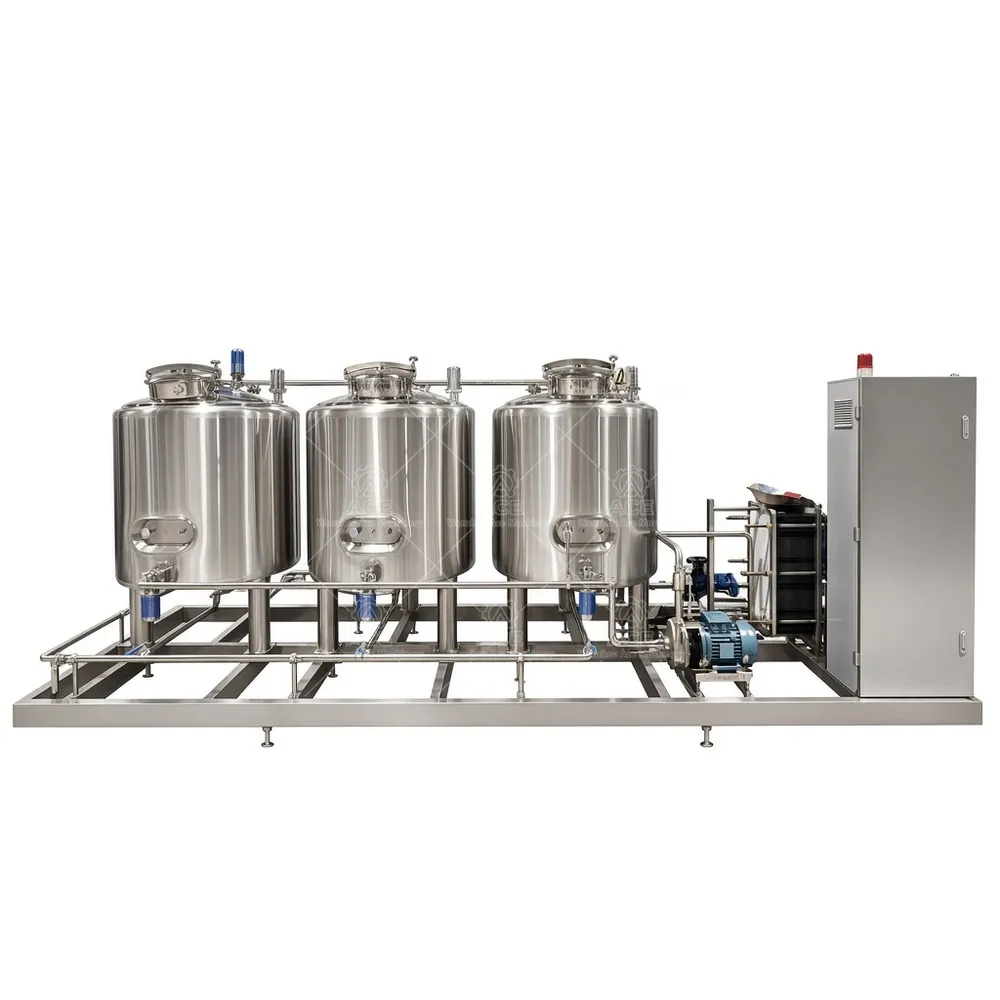

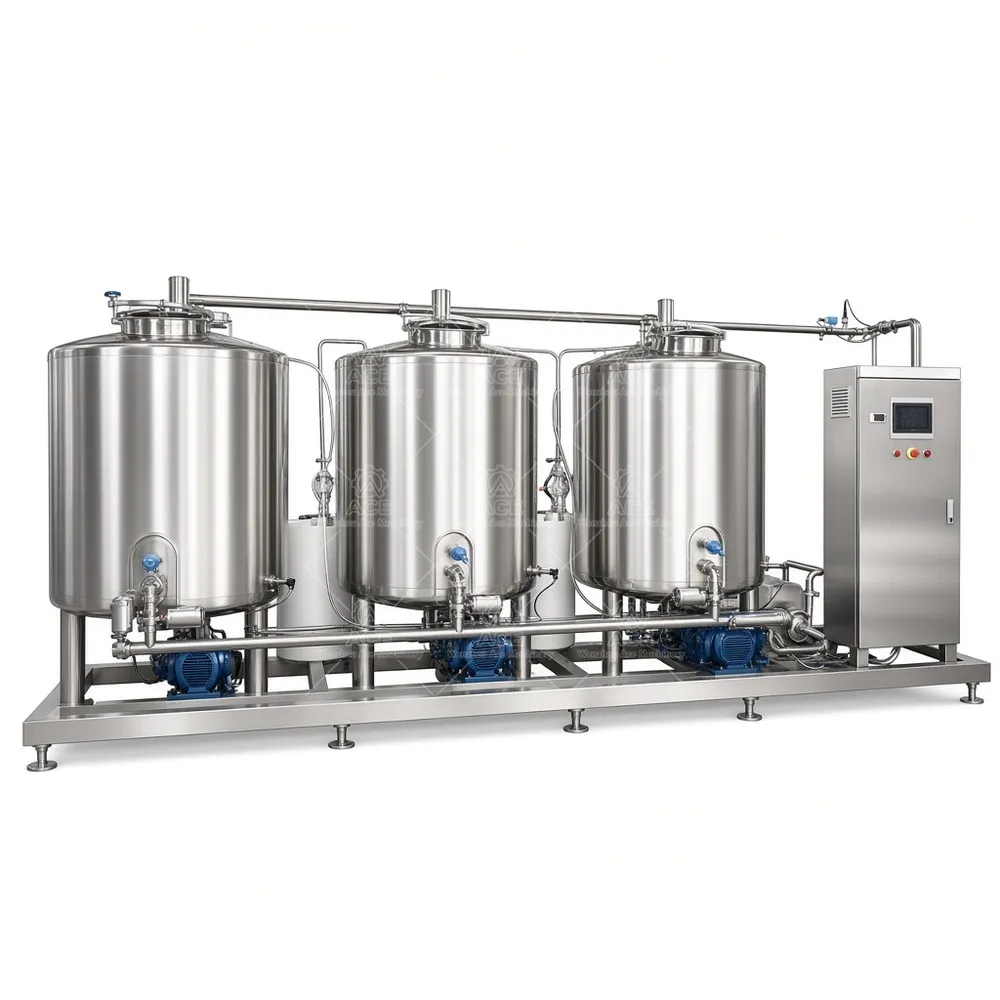

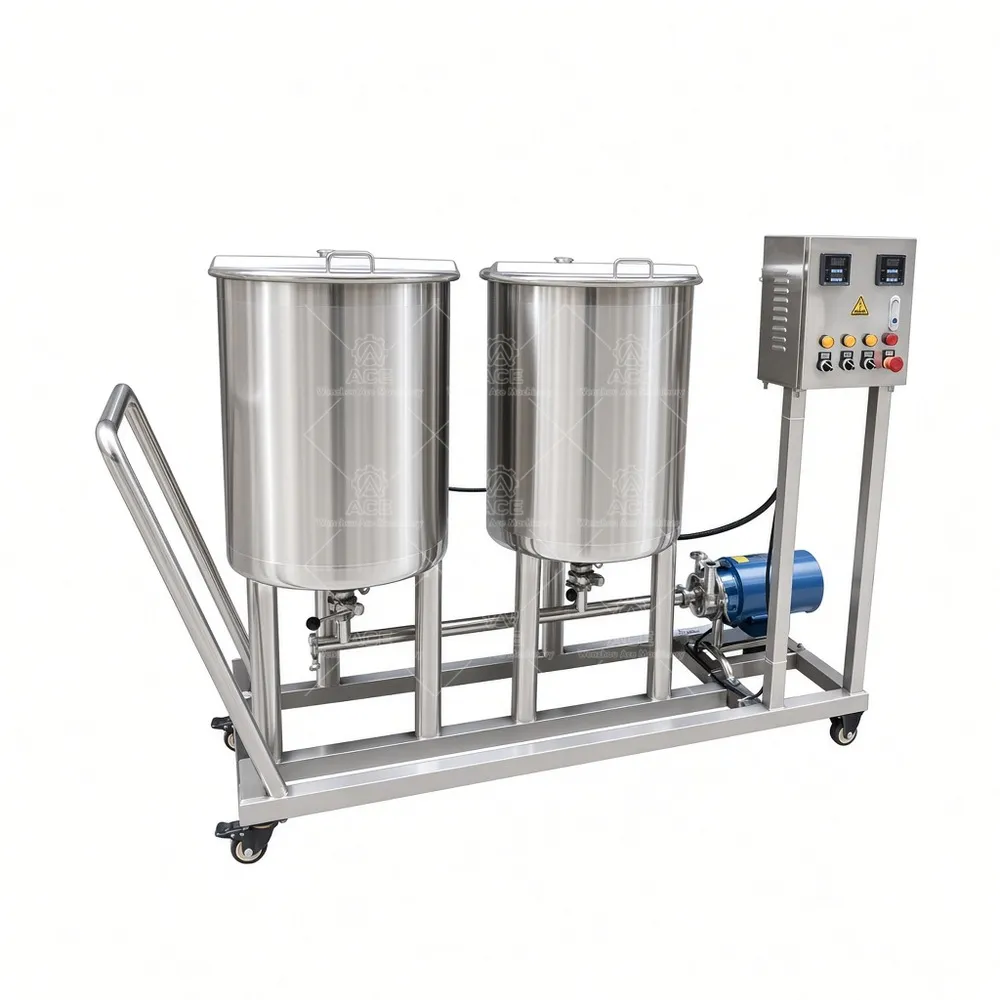

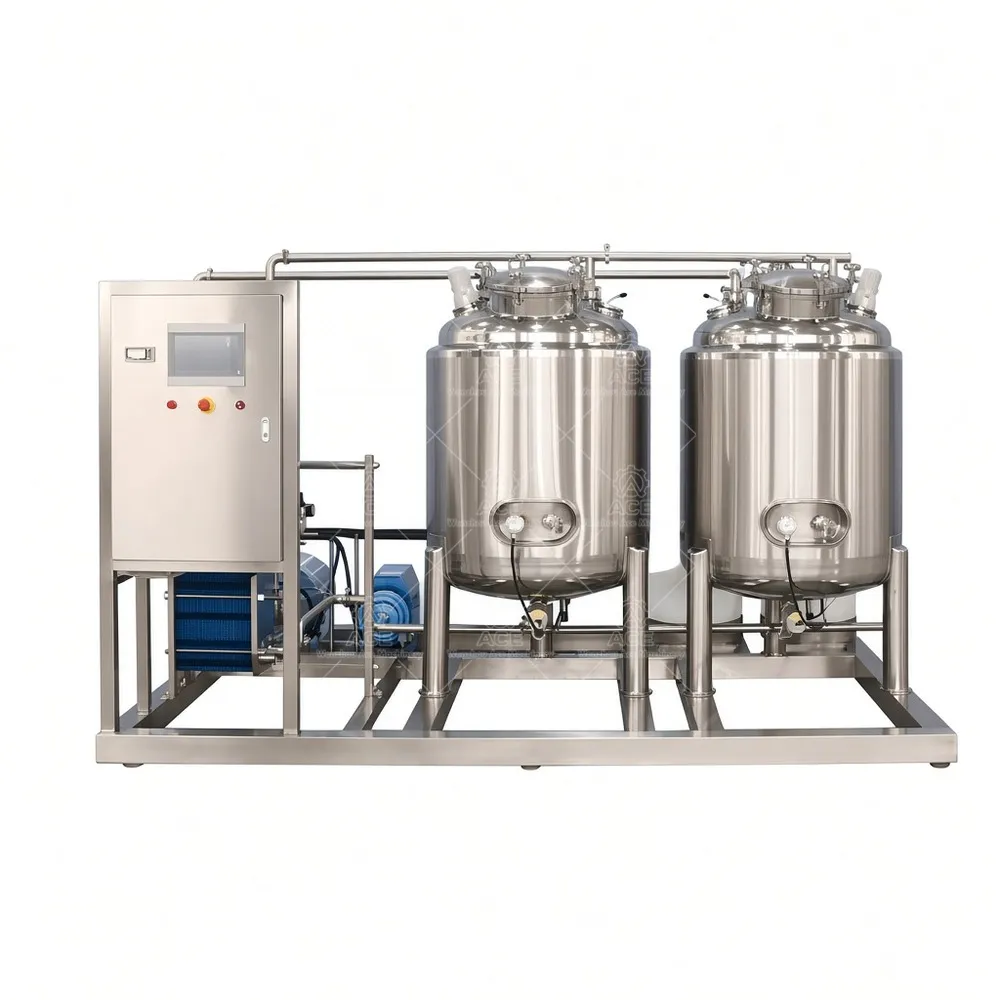

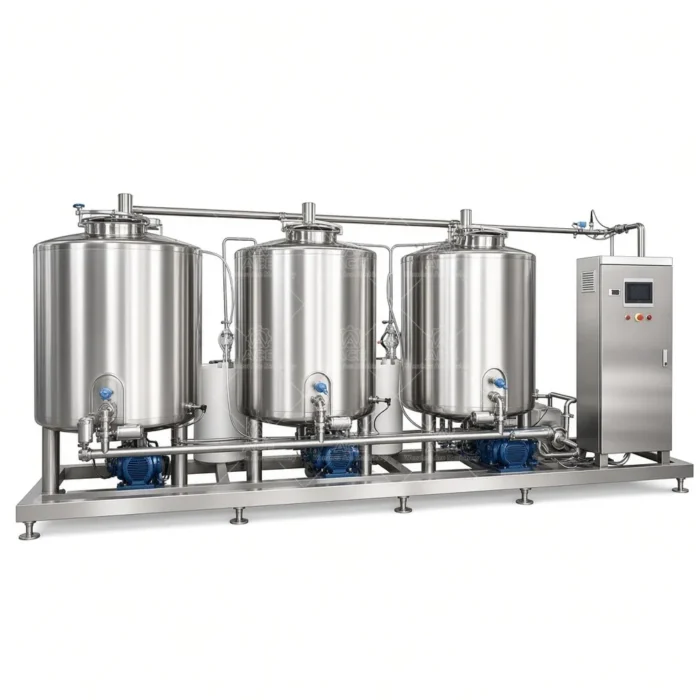

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,294.02 through $9,420.96
Guaranteed Safe Checkout
A CIP skid is only as good as its weakest circuit. Before we quote one, we ask which lines must be cleaned in the same shift and at what temperature — that answer usually settles the tank count, the pump size and the heat source.
How the cleaning cycle runs
Each circuit follows a fixed sequence: pre-rinse, caustic wash, intermediate rinse, acid wash where the soil calls for it, final rinse and sanitizing. Temperature, flow, pressure and conductivity are watched at each step. One thing that trips up more new plants than anything else — the return pump has to match the supply pump, or the wash tank either floods or starves and the loop never reaches temperature.
What these systems clean
Raw milk lines, pasteurizers, fermentation tanks, filler heads, plate heat exchangers and transfer piping. Solution volume is sized from wetted surface area plus pipe volume; dairy circuits generally need more per step than soft drink lines because of protein and fat soil.
Tanks and configuration
- Single-, double-, triple- or multi-tank frames
- Caustic, acid, hot water and recovery tanks
- Electric or steam heating with coil or plate exchanger
- Supply and return pumps, sanitary piping, pneumatic valves and fittings
- Manual, semi-automatic or PLC/HMI control with data logging
- Custom tank capacity, circuit count and automation scope
These are options, not a fixed package. Each unit is built to the circuit list and automation level agreed for the project.
Specifications
| Cleaning tank capacity | 500 L to 10,000 L, project-specific |
|---|---|
| Number of tanks | 1 to 4, acid / caustic / hot water / recovery |
| Stainless grade | 304 or 316L, internal finish options on request |
| Heating | Electric immersion, steam coil or plate heat exchanger |
| Pump flow and pressure | Typically 10–50 m³/h at up to 0.6 MPa |
| Working temperature | Ambient to roughly 85 °C, set by detergent supplier |
| Control | Manual, semi-automatic, or PLC with HMI and logging |
| Cleaning circuits | Single or multiple, switched by air-actuated valves |
| Power supply | 380V/50Hz three-phase or to site standard |
| Dimensions | Built to layout; skid-mounted and insulated options |
| Customization | Tank size, circuits, automation, piping, documentation |
Where these systems run
Dairy, beverages, breweries, distilleries, sauces, liquid food, cosmetics and pharmaceutical processing. Material and documentation packages are matched to the customer\’s own hygiene requirements; we do not issue compliance claims for a line we have not seen.
FAQ
304 or 316L? 316L holds up better with chloride detergents or high-salt products. Most dairy and soft drink duties run fine in 304.
How large should the tank be? Start from loop volume and wetted surface, then add the recirculation time you can accept and how much rinse water you want to recover.
Can circuits be added later? Usually yes, if the frame and valve positions were left spare at build.
What do you need to quote? Product type, circuit list and pipe sizes, soil load, heat source available, automation level, stainless grade and installation site.
Send us your circuit list, tank and pipe details, cleaning capacity, heat source and automation level. Our engineers will come back with a configuration and a firm price.
