500L Steam-Heated Stainless CIP Cart, Fully Automatic 304/316L
This 500L mobile CIP cart combines steam heating, automatic cycle control, and 304 or 316L stainless construction for dairy, beverage, brewery, and liquid processing lines. It supports alkaline, acid, and rinse stages with configurable pump, valve, and monitoring options. Tell us your tanks, piping, cleaning capacity, heat source, and automation target for a factory-direct quote.
- Tank Capacity: [100L–5000L or specify actual capacity]

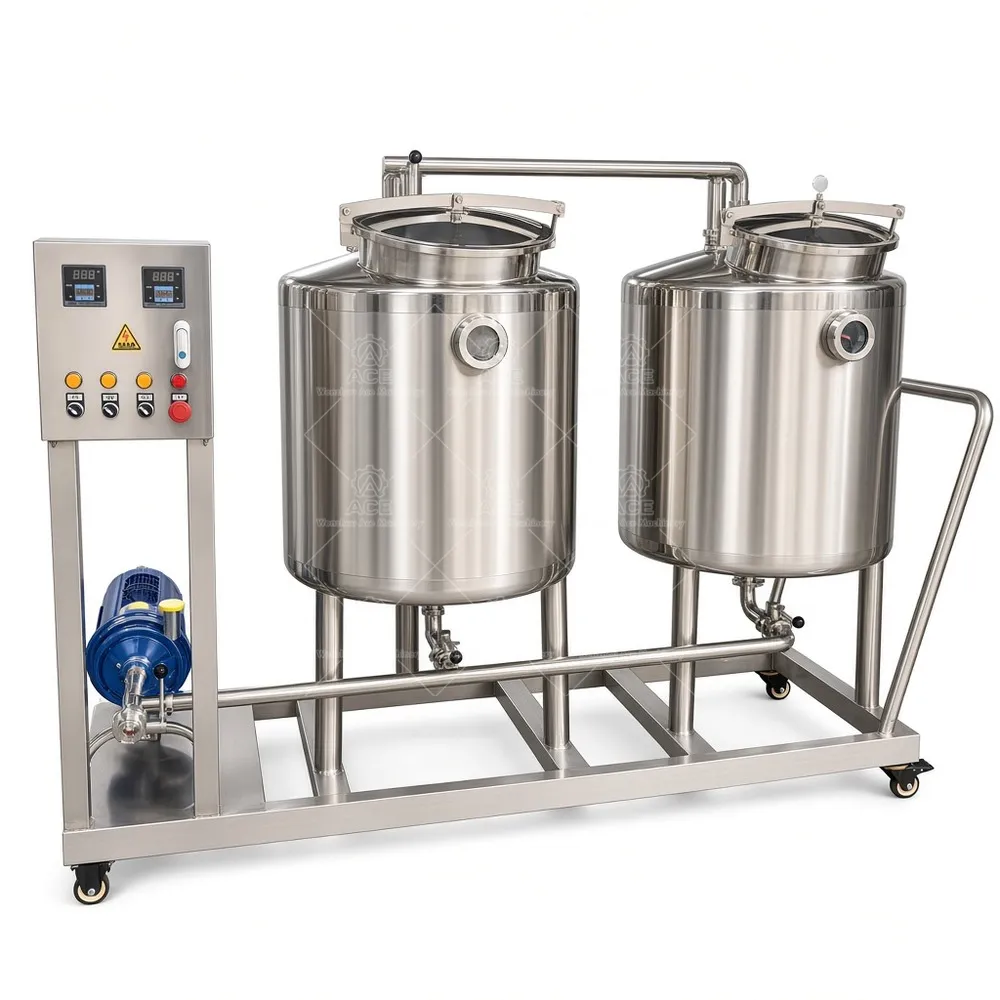

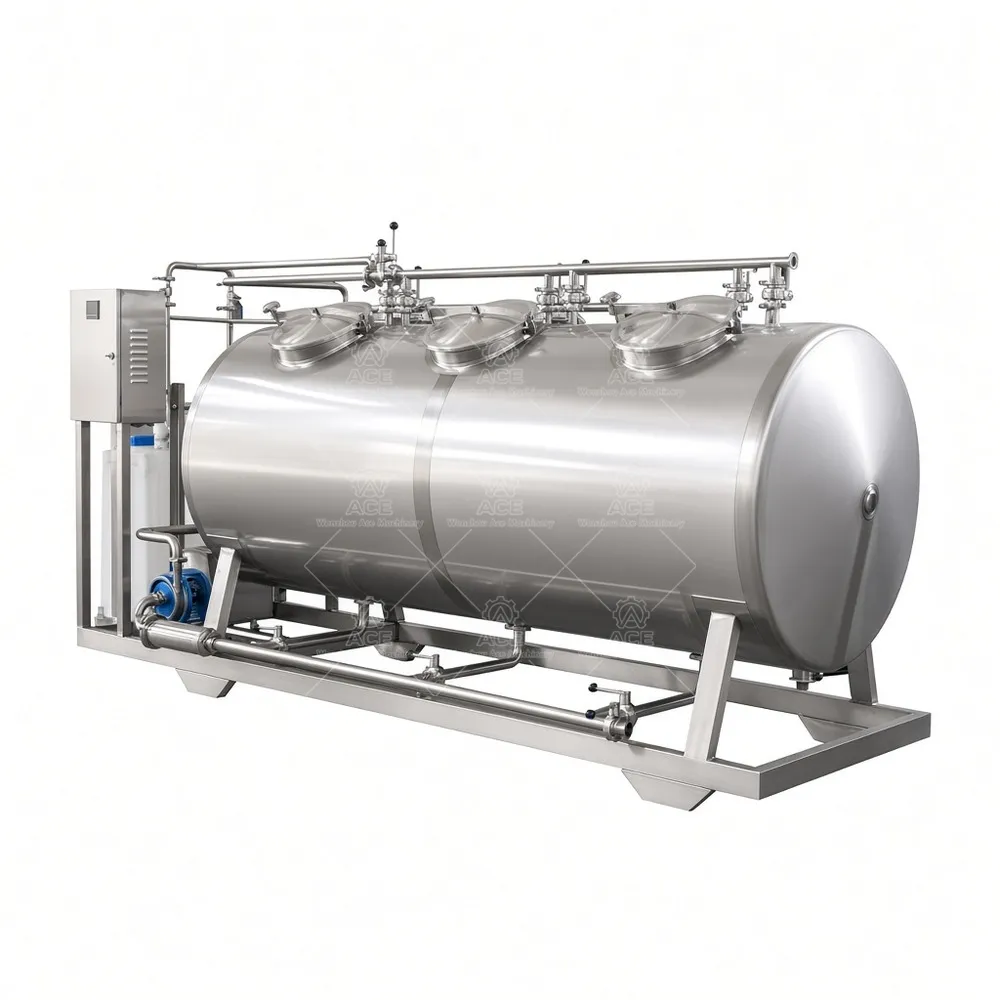

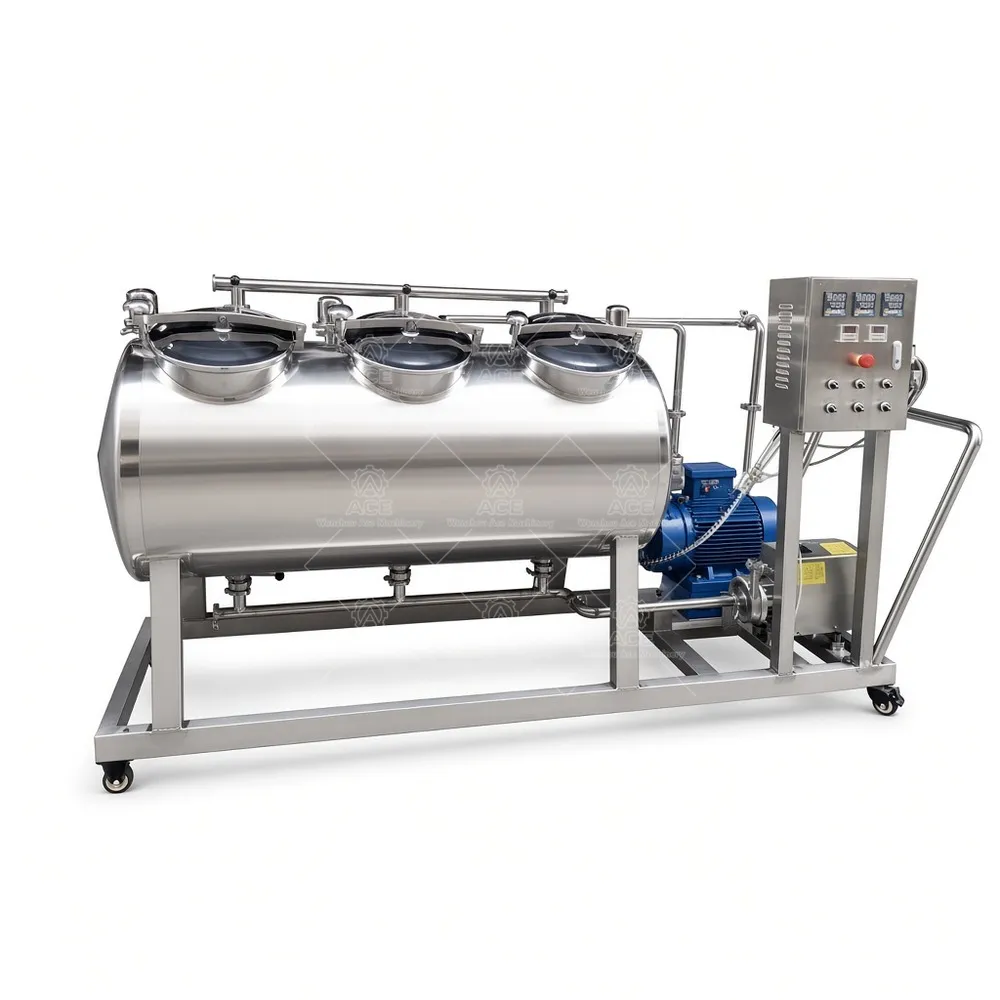

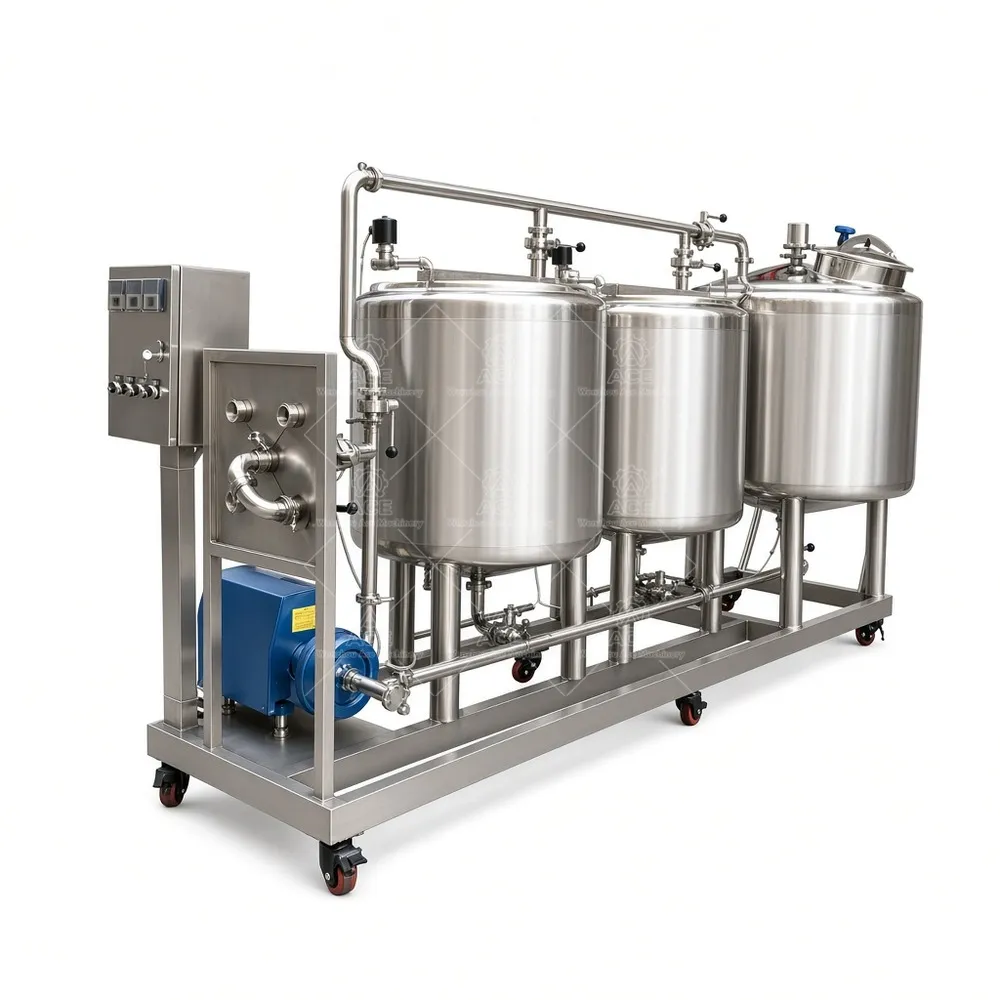

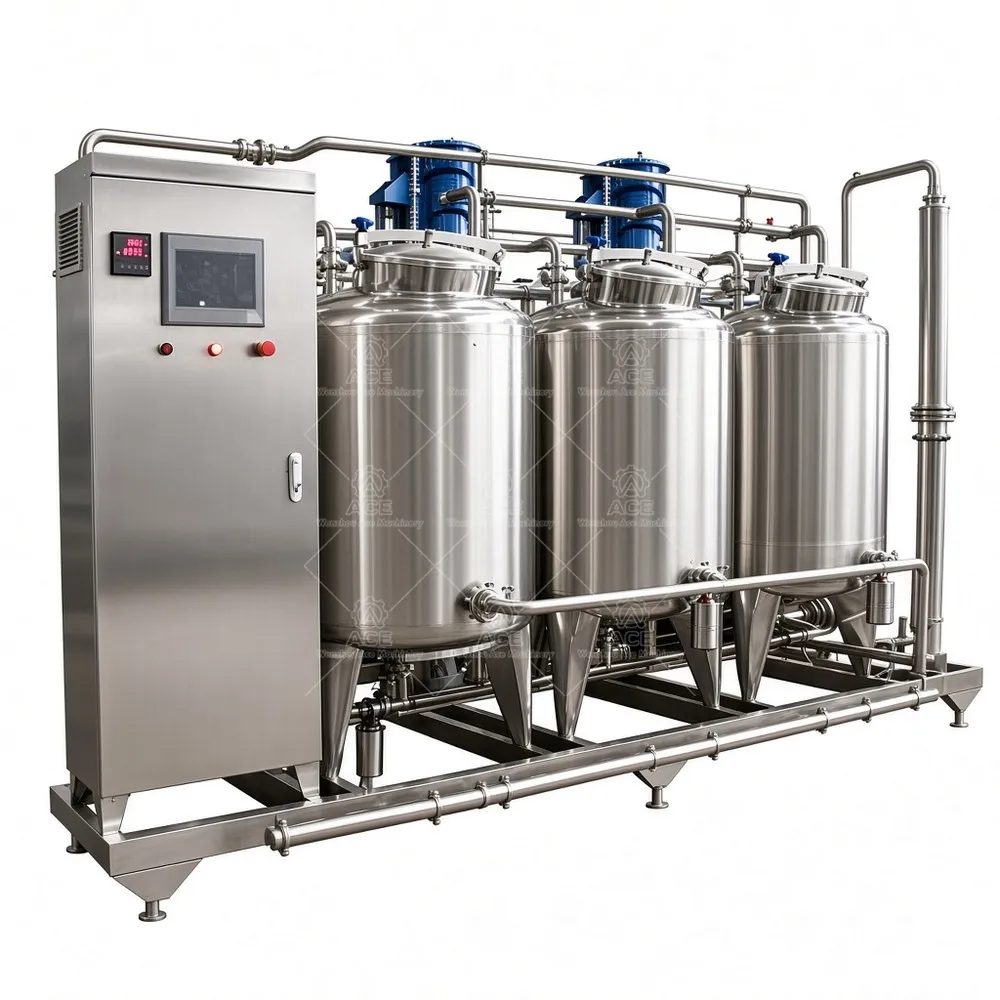

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,662.57 through $9,394.31
Guaranteed Safe Checkout
500 L Mobile CIP Cart for Repeatable Cleaning
This 500 L mobile CIP cart puts tank, pump, steam heating, valves, and automatic controls on one stainless frame. It handles alkaline, acid, and rinse cycles for filling heads, transfer piping, and small process vessels where a fixed CIP room is impractical. We build the wetted path in 304 or 316L to suit the cleaning chemistry.
CIP performance depends on flow, temperature, time, and drainage. Match the pump curve and line velocity to the real pipe run, then place sensors where they read the returning liquid. A 500 L tank suits moderate loops and rinse recovery; spray devices, circuit length, soil load, and changeover frequency set actual demand.
Steam heating avoids electric immersion elements. We confirm steam pressure, condensate routing, and control logic before release. Automatic operation covers timed stages, temperature monitoring, and valve sequencing; PLC/HMI scope and recipes are project-specific. Single-, double-, or multi-tank layouts, acid/alkaline/hot-water tanks, supply/return pumps, monitoring, and custom circuits are quoted when specified.
Technical Specifications
| Item | Specification |
|---|---|
| Cleaning tank capacity | 500 L; custom sizes available |
| Number of tanks | Single-tank mobile cart; additional tanks to project |
| Stainless grade | 304 or 316L; wetted parts confirmed by duty |
| Heating | Steam heated; electric heating optional when specified |
| Pump flow and pressure | Sized to circuit; duty point confirmed before order |
| Operating temperature | Set by cleaning chemistry; limits confirmed with seals and controls |
| Control | Fully automatic cycle control; PLC/HMI details project-specific |
| Cleaning circuits | One supply/return circuit typical; multi-circuit headers optional |
| Power | 202–680 V listed; final voltage and phase confirmed for site |
| Dimensions | Layout dependent on tank, pump, and control package |
| Custom options | Tank volume, heating, pumps, valves, instrumentation, automation |
Where This CIP Cart Fits
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical plants use mobile CIP where lines change often. We quote finish and materials against the cleaning plan; one surface specification does not fit every duty.
Common Questions
How do I size the tank? Start with circuit volume, rinse recovery target, and cycle frequency. Short loops may suit 500 L; long headers often need more volume or higher pump duty.
Can we add acid and alkaline tanks? Yes, when layout allows. More tanks take floor space and change valve logic.
What speeds a quote? Send pipe diameters, line length, residue, temperature, steam pressure, voltage, automation level, and site details.
Request a Configuration
Tell us your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless grade, and installation site. We will recommend the cart layout, pump duty, and control scope, then quote factory-direct with engineering support and one-year warranty terms.
