Small Mobile CIP Cleaning Vehicle for Pipeline & Tank Circulation
Small mobile CIP cleaning vehicle for pipeline and tank circulation cleaning. We build compact stainless steel carts with one to four tanks, electric or steam heating, CIP pumps, and manual to PLC controls. Configure tank volume, pump duty, sensors, and cleaning circuits around your process. Factory-direct engineering support helps match the unit to your dairy, beverage, brewery, cosmetic, or pharmaceutical cleaning loop.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,721.00 through $8,459.72
Guaranteed Safe Checkout
What this CIP cart is for

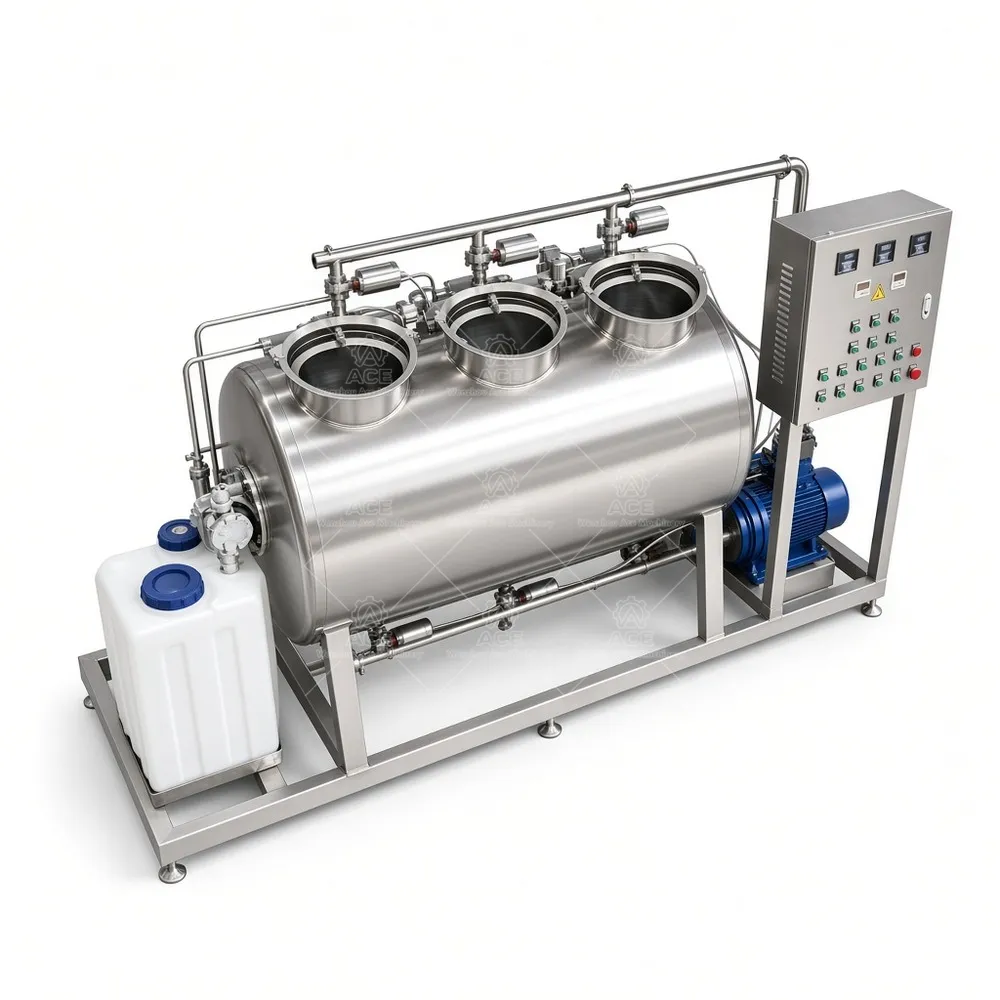

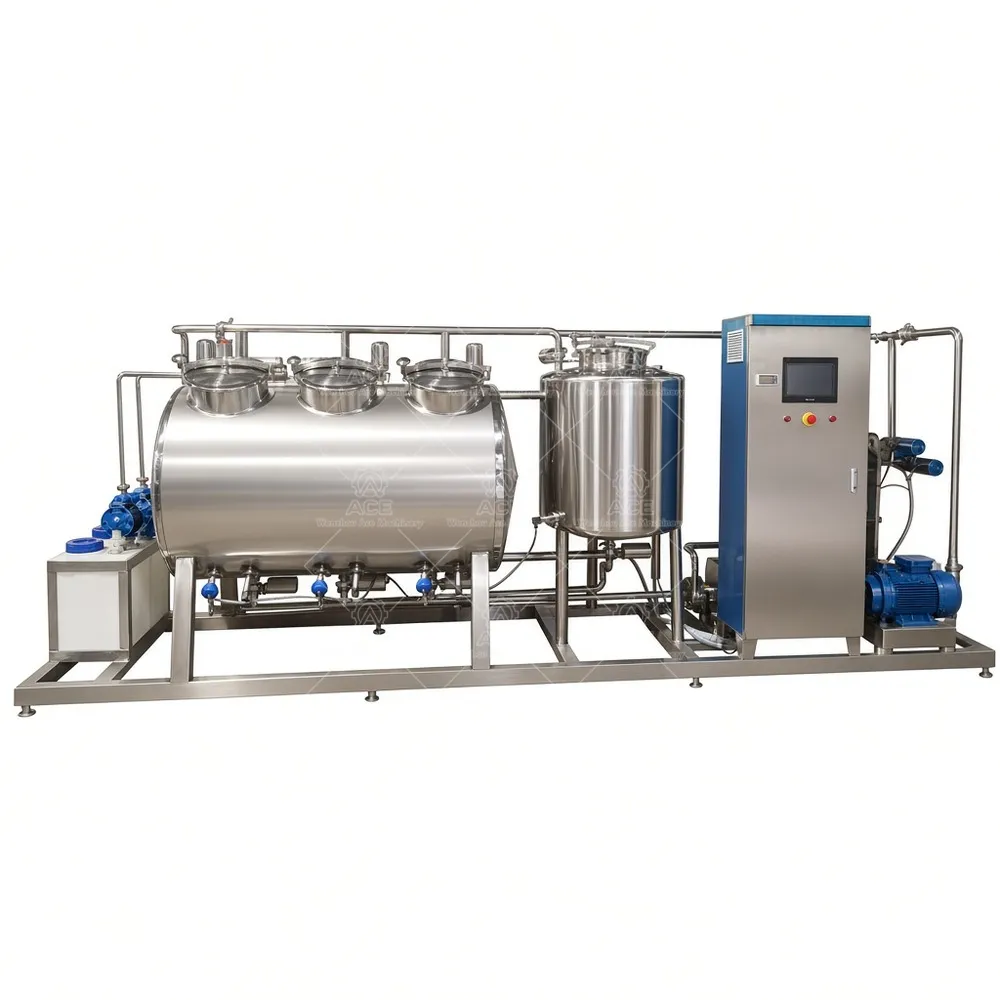

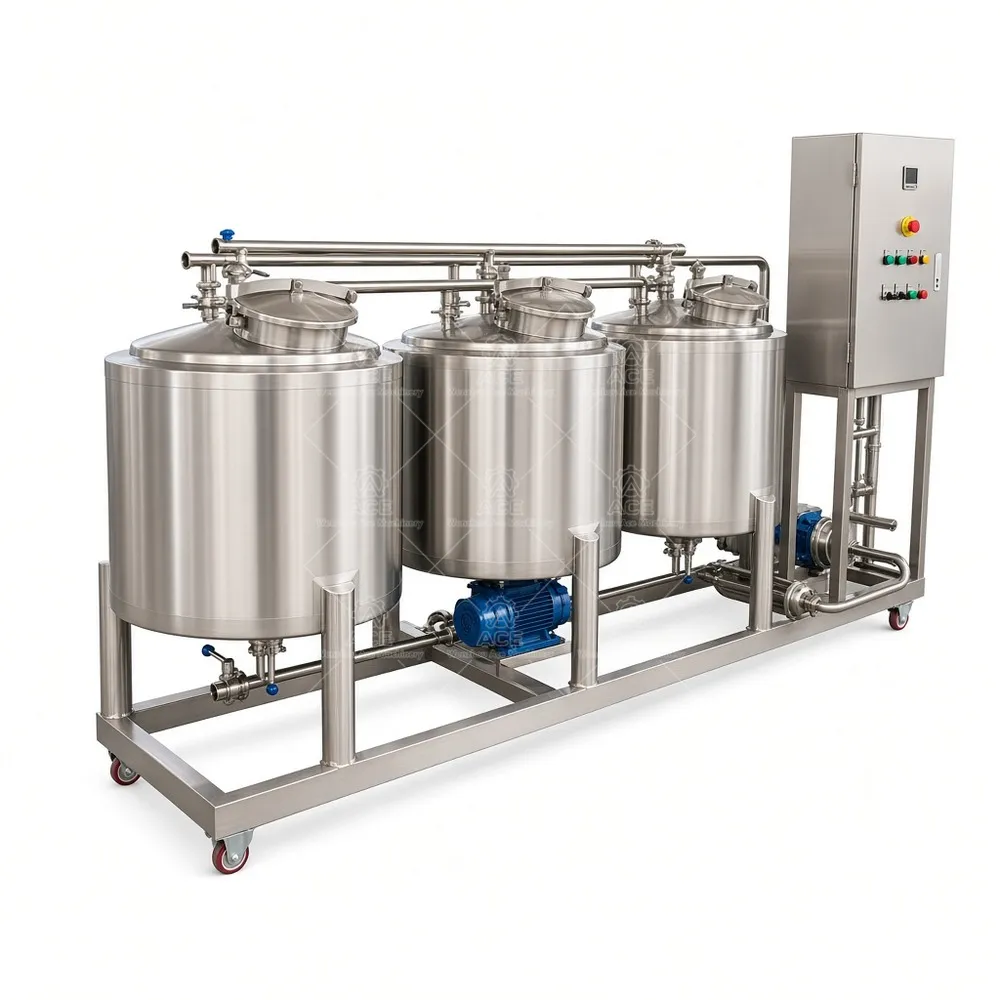

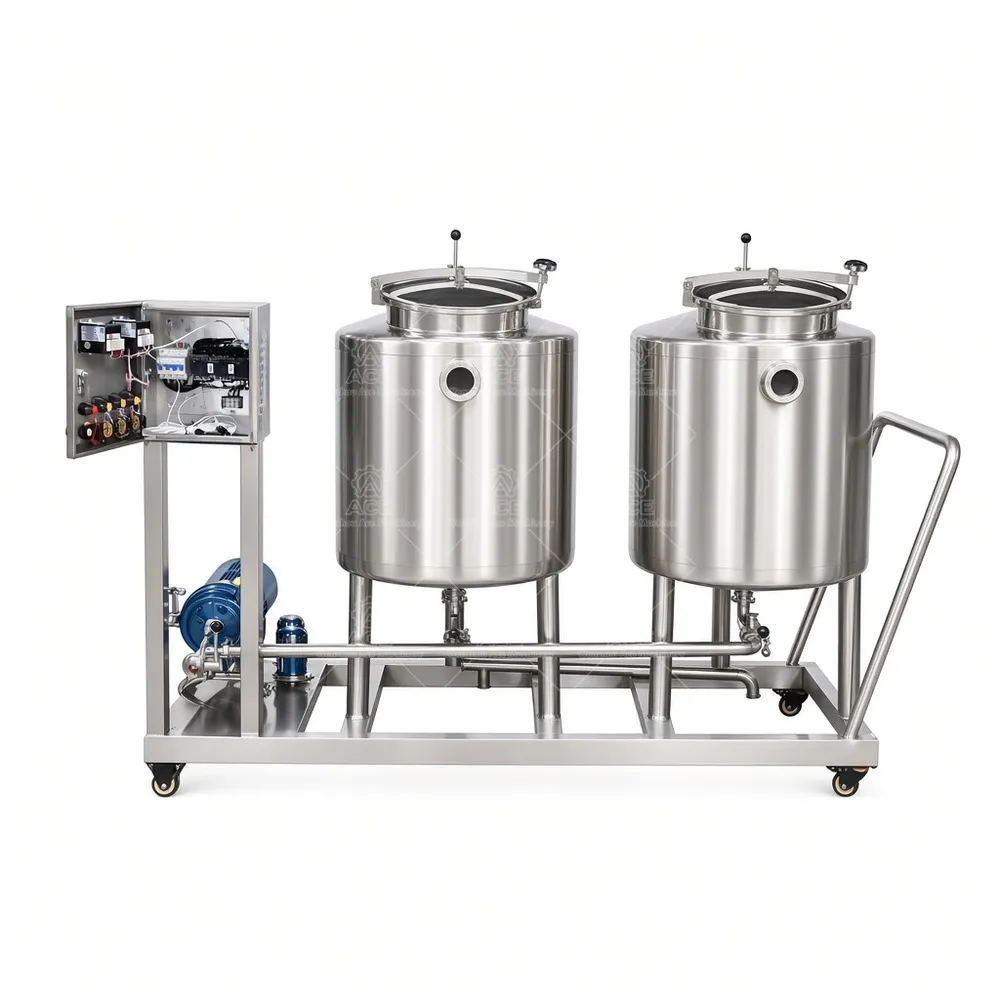

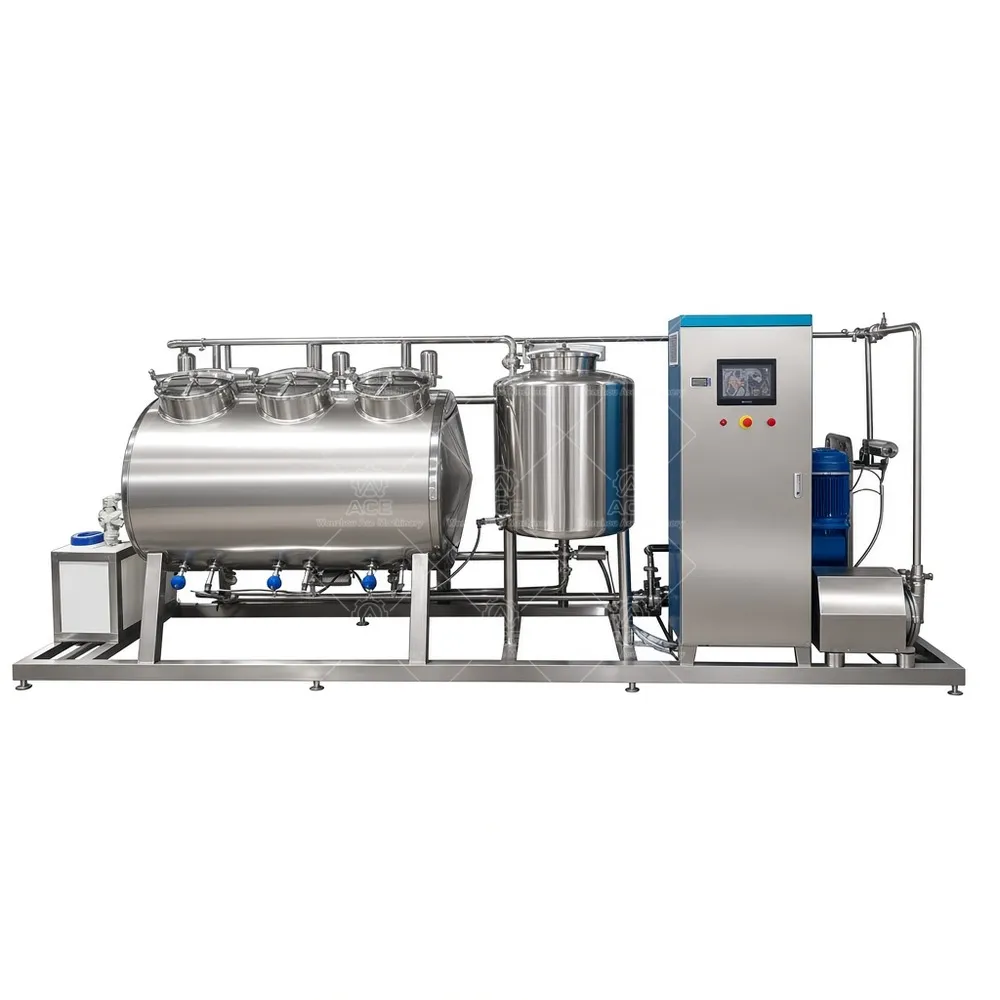

This small mobile CIP cleaning vehicle gives plants a dedicated clean-in-place loop without tying up a large fixed skid. It recirculates detergent, rinse water, and optional acid or caustic solution through tanks, lines, fillers, valves, and heat exchangers. The pump, tank, heater, and monitoring package sit on a compact caster-mounted frame, so operators can move it between production areas. We build the wetted side in 304 or 316L stainless steel with sanitary connections and drainable low points. Tank volume, pump flow, heat source, and control level are quoted against your circuit volume and soil load, not picked from a catalog.
How the cleaning cycle works
A typical sequence is pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and drain. The CIP pump moves solution through the supply line and returns it from the tank or pipeline loop. Temperature, flow, pressure, and level are monitored; low flow or falling temperature usually points to blocked strainers, air in the pump, or an undersized return. Multi-tank units can separate caustic, acid, and hot water with independent valves. Manual, semi-automatic, and PLC control are available. Final cleaning performance still depends on velocity, temperature, concentration, and contact time in your actual pipework.
Specifications
| Cleaning tank capacity | 50–500 L per tank, project-specific |
|---|---|
| Number of tanks | 1–4; caustic, acid, hot water, rinse |
| Stainless grade | 304 or 316L wetted parts |
| Heating | Electric or steam, optional |
| Pump flow and pressure | Application-based; confirm loop volume and pressure drop |
| Operating temperature | Up to 80°C/176°F typical; confirm for chemicals |
| Control system | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | Single or multiple, with supply and return |
| Power | 220/380/440 V, 50/60 Hz, site-specific |
| Dimensions | Compact caster-mounted frame, custom |
| Custom options | Tank size, skid layout, pumps, sensors, automation |
Where it fits
Dairy, beverage, brewery, winery, sauce, liquid food, cosmetic, and pharmaceutical plants use small CIP carts for pilot lines, changeover cleaning, remote tanks, and smaller batches. Hygienic design matters across these areas, but cleaning parameters and documentation requirements vary by product and plant. We confirm materials, surface finish, and instrumentation against your process before release.
FAQ
What size tank do I need? Start with circuit volume plus hold-up in tanks and lines; add margin for dilution and foam. Can one cart serve several tanks? Yes, with a defined valve and hose schedule; avoid dead legs. Do I need acid and caustic? Only if your soil and water hardness require it. How do I get a quote? Send your industry, product, tank and pipe details, cleaning capacity, heat source, automation level, stainless grade, and installation location.
Get a configured quote
Tell us your industry and processed product, tank and piping details, required cleaning capacity, available heat source, preferred automation level, stainless grade, and installation location. We will recommend the tank configuration, pump duty, heating method, and control package, then provide a factory-direct quotation. Engineering support is available from layout review through start-up.
