Semi-Automatic or Automatic CIP Tank Cleaning System for Process Plants
Our CIP tank cleaning systems handle pre-rinse, caustic wash, acid wash, rinse, and sanitizing cycles for tanks, lines, fillers, and heat exchangers. Choose single- or multi-tank construction, electric or steam heating, supply and return pumps, and manual, semi-automatic, or PLC control. We size reservoirs, piping, instruments, and cleaning circuits around your process for a practical factory-direct quotation.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,565.97 through $8,352.57
Guaranteed Safe Checkout
How a CIP System Fits Your Process
Our CIP plants clean tanks, lines, fillers, heat exchangers, and process pipework without manual dismantling. A typical cycle runs pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and sanitizing. Recovery of wash solutions and return-flow monitoring reduce water and chemical use, but the actual circuit layout depends on your tanks, slopes, dead legs, and drain points.

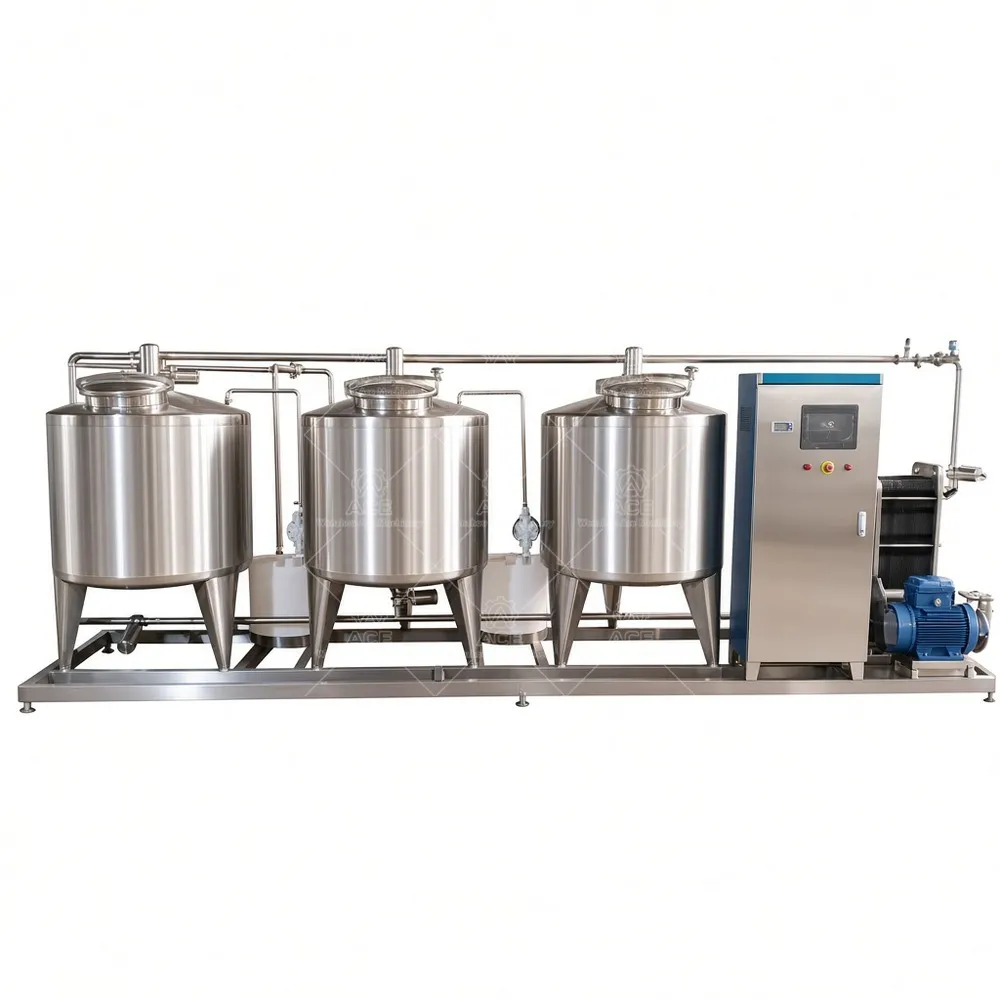

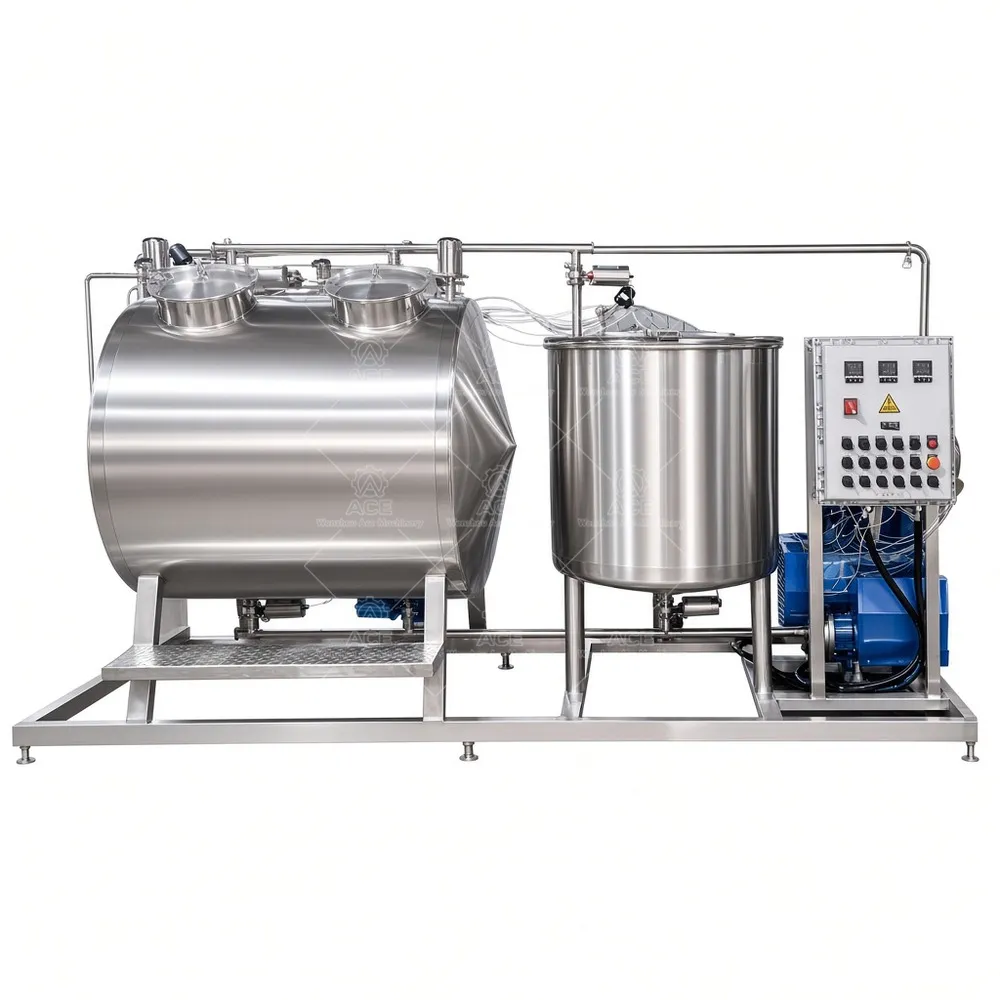

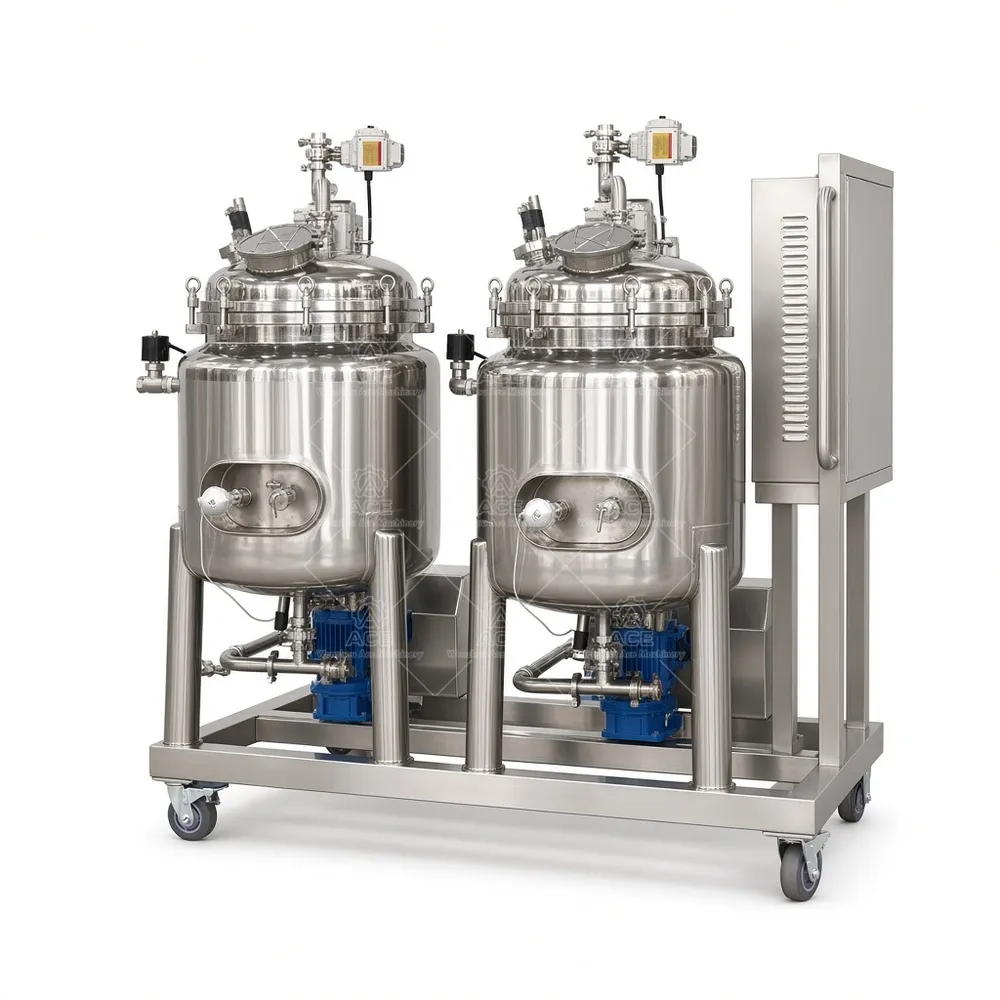

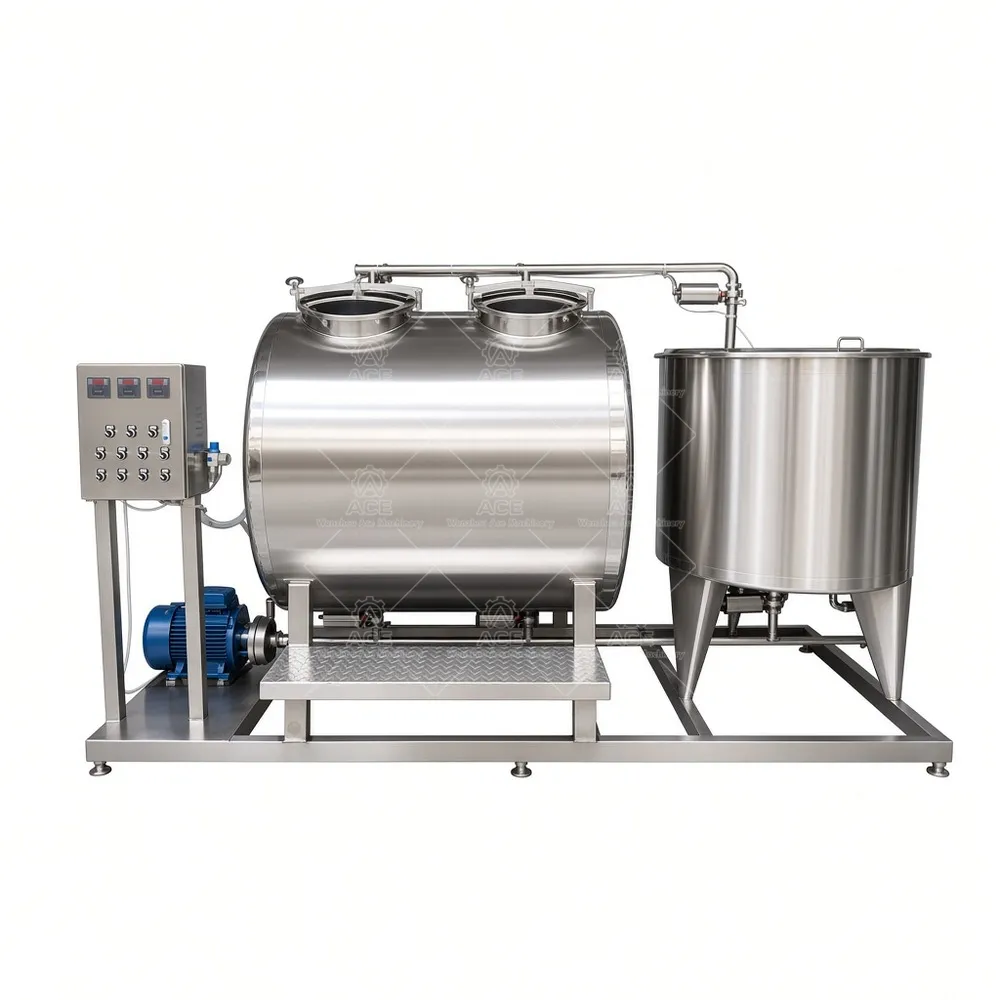

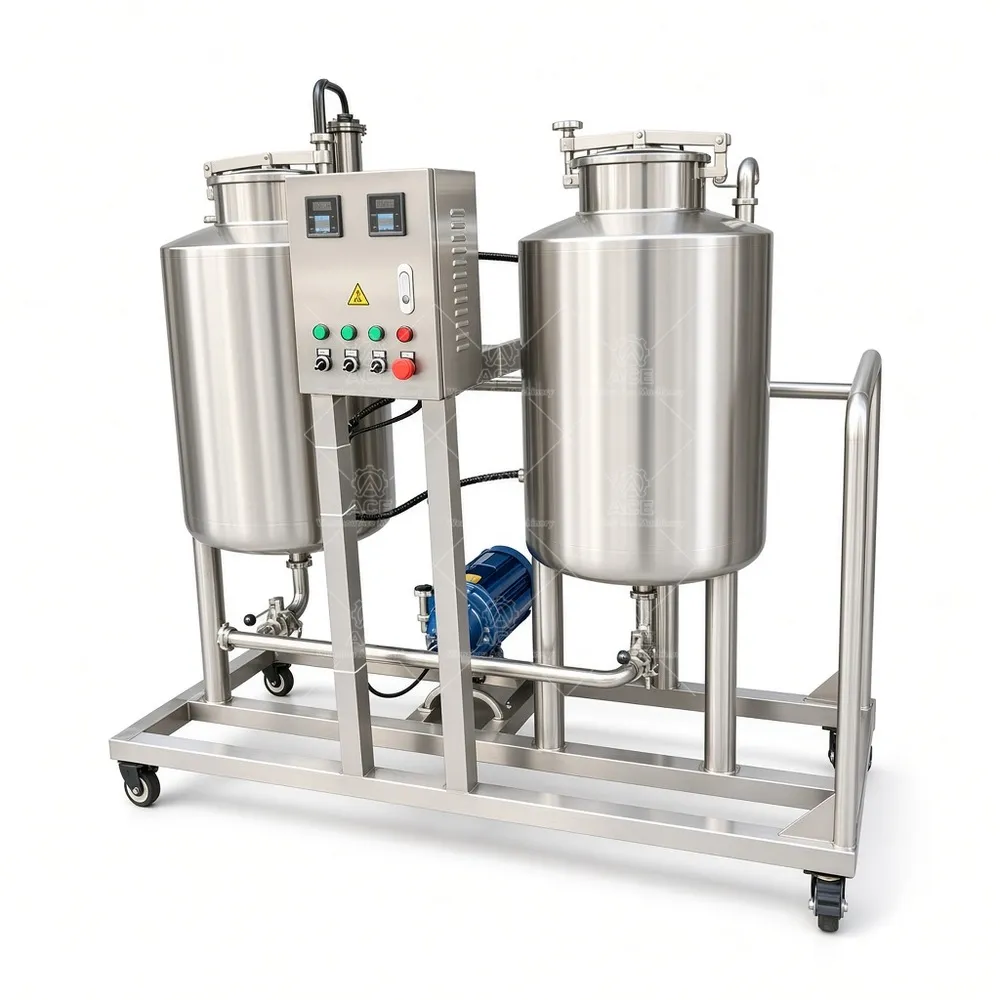

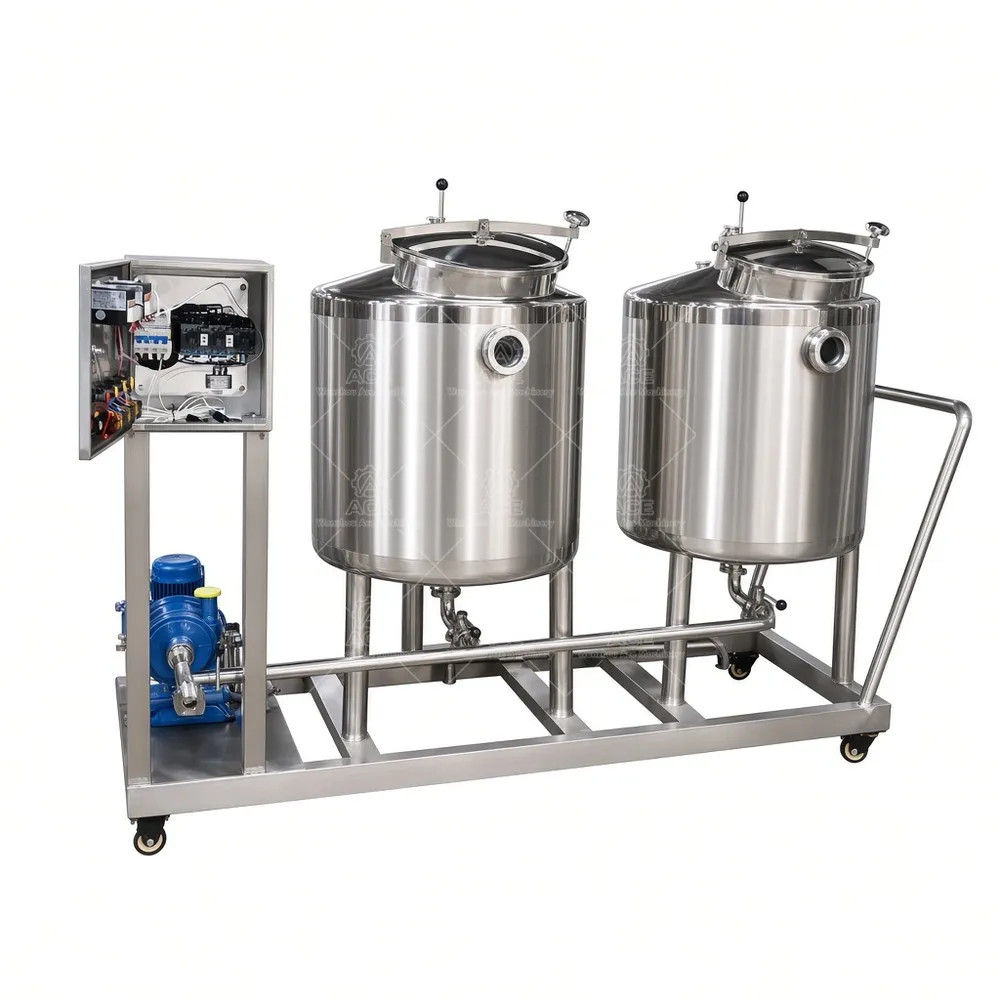

We build single-, two-, three-, and multi-tank CIP units with stainless steel frames, piping, valves, and fittings. Acid and caustic tanks, hot-water tanks, electric or steam heating, supply and return pumps, and temperature, flow, pressure, and level instruments are available according to the project. Control can be manual, semi-automatic, or PLC-based. We confirm each feature against the duty before quotation; not every option suits every plant.
Selection Notes
- Tank volume follows rinse water demand, wash frequency, and recovery practice.
- Pump flow and pressure must match the longest circuit and spray device resistance.
- Heating method depends on available steam, power, and temperature hold requirements.
- Automation level should match operator skills, traceability needs, and budget.
Technical Specifications
| Cleaning tank capacity | From custom sizes |
|---|---|
| Number of tanks | Single, two, three, or multiple |
| Stainless grade | 304 or 316L |
| Heating | Electric or steam |
| Pump flow and pressure | Sized to circuit |
| Working temperature | Up to project setpoint |
| Control | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple loops |
| Power | Site-specific |
| Dimensions | Project-specific |
| Customization | Tank volume, piping, controls, circuits |
Applications
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical producers use CIP systems for cleaning. Cleaning schedules and chemistry must be set for the product, soil load, and local requirements.
FAQ
Can one skid serve multiple tanks? Yes, with a proper supply/return main, valves, and circuit schedule. We verify pressure balance and avoid dead legs.
Do you provide custom tanks and controls? Yes. We size reservoirs, piping, pump curves, and PLC I/O from your utility and cleaning data.
What information speeds quotation? Tank count and volume, pipe diameter and length, soil type, cleaning frequency, steam/power available, stainless grade, and installation location.
Request a Configuration
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation requirements. We will recommend a practical CIP configuration and prepare a custom quotation.
