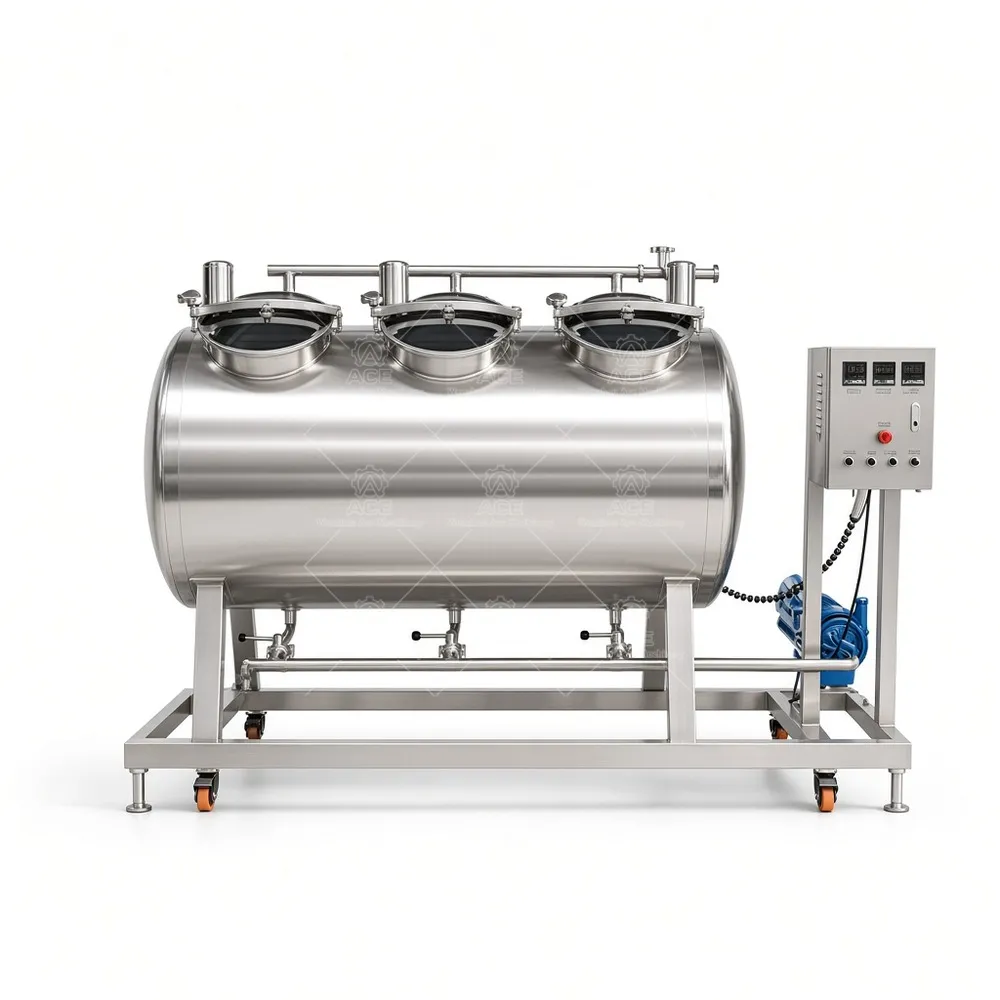

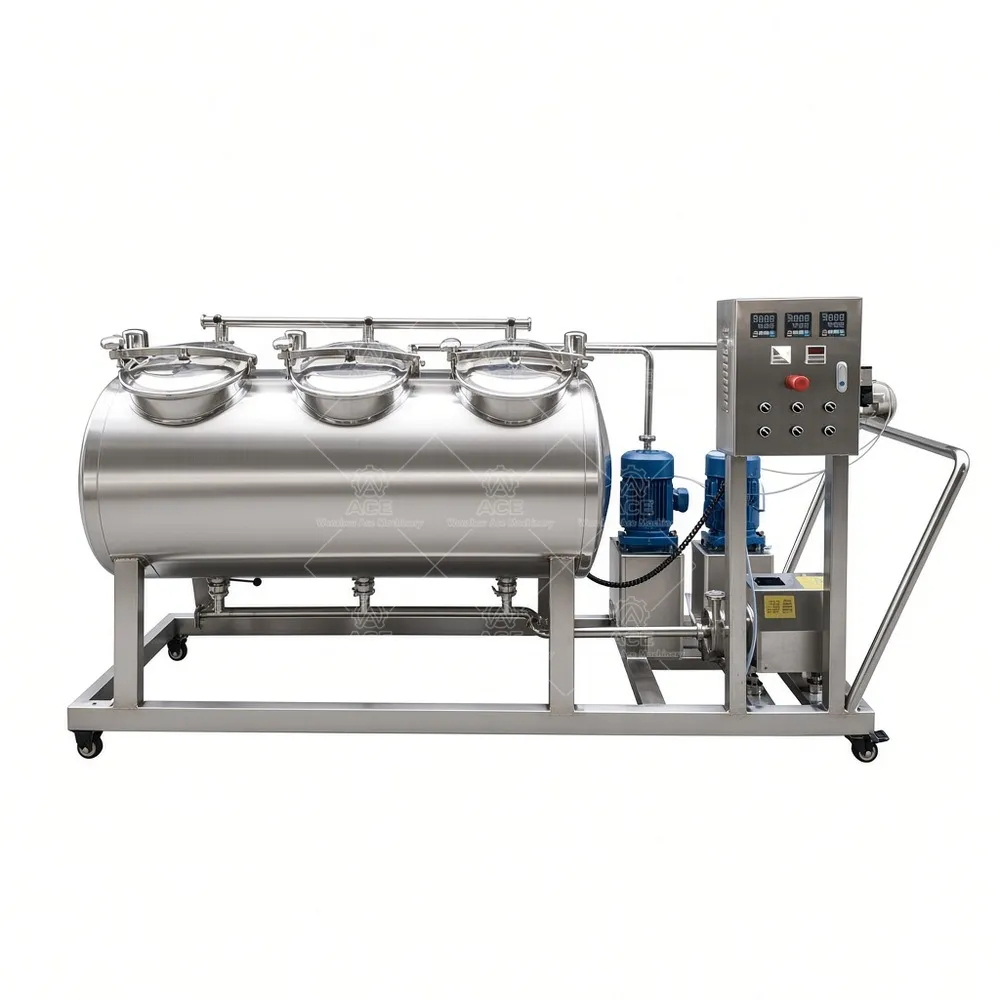

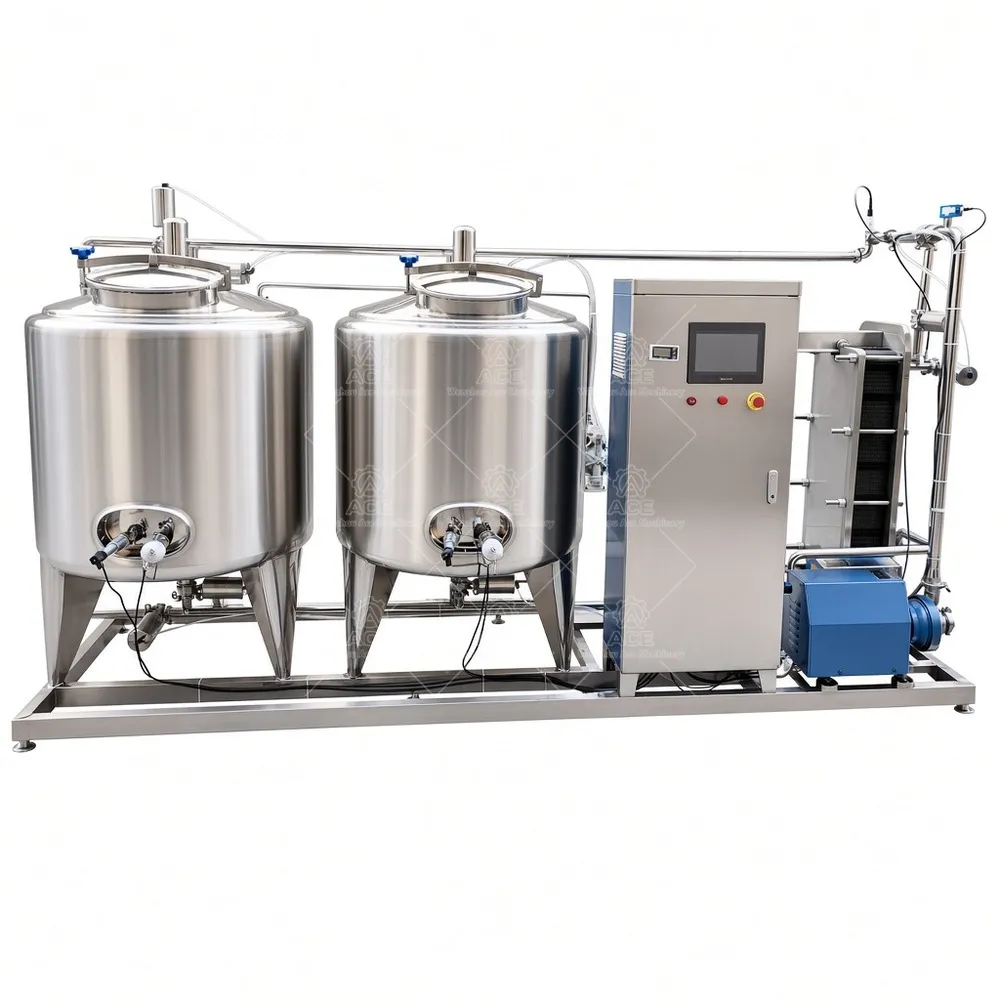

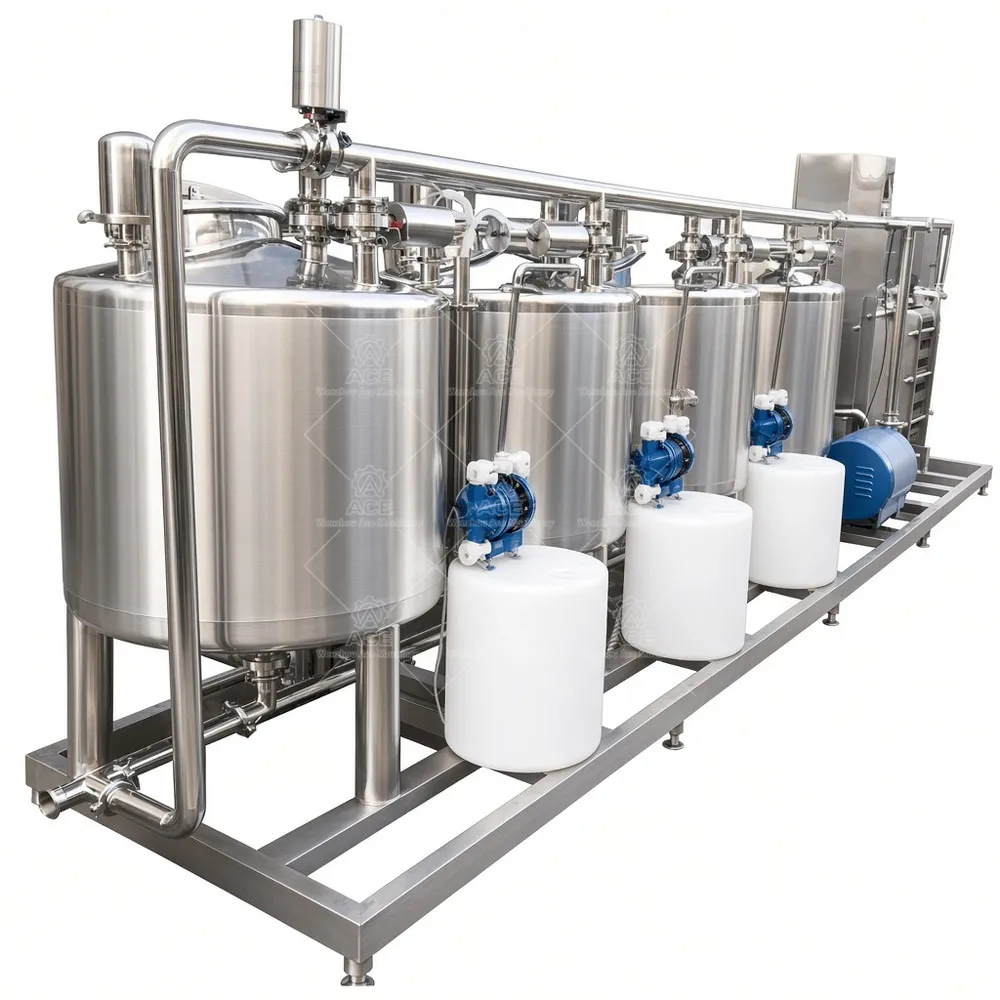

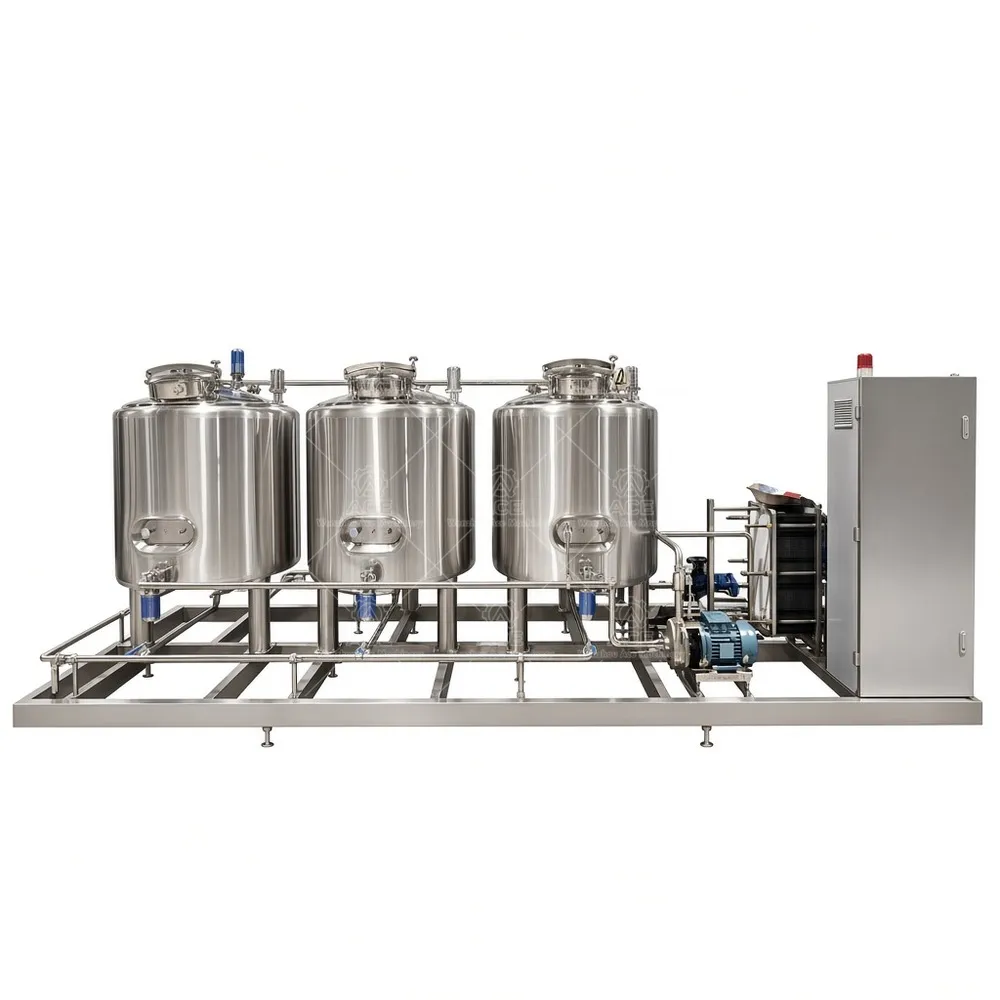

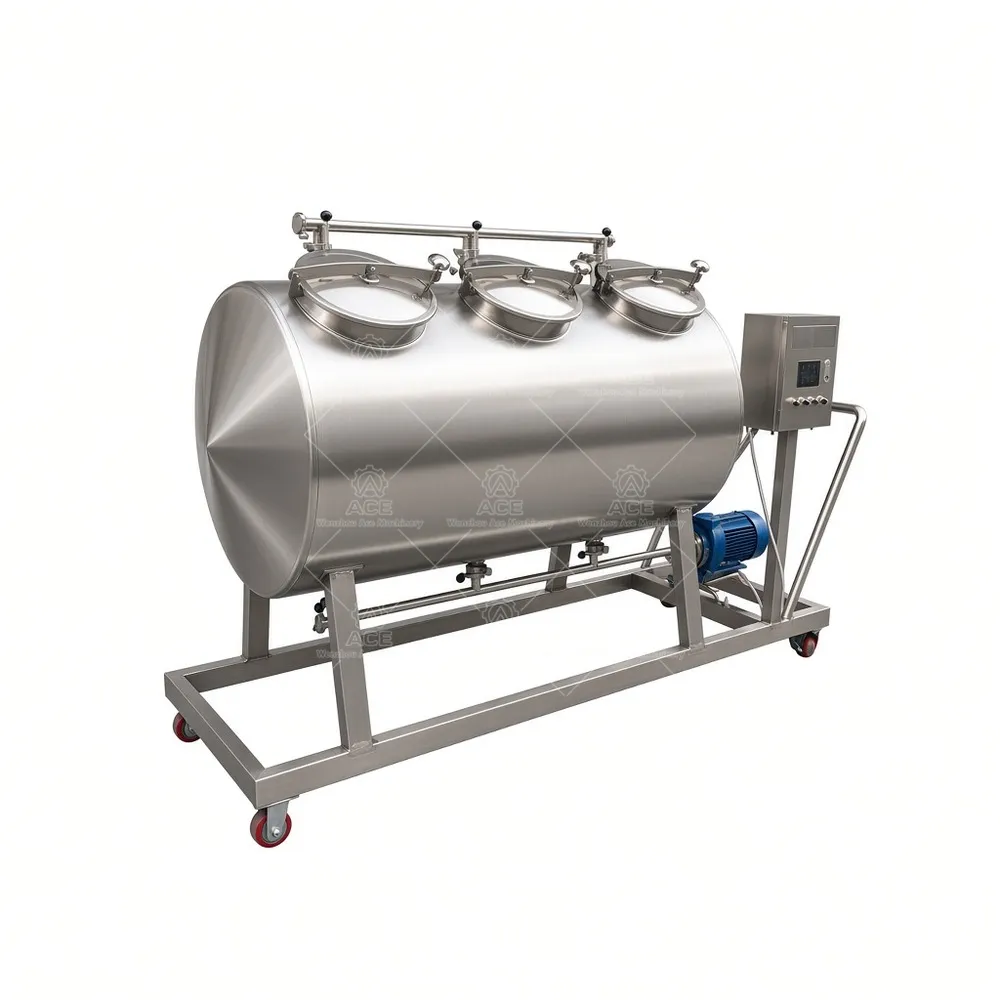

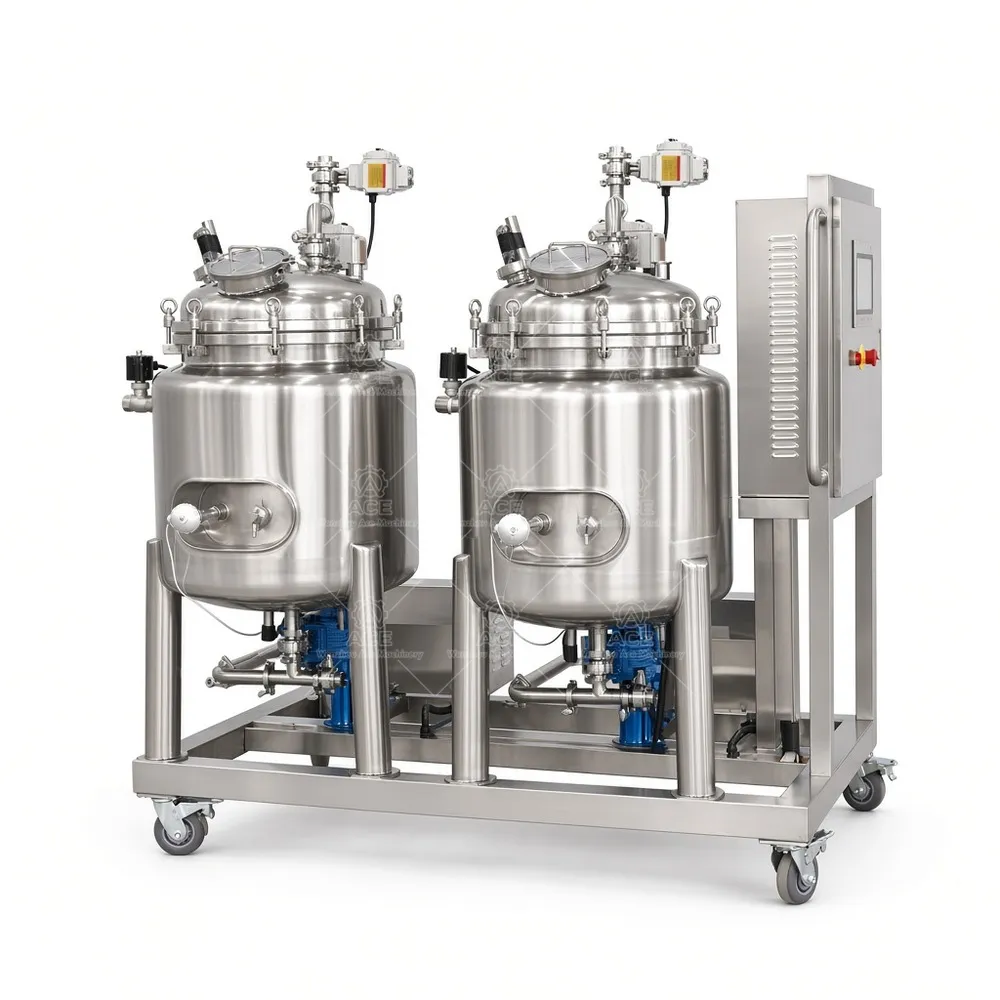

Split-Type Long Alkali Acid CIP Cleaning System, Stainless Steel
Split-type stainless steel CIP systems keep acid and alkali tanks in a utility room while the wash header sits at the line. Built to order with steam or electric heating, PLC control and 304 or 316L construction. Send your tank and piping details for sizing and a quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,282.47 through $7,983.13
Guaranteed Safe Checkout
A split-type long acid–alkali CIP system puts the tanks, pumps and heat exchanger in one location and the wash header and control panel somewhere else. Most of our customers ask for this layout because their mixing room has no floor space for a 2,000 L caustic tank, or because the wash-down area sits behind a hygiene wall. Keeping the solution tanks in a utility room and running the pump set close to the point of use shortens the wash piping, cuts heat loss and keeps the panel where operators actually stand.
The sequence itself is standard — pre-rinse until the return conductivity settles, caustic wash at 75–80 °C, intermediate rinse, acid wash at 60–65 °C, final rinse with soft or RO water. What matters is how each step ends. A flow transmitter and pressure sensor on the return line tell the controller when a rinse is actually complete, which beats a fixed timer on lines that drain unevenly.
- Tank options: single, double, three-vessel or multi-vessel; caustic, acid, hot water, recovery and sanitizing tanks
- Heating: steam coil, plate heat exchanger or electric immersion heater
- Supply and return pumps, stainless piping, air-operated valves and fittings
- Temperature, flow, pressure and level monitoring
- Manual, semi-automatic or PLC/HMI control with wash-step records
- Custom tank volumes, circuit counts and automation scope
| Cleaning tank volume | 2 × 500 L up to 2 × 3,000 L, built to order |
|---|---|
| Number of tanks | 2 to 5 (caustic, acid, hot water, recovery, sanitizer) |
| Stainless grade | 304 or 316L, internal finish Ra ≤ 0.8 µm |
| Heating method | Steam coil, plate exchanger or electric heater |
| Pump flow and pressure | Typically 20–40 m³/h at 3–5 bar per circuit |
| Operating temperature | Up to 85 °C |
| Control system | Push-button, semi-automatic or PLC with data logging |
| Cleaning circuits | 1 to 4 simultaneous, individual air-operated valves |
| Power supply | 380 V / 400 V, 50/60 Hz, three phase |
| Dimensions | Depend on configuration; split build fits narrow rooms |
| Custom options | Tank size, circuit count, CIP trolley, reporting software |
These units wash fermenters, mixing kettles, pasteurizers, filling heads, transfer lines and tanker bays. Dairy, beverage, brewery, sauce and liquid-food plants use them most, and we also build 316L versions for cosmetic and pharmaceutical process lines where the cleaning records need to hold up to audit.
Common questions. How much tank volume do I need? Size it from the wetted surface area of your largest circuit, not from the line diameter — a 30 m loop with two tanks often needs less solution than one 20,000 L vessel. Can I add a circuit later? On PLC units, yes, if the valve manifold has spare positions. Steam or electric? Steam is cheaper to run where it is already available; electric is simpler where a boiler is not.
Send us your industry and product, tank and piping details, required wash capacity, heat source, automation level, stainless grade and installation site. Our engineers will size the tanks and pumps and quote a configuration for your plant.
