50L 100L Portable Brewery CIP Cleaning System for Beer Plants
Portable 50L and 100L CIP cleaning systems for breweries and beverage plants. Factory-built stainless steel units support single- or multi-tank cleaning, electric or steam heating, pump circulation, and manual to PLC control. We size tanks, circuits, and automation around your vessels, piping, cleaning recipes, and installation requirements.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,595.05 through $9,588.75
Guaranteed Safe Checkout
Portable CIP for brewery cleaning

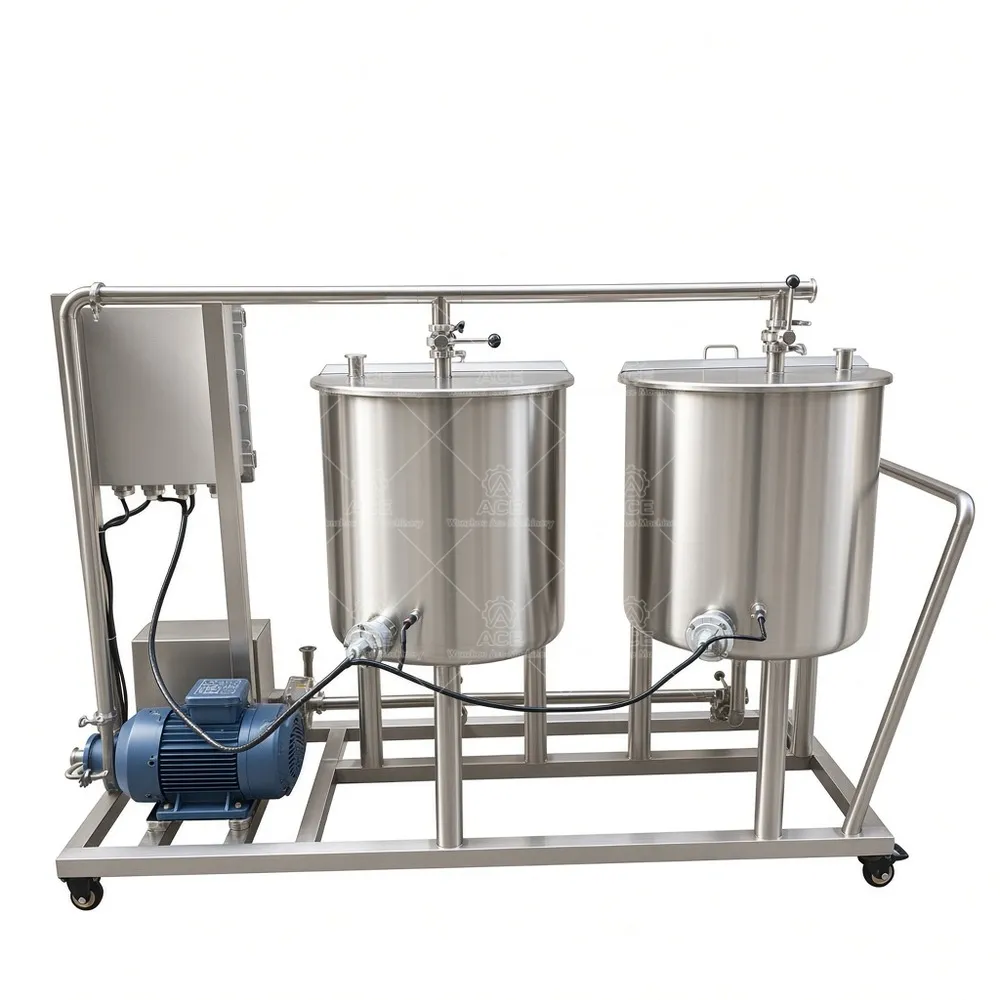

We build 50 L and 100 L portable CIP units for breweries that need a dedicated cleaning skid without tying up the brewhouse. The skid circulates detergent, rinse water, and sanitizer through fermenters, transfer lines, fillers, and heat exchangers. A portable frame can serve several cleaning loops when pump capacity and hose runs are planned correctly.
A typical cycle runs pre-rinse, alkaline wash, intermediate rinse, acid wash when needed, final rinse, and sanitizer. Temperature, flow, and contact time matter more than tank size alone. We match pump duty to the longest circuit and the spray devices, then confirm tank volume from wetted area and recipe.
Options
- Single-, double-, triple-, or multi-tank layouts; caustic, acid, and hot-water tanks.
- Electric or steam heating with temperature and low-level monitoring.
- 304 or 316L stainless steel wetted parts, sanitary piping, valves, and fittings.
- Manual, semi-automatic, or PLC control; flow, pressure, temperature, and level instruments.
- Custom tank capacity, circuits, and automation.
These are available options, not standard on every model. Final configuration is confirmed for your schedule and utilities.
Technical specifications
| Cleaning tank capacity | 50 L or 100 L per tank |
|---|---|
| Number of tanks | 1 to 4 or more, based on recipe and capacity |
| Stainless steel grade | 304 or 316L wetted construction |
| Heating | Electric or steam, sized to tank and cycle |
| Pump flow and pressure | Selected for circuit length, spray devices, and pressure drop |
| Working temperature | Ambient to 80°C, set by cleaning recipe |
| Control system | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | Single or multiple, with supply and return connections |
| Power | 220/380/415 V, 50/60 Hz, per project |
| Dimensions | Compact skid; layout depends on tank count and pump size |
| Custom options | Tank size, heating, instrumentation, controls, and connections |
Applications
Breweries, wineries, dairies, beverage plants, sauce lines, liquid food processing, cosmetics, and pharmaceutical operations use CIP skids for vessels, piping, pumps, fillers, and heat exchangers. Soil load, surface finish, water quality, and chemistry set the actual cleaning program.
FAQ
How do I choose tank capacity? Start with the largest circuit’s volume and wetted area, then add rinse and recovery margin.
Can one portable unit serve several loops? Yes, if pump curve, hose runs, and return routing are reviewed together.
What is needed for a quote? Product type, tank and pipe details, cleaning capacity, heat source, automation level, stainless grade, and installation location.
Tell us your industry, vessels, piping layout, cleaning capacity, heat source, automation level, and installation requirements. We will recommend tank volume, pump duty, controls, and stainless construction, then quote a factory-direct configuration.
