Sanitary Stainless Steel Manual Automatic CIP Cleaning Washing System
Source a sanitary stainless steel CIP cleaning system for dairy, beverage, brewery, sauce, cosmetic, and pharmaceutical lines. We build manual, semi-automatic, and PLC skids with single- or multi-tank layouts, electric or steam heating, supply and return pumps, and temperature, flow, pressure, and level monitoring. Share your circuits, cleaning capacity, heat source, and automation needs for a factory-direct quotation.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,266.07 through $9,201.75
Guaranteed Safe Checkout
Sanitary Stainless Steel CIP Cleaning System
This CIP package is built for plants that need a repeatable wash cycle without pulling lines apart every shift. We manufacture the skid, tanks, piping, and controls in stainless steel, then match the layout to your circuit count, soil load, and available floor space. Manual, semi-automatic, and PLC versions are available; final scope depends on the approved project.
What the system does
CIP circulates detergent, rinse water, and sometimes sanitizer through tanks, pumps, valves, and return lines. The operator selects a recipe, confirms temperature and flow, and the system runs the sequence. Recovery loops, return-pump control, and low-level interlocks matter more than a long feature list. They protect pumps and keep wash results consistent.
Common configurations

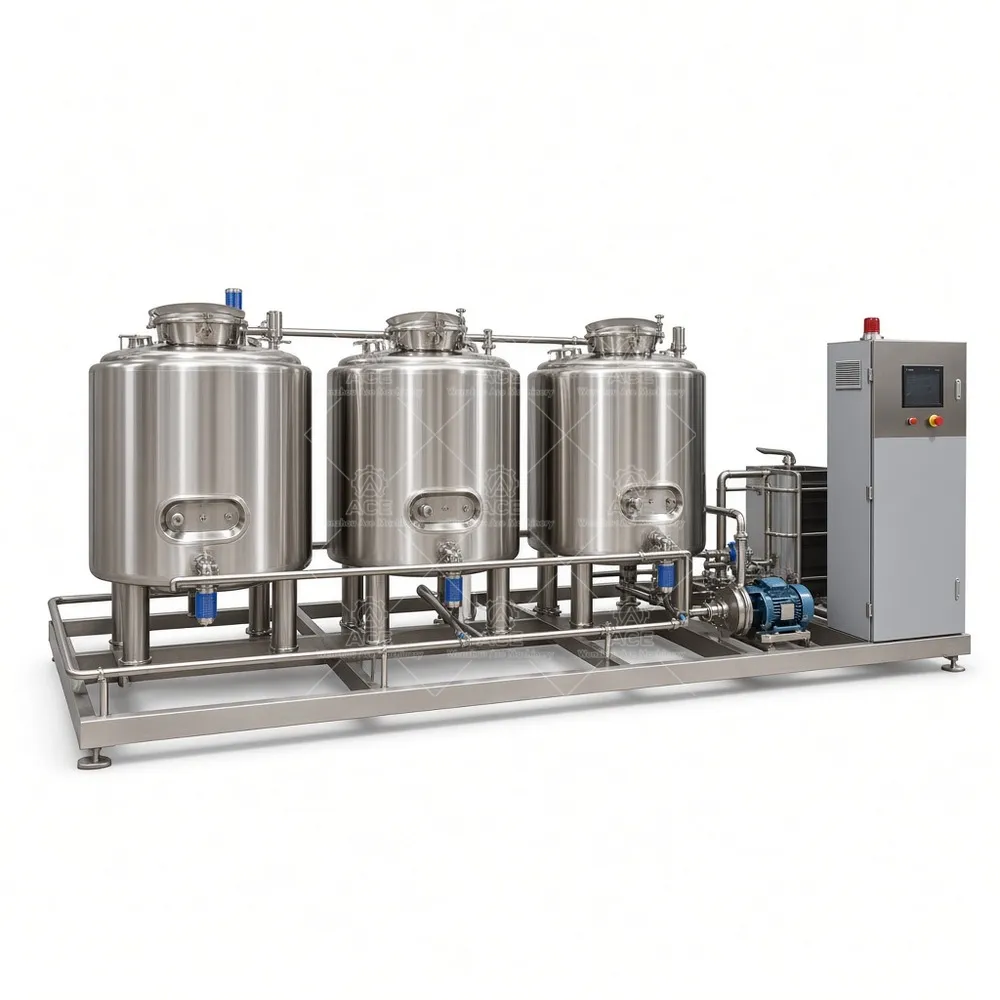

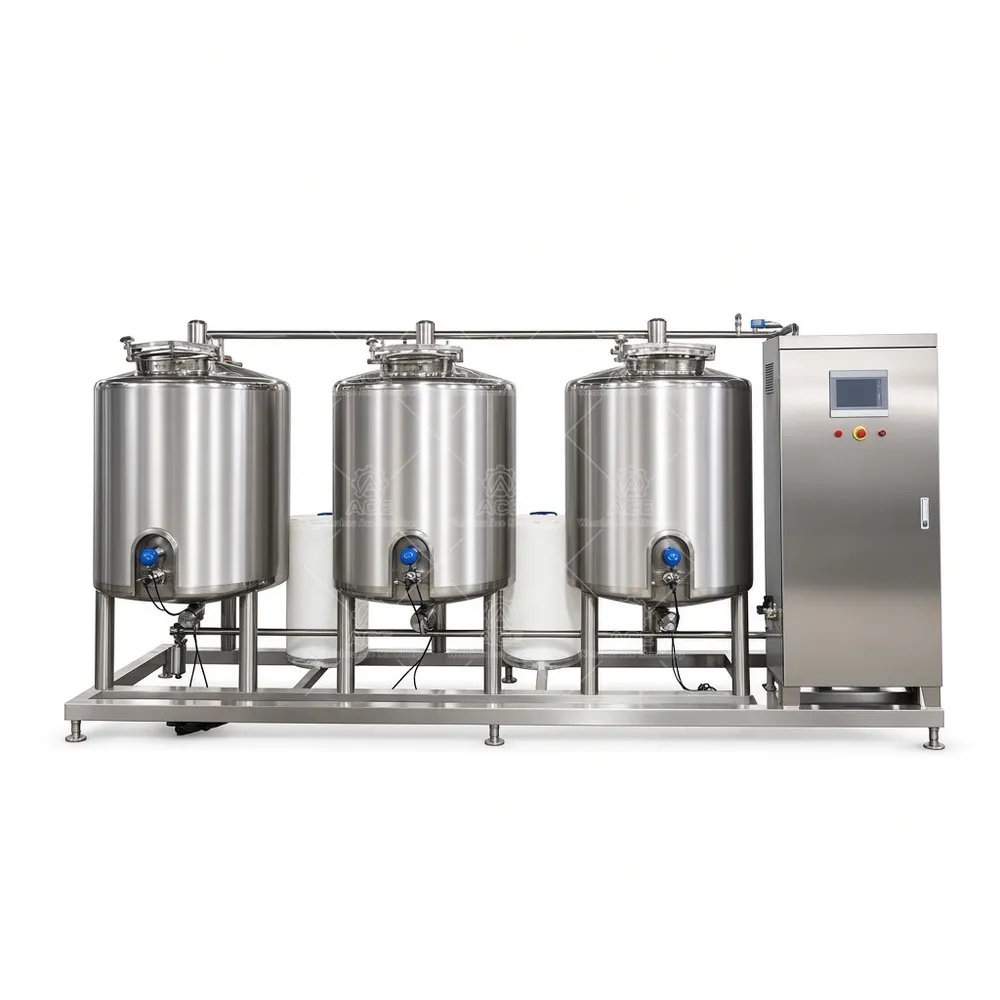

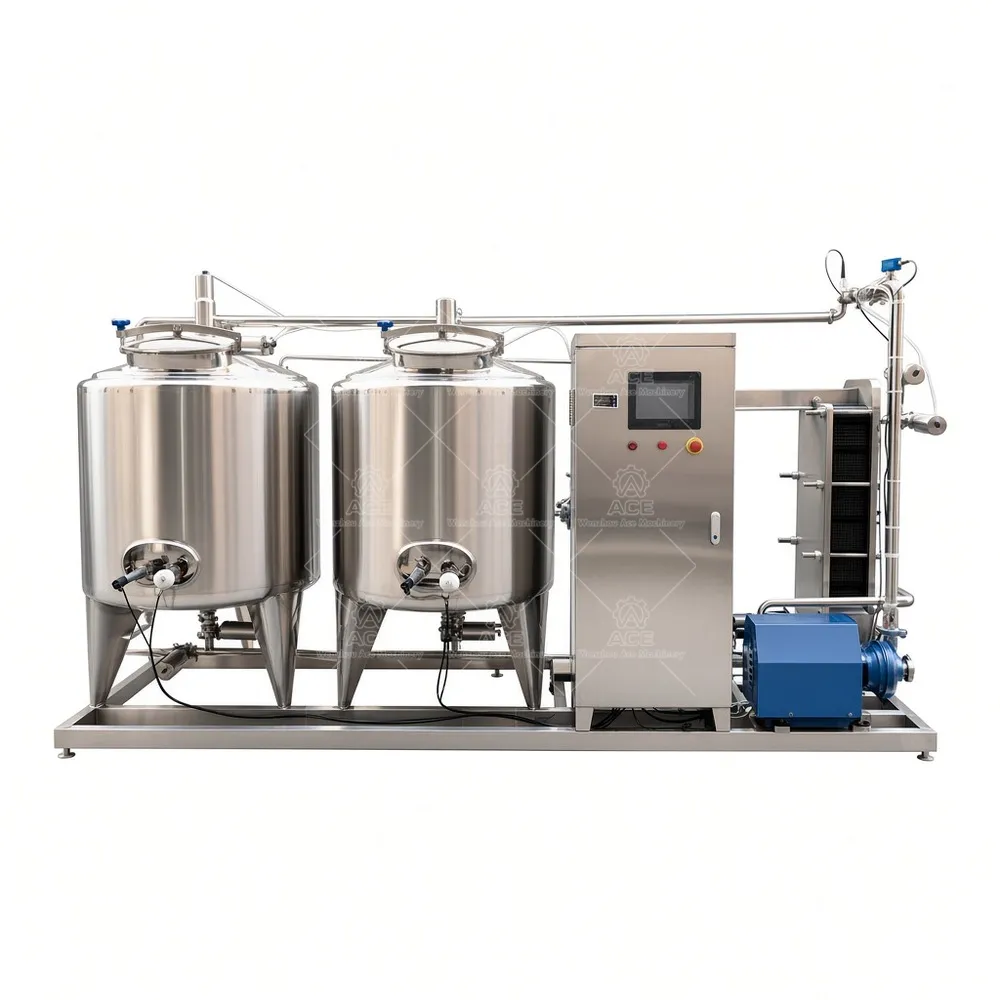

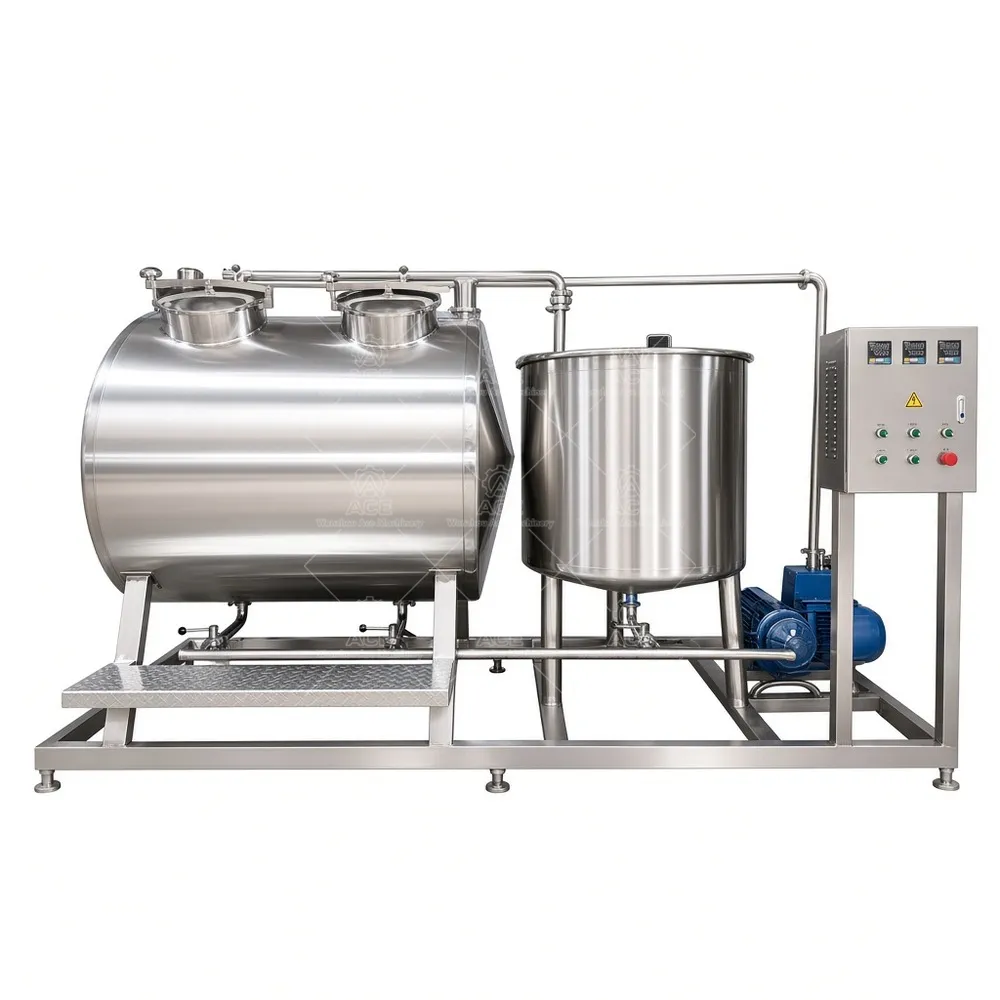

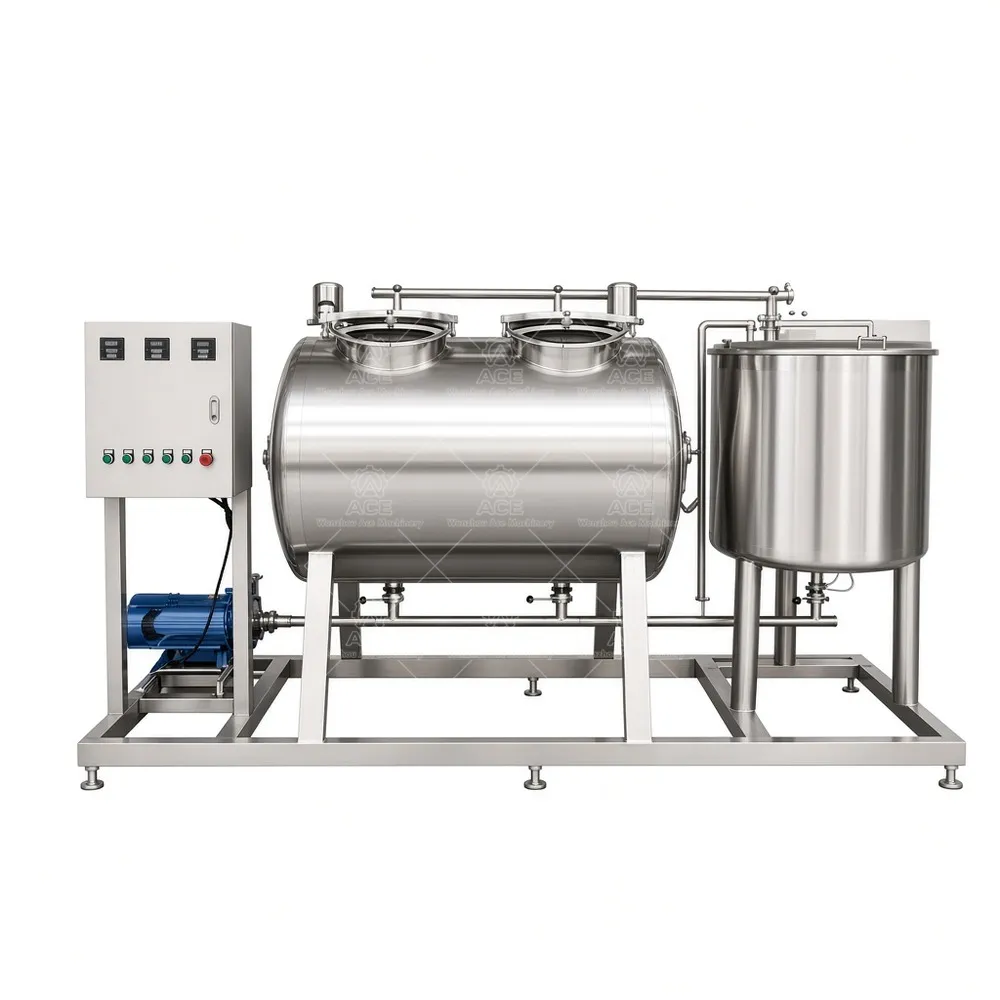

- Single, two, three, or multi-tank skids
- Caustic and acid wash tanks, plus hot-water rinse
- Electric or steam heating
- CIP supply and return pumps
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC/HMI control
These are possible options, not standard features on every unit. We confirm tank volume, circuit size, heat source, and automation level before quoting.
Technical specifications
| Item | Typical range |
|---|---|
| Cleaning tank capacity | 100–10,000 L, project-specific |
| Number of tanks | 1–4 or custom |
| Stainless grade | 304 or 316L |
| Heating | Electric or steam |
| Pump flow and pressure | Selected to circuit and spray demand |
| Operating temperature | Set by cleaning recipe |
| Control | Manual, semi-auto, or PLC |
| Cleaning circuits | Single or multiple loops |
| Power | Site-specific |
| Dimensions | Based on tank layout and skid |
| Custom options | Tank size, loops, controls, skid layout |
Where CIP systems are used
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical plants use CIP to clean tanks, fillers, mixers, pasteurizers, transfer lines, and process valves. Cleaning requirements vary by residue, surface finish, and plant sanitation program.
FAQ
How do we size the tanks? Start with circuit volume, rinse water demand, and how many recipes you run per day. Too small a tank shortens wash time; oversized tanks waste heat and chemicals.
Do we need PLC control? Use PLC when recipes, alarms, and records must be repeatable across shifts. Manual skids suit simple, low-changeover circuits.
Can the skid fit our room? Send a layout sketch. Pump orientation, tank height, and service clearance often decide the final frame.
Request a quote
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, installation location, and site requirements. We will recommend a configuration and provide a factory-direct quotation with engineering support.
