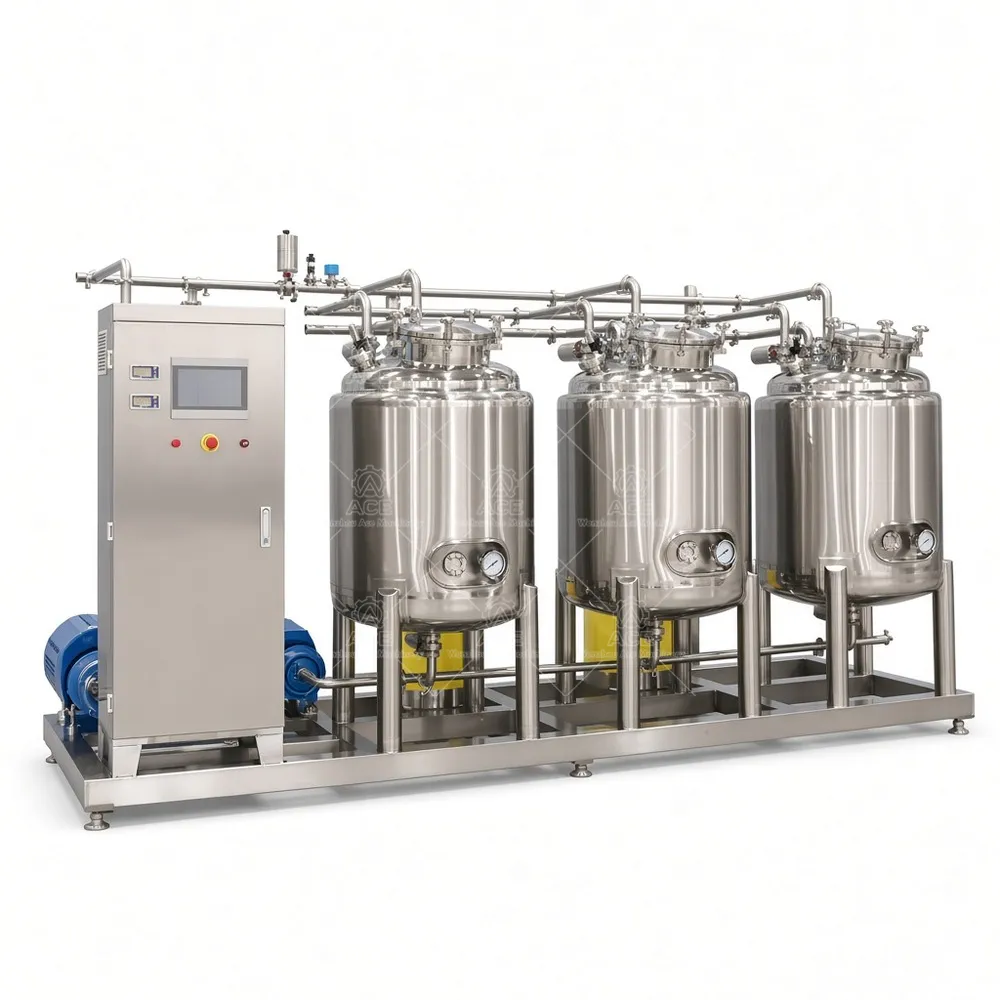

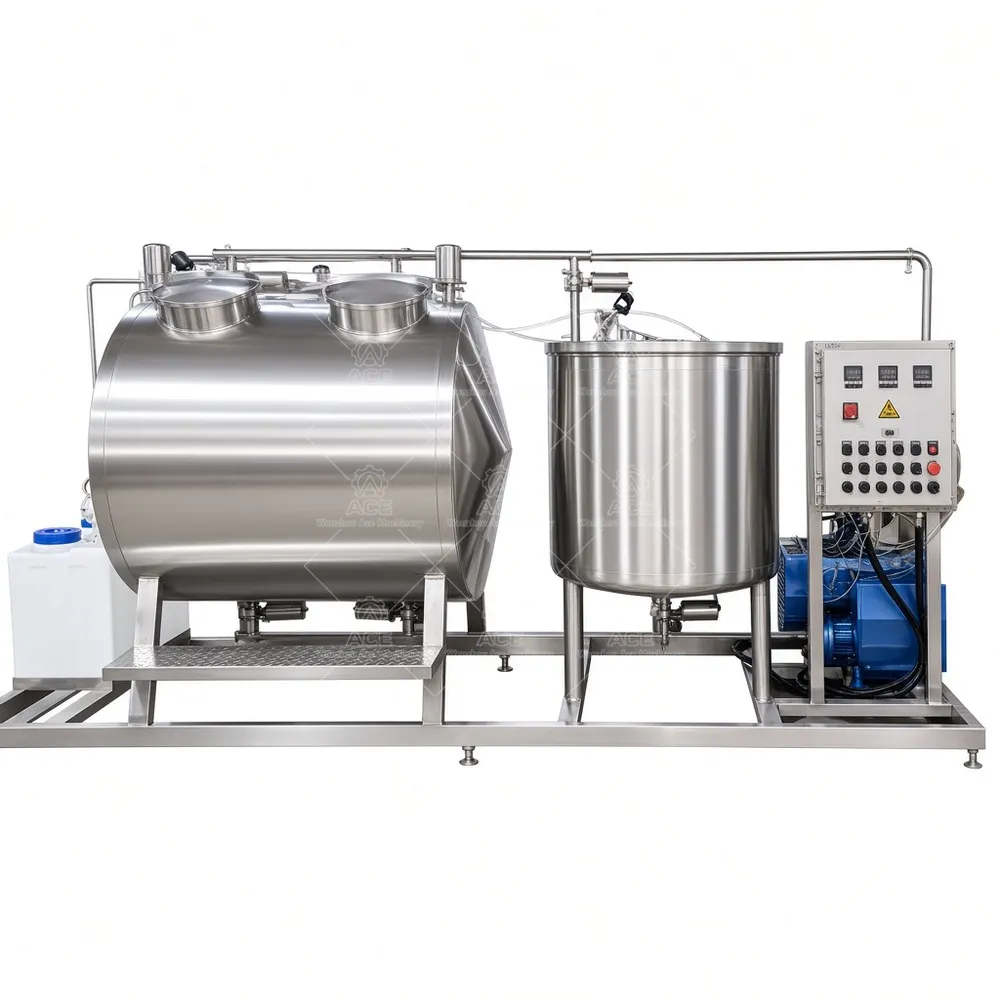

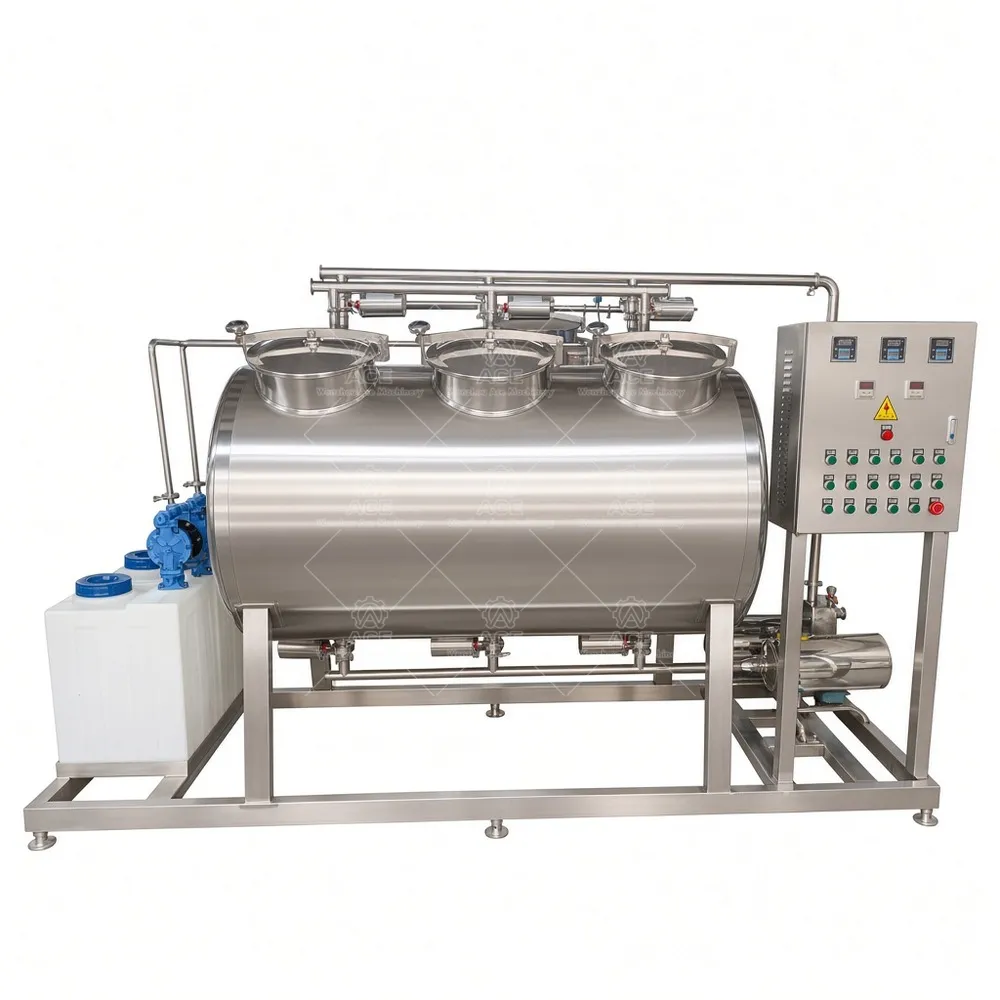

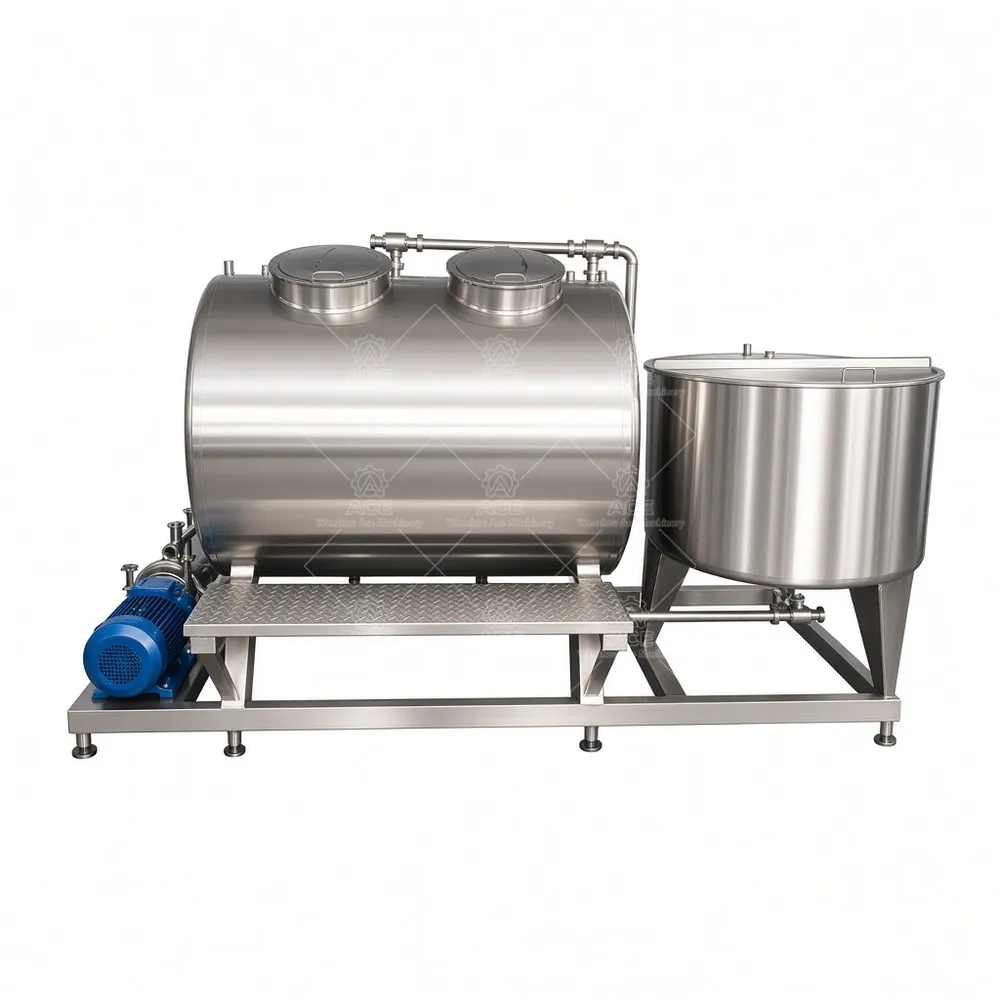

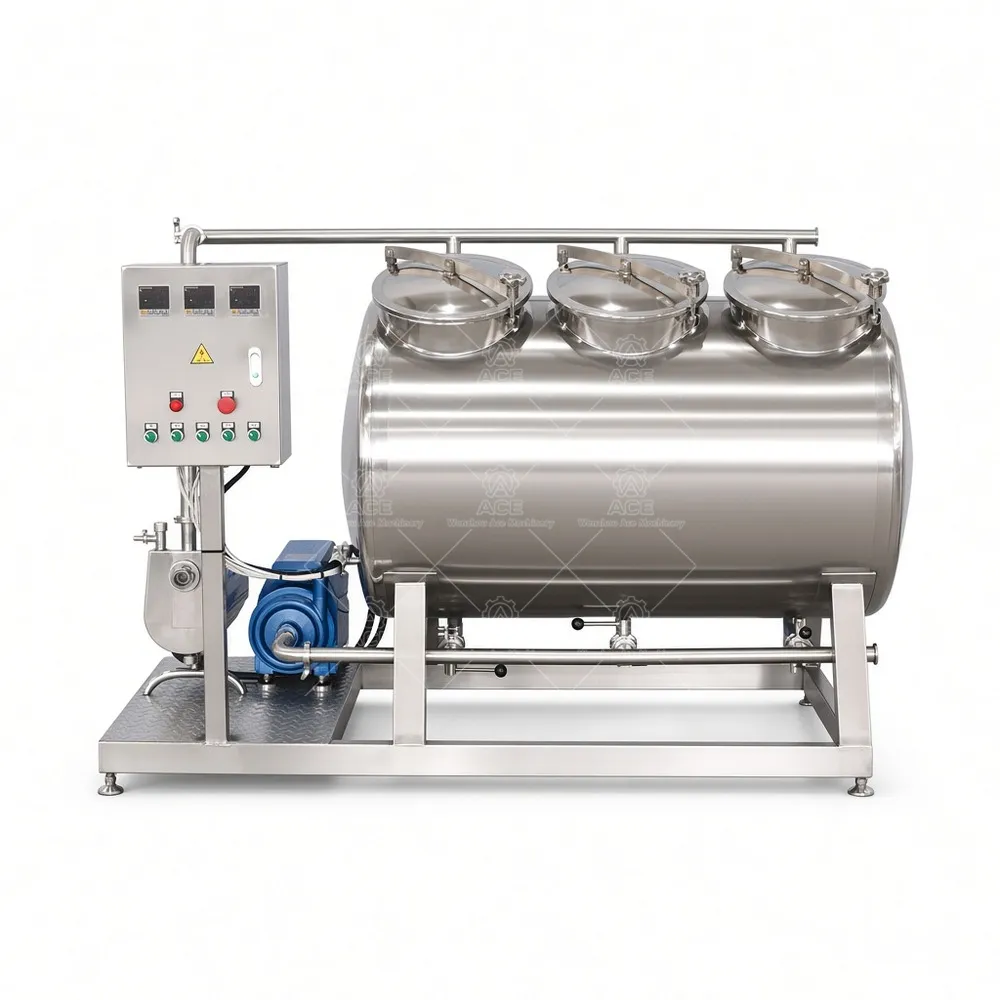

Electric Heating Integrated CIP Cleaning System for Food Plants
This integrated electric-heating CIP system is built for food plants that need repeatable cleaning of tanks, lines, and fillers. We configure tank volume, pump flow, temperature control, and PLC or manual operation around your soil load, utilities, and floor space. Stainless construction and factory-direct engineering support keep the skid practical to install, maintain, and expand.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,344.72 through $8,172.63
Guaranteed Safe Checkout
What the CIP skid does
Our integrated CIP system prepares and circulates cleaning solutions through tanks, pipework, fillers, and process lines. We size each skid around the soil you remove, the circuits you clean, and the utilities at your plant. A food factory may run an alkaline wash followed by an acid rinse; a dairy may need hotter caustic and tighter temperature control. Single-, two-, three-, and multi-tank arrangements are possible. Acid, caustic, and hot-water tanks can be included when the cleaning recipe requires them.
A typical cycle moves through pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and drain. Supply and return pumps circulate solution while temperature, flow, pressure, and level instruments track the recipe. We can configure electric or steam heating, manual, semi-automatic, or PLC control, and stainless piping, valves, and fittings. These are options, not standard features on every model; the approved drawing defines the scope.
Specifications to confirm
| Item | Project data |
|---|---|
| Cleaning tank capacity | By circuit volume and soil load |
| Number of tanks | Single, two, three, multi-tank |
| Stainless grade | 304 or 316L by duty |
| Heating | Electric or steam |
| Pump flow and pressure | Sized for line loss and spray demand |
| Operating temperature | Set by recipe |
| Control system | Manual, semi-automatic, PLC |
| Cleaning circuits | Per tank, line, filler layout |
| Power | Plant-specific |
| Dimensions | Based on tank and skid layout |
| Custom options | Tank capacity, circuits, automation |
Where it fits
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical plants use CIP on tanks, pasteurizers, fillers, transfer lines, and mixing vessels. We review residue type, circuit layout, and cleaning schedule before recommending a recipe.
FAQ
Can one skid serve several circuits? Yes, with valving and a confirmed circuit schedule. Avoid running incompatible products through the same return path without review.
How do I size the pump? Check line pressure drop, spray-ball demand, and return distance. Tank volume alone is not enough.
Request a quote
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the tank configuration, pump duty, heating load, and control package, then provide a factory-direct quotation with engineering support.
