Automatic Small-Scale CIP System | 1000L–3000L Tank Washing Station
This small-scale CIP cleaning system is built for dairies, beverage plants, breweries, sauce lines, cosmetics, and pharmaceutical process areas. Available with 1000 L, 2000 L, or 3000 L tanks, single or multi-tank layouts, electric or steam heating, stainless piping, monitoring, and manual, semi-automatic, or PLC control. Final configuration is quoted per project.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,063.37 through $8,933.75
Guaranteed Safe Checkout
Small-scale CIP cleaning, built for real wash cycles
A CIP skid must deliver repeatable chemical concentration, temperature, flow, and return drainage in a small footprint. We build 1000 L, 2000 L, and 3000 L tank washing stations for dairies, beverage plants, breweries, sauce lines, cosmetics, and pharmaceutical process areas. Final scope is confirmed on the approved drawing.
What it does
The station prepares and circulates cleaning solutions through tanks, piping, fillers, heat exchangers, and process loops. A typical cycle is pre-rinse, alkaline wash, intermediate rinse, acid wash where required, final rinse, and drain. Cycle time depends on circuit volume, soil load, spray coverage, and pump curve.
Tank configuration and capacity

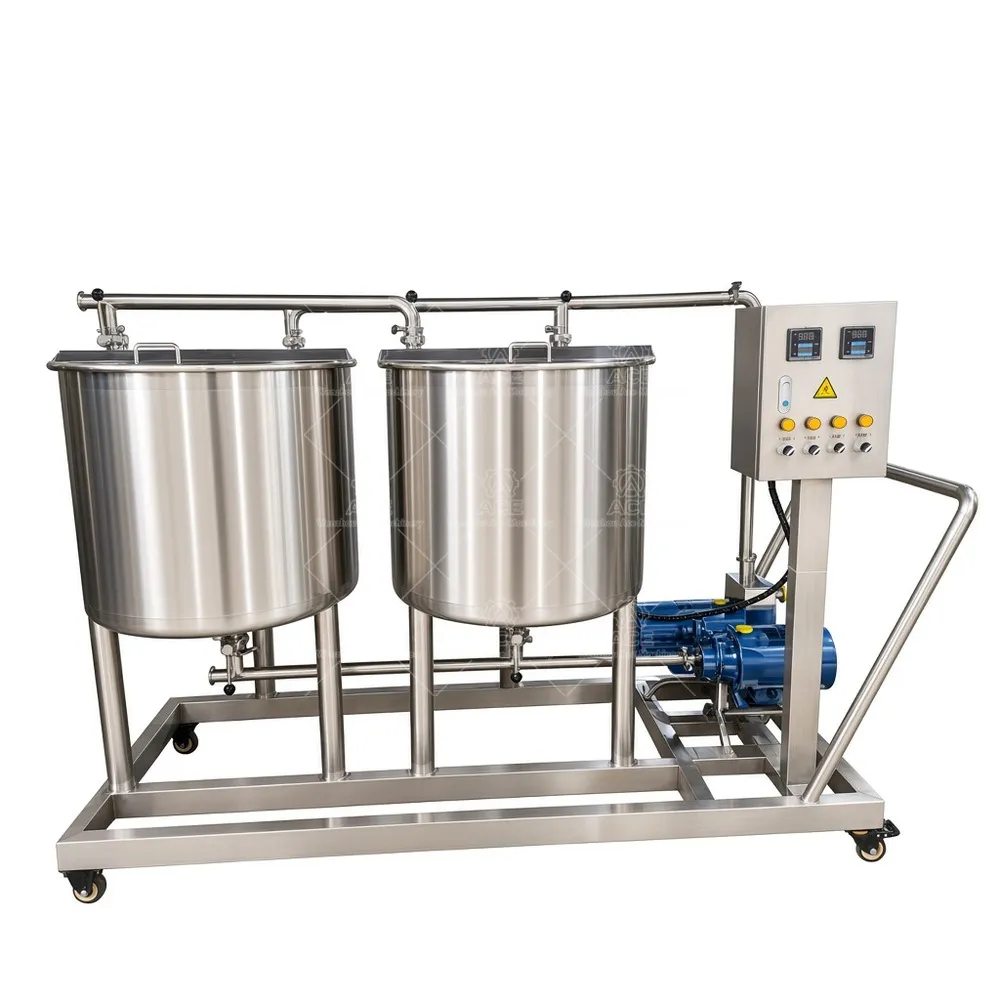

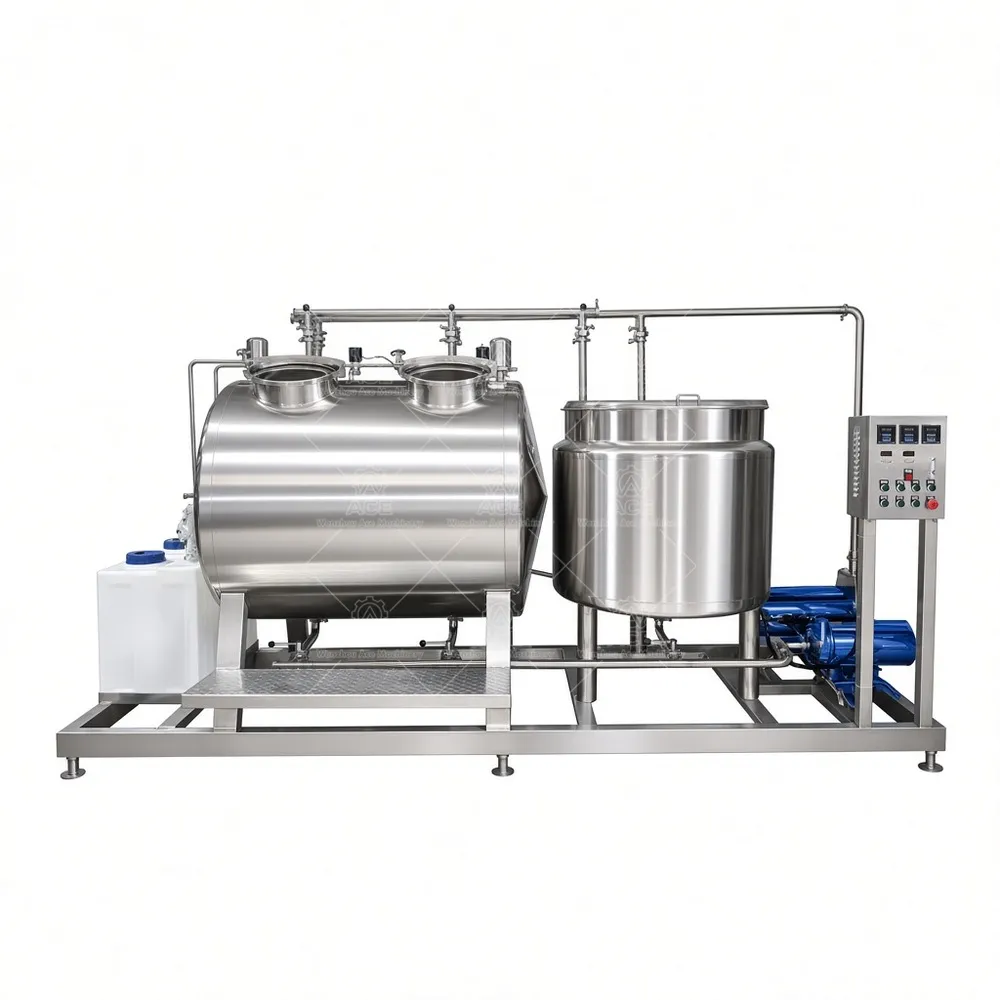

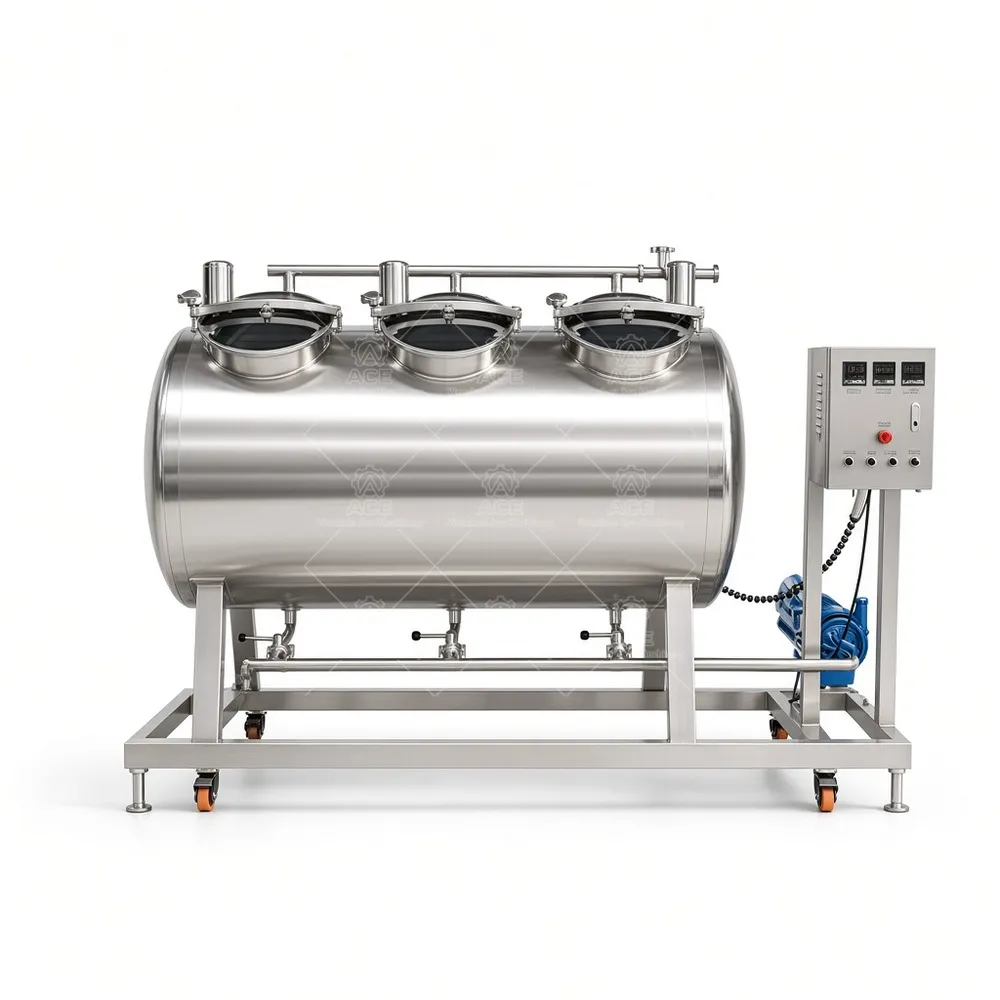

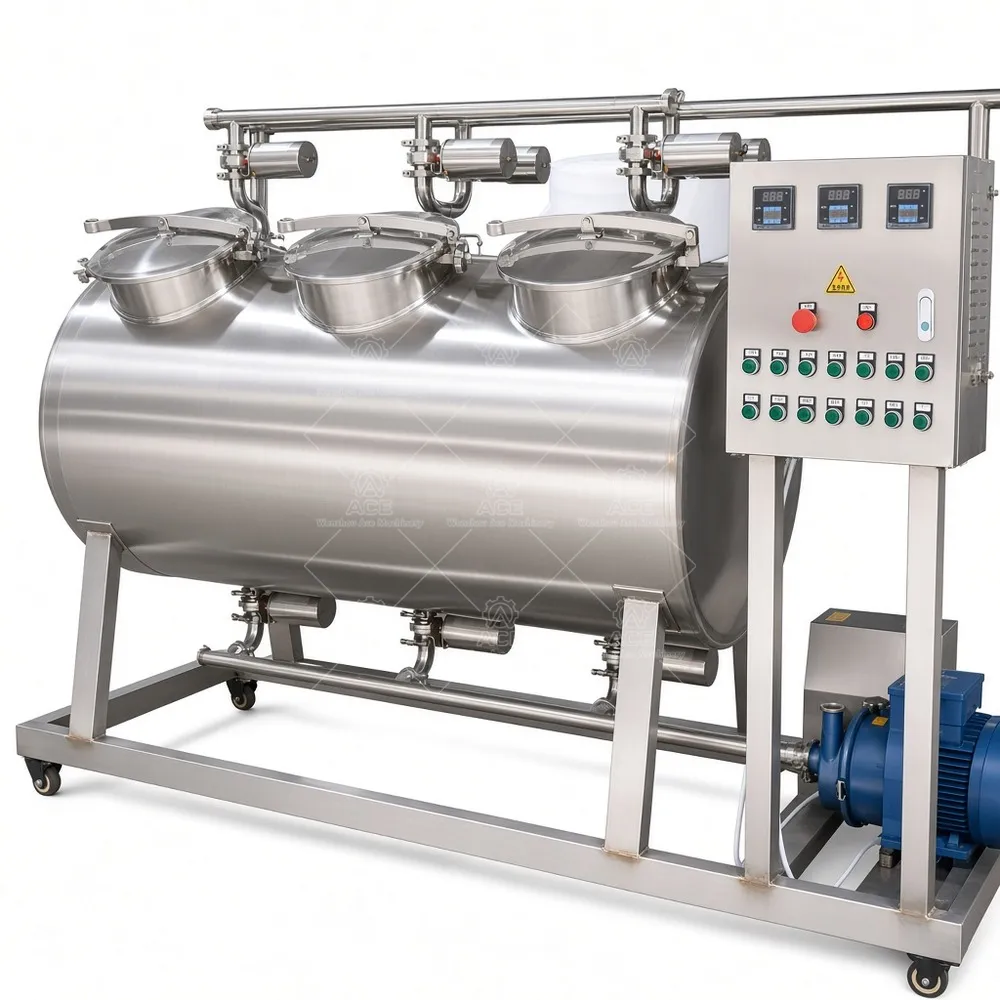

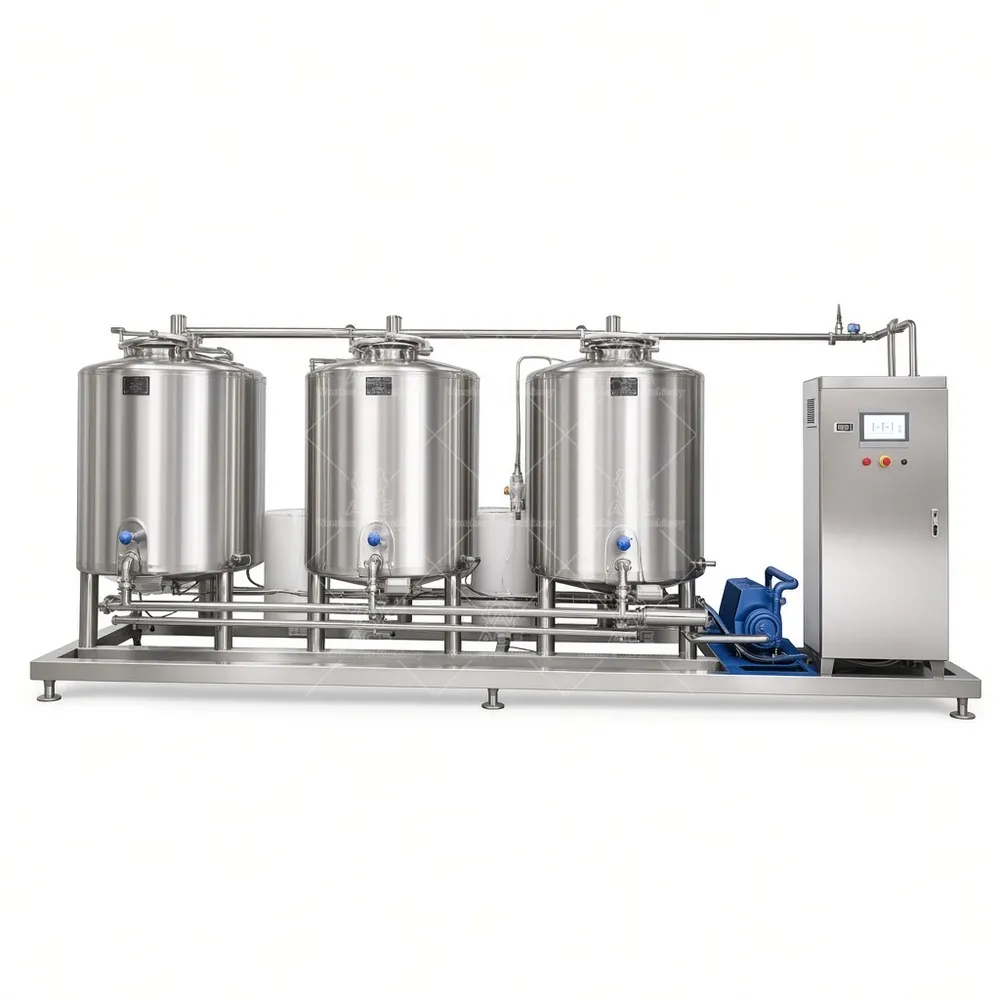

Single-tank units suit simple rinse or one-chemical programs. Two- and three-tank arrangements keep caustic, acid, and hot water separate. Choose tank volume from circuit volume, chemical dilution, rinse demand, and the number of cleaning circuits—not from the largest tank on the floor.
Options and engineering scope
- Single, double, triple, or multi-tank CIP arrangement
- Caustic and acid wash tanks plus hot-water tank
- Electric or steam heating with temperature control
- CIP supply and return pumps, stainless piping, valves, and fittings
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC control
- Custom tank capacity, wash circuits, and automation
Available configurations only; final scope is confirmed per project.
Technical specifications
| Item | Typical scope |
|---|---|
| Cleaning tank capacity | 1000 L / 2000 L / 3000 L per tank; custom sizes |
| Number of tanks | 1 to 4 or more |
| Stainless steel grade | 304 or 316L |
| Heating method | Electric immersion or steam heat exchanger |
| Pump flow and pressure | Selected to circuit and spray devices |
| Operating temperature | Set by chemical supplier and wash procedure |
| Control system | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | One or multiple loops; return and drain routing confirmed |
| Power supply | Site-specific |
| Dimensions | Based on tank size, skid layout, and access |
| Customization | Tank volume, circuits, heating, instrumentation, controls |
Where CIP is used
Dairy processors clean raw and pasteurized lines, tanks, and fillers. Breweries and distilleries clean fermenters, bright tanks, transfer lines, and packaging equipment. Beverage and liquid-food plants use CIP for syrup rooms and fillers. Sauce operations need attention to solids and pre-rinse. Cosmetic and pharmaceutical areas often require documented cycle parameters and material traceability.
Common questions
Can we start with one tank and add later? Sometimes, but skid layout, pump sizing, and controls should be planned for the final scope.
Do we need acid and caustic tanks? Only if your cleaning procedure calls for both.
How do we size the pump? Use circuit volume, pipe diameter, spray device pressure, and return flow. A larger pump does not fix poor drainage.
Request a quote
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the tank arrangement, pump duty, heating load, and control scope, then quote the factory-direct system.
