CIP Unit Tank Cleaning System – Stainless Steel In-Situ Cleaning for Processing
Stainless steel CIP unit tank cleaning system for in-situ cleaning of process machinery. Available in single, double, or multi-tank configurations with electric or steam heating, PLC control, and custom cleaning circuits. Designed for dairy, beverage, brewery, pharmaceutical, and cosmetic production. Factory-direct engineering and customization.
- Tank Capacity: [100L–5000L or specify actual capacity]

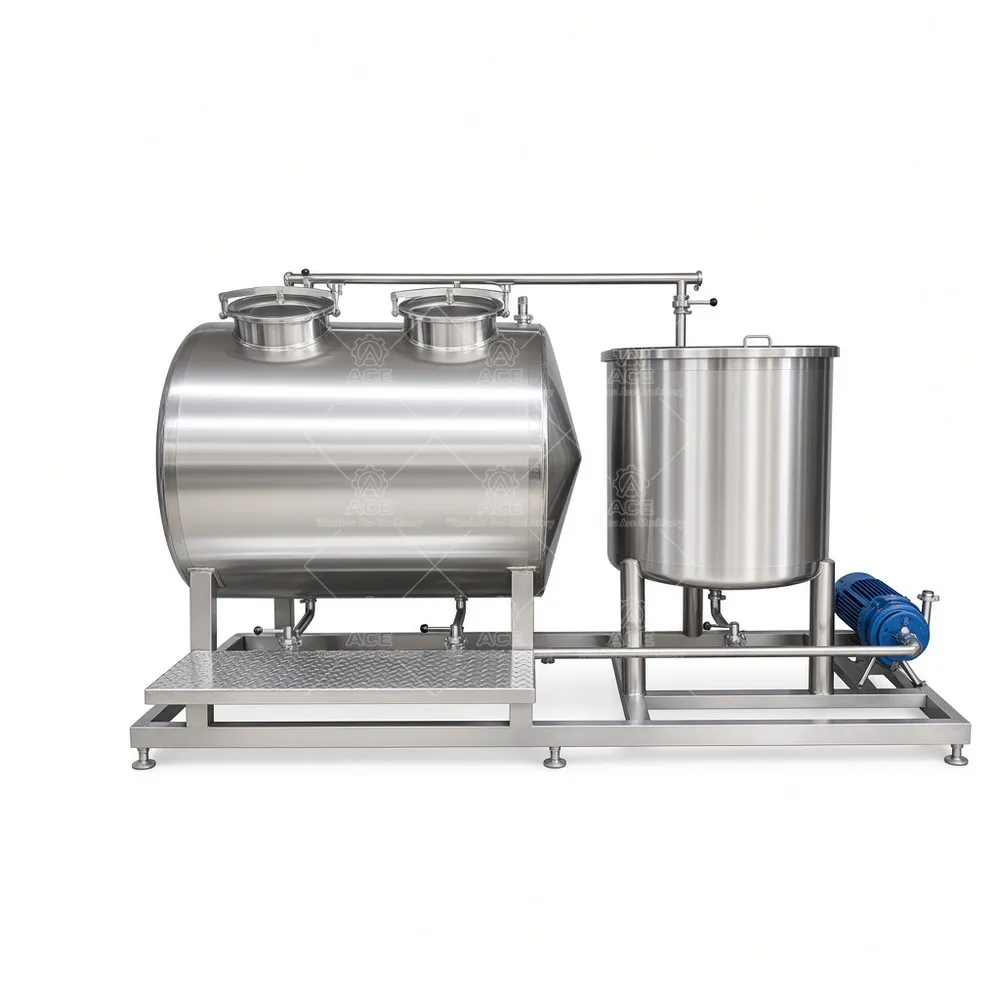

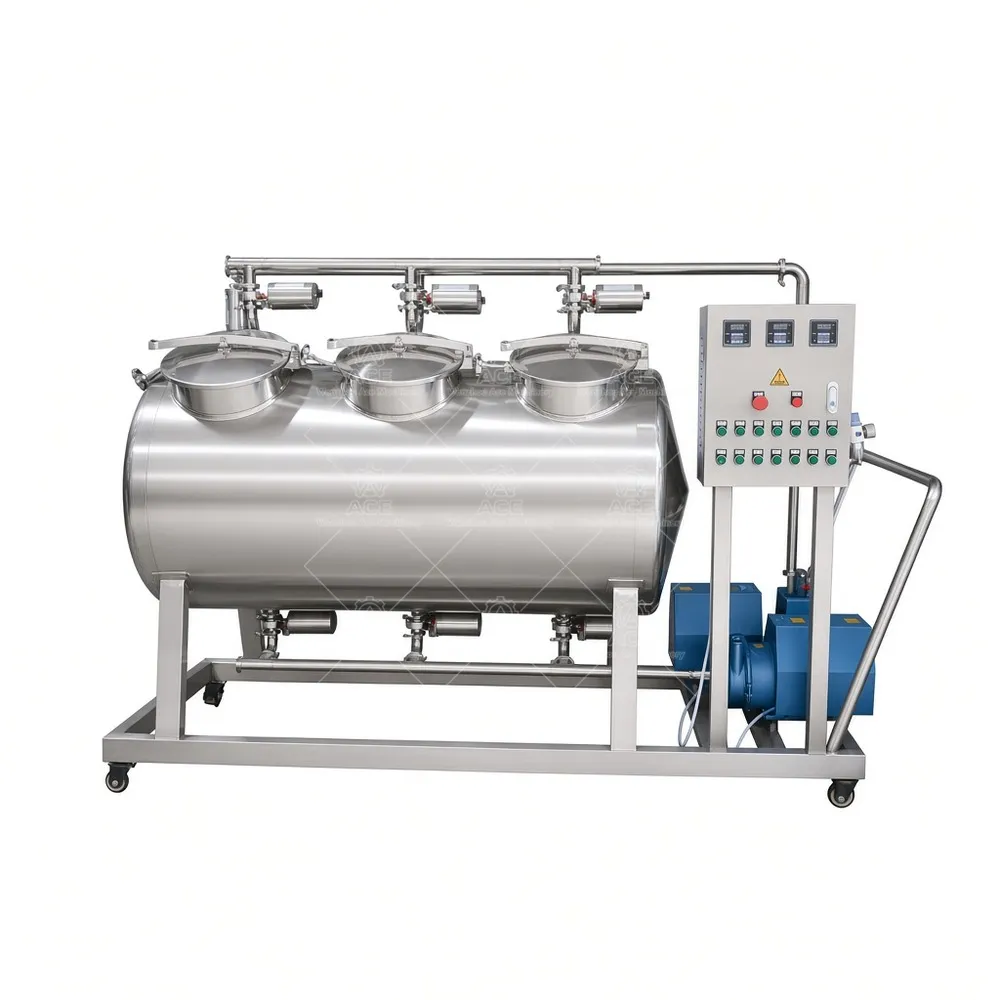

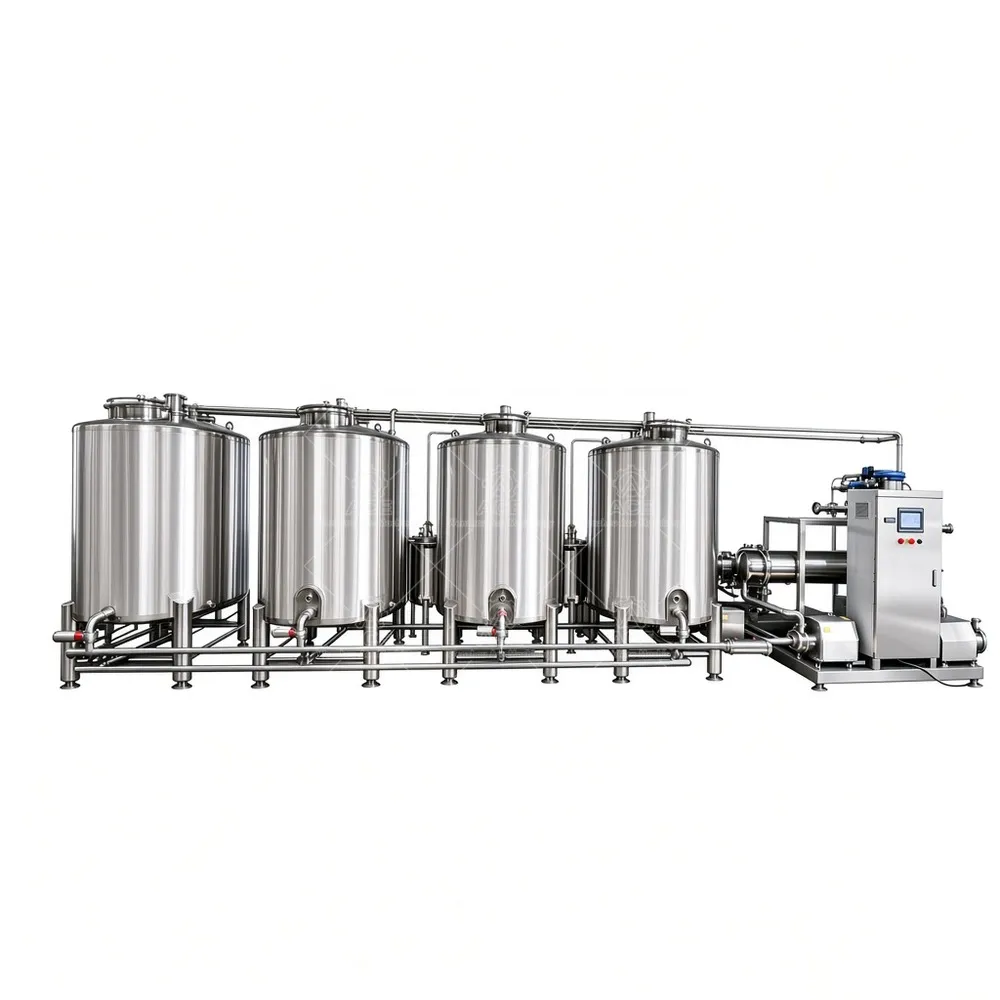

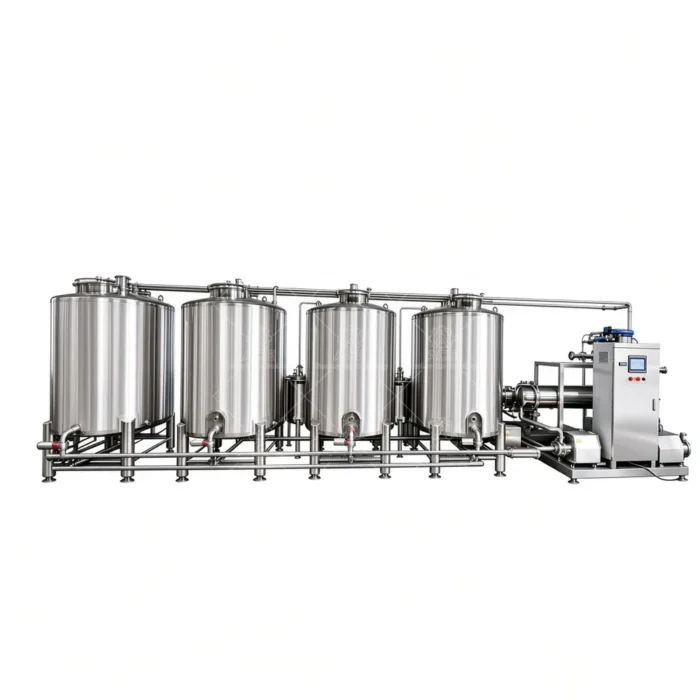

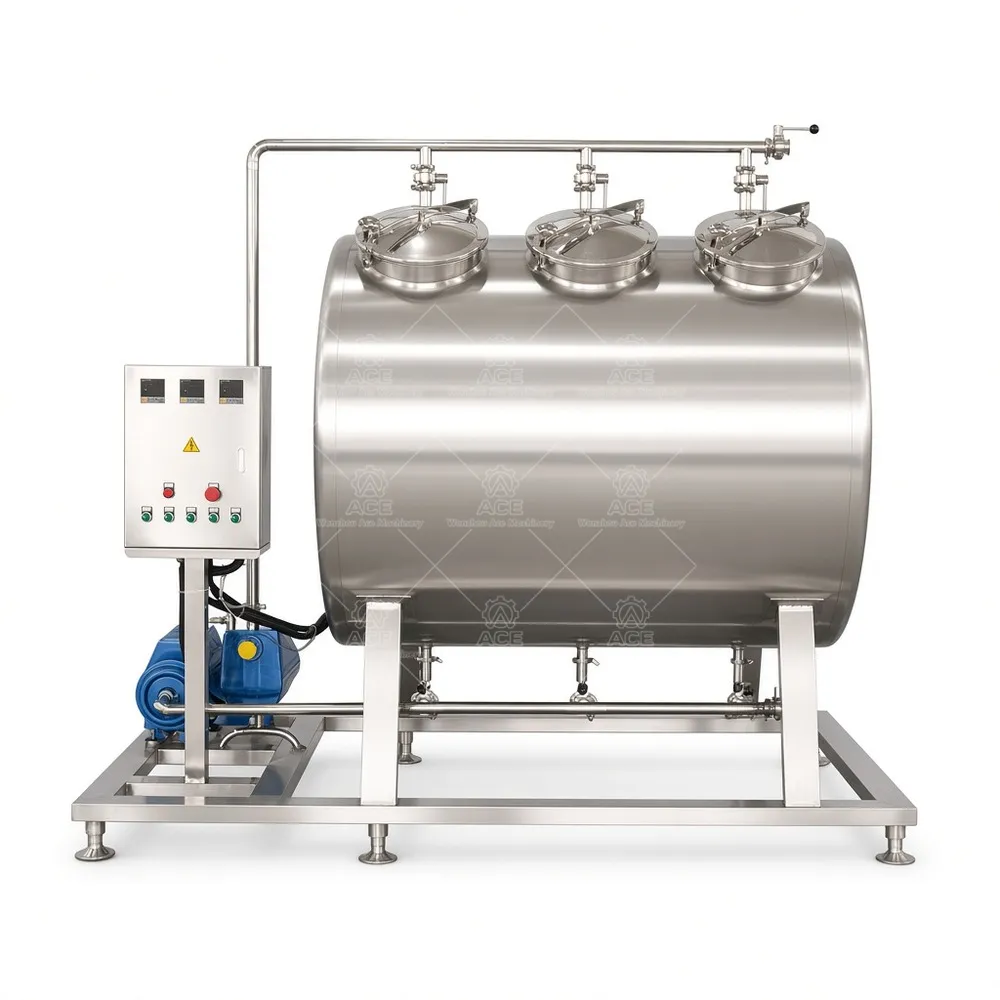

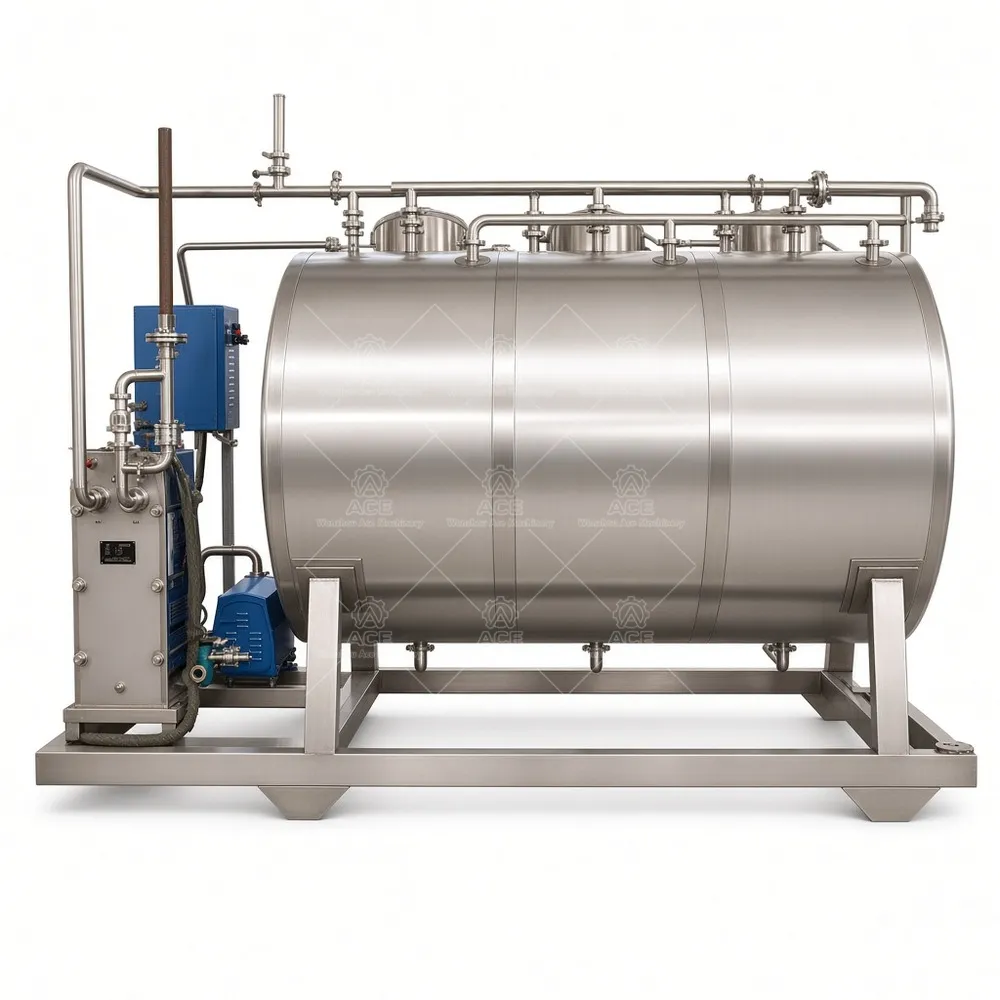

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,564.56 through $9,573.71
Guaranteed Safe Checkout
A CIP unit tank system cleans tanks, lines, and process equipment without disassembly. We build stainless steel clean-in-place systems for dairy, beverage, brewery, pharmaceutical, and cosmetic plants. Each system is manufactured in our shop and configured to your cleaning circuits, soil load, and automation needs.
The cleaning cycle typically runs pre-rinse, caustic wash, intermediate rinse, acid wash, and final rinse. Temperature, flow, pressure, and chemical concentration must be controlled for repeatable results. Our units monitor these variables and can record cycle data when required.
Optional Configurations
- Single-, double-, triple-, or multi-tank CIP systems
- Caustic and acid wash tanks
- Hot water tank
- Electric or steam heating
- CIP supply and return pumps
- Stainless steel piping, valves, and fittings
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC control
- Custom tank volumes, cleaning circuits, and automation
These are possible options, not standard features. We confirm each item against your project requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cleaning tank capacity | 50–5,000 L per tank (custom) |
| Number of tanks | 1–4 (custom) |
| Stainless steel grade | 304 or 316L |
| Heating method | Electric or steam |
| Pump flow and pressure | Up to 50 m³/h, up to 6 bar (custom) |
| Operating temperature | Ambient to 95°C (custom) |
| Control system | Manual, semi-auto, or PLC |
| Cleaning circuits | Single or multiple |
| Power supply | 220/380/415/480 V, 50/60 Hz |
| Dimensions | Custom |
| Custom options | Tank sizes, circuits, automation |
Applications
Our CIP systems serve dairy processing, beverage production, breweries, wineries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical production. We size the unit based on surface area, soil type, cycle time, and available utilities. For sanitary applications, we use 316L stainless steel and appropriate surface finishes.
FAQ
How do I choose tank configuration? Match tank count to your cleaning steps and required separation between caustic, acid, and rinse water. More tanks reduce changeover time but increase footprint and cost.
What information do you need for a quote? Provide tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the right configuration.
Can I add PLC control later? It is easier to specify PLC control at the outset. Retrofit is possible but may require additional sensors and wiring.
Request a Custom Quote
Tell us your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless steel grade, and installation location. We will provide equipment recommendations, engineering support, and a customized quotation.
