CIP Cleaning Systems for Beverage & Dairy | Pumps, Tanks, Controls
We build CIP cleaning systems for beverage and dairy plants, with single- or multi-tank configurations, electric or steam heating, circulation and return pumps, and manual through PLC control. Share your circuits, tank and piping details, cleaning capacity, heat source, automation level, and stainless grade so our engineers can recommend a practical configuration and quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,082.60 through $7,512.62
Guaranteed Safe Checkout
CIP systems built around the cleaning circuit
A CIP skid is only as good as the circuit it serves. We build clean-in-place systems for beverage and dairy processors that need repeatable washing of tanks, lines, valves, pumps, fillers, and heat exchangers without opening the process. The system must deliver cleaning solution at the right temperature, flow, and contact time, then rinse and recover it in sequence.
A typical cycle runs pre-rinse, alkaline wash, intermediate rinse, optional acid wash, and final rinse. Caustic and acid can be recovered in separate tanks; hot water or sanitizer can have its own circuit. Flow, pressure, level, and temperature monitoring show what the circuit is doing. Manual, semi-automatic, and PLC/HMI control are available. We size pumps to your piping pressure drop and required line velocity.

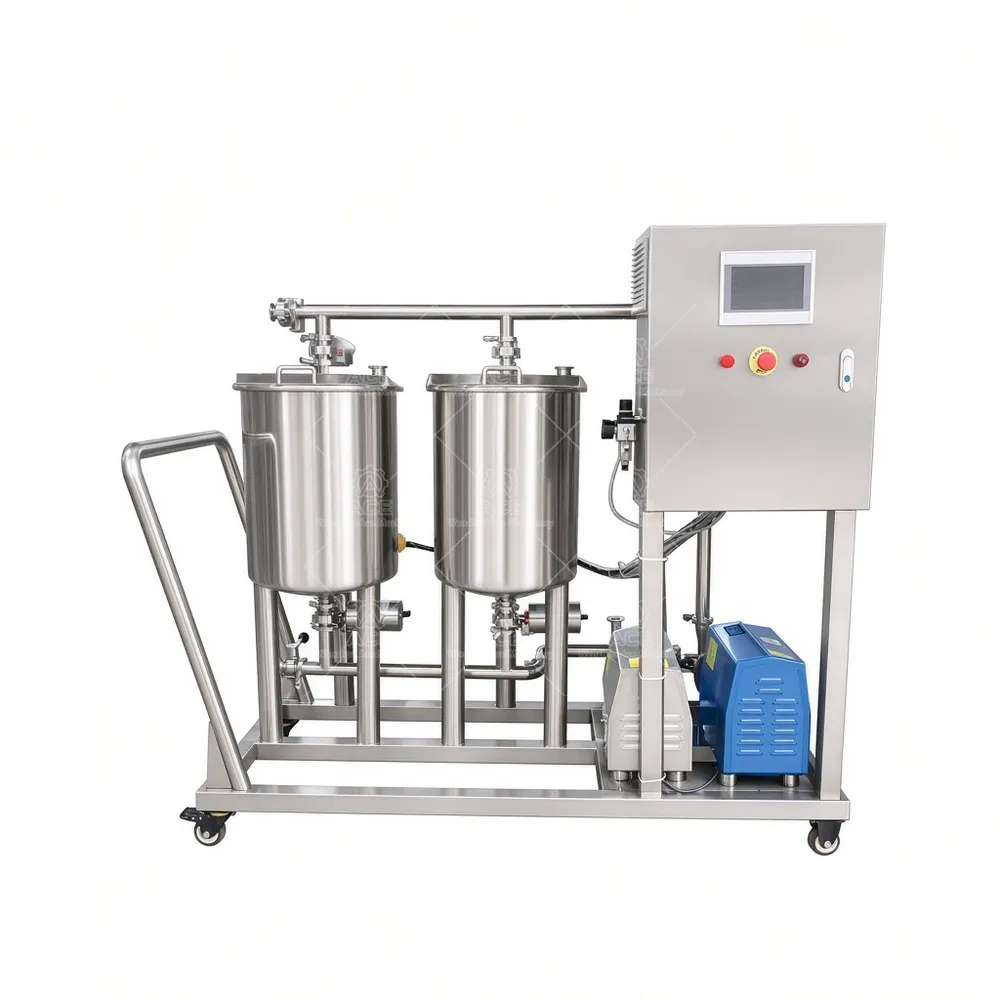

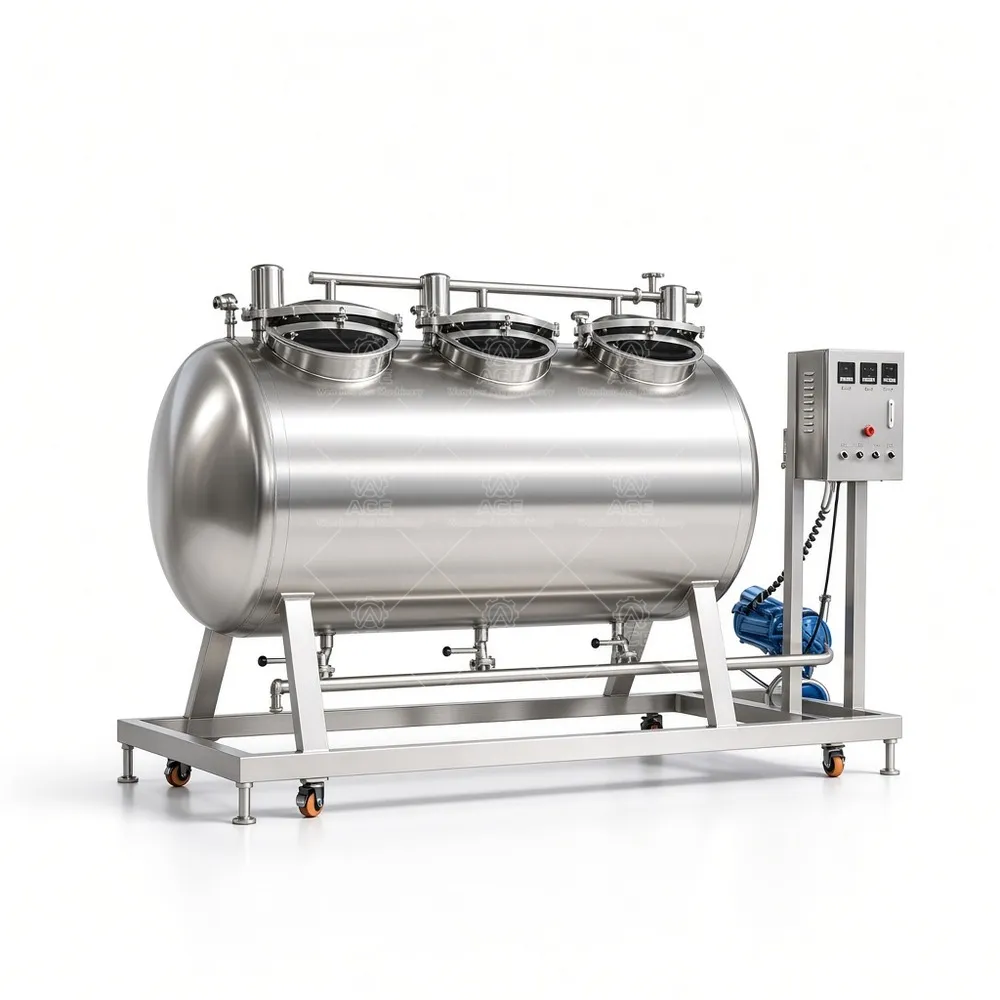

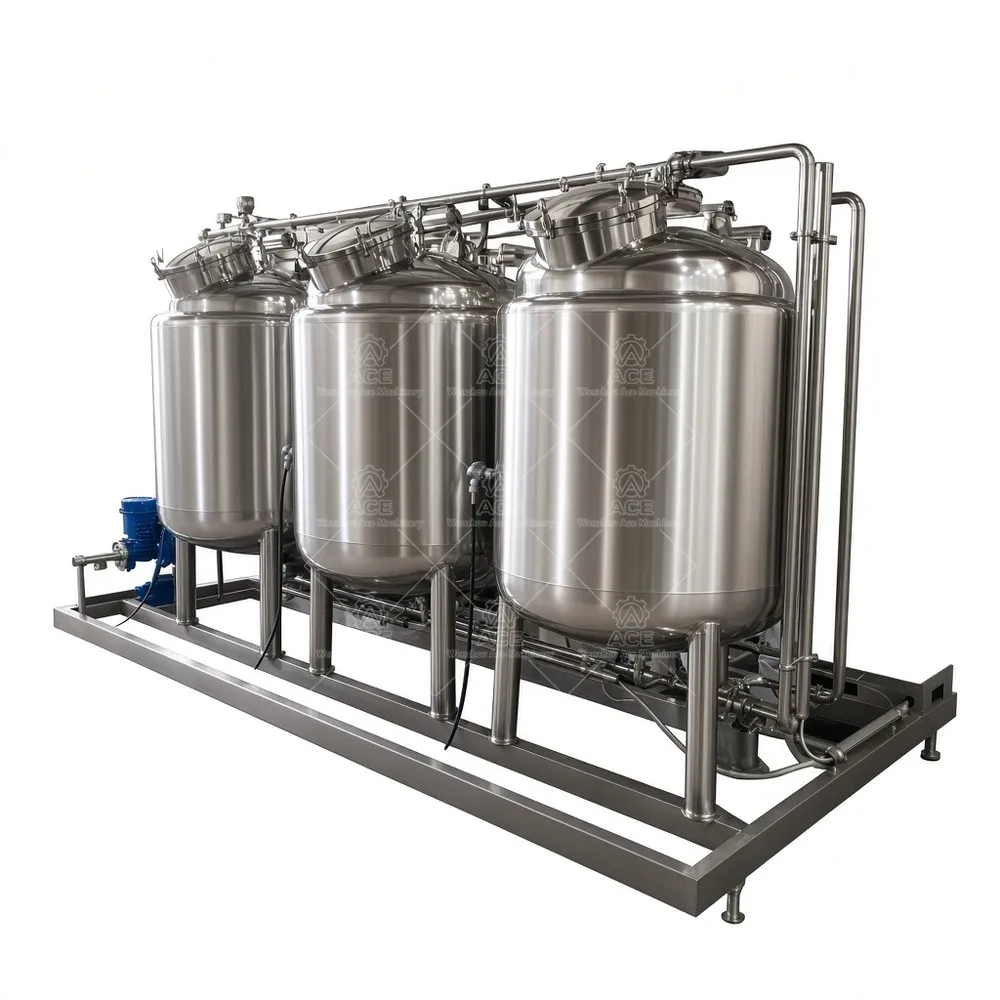

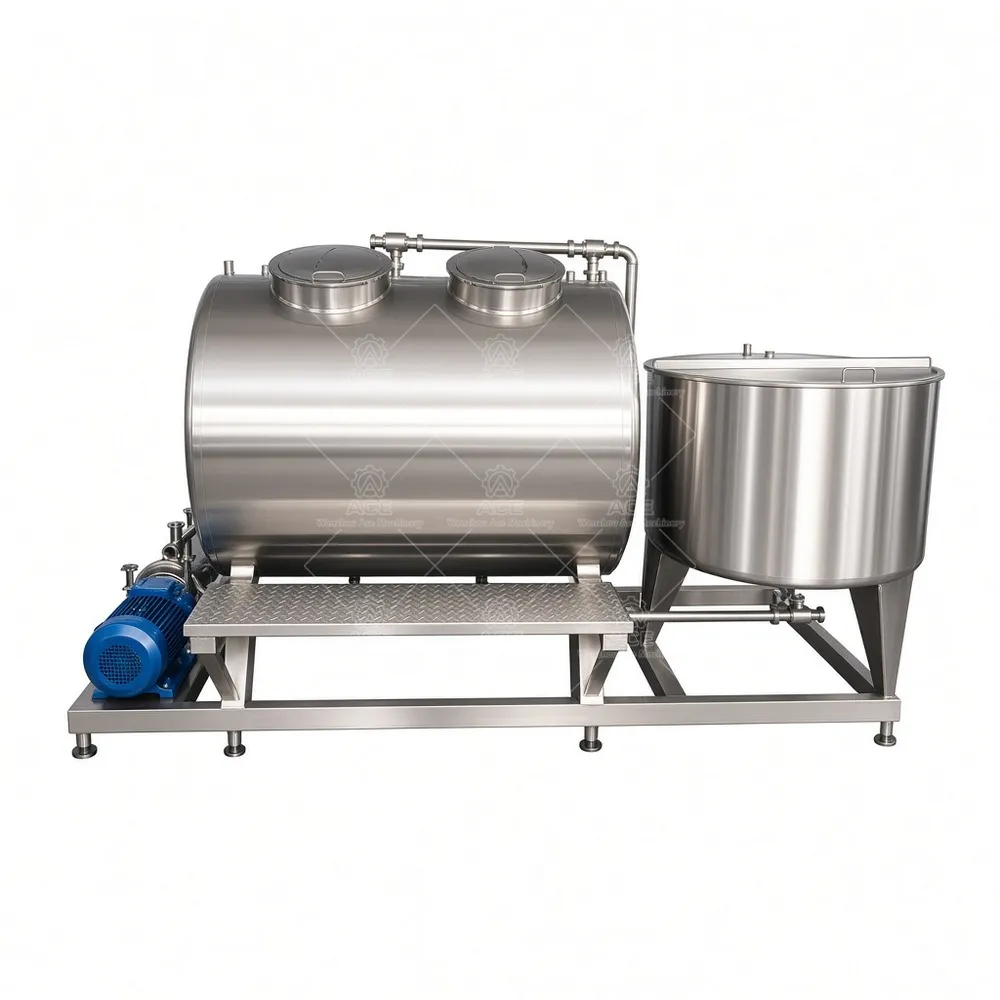

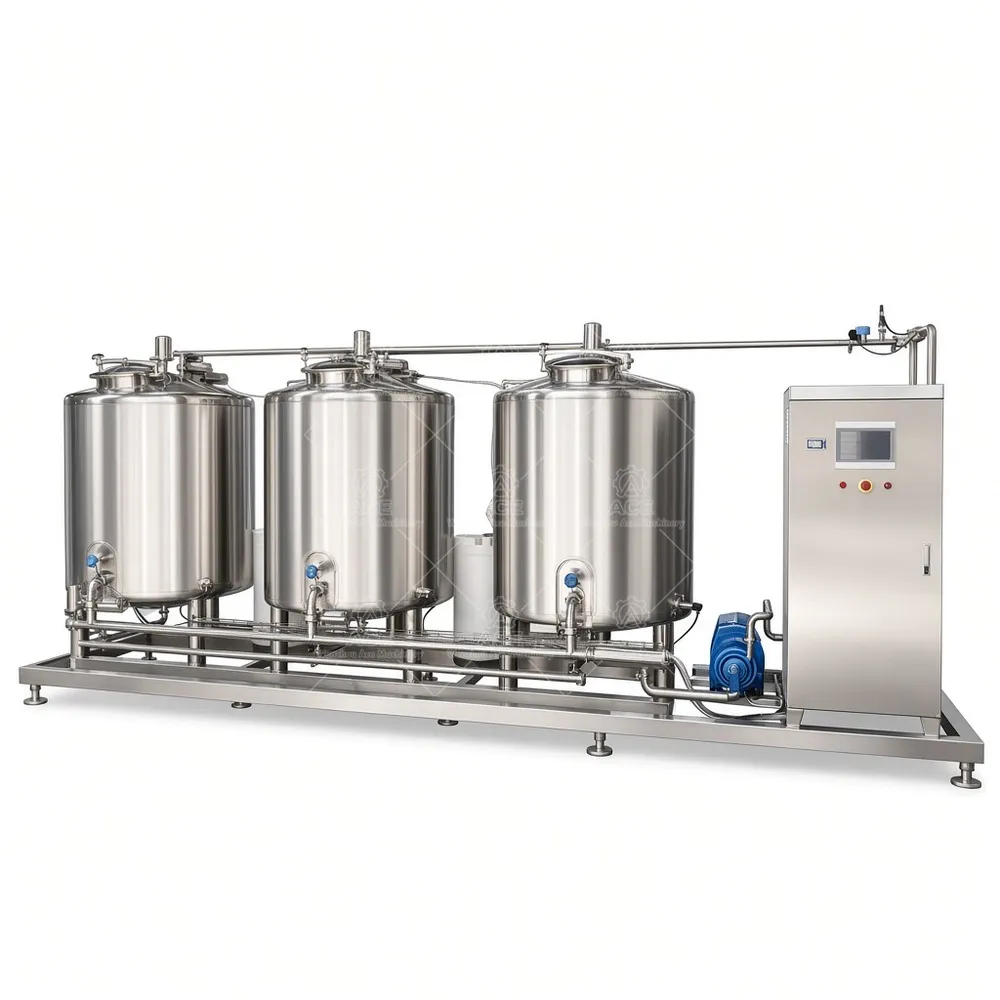

Single-tank units suit simple rinse and wash duties. Two tanks commonly separate alkaline and acid steps. Three- or multi-tank systems add rinse, recovered water, or sanitizer capacity. Electric or steam heating, stainless piping, valves, fittings, circulation and return pumps, and custom skid layouts are configured per project. These are possible configurations, not standard features on every system.
Applications
Dairy processing, beverage production, breweries, distilleries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical production use CIP principles. Soil type, water hardness, surface finish, circuit volume, and changeover frequency drive the cleaning recipe. Send those details early; they affect tank size more than tank count alone.
Technical specifications
| Parameter | Specification |
|---|---|
| Cleaning tank capacity | Custom; sized by circuit volume, rinse demand, and chemical dilution |
| Tank count | Single, double, triple, or multi-tank |
| Stainless grade | 304 or 316L; wetted parts selected for product and water chemistry |
| Heating | Electric or steam |
| Pump flow and pressure | Sized to circuit pressure drop and line velocity |
| Operating temperature | Set by detergent chemistry and soil load |
| Control | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | One or multiple supply and return circuits |
| Power | Customer voltage and frequency |
| Dimensions | Layout-specific skid or tank arrangement |
| Custom options | Tank capacity, piping, valves, instrumentation, automation, heating |
FAQ
Can one unit serve several circuits? Yes, with isolation valves and a control sequence that prevents cross-mixing. We need your P&ID and circuit list.
How do I choose tank capacity? Start with circuit volume, rinse water, chemical make-up, and batches per shift. Larger tanks reduce make-up frequency but raise heating load and floor space.
Do I need acid and alkaline tanks? Depends on soil, water hardness, and product residue. A cleaning trial often answers this before the tank count is fixed.
Request a configuration
Tell us your industry and processed product, tank and piping details, cleaning capacity, heat source, automation level, stainless grade, and installation location. We will review the circuit and recommend tank volume, pump duty, heating, instrumentation, and controls. Factory-direct fabrication and engineering support are available for custom projects.
