2.2kW VFD Electric Lift Paint Batch High Shear Disperser
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,043.26 through $3,078.55
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for real batch dispersion work

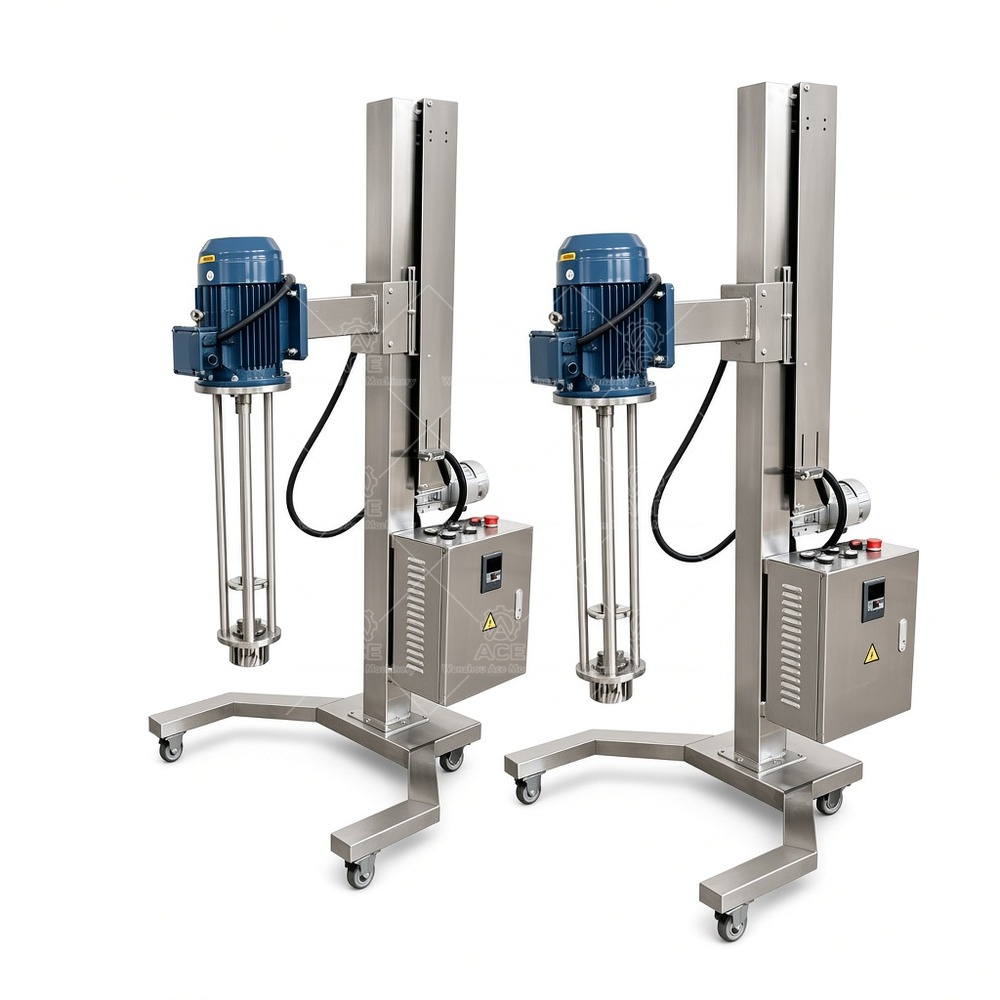

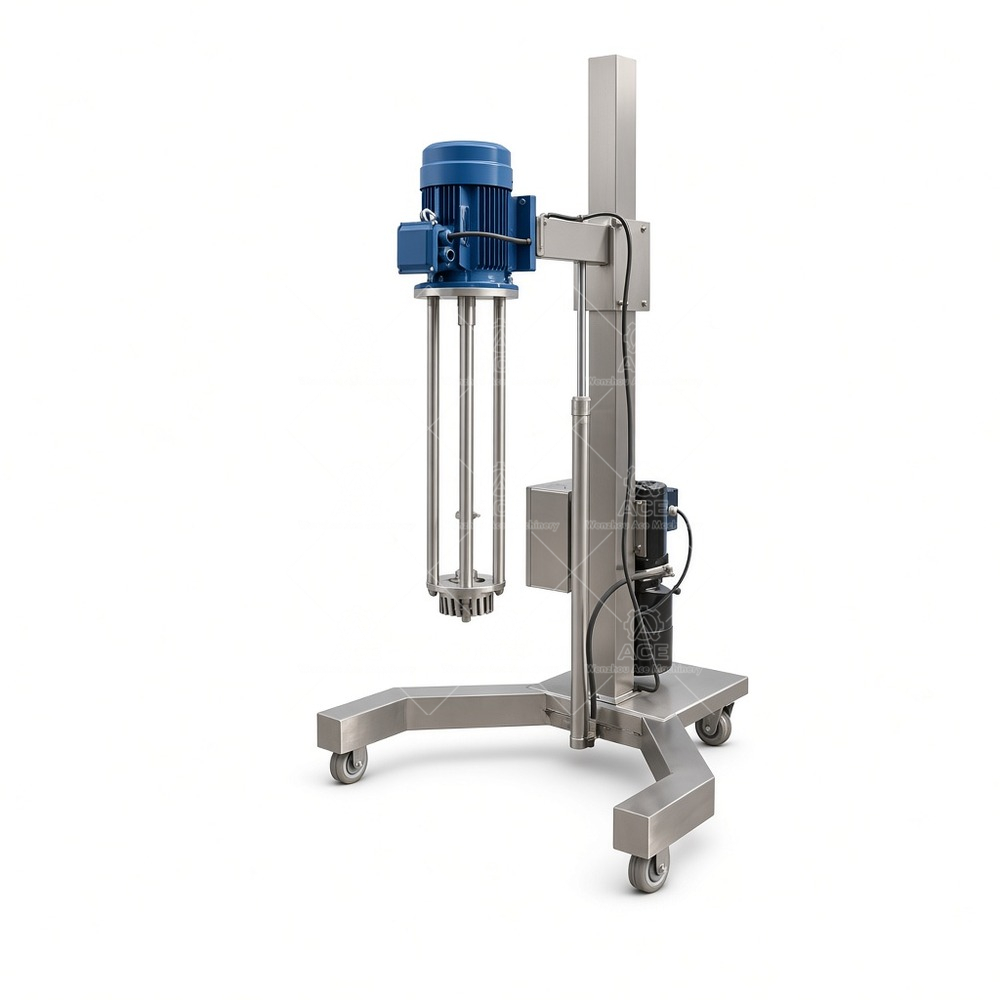

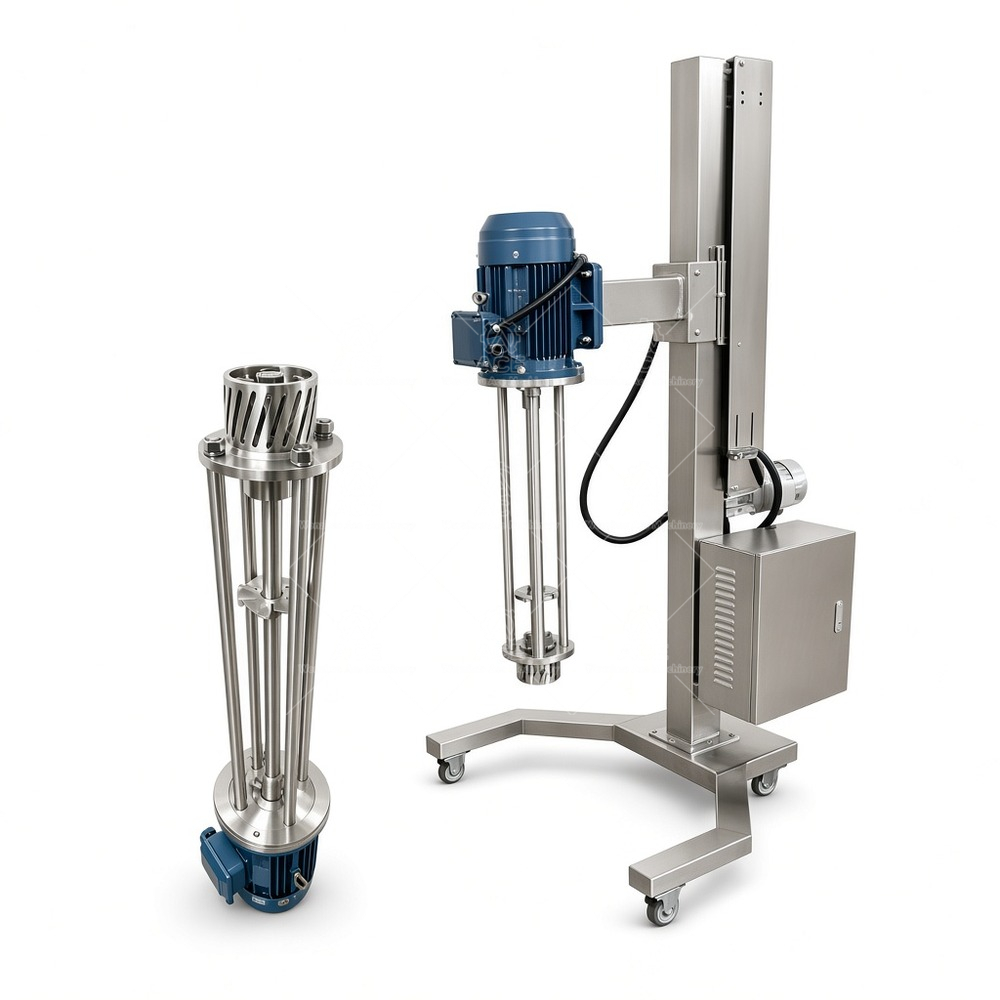

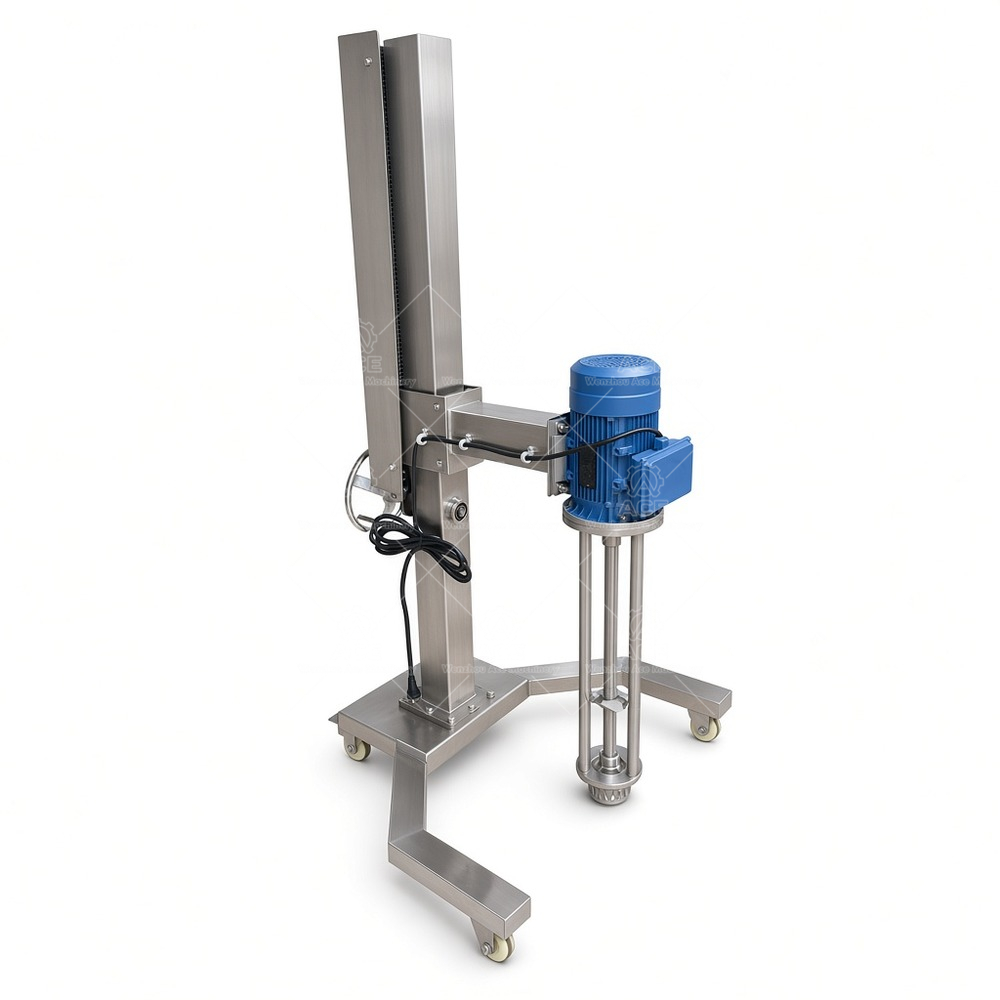

The Electric Lifting 2.2 kW inverter-controlled batch high shear disperser is a mobile high shear mixer for paint, coatings, and compatible industrial formulations. This industrial high shear mixer is built as a configurable variable speed high shear mixer, not a fixed catalog item. The lifting frame and rollers let operators move the unit between vessels or stations where the layout allows. A VFD gives adjustable speed control, typically 0 to 3000 rpm depending on motor and configuration, so one machine can handle different stages of powder dispersion, liquid-liquid emulsification, and high shear mixing.
Configuration details that affect the purchase
Motor power ranges from 1.5 kW to 11 kW. Voltage options cover 220 V to 480 V; we confirm frequency, phase, and electrical configuration before quoting. For a stainless steel high shear mixer build, wetted parts can be specified in stainless steel and other contact materials to suit the product. Mixing head design, shaft length, control package, and mobile or fixed installation are selected around batch size, container dimensions, viscosity, solids loading, and the way powders are added. These choices matter more than a single horsepower number.
Applications and process fit
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and paint or coating production can use high shear mixing equipment when the formulation is compatible. A high shear mixer for powder dispersion and liquid-liquid emulsification often needs different impeller profiles and operating speeds. The right head, material, and parameters depend on viscosity, ingredients, and process requirements. We do not quote sanitary or explosion ratings unless they are specified and confirmed for the build.
Selection checks before you request a quote
Define batch scale and vessel size first. Then list viscosity, density, solids content, and powder addition method. State the required speed range and motor power, followed by voltage, frequency, and phase. Review mixing head design and contact part materials. Decide whether a mobile high shear mixer or fixed installation fits the plant. Plan access to the shaft, bearing area, and controls for maintenance. Cleaning method and changeover frequency also affect the specification.
FAQ
Can this run at different speeds for different products? Yes, when supplied with a VFD and matched motor, speed can be adjusted within the confirmed range.
Is a mobile unit suitable for all plants? It suits layouts with clear movement paths and compatible vessel positions. Fixed mounting may be better for tight spaces or high-use stations.
What information is needed for a recommendation? Send batch size, material characteristics, target rpm, required motor power, and local electrical specifications. Ace Mixer will review the application and propose a suitable configuration and quotation.
The Electric Lifting 2.2 kW inverter-controlled batch high shear disperser is a mobile high shear mixer for paint and compatible industrial formulations. Ace Mixer configures motor power, VFD speed control, voltage, mixing head, and stainless steel contact parts around batch size, viscosity, powder dispersion needs, and local electrical supply. Send process details for a suitable recommendation.
