Bulk Supply Mobile Lift High Shear Mixer Homogenizer for Cream Silicone Oil Jam
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,279.62 through $3,465.20
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

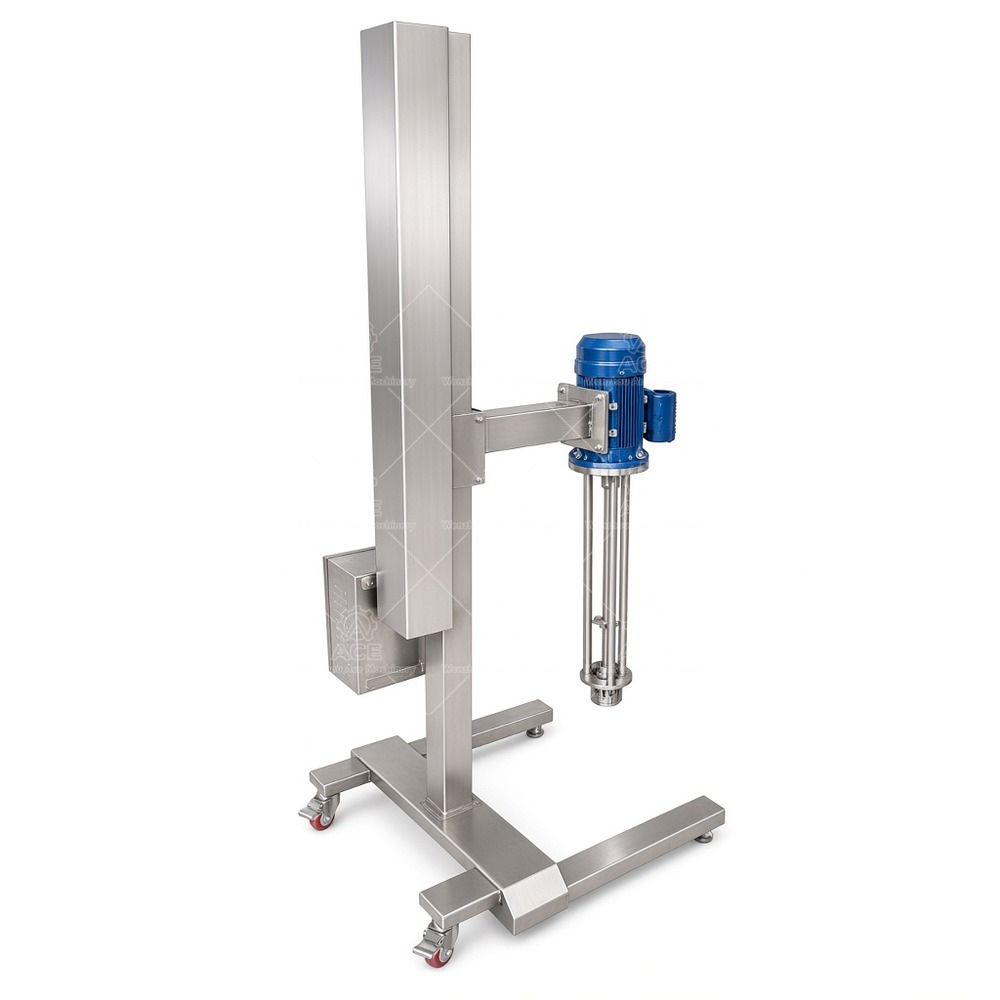

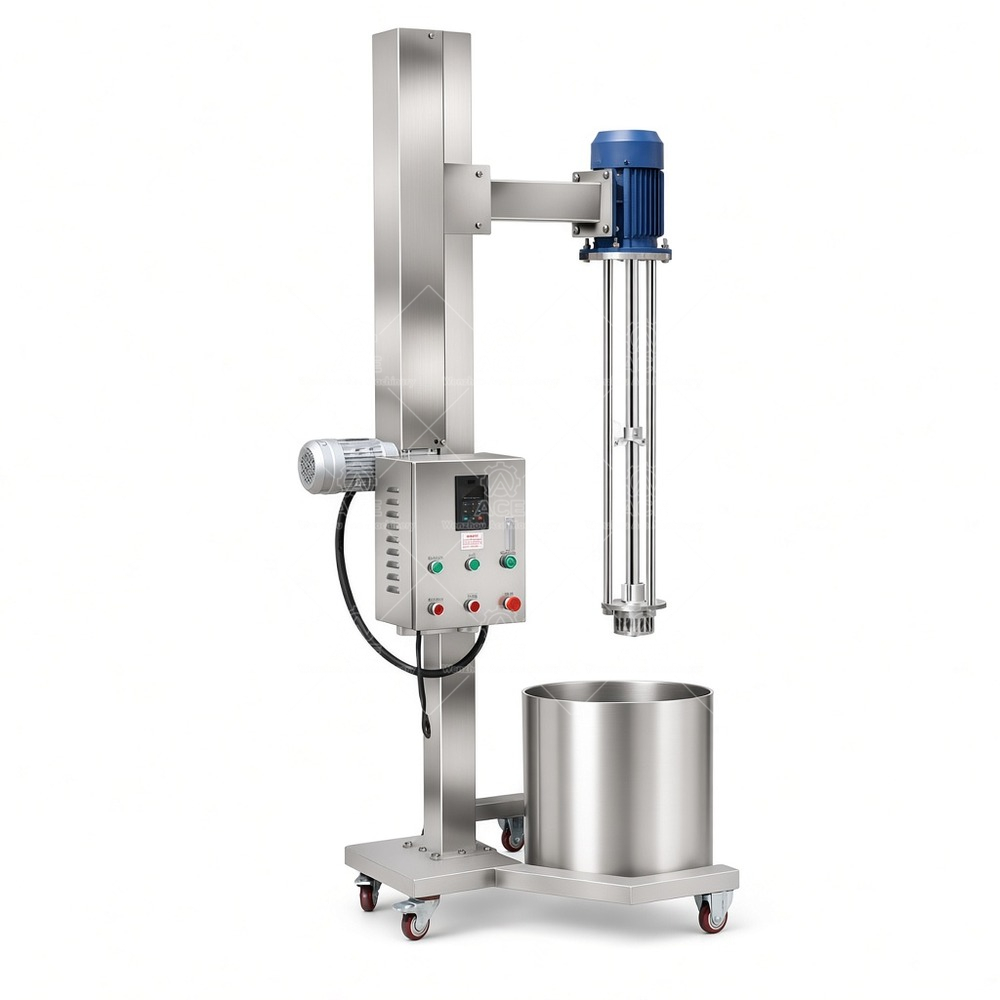

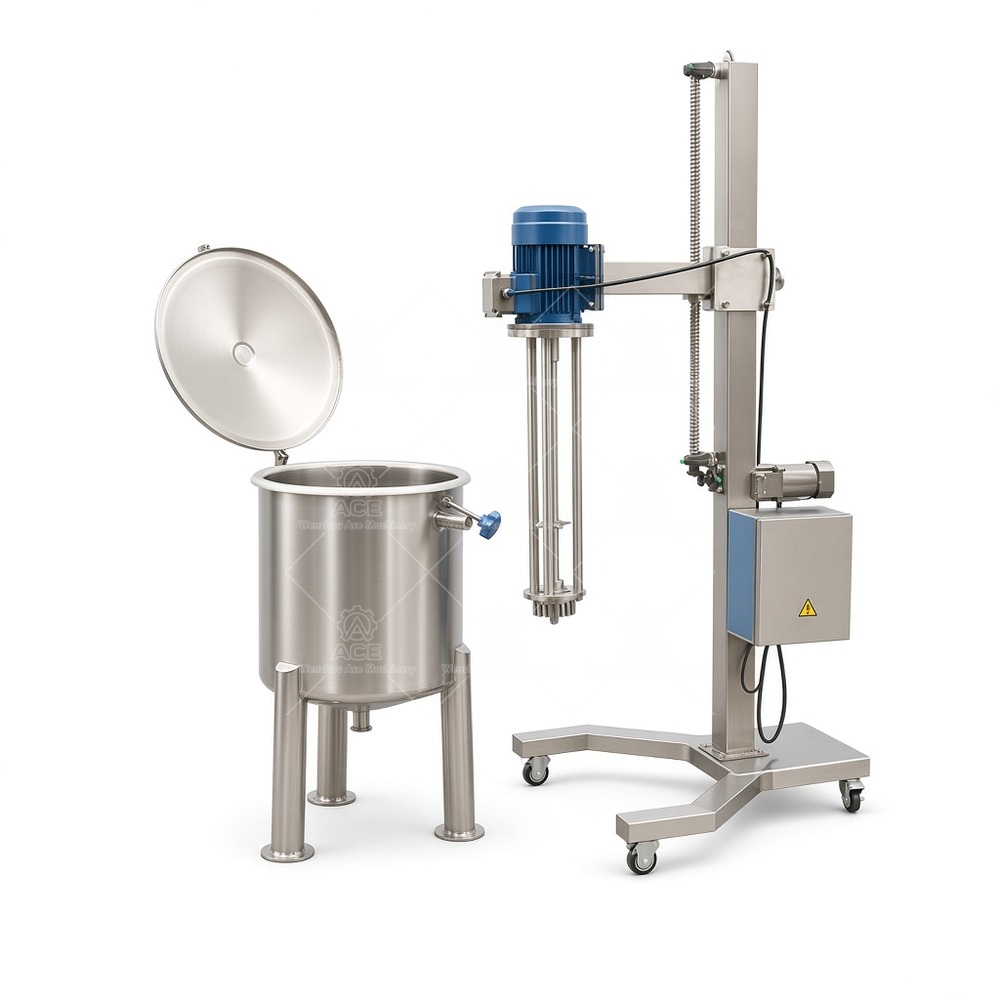

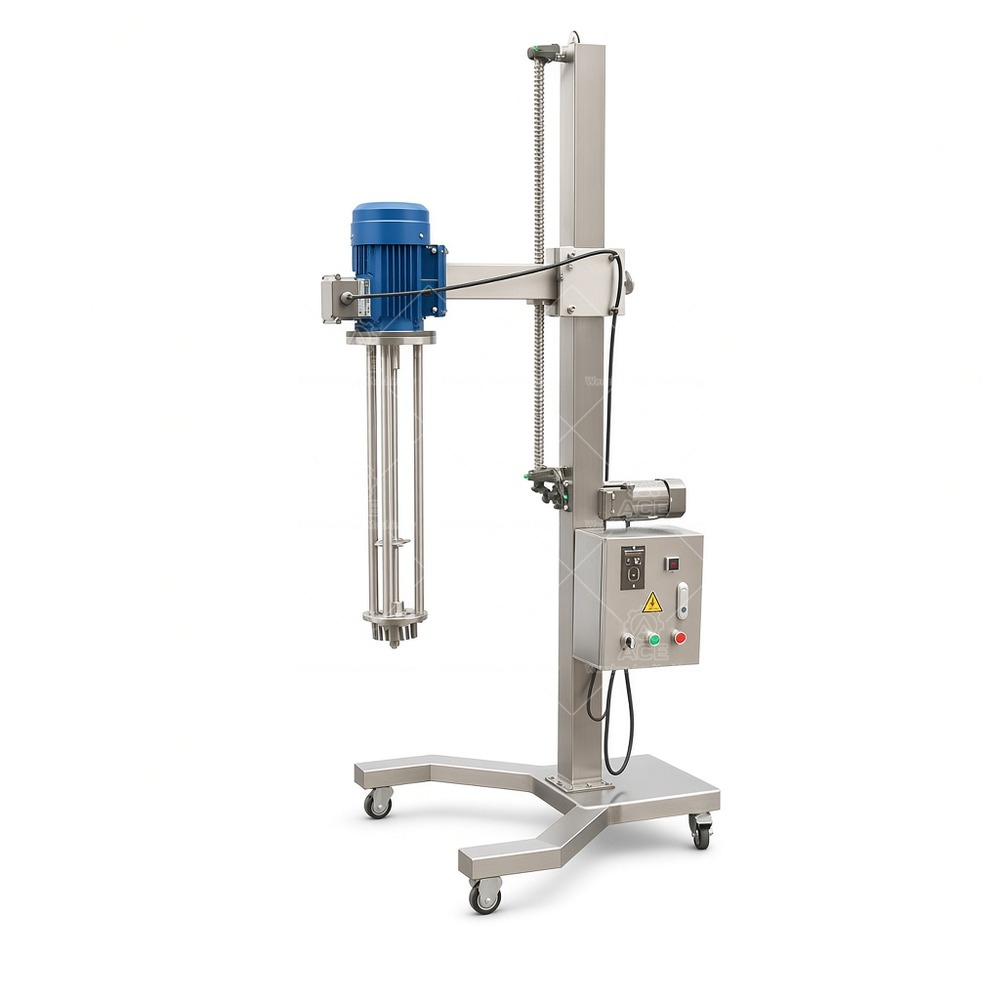

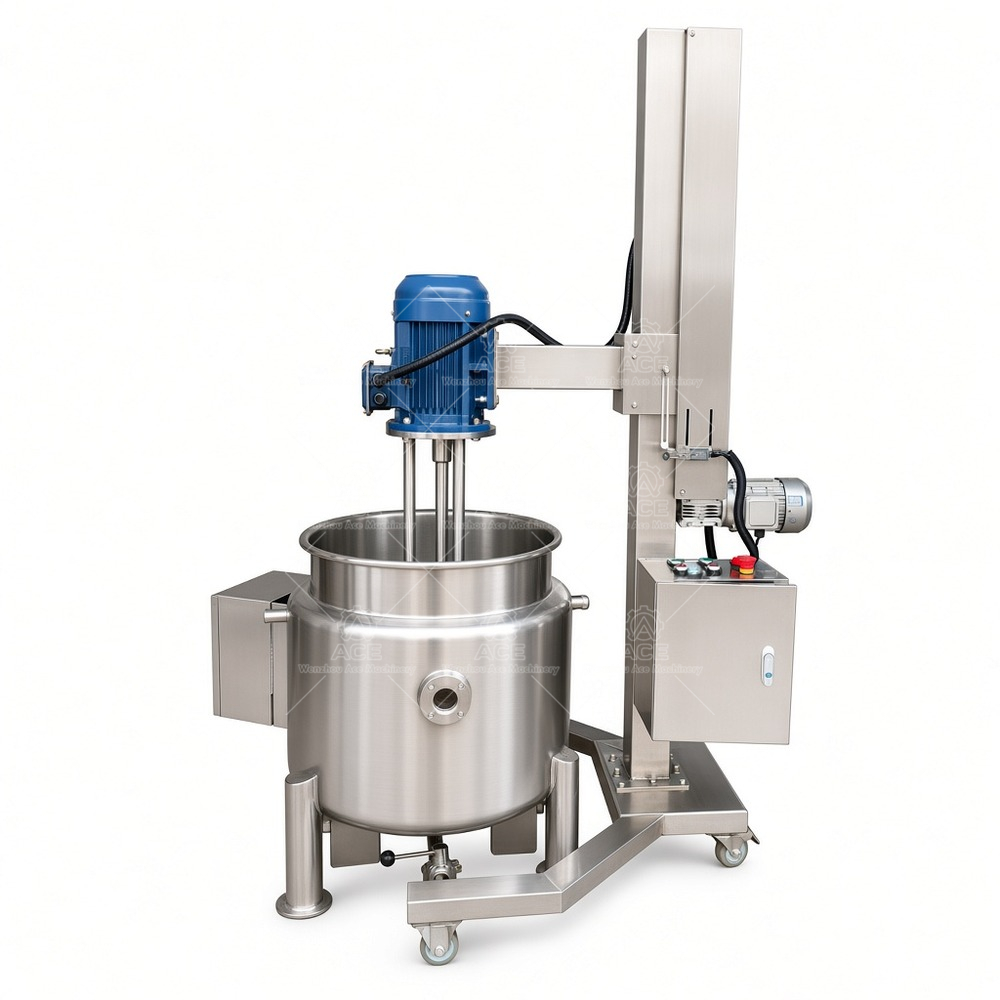

Mobile high shear mixing for cream, silicone oil, and jam batches
Batch formulas often change more often than the room does. A mobile lift-type high shear mixer homogenizer gives production teams a single machine that can be rolled between vessels when the floor layout, cable routing, and vessel access allow it. Ace Mixer builds this industrial high shear mixer around the process: motor power from 1.5 kW to 11 kW, voltage options from 220 V to 480 V, and optional VFD control for adjustable speed up to 3000 rpm depending on the selected motor and configuration.
The unit handles high-speed shear, dispersion, emulsification, and powder incorporation. That matters when making skin cream, silicone oil blends, jams, and similar products where agglomerates or unstable dispersions can slow down post-mixing. The mixing head, shaft, and product-contact parts can be specified for a stainless steel high shear mixer, with materials selected around viscosity, solids, and cleaning needs. We do not quote a single head design for every batch. A high shear mixer for powder dispersion may need different attention from a liquid-liquid emulsification duty.
What to confirm before selecting a batch high shear mixer
- Working batch size and vessel dimensions, including opening and bottom clearance
- Product viscosity, solids content, and whether powders are added dry or premixed
- Required mixing speed range and motor power for the duty
- Voltage, frequency, phase, and local electrical configuration
- Mixing head design and wetted material requirements
- Whether a mobile high shear mixer or fixed installation fits the room better
Mobile frames are practical, but casters are not a substitute for planning. Check floor condition, aisle width, cable handling, and lift range for each vessel. A variable speed high shear mixer with VFD helps operators tune shear without changing hardware for every formula.
Applications
This high shear mixing equipment suits food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints and compatible coatings, and powder dispersion or liquid-liquid emulsification. Suitable head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can it be customized? Yes. Motor power, voltage, controls, head, and contact materials are configured to the application.
Do you provide test data or capacity guarantees? We recommend from your batch details and confirm configuration before order.
How do I request a quote? Send batch size, material characteristics, target rpm, required motor power, and local electrical specs. Ace Mixer will recommend a suitable mobile high shear homogenizer configuration.
Ace Mixer supplies a mobile lift-type batch high shear mixer homogenizer for creams, silicone oil, jams, and similar products. It combines high-speed shear, dispersion, emulsification, and powder incorporation. Motor power from 1.5 to 11 kW, voltage 220–480 V, optional VFD speed control, and configurable stainless steel contact parts. Share batch size, viscosity, target rpm, and electrical specs for a suitable recommendation.
