Sanitary Batch High Shear Mixer/Disperser | Electric Lift & VFD Control
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,396.94 through $3,839.56
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

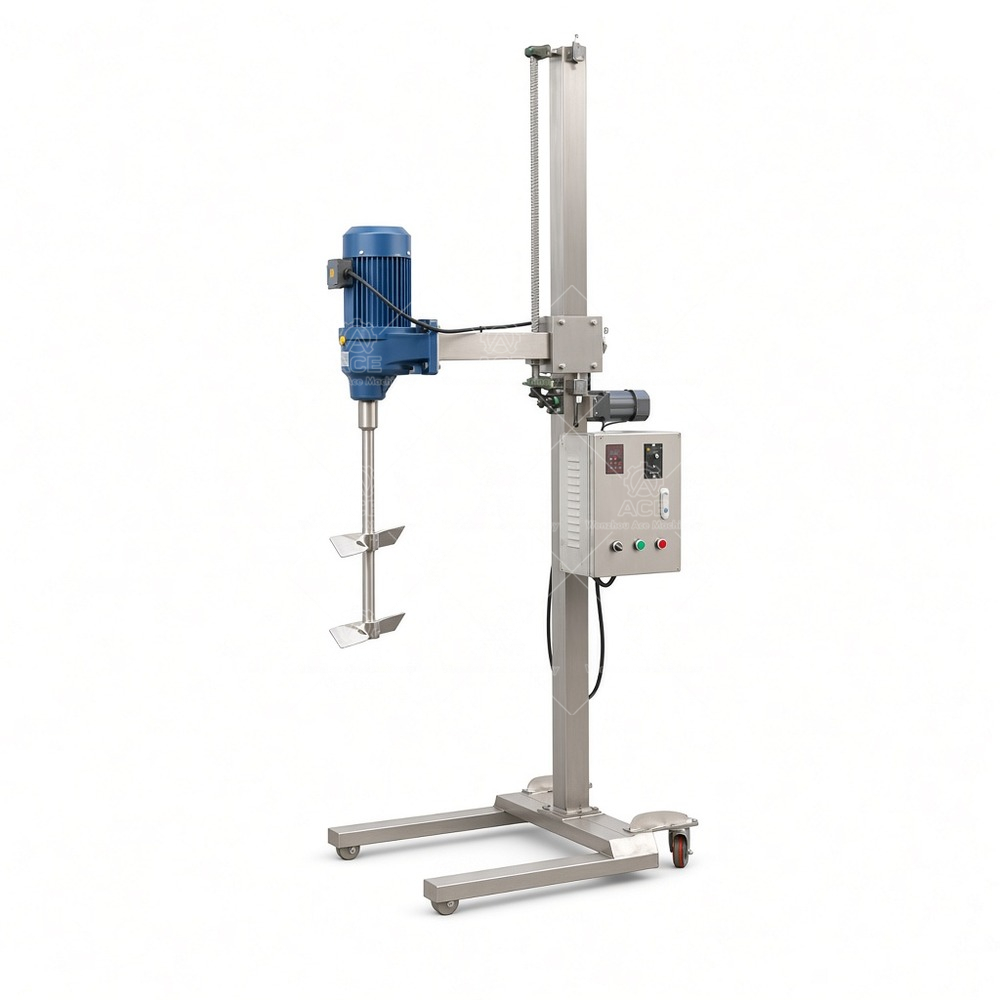

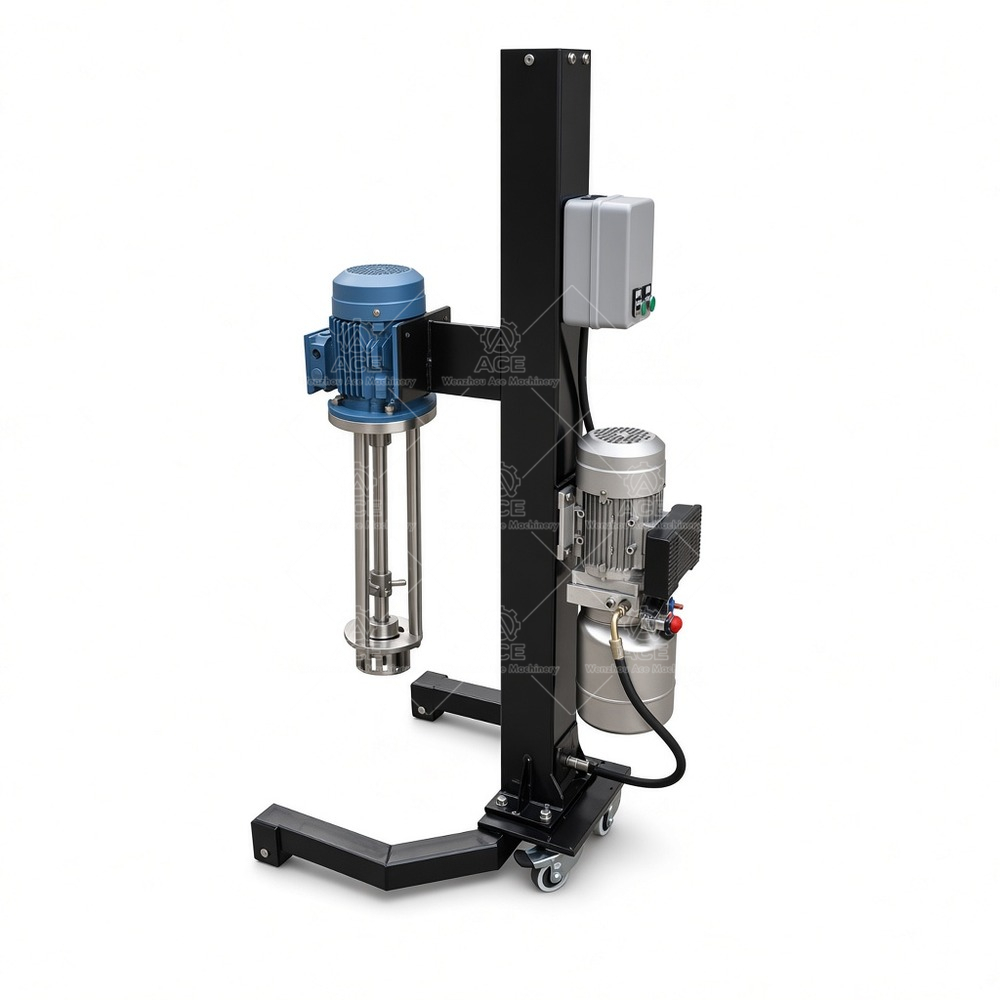

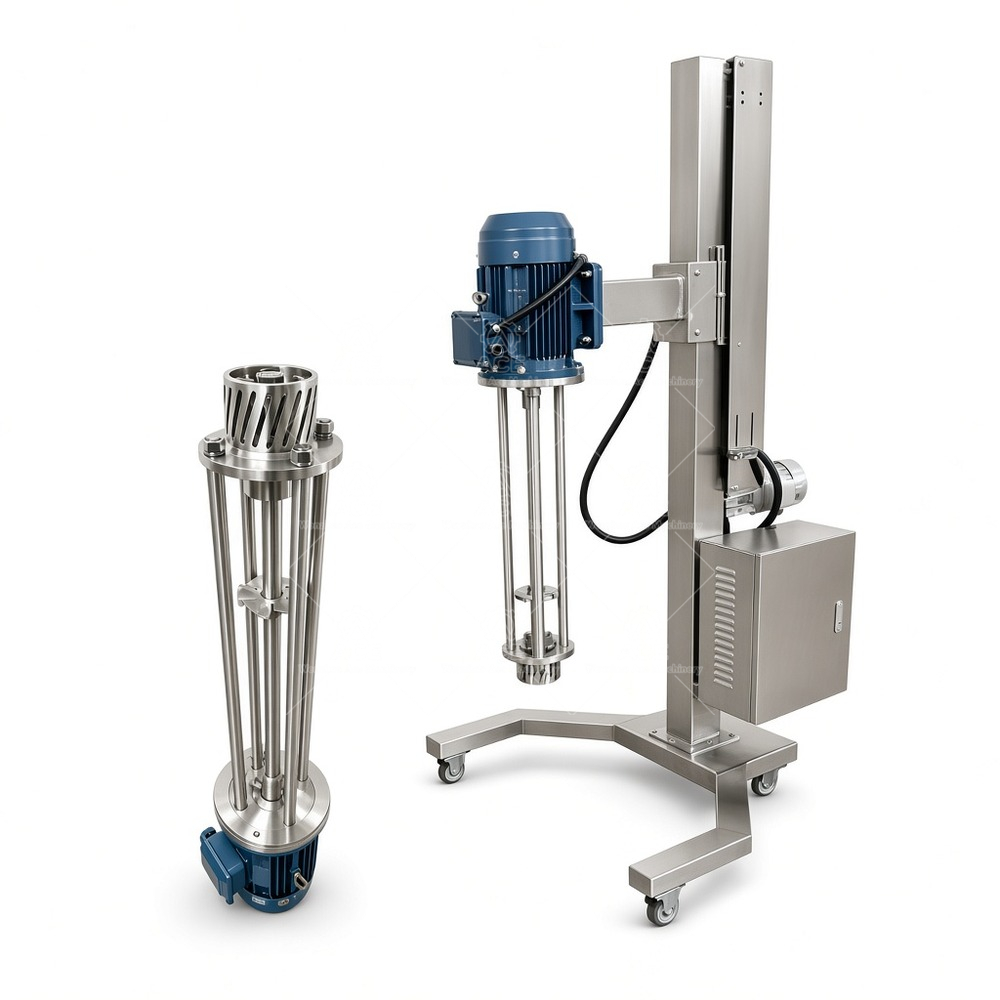

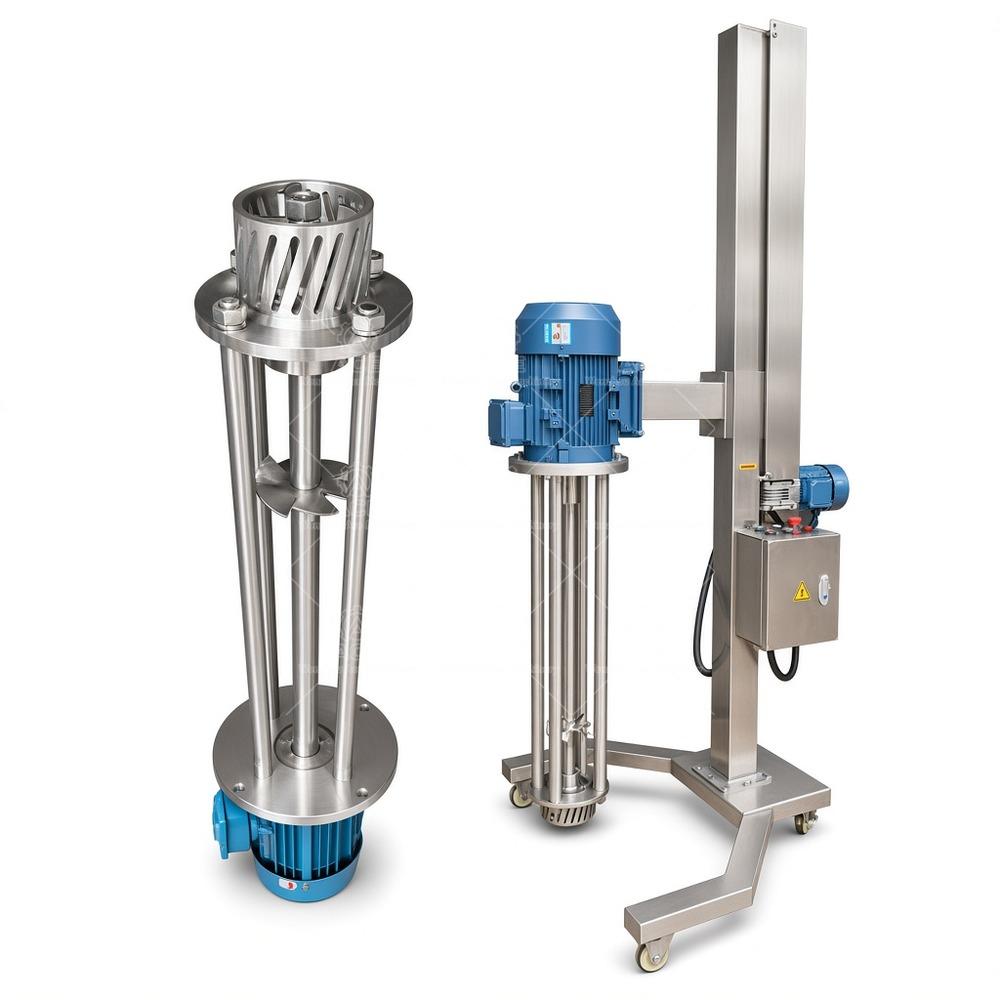

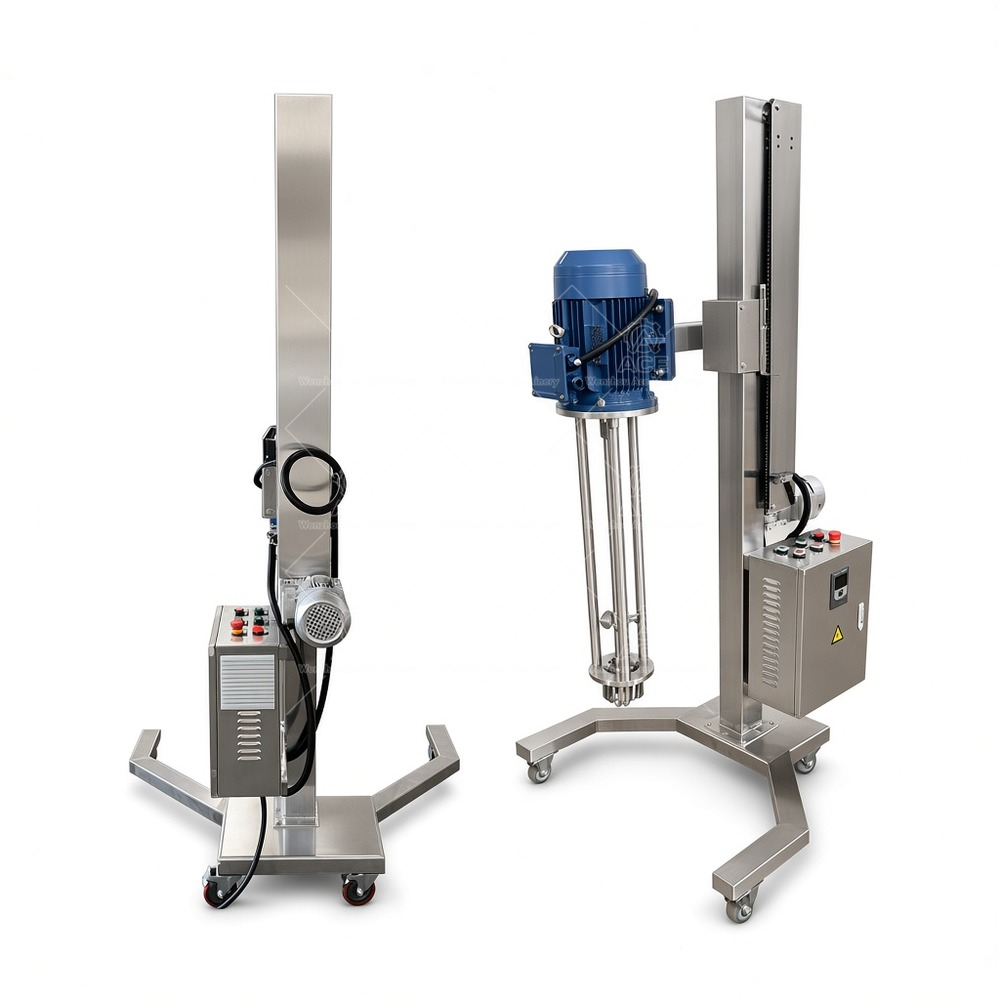

Sanitary Batch High Shear Mixer with Electric Lift
We build this sanitary batch high shear mixer for plants that need one unit to handle dispersion, emulsification, and powder wet-out across different batches. The electric lifting column raises and lowers the mixing head without manual cranking, which matters when the same vessel runs multiple products or when headroom is tight.
Speed control runs through a VFD. Depending on motor and configuration, operators can set 0–3000 rpm and adjust shear without changing pulleys. Motor power spans 1.5–11 kW. Voltage is confirmed for the destination: 220–480 V, with frequency and phase matched to the plant supply. Product-contact parts are specified in stainless steel and other materials as required. Casters make it a mobile high shear mixer where layout allows; fixed mounting is also possible.
Where it fits
Food and beverage plants use it for sauces, syrups, and powder incorporation. Cosmetics and personal care lines run creams, gels, and lotions. Pharmaceutical and healthcare preparations need controlled mixing and cleanable contact parts. Chemical processing, paints, coatings, and compatible industrial formulations use the disperser head for pigment and powder dispersion. Liquid-liquid emulsification is another common duty. The right head, material, and operating parameters depend on viscosity, ingredients, and process requirement.
Selection points
- Batch size and vessel dimensions: diameter, straight-wall height, and working volume.
- Viscosity and solids content: how the product flows and whether powders tend to lump.
- Target rpm and motor power: match shear demand to the batch, not the nameplate alone.
- Electrical supply: voltage, frequency, and phase before quotation.
- Head design and product-contact materials: stainless steel grade, finish, and elastomers.
- Mobile or fixed installation: caster clearance, floor condition, and vessel layout.
FAQ
Can one mixer handle different batch sizes? Often yes, but the head position and speed range need review against each vessel and fill level.
Do you customize voltage and controls? Yes. We confirm the electrical configuration and control options for the target market and process.
What information do you need for a recommendation? Send batch size, material properties, target rpm, required motor power, and local voltage/frequency/phase. We will review the configuration and quote accordingly.
Tell us your batch size, viscosity, powder loading, target speed, motor power, and local electrical specs. Ace Mixer will recommend the batch high shear mixer configuration and provide a quotation.
Sanitary batch high shear mixer with electric lifting and VFD speed control. Motor power from 1.5 to 11 kW, 220–480 V options, stainless steel product-contact parts, and caster-mounted mobility. Handles dispersion, emulsification, and powder wet-out for food, cosmetic, pharmaceutical, chemical, and paint batches. Ace Mixer configures each unit to batch size, viscosity, target rpm, and local electrical supply.
