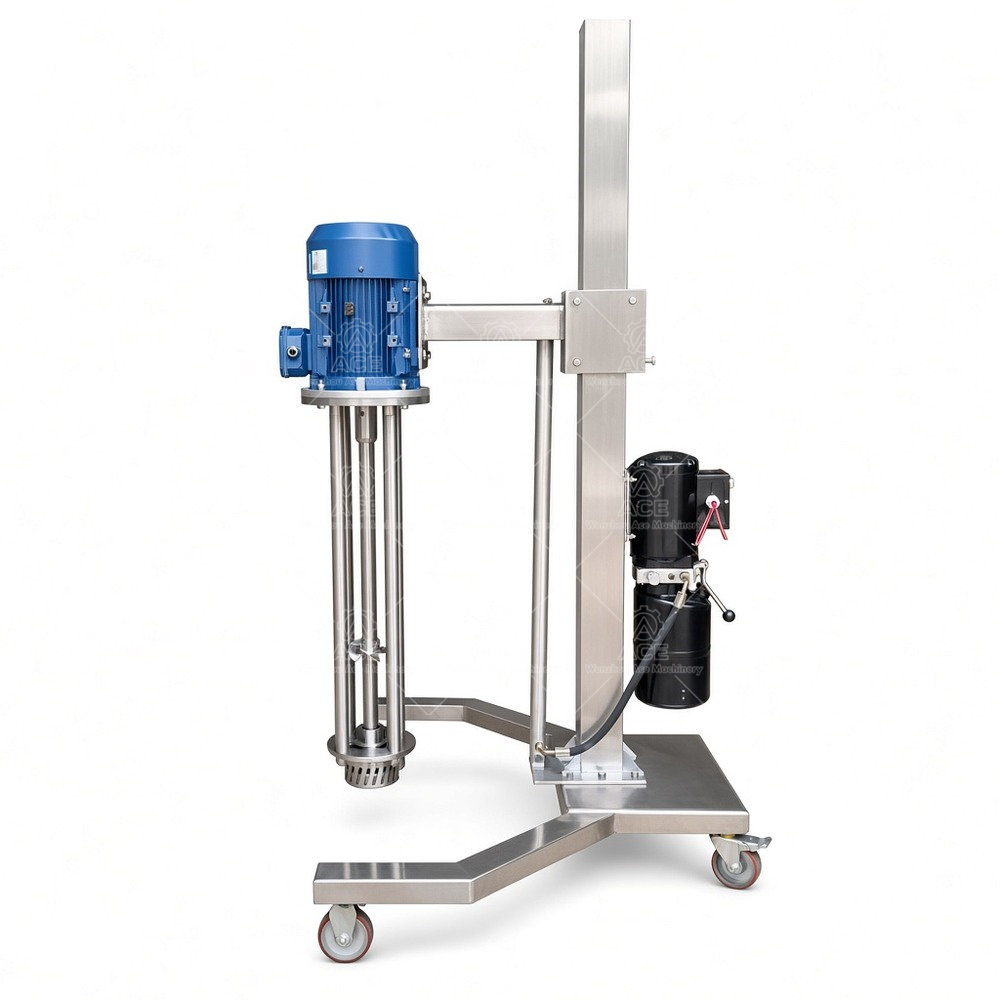

Mobile Lift High Shear Mixer Homogenizer for Shampoo & Carbomer Gels
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,341.50 through $3,533.75
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Where carbomer batches usually go wrong
Most lumpy gels we get called about start the same way: powder goes into the tank and the impeller sits too high or too low to pull it under. A lift-mounted head changes that. The operator drops the rotor into the vortex, adds carbomer at the shoulder of the swirl, and the batch disperses instead of blooming into fish eyes.
What the mobile frame buys you
The unit rides on casters and can be wheeled between kettles, drums, or a mixing bay, provided the floor and aisle layout allow it. High-volume lines and permanent tank farms often do better with the fixed version — same head geometry, no cart.
Configuration range
- Motor: 1.5 kW to 11 kW, sized to batch volume and viscosity
- Speed: VFD-controlled, 0–3000 rpm depending on motor and head selection
- Electrical: 220–480 V; voltage, frequency, and phase confirmed for the destination market
- Wetted parts: stainless steel, grade and surface finish matched to the product
- Functions: high shear, dispersion, emulsification, powder incorporation into liquids
Sizing decisions that matter
Start with batch size and vessel diameter — a head that suits a 200 L kettle will not sweep a 2,000 L tank. Then look at viscosity and solids load, because a shampoo base and a carbomer gel at the same volume need different torque. Speed and motor power follow from there. Confirm your local supply first: 380 V/50 Hz three-phase and 480 V/60 Hz three-phase call for different windings, and getting this wrong delays commissioning more often than any mechanical issue.
Head design is the last variable and the one buyers most often skip. A slotted dispersing head handles powders; a toothed rotor-stator suits emulsification. Tell us which you need and we specify accordingly, including the wetted material grade.
Typical duty
Cosmetic and personal care batches (shampoo, shower gel, creams), pharmaceutical and healthcare preparations, food and beverage mixes, chemical processing, and compatible coatings. The right head, material, and operating parameters always depend on the product\’s viscosity, ingredients, and process requirements.
Questions we hear
Can one unit serve several tanks? Yes, if the vessel heights fall within the lift travel and the casters can reach them.
Do you supply explosion-proof builds? Tell us the classification your site requires and we will confirm what is available. We do not assume it.
How is cleaning handled? Wetted surfaces are polished stainless; the head dismantles for manual cleaning. Product contact finish is specified at order.
What lead time should we plan for? It depends on configuration. Custom voltage and control packages add time.
Getting a quote
Send us batch volume, vessel dimensions, product viscosity, target rpm, required motor power, and your local electrical specification. With those five points we can recommend a configuration instead of guessing.
A mobile lift type batch high shear mixer homogenizer for shampoo, shower gel, and carbomer dispersion. VFD speed control, 1.5–11 kW motors, 220–480 V options, and stainless steel wetted parts, configured by Ace Mixer to your batch size, viscosity, and electrical supply.
