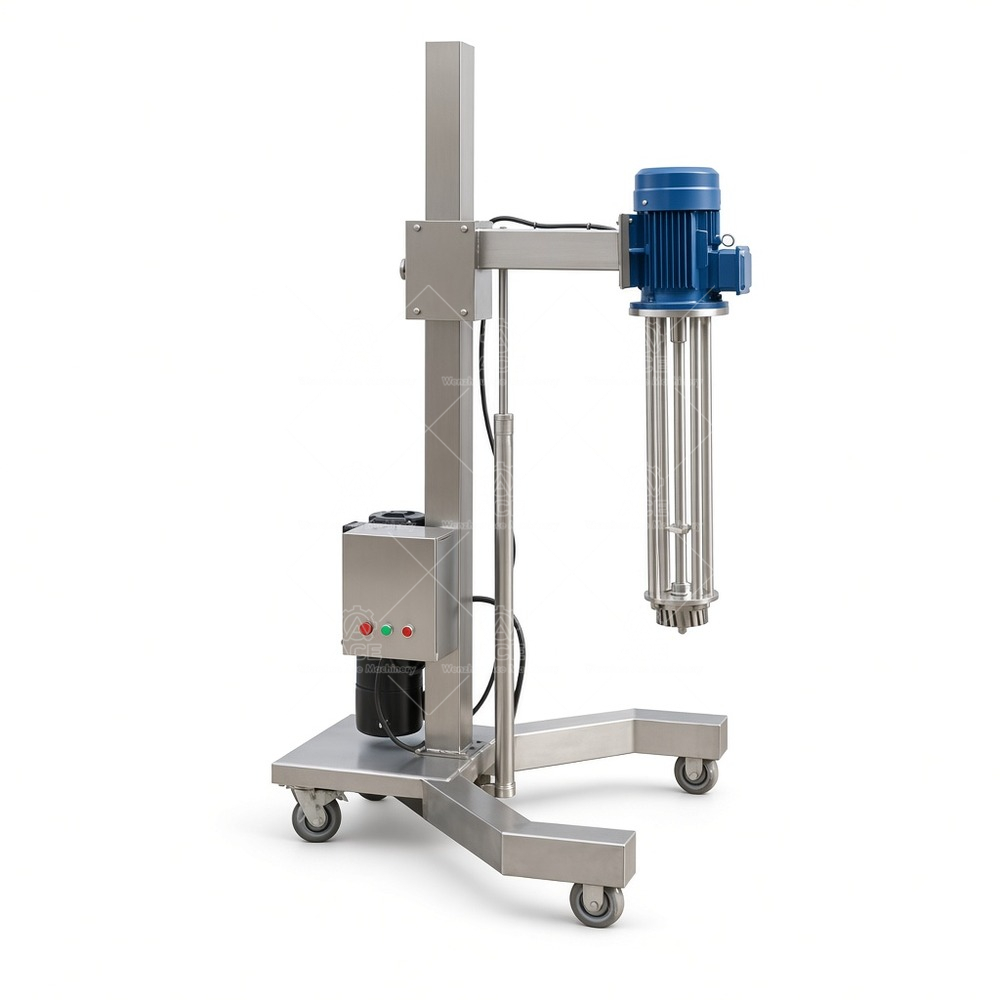

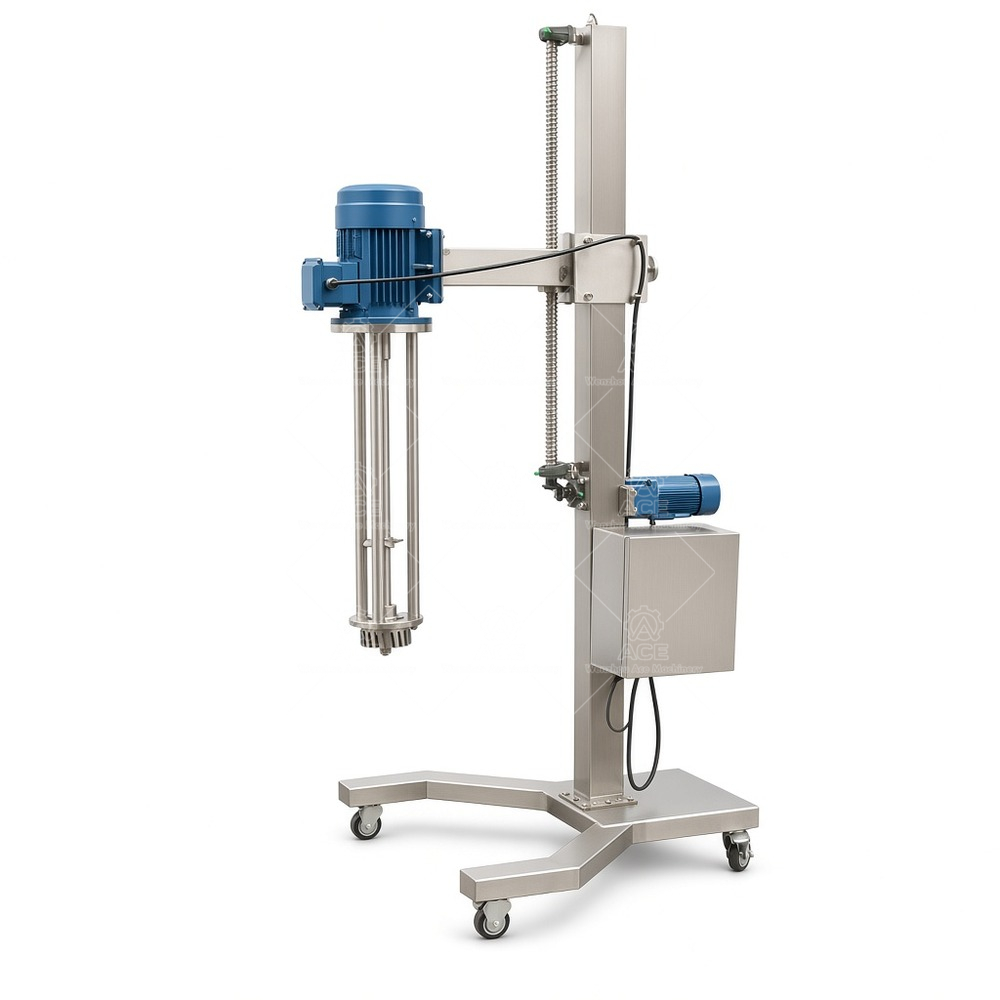

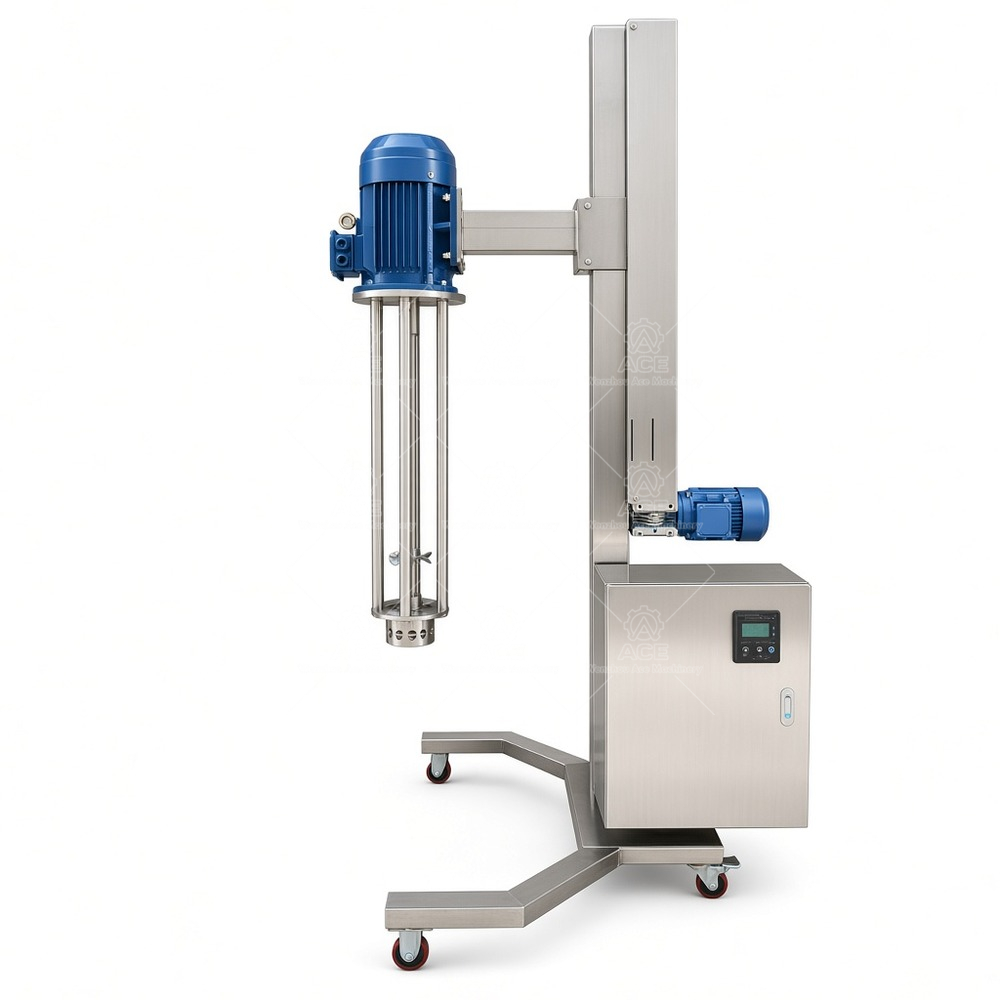

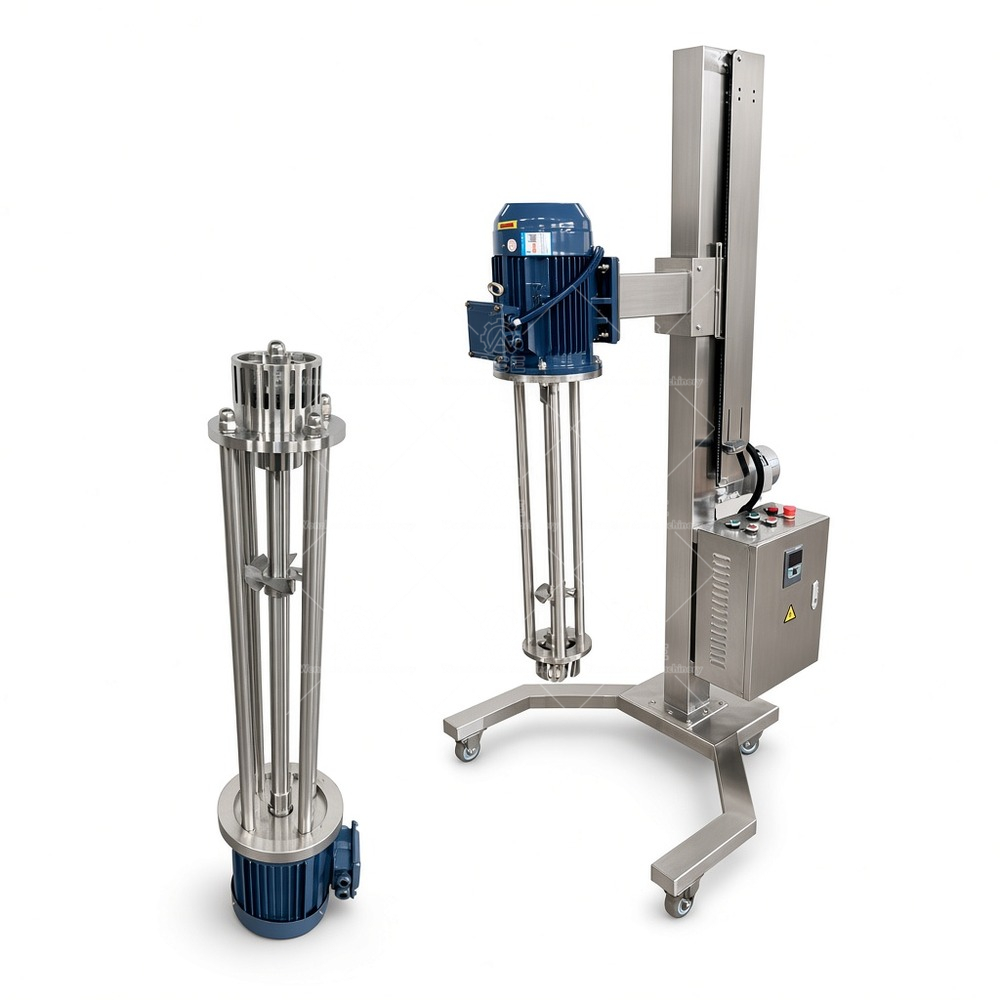

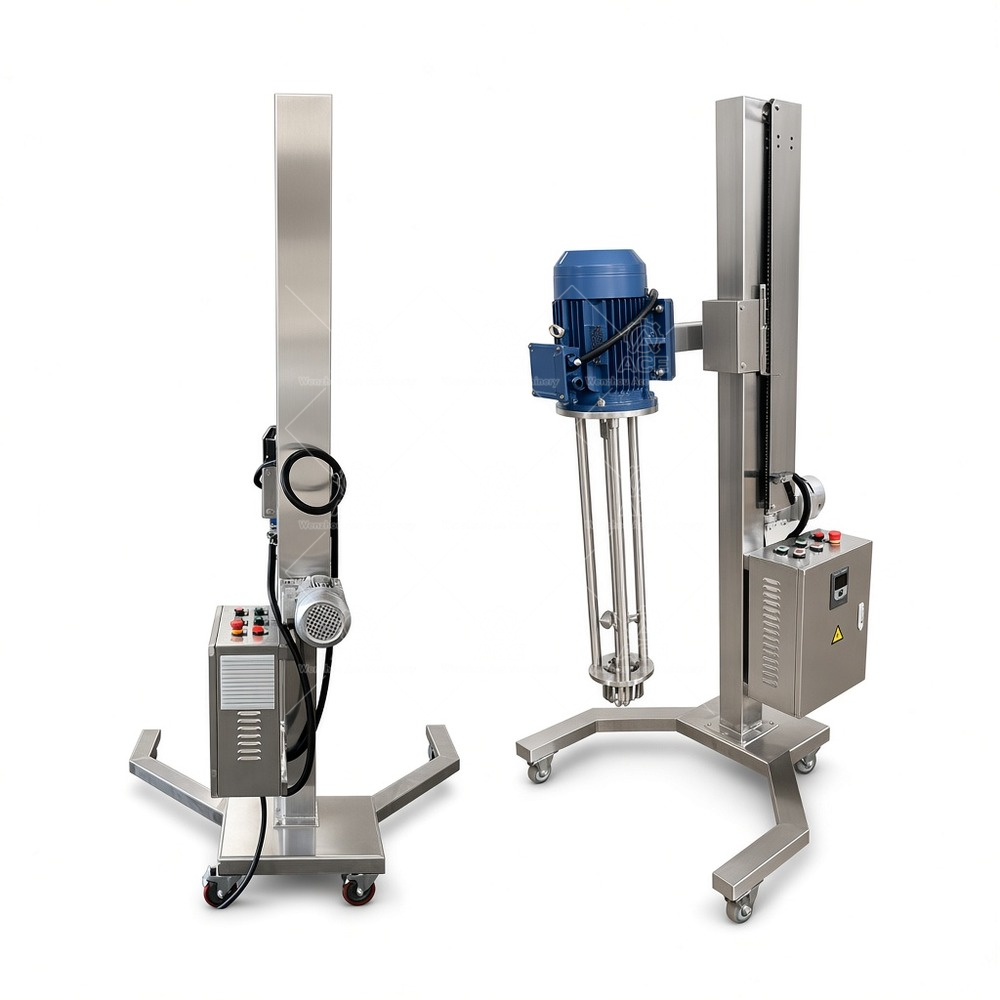

Mobile Lift High Shear Emulsifier Mixer for Shower Gel Face Cream Sauce
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,439.03 through $3,570.41
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Mobile Lift High Shear Emulsifier Mixer for Shower Gel, Face Cream, and Food Sauce
When a batch needs fast powder wet-out or stable oil-water emulsification, the mixing head and the way it moves through the vessel matter more than brochure language. This mobile high shear mixer is built for batch production where one unit may serve several tanks, containers, or workstations. The lift design allows the rotor-stator head to be raised, lowered, and positioned for the batch; casters allow movement where plant layout permits.
Configurable specifications
- Mobile design: casters for moving between production areas, mixing vessels, or processing stations within layout limits.
- Speed control: optional VFD for 0 to 3000 rpm adjustable speed, depending on motor and configuration.
- Voltage: 220 V to 480 V; voltage, frequency, phase, and electrical arrangement confirmed for the target market.
- Motor power: 1.5 kW to 11 kW, selected by process demand and model.
- Mixing functions: high shear, dispersion, emulsification, and powder incorporation into liquids.
- Customization: motor power, voltage, control system, mixing head, and other details specified by application.
- Construction: stainless steel high shear mixer and product-contact materials can be specified to suit the product.
- Manufacturer: Ace Mixer, an industrial mixing equipment manufacturer offering configurable equipment for different processes.
Choosing a batch high shear mixer
Start with batch size and vessel dimensions, then review viscosity and ingredient behavior. A high shear mixer for powder dispersion may need different head geometry and power than a liquid-liquid emulsifier. Target speed, motor power, and VFD selection follow those process details. Confirm voltage, frequency, and phase before quotation. For product-contact parts, specify stainless steel grade and elastomer needs. Mobile high shear mixers suit multi-container operations; fixed industrial high shear mixers may suit dedicated lines.
Typical applications
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints and compatible industrial formulations, powder dispersion, and liquid-liquid emulsification. Suitable mixing head, materials, and operating parameters depend on product viscosity, ingredients, and process requirements.
FAQ
Can this unit disperse powders into liquids? Yes, with a suitable mixing head and operating procedure. Powder feed rate and vortex control should be tested for your formulation.
Is a VFD necessary? A variable speed high shear mixer helps when batches change viscosity or you need controlled shear. It is optional and depends on motor and configuration.
What information is needed for a recommendation? Batch size, vessel size, viscosity, ingredients, target rpm, required motor power, and local voltage/frequency/phase.
Send your batch size, material properties, target speed, motor power requirement, and electrical specifications. We will recommend a suitable mobile high shear mixer configuration and quote accordingly.
This mobile lift high shear emulsifier mixer supports batch emulsifying, dispersing, and powder incorporation for shower gel, face cream, sauces, and related products. Choose motor power from 1.5 to 11 kW, VFD speed control, voltage from 220 to 480 V, and stainless steel contact parts based on your batch size, viscosity, and process needs.
