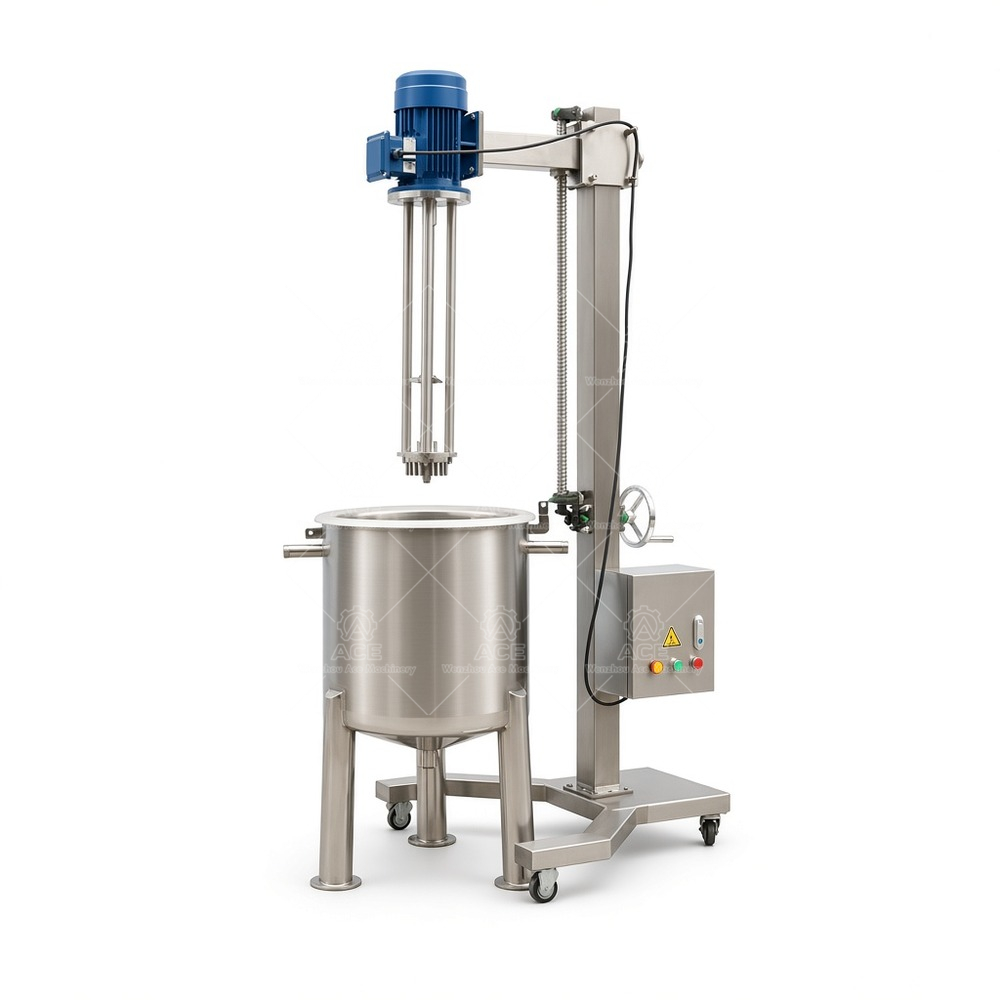

Mobile High Shear Batch Disperser Emulsifier Mixer with Lift Stand
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power:0.75KW-55KW (1 HP – 74 HP)
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
$2,380.55 – $3,546.82Price range: $2,380.55 through $3,546.82
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers

Mix, emulsify, homogenize, disintegrate and dissolve

Ideal for disintegrating solids and incorporating powders

Reduce mixing times by up to 80%
Reduce mixing times by up to 90%

Quickly disperse and hydrate powders, even at higher viscosities

Easy to move and lift
Features heating, cooling, vacuum, and other functions

Recommended RPM: 1480/2850 RPM
Mobile High Shear Batch Disperser Emulsifier Mixer with Lift Stand
When a batch will not wet out, agglomerates keep floating, or an emulsion separates before packing, the problem is often shear and powder incorporation, not the recipe alone. Our mobile high shear mixer is built for batch work where one unit must serve several tanks or process rooms. The lift stand lets operators position the head at the working level; casters allow movement when the layout permits.
Configuration and process fit
Motor power ranges from 1.5 kW to 11 kW depending on product viscosity, batch size, and desired turnover. A variable speed high shear mixer can use VFD control, with 0 to 3000 rpm according to motor and configuration. Electrical supply is confirmed for 220V to 480V, including frequency and phase for the destination market. We do not quote a speed or motor size from the product name alone; vessel diameter, liquid level, solids loading, and viscosity determine the rotor-stator or dispersing head choice.
Wetted parts can be specified in stainless steel and other contact materials to suit the product and cleaning routine. Controls, mixing head style, stand height, and mobile or fixed installation are selected during review. Ace Mixer builds industrial high shear mixing equipment for food, cosmetic, pharmaceutical, chemical, coating, and compatible industrial formulations. The same batch high shear mixer can handle liquid-liquid emulsification, dispersion, and powder dispersion into liquids, but the correct head and operating parameters depend on the product.
Choosing a batch high shear mixer
Start with batch volume and vessel dimensions, not only motor kW. A high shear mixer with VFD may run at lower speed for viscous materials and higher speed for low-viscosity dispersion. Confirm voltage, frequency, and phase before order. For a high shear mixer for powder dispersion, tell us feed method and dust control needs. For stainless steel high shear mixer requests, state contact material, surface finish, and cleaning method. Mobile units suit shared vessels; fixed units may suit dedicated lines.
FAQ
Can it run in a closed vessel? We need vessel drawing and head clearance to confirm mounting and lift stand fit.
Is explosion protection available? Do not assume certification; provide area classification and we will review feasible electrical configuration.
What about batch capacity? Capacity depends on product, vessel, and head position; we size from your process data.
Send batch size, viscosity and solids content, target rpm range, required motor power, vessel dimensions, and local voltage/frequency/phase. Our engineers will recommend a suitable mobile high shear mixer configuration and quote accordingly.
Mobile high shear batch disperser with lift stand for dispersion, emulsification, and powder incorporation. Configurable 1.5–11 kW motor, optional VFD up to 3000 rpm depending on model, 220–480V options, stainless steel contact parts as specified. Ace Mixer reviews batch size, viscosity, vessel dimensions, and electrical supply to recommend the right industrial high shear mixer configuration.
Single-stage in-line mixer
Three-stage in-line mixer

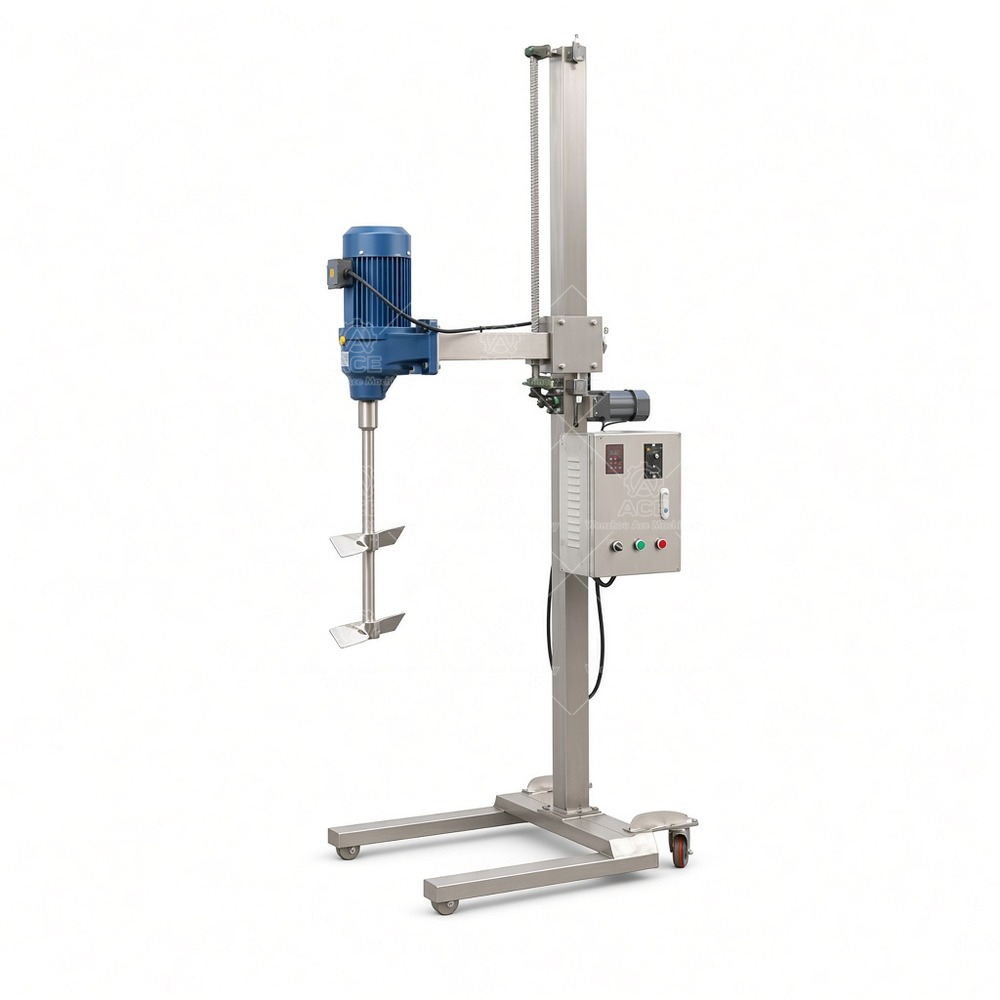

High-Shear Mixer with lift
