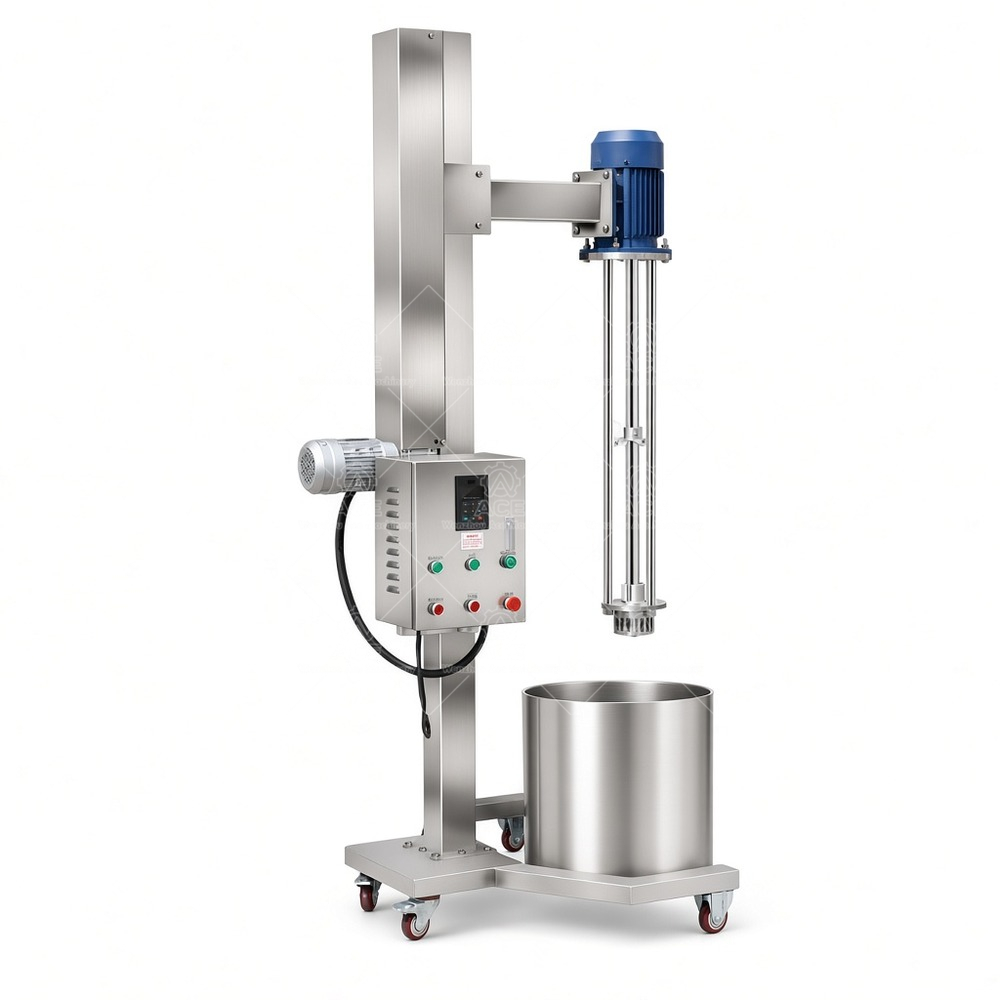

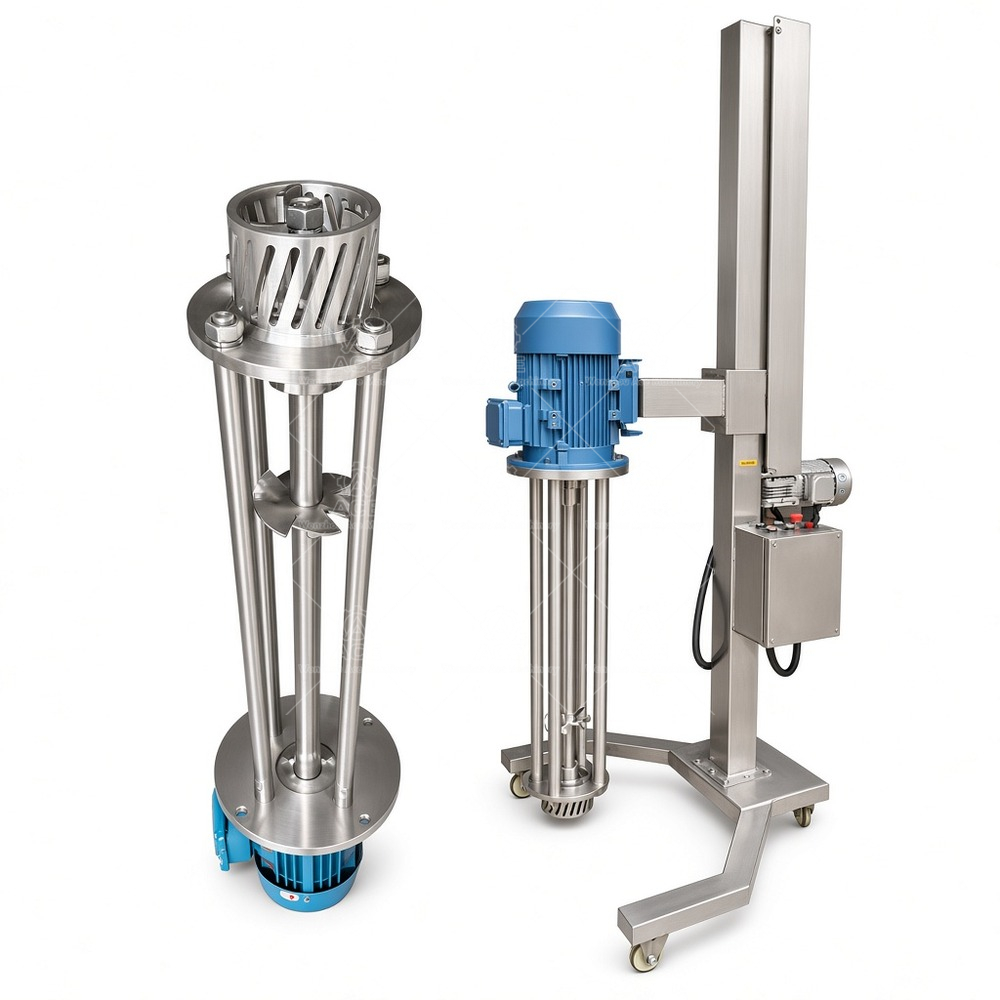

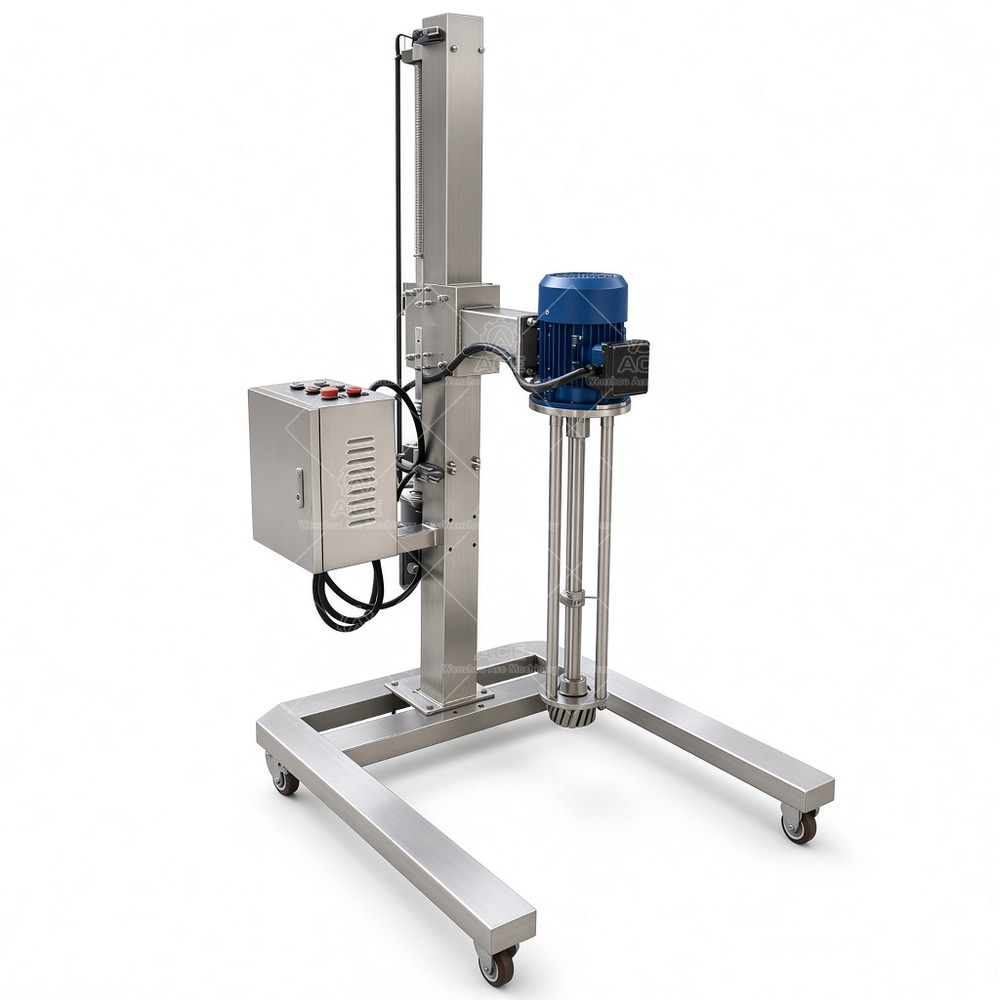

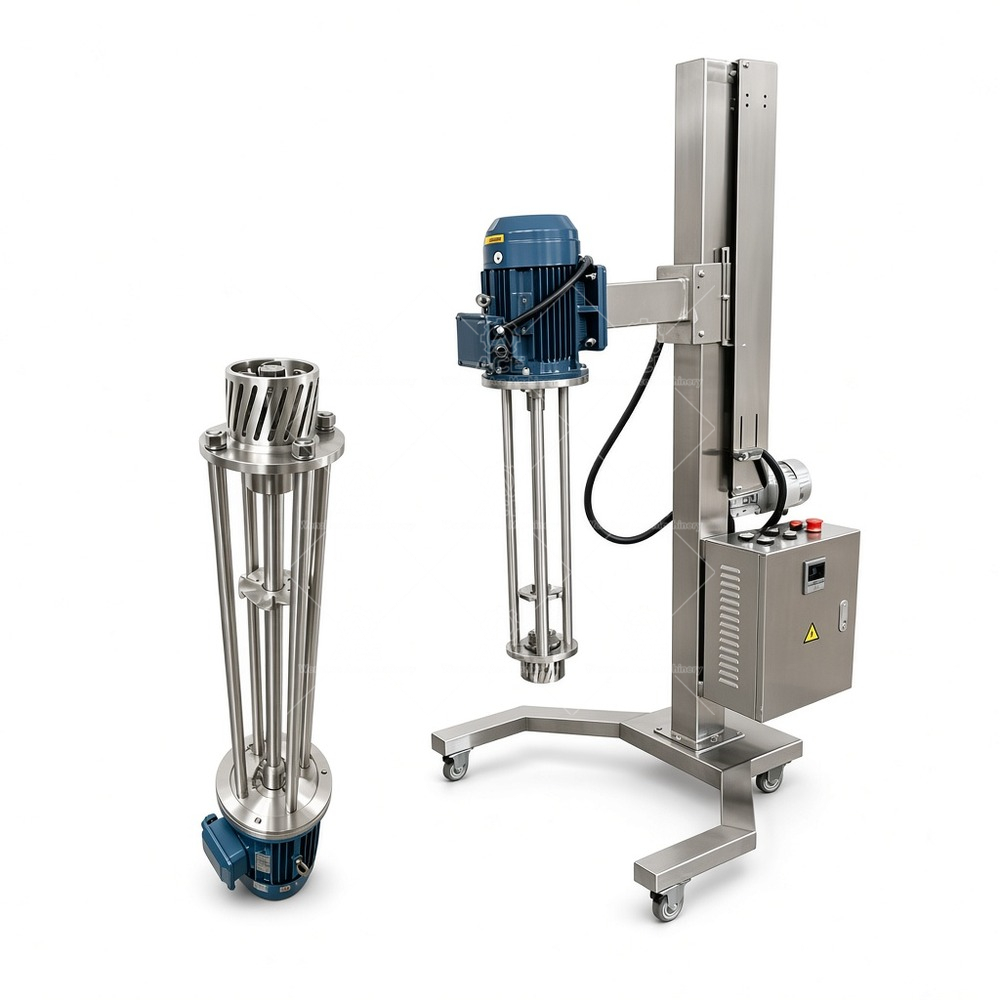

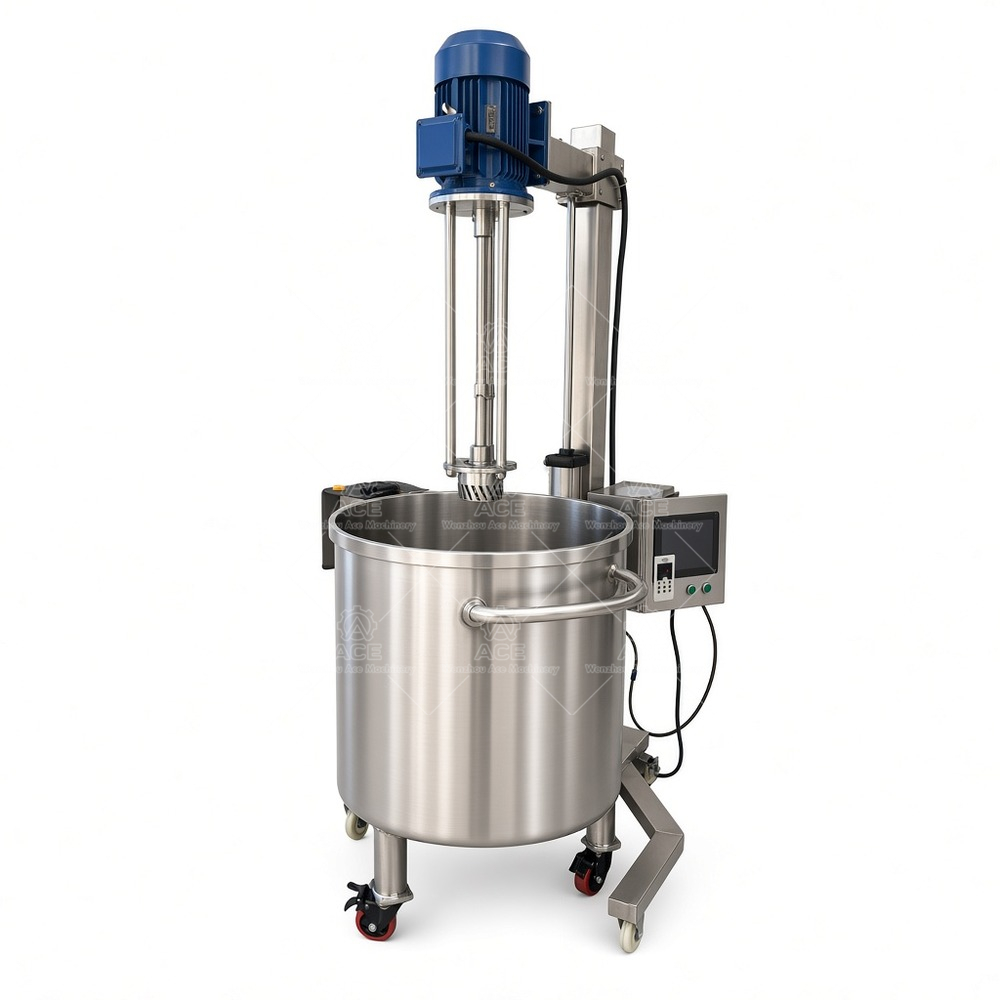

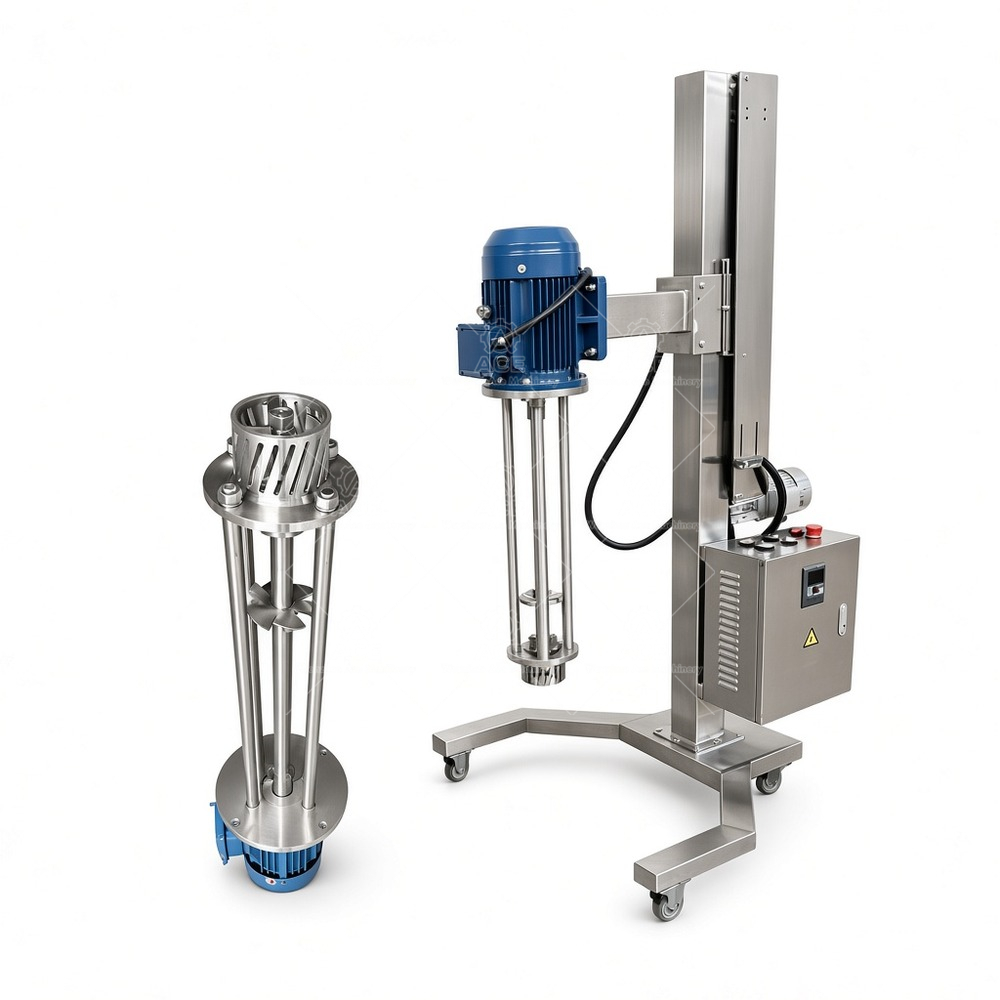

Lift Type Batch High Shear Homogenizer Mixer for Shampoo & Cosmetics
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,365.98 through $3,663.36
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Shampoo and shower gel lines tend to hit the same wall: xanthan gum and other thickeners go in as dry powder and come out as lumps that take far longer to dissolve than the batch schedule allows. A lift-type batch high shear homogenizer tackles that directly. The rotor/stator head is lowered into the vessel, run at the point where powder is added, and lifted clear when the batch is finished.
What the configuration looks like
A lift column carries the motor and shaft, so head position in the tank is adjustable rather than fixed. Casters let one unit serve several vessels in the same bay, which is usually why a plant chooses a mobile high shear homogenizer over a second fixed machine.
- Motor: 1.5 kW to 11 kW, sized by batch volume and viscosity
- Speed control: VFD option, 0 to 3000 rpm depending on motor and build
- Electrical: 220V to 480V; voltage, frequency and phase confirmed per destination
- Wetted parts: stainless steel and contact materials specified to the product
- Options: head design, control system, frame and lift details
Sizing it to the process
Before a quote is meaningful, we need batch size and vessel dimensions, the viscosity range across the whole process rather than just the finished value, and whether solids are being dispersed or two liquids emulsified. A 200 L water-thin shampoo and a 1000 L gel at several thousand centipoise do not want the same head or the same motor. Electrical supply matters just as much, since a 60 Hz/480V three-phase plant and a 50 Hz/380V plant are different builds.
More rpm is not automatically better. Excess tip speed on a xanthan dispersion can shear-thin the batch and pull in air, which later shows up as foam at the filler. Operators usually find their working speed by running the powder in slowly at the vortex edge and watching the gel strength develop.
Typical duties
Cosmetics and personal care — shampoos, shower gels, creams, lotions. Pharmaceutical and healthcare preparations. Food and beverage emulsions and sauces. Chemical processing, plus compatible coatings and paints. Powder dispersion into liquids and liquid-liquid emulsification are the two most common jobs. Head choice, contact material and operating parameters depend on viscosity, ingredients and process requirements.
Questions we get from buyers
Can one unit move between tanks? Yes, within the limits of the floor layout — surface condition, doorway width and cable routing decide it in practice.
How is cleaning handled? Head and shaft are flushed or wiped between products. If you need CIP, say so at the design stage; the wetted construction has to be agreed up front.
Is a fixed frame cheaper? Often, but not if it means buying two machines for two vessels.
Send batch volume, product viscosity, target rpm, required motor power and your local electrical spec, and our engineers will come back with the right configuration and a price.
A lift-type batch high shear homogenizer for shampoos, shower gels, creams and xanthan gum dispersions. Motors from 1.5 kW to 11 kW, optional VFD speed control up to 3000 rpm, 220V to 480V builds, stainless contact parts and a mobile frame. Configurable head, controls and lift details to suit your batch size and viscosity.
