Mobile Lift High Speed Shear Mixer Homogenizer Cosmetic Cream Lotion Xanthan
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,422.53 through $3,769.14
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

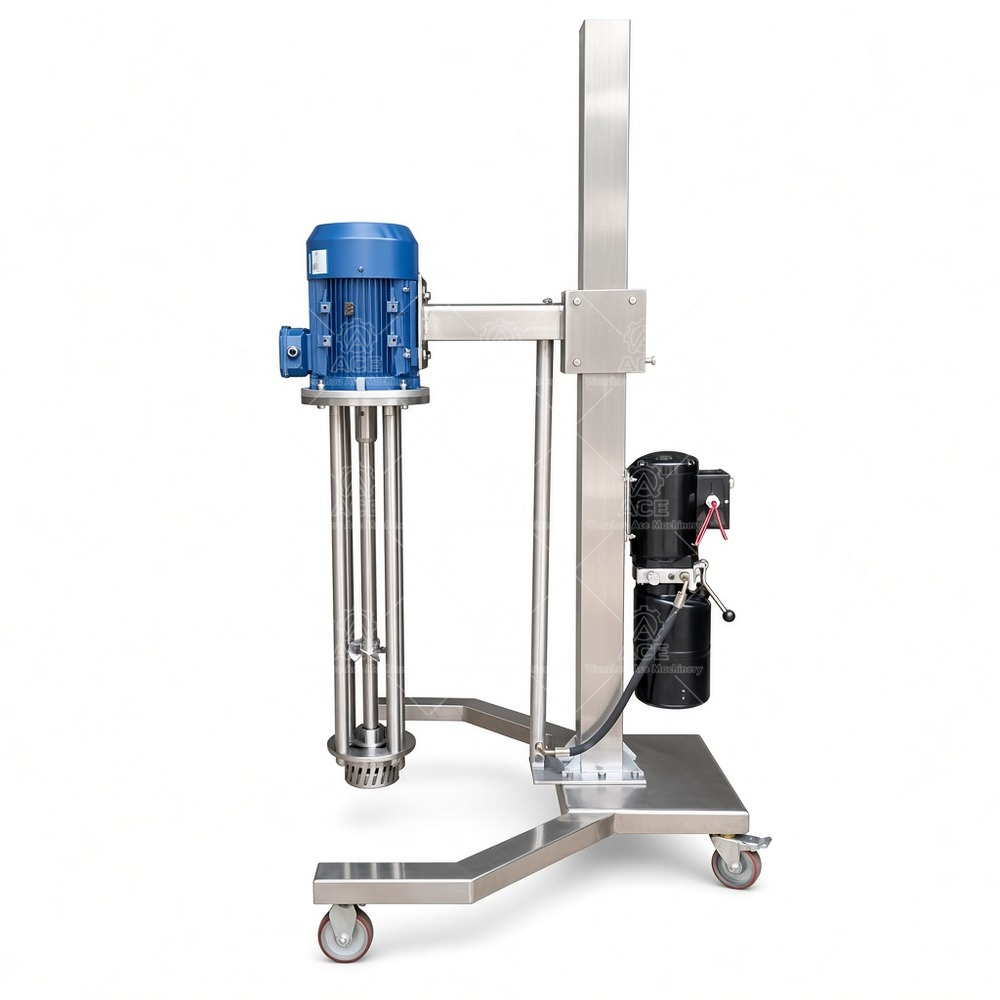

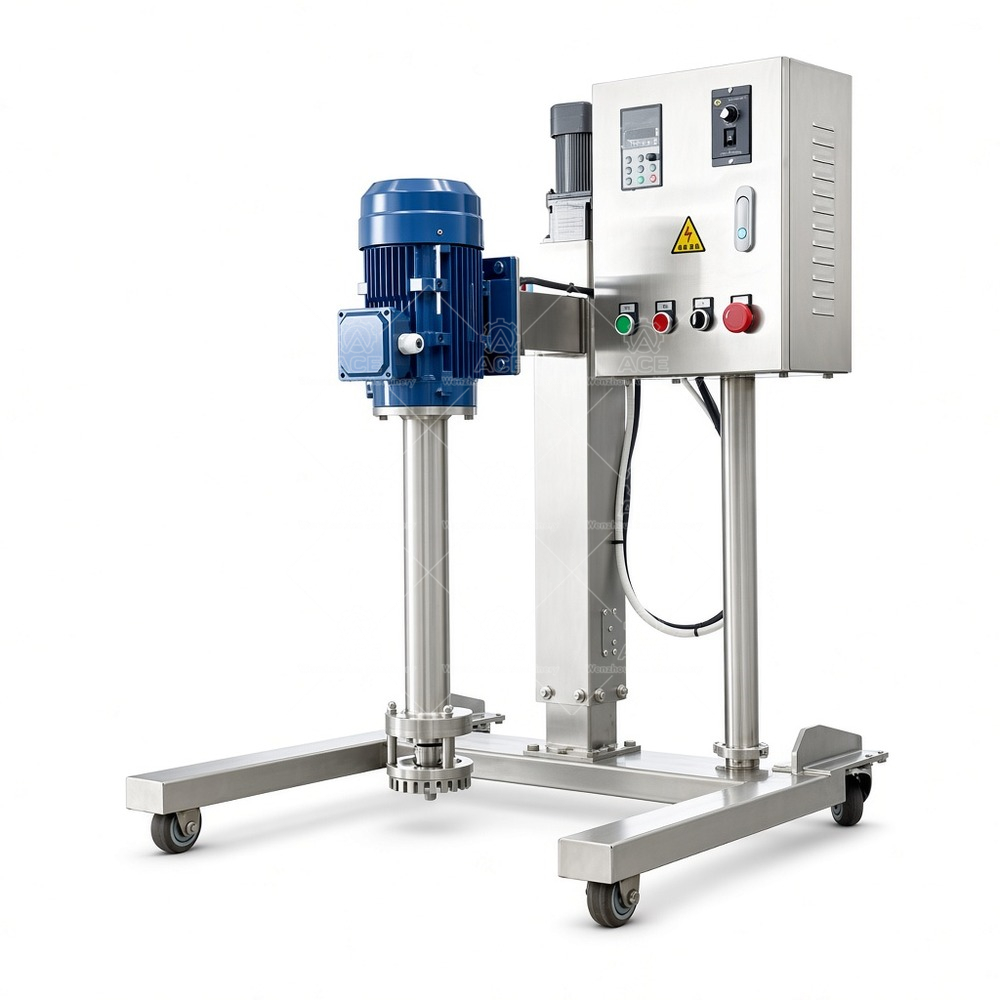

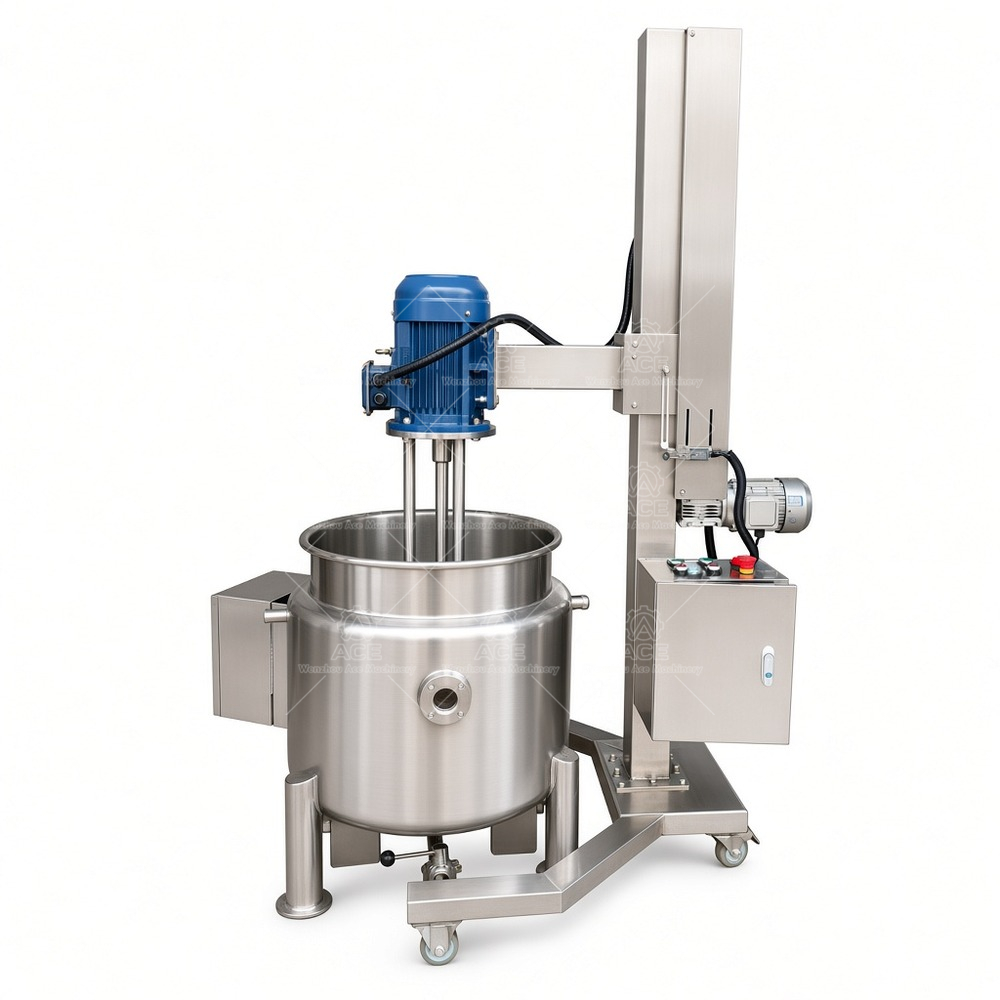

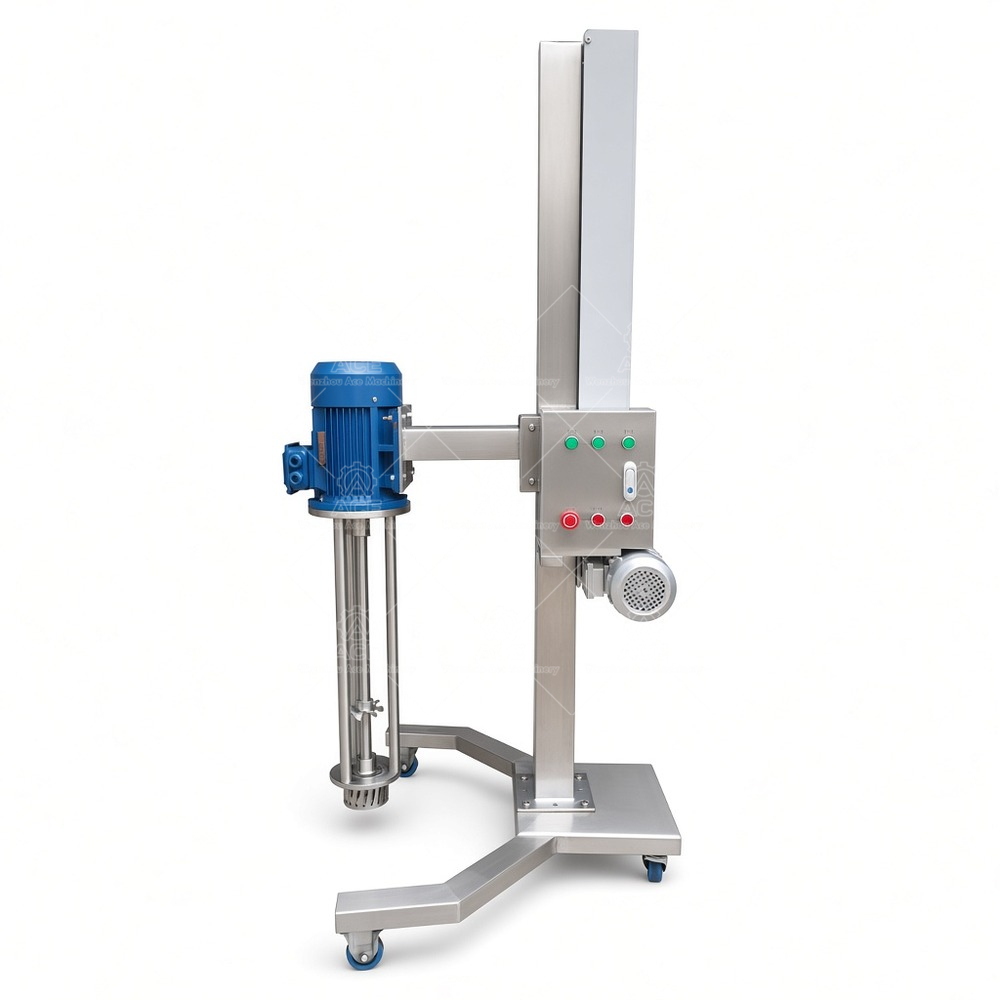

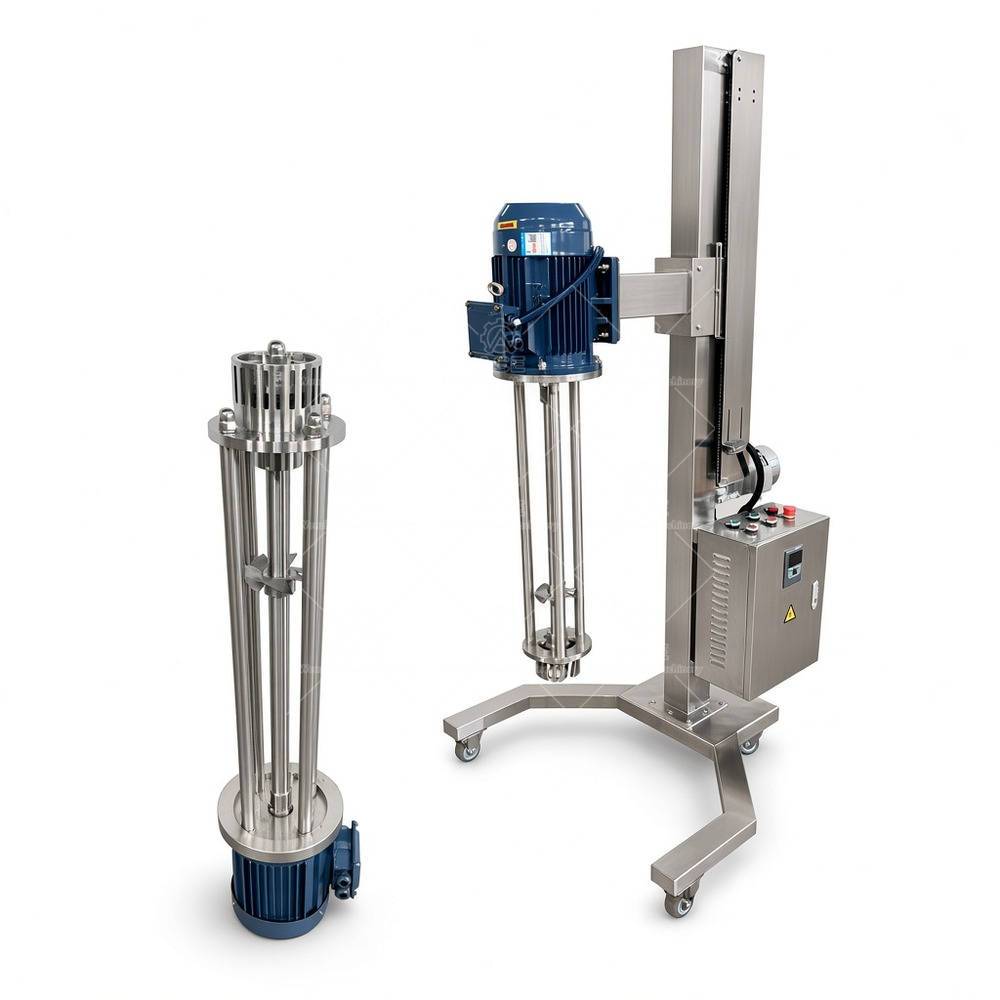

This mobile lift high shear mixer is part of our batch high shear mixing equipment line for plants that need one unit to handle creams, lotions, and xanthan-based gels without tying up a fixed tank line. The frame rides on casters, so operators can move it between vessels when layout and floor conditions allow. We configure the motor, controls, and shaft to match the product rather than forcing one head design across all batches.
For cosmetic cream and body lotion work, the practical questions come before the quote: batch size, vessel dimensions, viscosity at process temperature, solids loading, and whether xanthan or other powders must be dispersed without lumps. A variable speed high shear mixer with VFD lets your team tune tip speed as the batch thickens. Available motor power runs from 1.5 kW to 11 kW, with voltage from 220V to 480V confirmed for your site, including frequency and phase.
Common configurations
- Mobile high shear mixer with casters for multi-tank rooms
- High shear mixer with VFD for 0–3000 rpm control depending on selected motor and configuration
- Stainless steel high shear mixer contact parts specified to product and cleaning needs
- Batch high shear mixer heads for emulsifying, dispersing, and powder wet-out
Ace Mixer also supplies fixed and mobile arrangements for food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings. For powder dispersion, the right rotor-stator or impeller choice depends on viscosity, ingredient addition order, and whether the vessel has baffles or vacuum. Liquid-liquid emulsification is similarly product-specific. Cleanability, gasket material, surface finish, and lift height should be reviewed alongside the tank.
FAQ
How do I choose a batch high shear mixer? Start with working batch volume, tank diameter, product viscosity, and required rpm. Those details determine shaft length, head style, and motor size.
Can the unit be moved between tanks? Yes, the mobile lift design is intended for that, provided aisle width, floor condition, vessel height, and utilities allow safe movement.
Do you provide custom voltage and controls? We confirm 220V to 480V, frequency, phase, and control package for the destination market and process.
Send your batch size, material characteristics, target speed, motor power preference, and local electrical specifications. We will recommend a suitable industrial high shear mixer configuration and quote accordingly.
Ace Mixer mobile lift high shear mixer homogenizer is configured for cosmetic creams, body lotions, and xanthan dispersions. It combines caster-mounted mobility, optional VFD speed control, 1.5–11 kW motors, and stainless steel product-contact parts. Tell us batch size, viscosity, target rpm, and local voltage for a suitable batch high shear mixer recommendation and quote.
