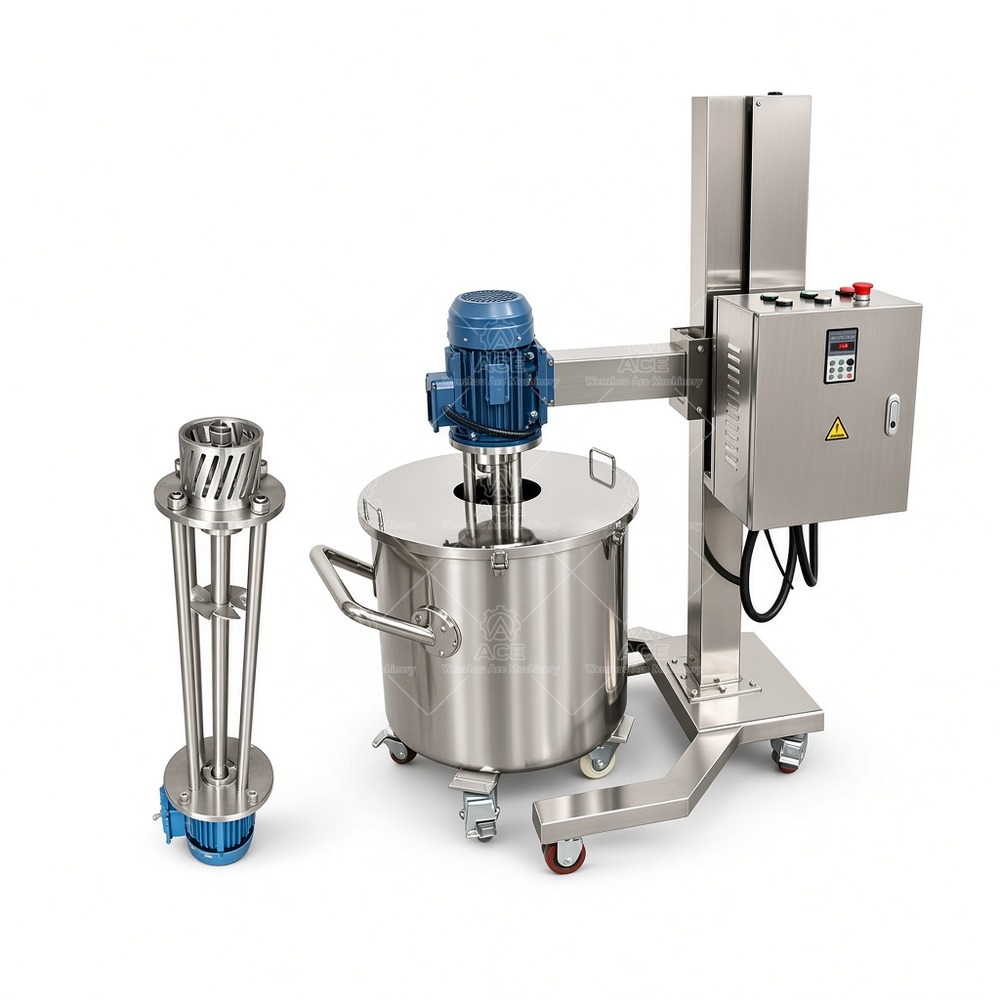

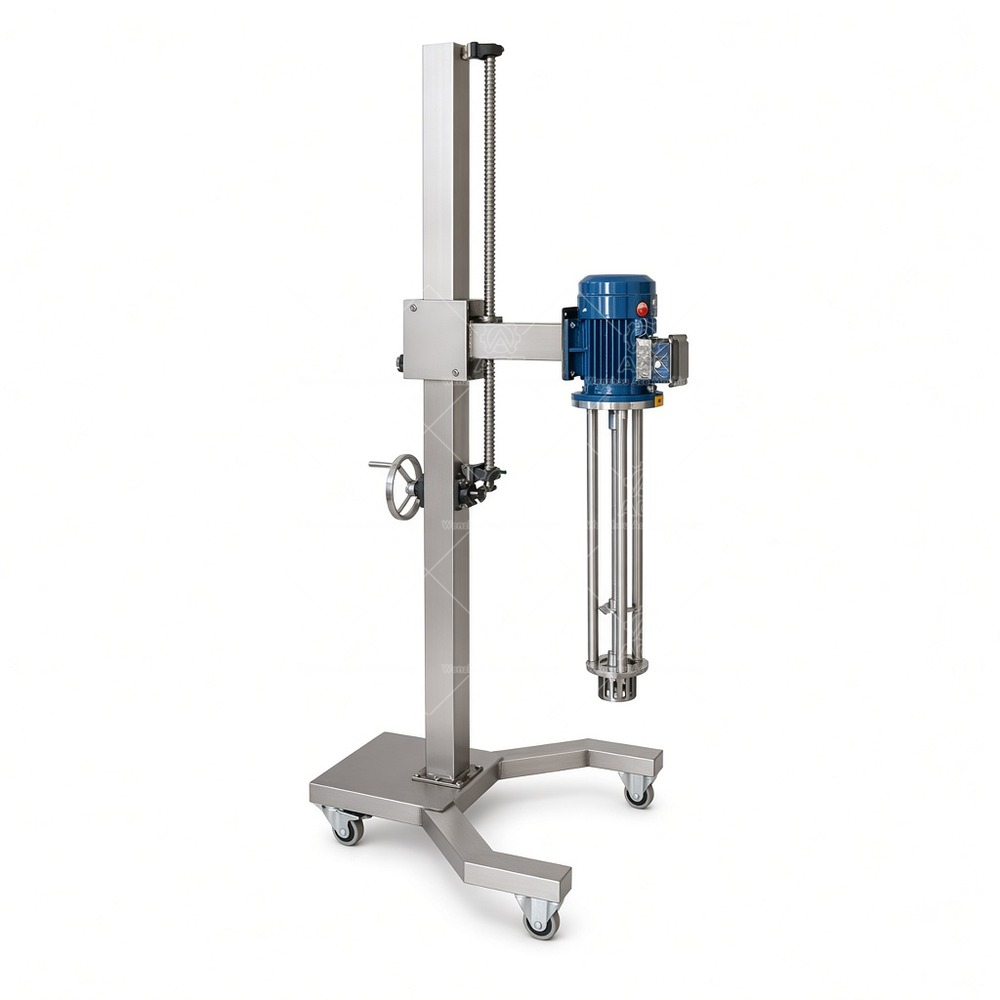

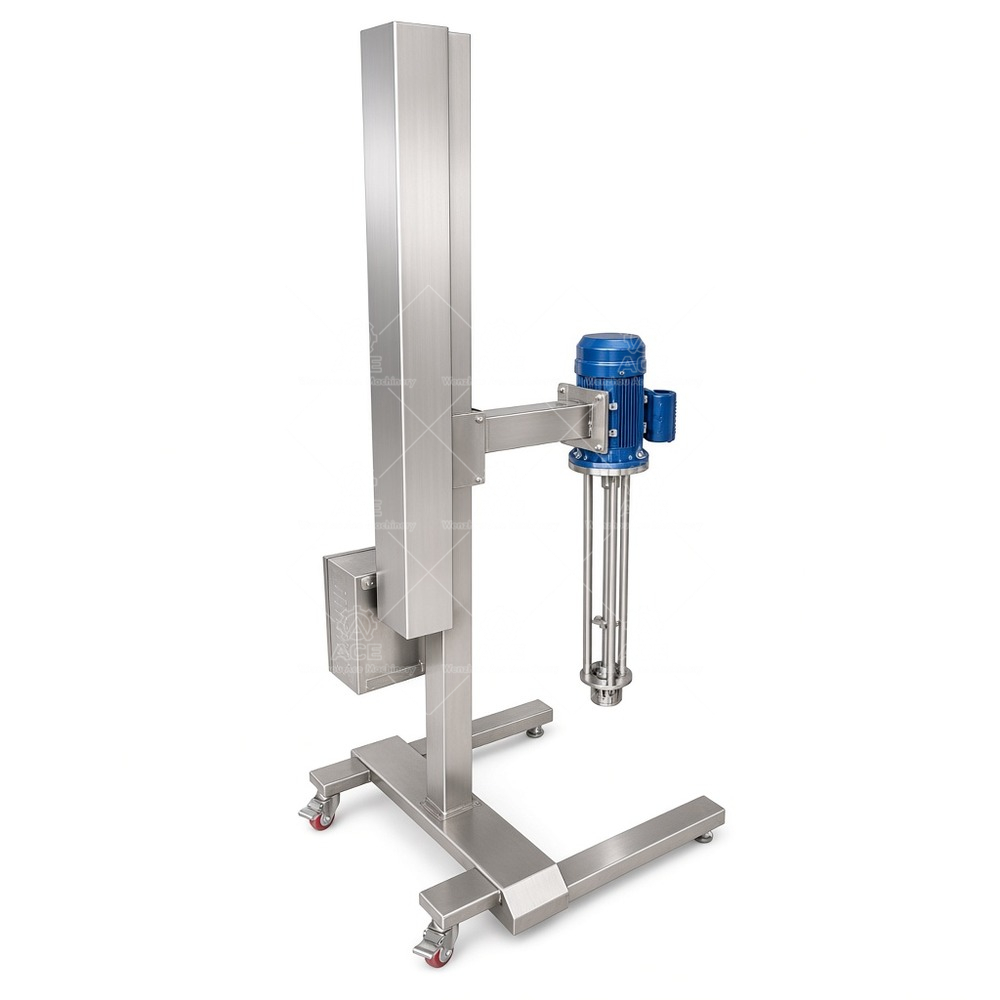

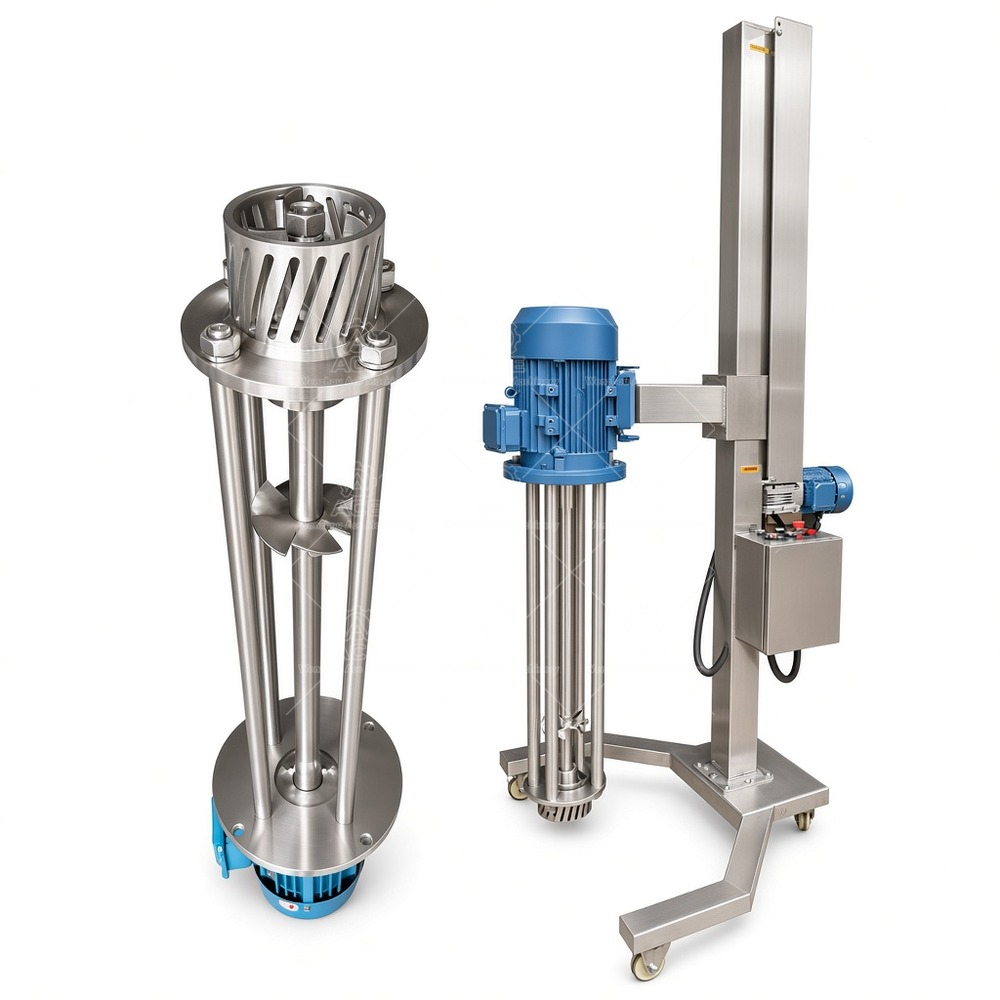

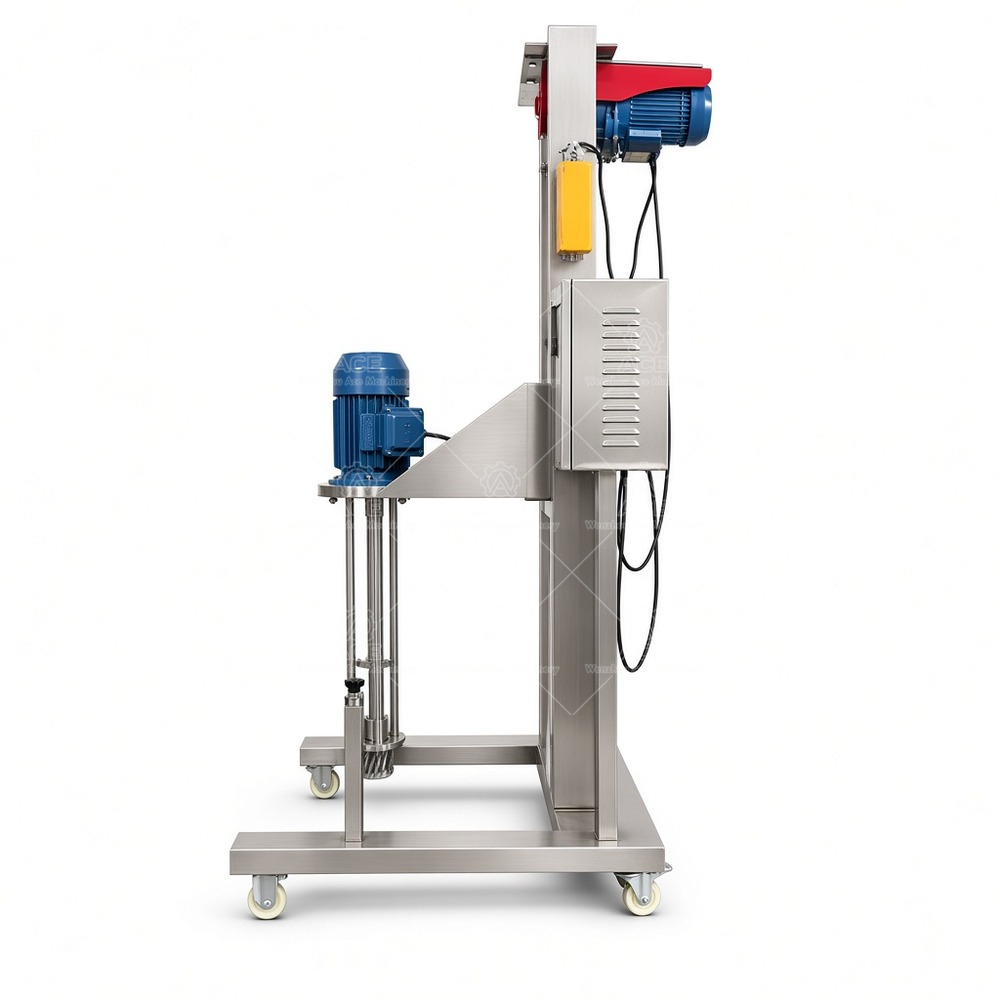

Batch High Shear Mixer, Electric/Pneumatic Lift Rotor-Stator
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,150.98 through $3,361.74
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch mixing built around your vessels
Our batch high shear mixer is configured around the vessel, product, and floor layout. An electric or pneumatic lifting column raises and lowers the rotor-stator head, so operators can transfer one mobile high shear mixer between tanks when clearance allows. Dedicated lines can use a fixed frame with the same head and drive. We specify wetted parts in stainless steel where the formulation requires it; this is not a default stainless steel high shear mixer for every duty. Contact material, finish, and head style follow the product, not a generic catalog. Custom motor power, controls, heads, and mounting are reviewed per application.
The rotor-stator head handles high-speed shear, dispersion, and emulsification, and helps incorporate powders into liquids when feed and vortex are controlled. A VFD high shear mixer can provide variable speed control; range and top speed are confirmed against the chosen motor, not quoted as a universal 0–3000 rpm figure.
What changes the configuration
- Batch size, vessel diameter, and working volume
- Viscosity, solids, and powder or liquid-liquid duty
- Required mixing speed and motor power, normally 1.5–11 kW
- Voltage, frequency, and phase; 220V–480V options confirmed for the market
- Head design, shaft length, and wetted materials
- Mobile or fixed mounting, lifting height, and floor space
These details outweigh a headline rpm number. A thin beverage concentrate and a thick cosmetic cream may share a frame size but need different head geometry, shaft length, and torque. For a high shear mixer for powder dispersion, feed control often matters more than extra motor power.
Applications
Our industrial high shear mixer serves food and beverage processing, including sponge cake emulsions, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints, coatings, and industrial formulations. For powder dispersion and liquid-liquid emulsification, we match the rotor-stator head and operating parameters to viscosity, ingredients, and process targets. Suitable head, materials, and settings depend on the product and process; we confirm them during review.
FAQ
Can one unit run multiple tanks? Yes, if lifting height, wheeled base, and floor path suit the layout. We check vessel clearance before recommending a mobile high shear mixer.
Is a VFD necessary? Not always. A variable speed high shear mixer helps when formulations change or shear must be controlled; a single repeat product may run at fixed speed.
How do we choose the head? Send batch size, viscosity, solids, and target result. We propose a rotor-stator configuration and wetted materials for review.
When comparing high shear mixing equipment, send batch size, product viscosity and ingredients, target speed, required motor power, and local voltage/frequency/phase. We will quote a practical configuration from Ace Mixer.
Ace Mixer builds batch high shear mixers with electric or pneumatic lift and rotor-stator heads for shear, dispersion, and emulsification. Configure motor power from 1.5–11 kW, market voltage, VFD speed control, wetted materials, and mobile or fixed mounting. Send batch size, viscosity, target speed, and electrical specs for a practical recommendation.
