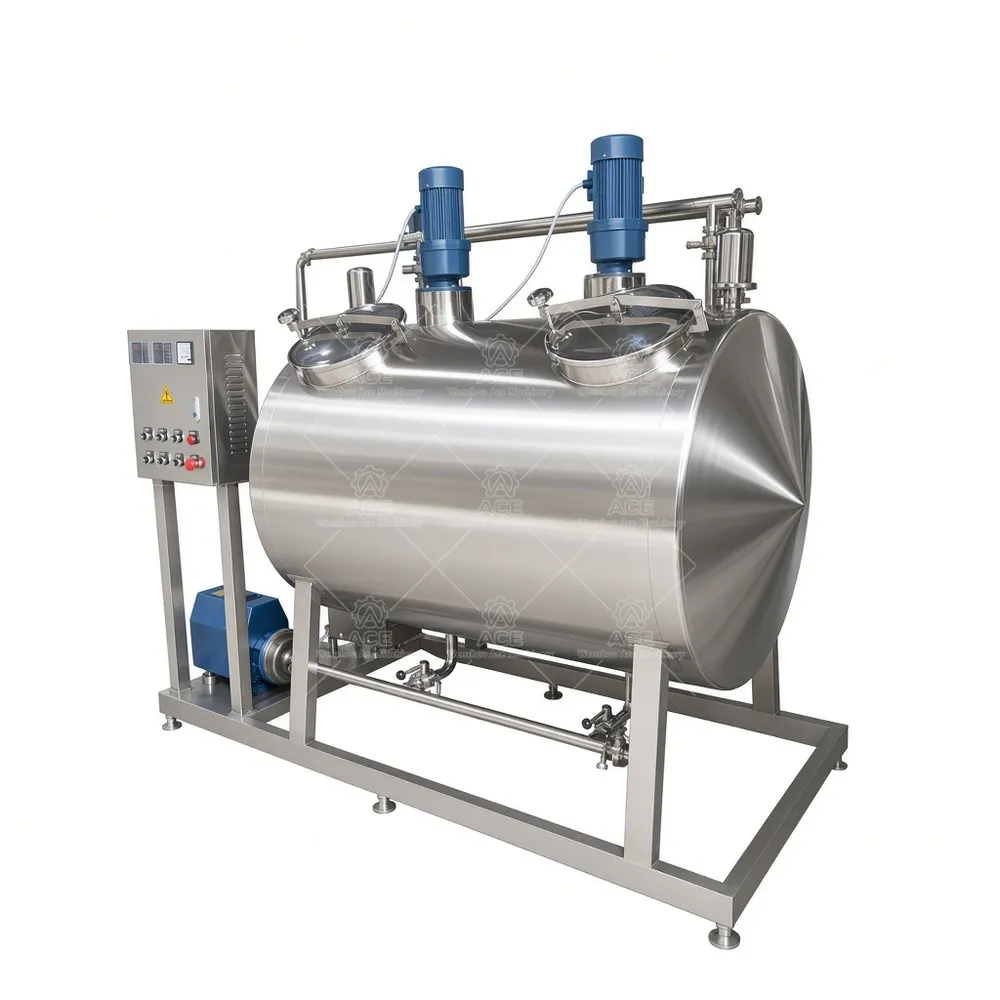

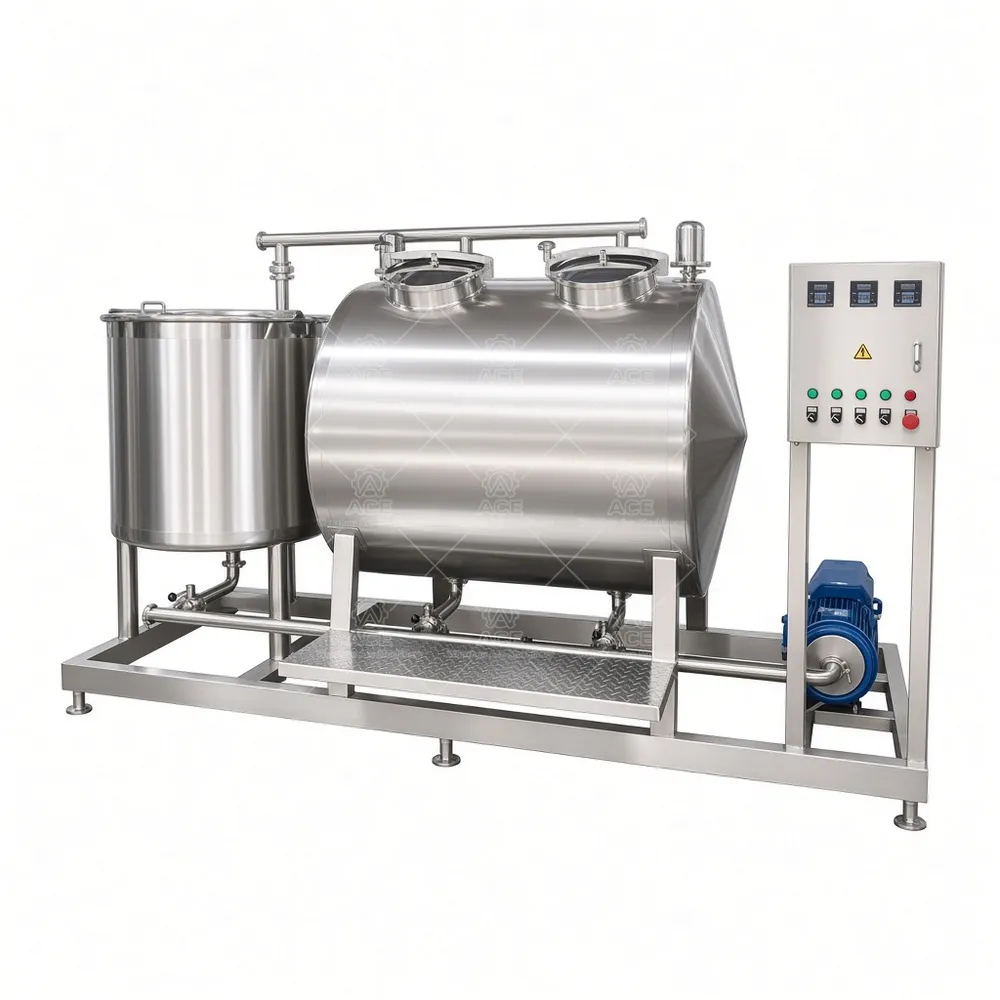

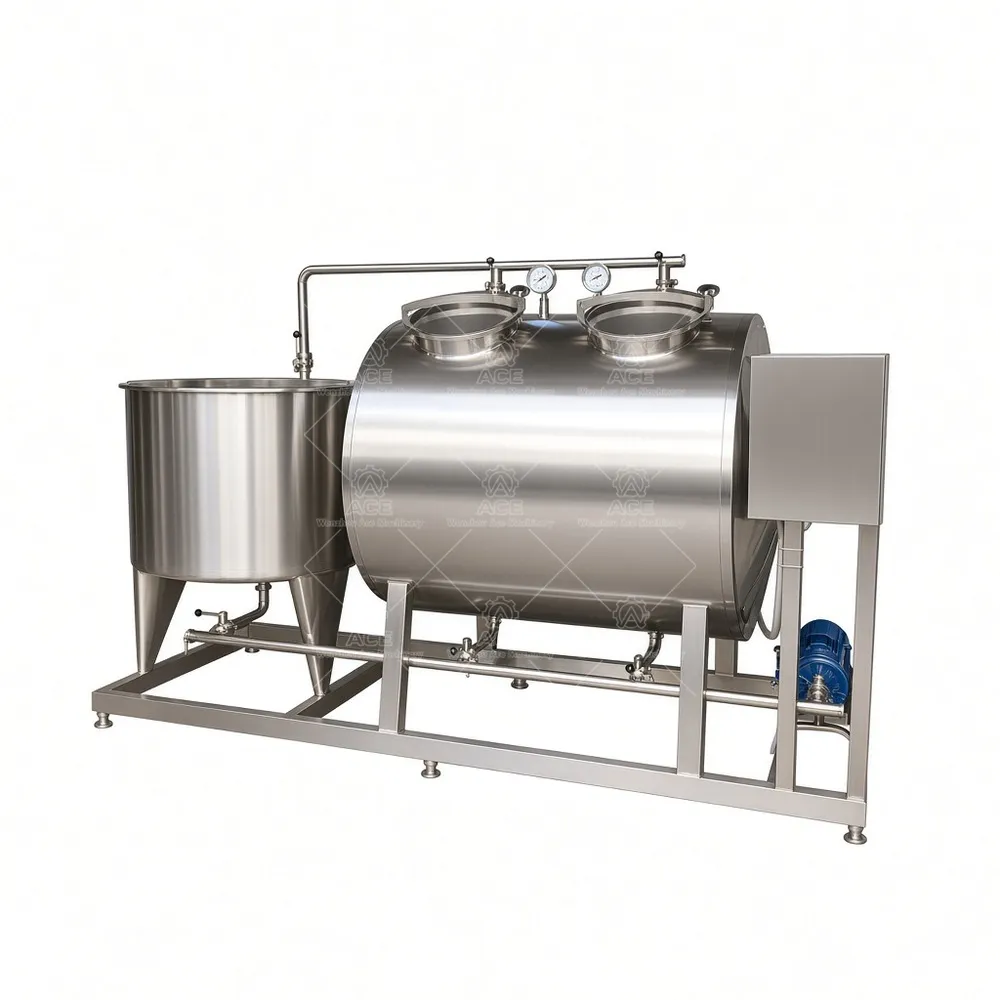

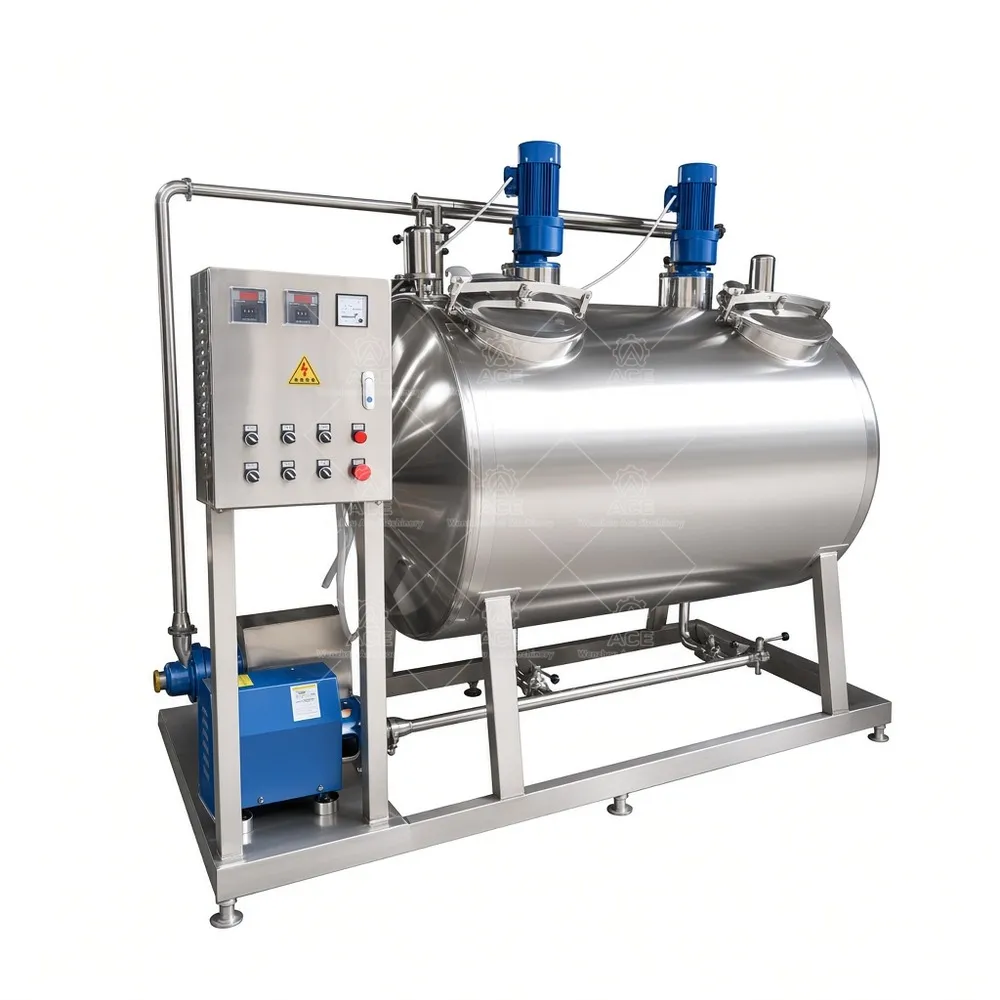

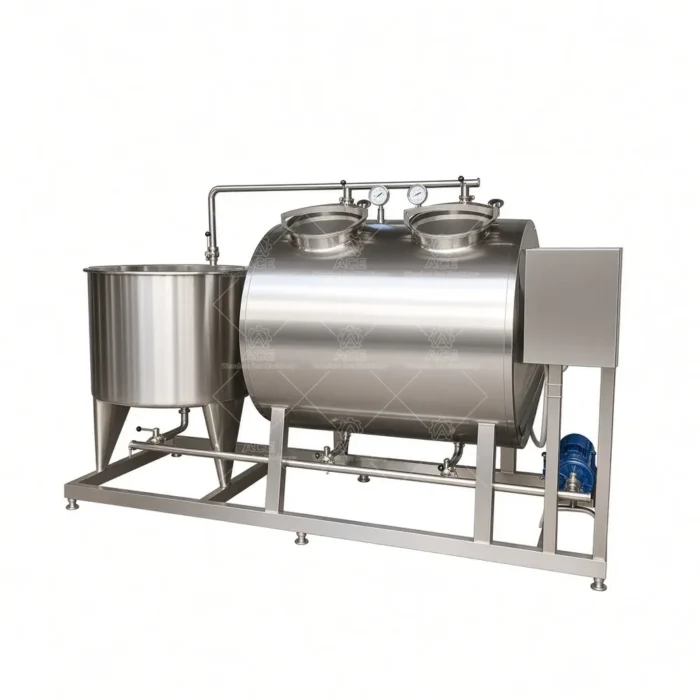

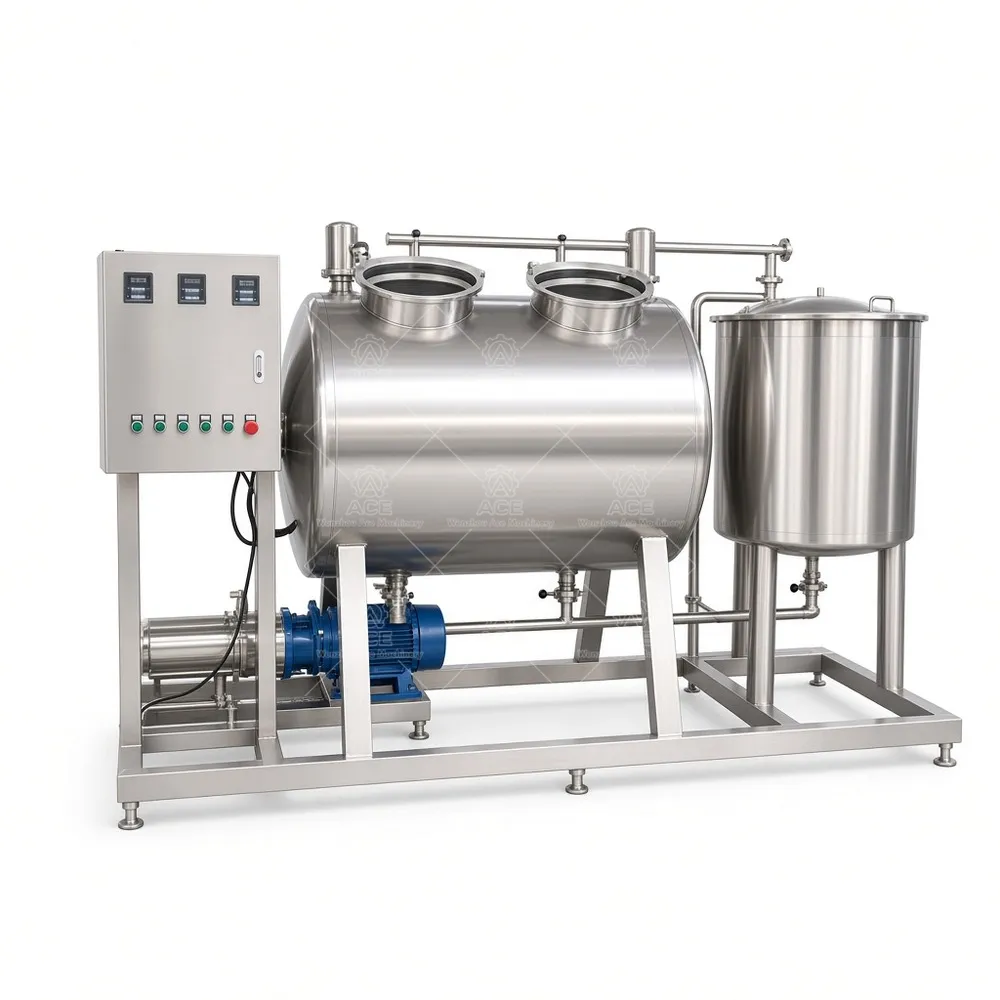

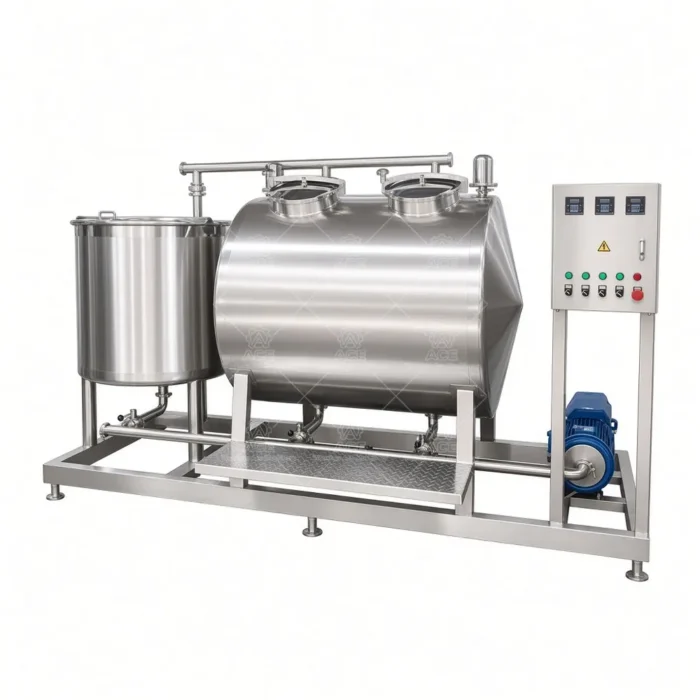

100L Mobile Stainless Steel CIP Cleaning Cart for Material Pipelines
A 100L mobile stainless steel CIP cleaning vehicle for material pipelines and small process loops. We build the tank, pump, heating, and control package to suit your circuit volume, soil type, and automation needs, with 304 or 316L construction and factory-direct engineering support. Send your pipeline details for a configured quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,045.05 through $9,035.28
Guaranteed Safe Checkout
What a 100L mobile CIP cart is for
Most plants don\’t need a fixed clean-in-place skid for every loop. They need something that can be wheeled to a line, connected to a pipeline or tank circuit, and run through a wash cycle without tearing the process apart. That\’s the job of this unit: a 100L stainless cleaning vehicle that carries the tank, pump, and connections on a single frame.
Production engineers usually come to us after a manual brush-and-bucket routine stops keeping up — the line has to be cleaned and back in service before the next batch, and documentation of the wash cycle matters more than it used to.
How a cleaning cycle runs
Caustic or detergent is drawn from the tank, circulated through the pipeline loop, and returned. Then a rinse, then an acid stage if the soil calls for it. Temperature, flow, and contact time do the actual work; the cart just has to deliver them consistently. On our build, the return pump handles low-pressure recovery while the circulation pump pushes through the circuit.
Choosing tank and flow capacity
Tank volume follows the circuit volume plus the wash solution you want to keep in reserve. A 100L tank often suits short loops — filling heads, transfer lines, small vessels. Long runs or large bore pipe may need 200L or more, and we\’d rather size that up front than sell you a cart that runs dry mid-cycle.
Heating, controls, and monitoring
Electric immersion heating is simpler to install where steam isn\’t available; steam through a heat exchanger heats faster and costs less to run where a boiler is nearby. Control ranges from manual valves to semi-automatic with timers, up to PLC with recipe storage and logged temperature, flow, pressure, and level data.
Technical specifications
| Item | Typical configuration |
|---|---|
| Cleaning tank capacity | 100 L (other volumes on request) |
| Number of tanks | One standard; two or three for caustic/acid/rinse |
| Stainless grade | 304; 316L where chlorides or product contact require |
| Heating | Electric immersion or steam heat exchanger |
| Pump flow and pressure | Matched to circuit resistance; confirmed at order |
| Working temperature | Ambient up to roughly 80 °C |
| Control | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single loop or multiple with changeover |
| Power | Three-phase, voltage per installation site |
| Dimensions | Per general arrangement drawing |
| Custom options | Tank size, circuits, automation, fittings, documentation |
Confirm which of these apply to your order — the list above shows what we can build, not what every cart ships with.
Where these carts get used
Dairy lines, beverage and brewery transfer piping, sauce and liquid food processing, cosmetics batching, and pharmaceutical equipment cleaning. Requirements differ widely by soil type and hygiene program, so we size to your process rather than a generic spec.
FAQ
Can it clean more than one line? Yes, with a changeover manifold; each circuit needs its own flow check.
Is 316L necessary? Not always. It matters with chloride exposure or aggressive acid stages.
Who installs it? Most customers connect it themselves; we supply the piping drawings.
Request a quote
Send us your industry and product, tank and pipeline details, required cleaning capacity, heat source available, automation level, stainless grade, and installation location. Our engineers will recommend a configuration and quote it directly from our factory.
