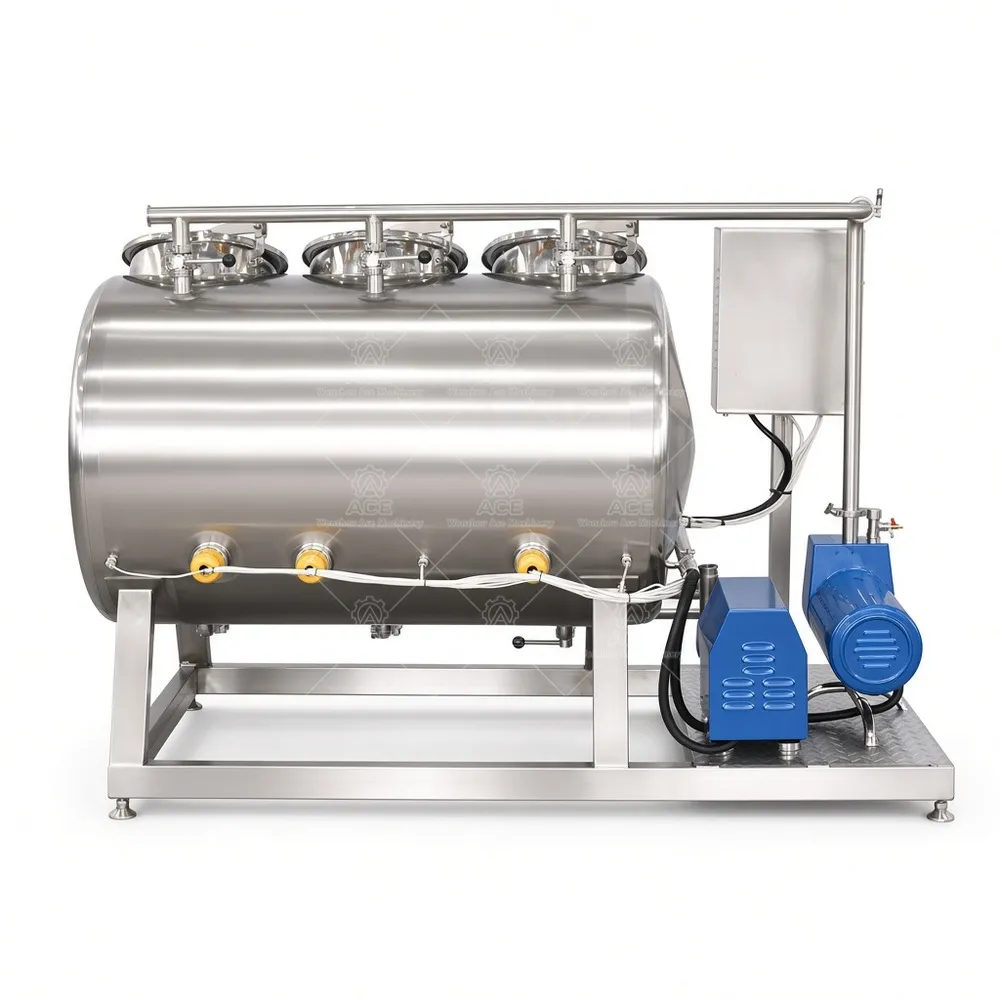

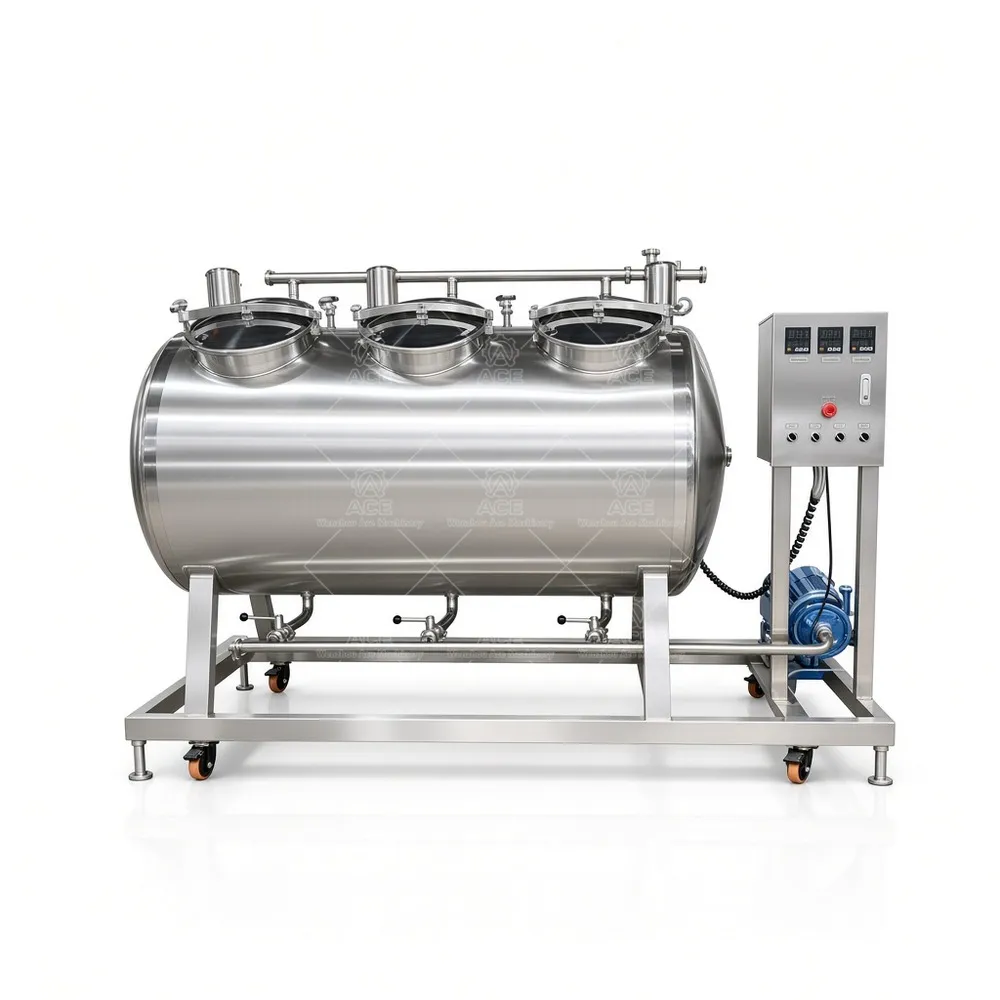

1200L Three-Tank Automatic CIP System 304/316L Acid/Base
Factory-built 1200L three-tank automatic CIP system for acid, caustic and hot water/rinse cycles. Stainless steel 304/316L construction, pump and motor package, optional electric or steam heating, PLC or semi-automatic control, and custom tank capacity, circuits and skid layout. Share your process details for an engineered quote.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,628.35 through $8,587.03
Guaranteed Safe Checkout
How we size a 1200L three-tank CIP skid
A CIP system is sized by cleaning circuits, not tank volume alone. The 1200L three-tank layout usually separates acid, caustic, and hot water or rinse service, but tank allocation follows your cleaning schedule. We build the skid around pipe diameter, spray ball count, return line length, and product residue. Those details decide pump flow and pressure more than tank size does.
The cycle is pre-rinse, caustic wash, intermediate rinse, acid wash where needed, final rinse, and drain. Temperature, flow, pressure, and level monitoring help operators repeat the cycle. Manual, semi-automatic, and PLC/HMI control are available. The list below is a starting point, not a standard package; each item is confirmed against approved drawings and project scope.
Typical configuration options
- Single, double, three, or multi-tank CIP system
- Acid and caustic wash tanks, plus hot water tank
- Electric or steam heating
- CIP circulation pump and return pump
- Stainless piping, valves, and fittings
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC control
- Custom tank capacity, cleaning circuits, and automation
This equipment can clean tanks, vessels, fillers, heat exchangers, mixers, and process piping across dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical production. Surface finish and material grade should match your product-contact and cleaning requirements.
Technical specifications
| Item | Project data |
|---|---|
| Cleaning tank capacity | 1200 L nominal; per-tank split confirmed by drawing |
| Number of cleaning tanks | 3 standard; 1, 2, or multi-tank available |
| Stainless steel grade | 304 or 316L wetted construction |
| Heating method | Electric or steam, optional |
| Pump flow and pressure | Selected by circuit pressure drop and spray coverage |
| Operating temperature | Application-specific; confirmed with detergent supplier |
| Control system | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | Supply and return headers configured to plant layout |
| Power supply | Site-specific; confirmed before order |
| Dimensions | Layout-specific; confirmed with GA drawing |
| Custom options | Tank volume, circuits, automation, skid layout |
Buyer questions we hear
Can one skid serve several circuits? Yes, if valving and controls are planned for the cleaning schedule. We review line length, dead legs, and return routing.
Do we need 316L? Use 316L where chlorides, product chemistry, or cleaning agents call for it. 304 works for many standard duties. We build to the approved specification.
What should be ready before a quote? Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the tank arrangement, pump duty, heating, and controls, then provide a factory-direct quotation with engineering support.
