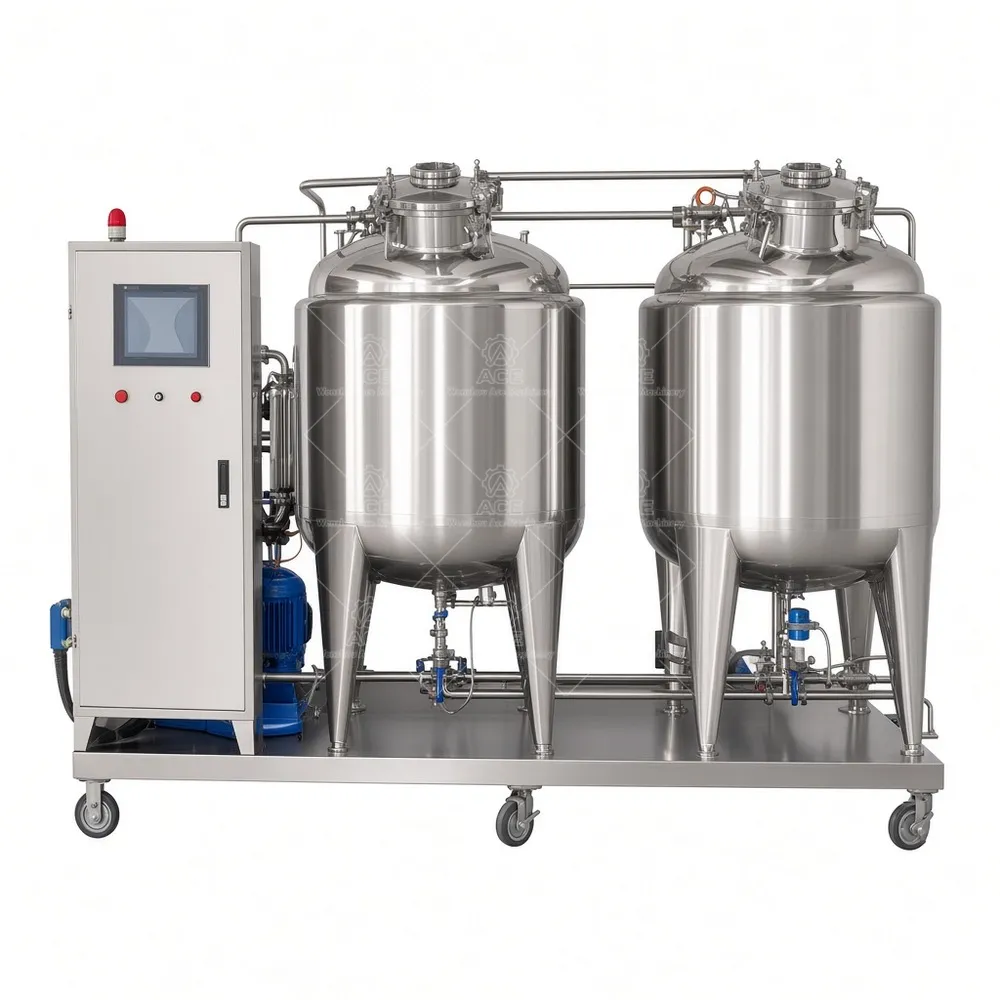

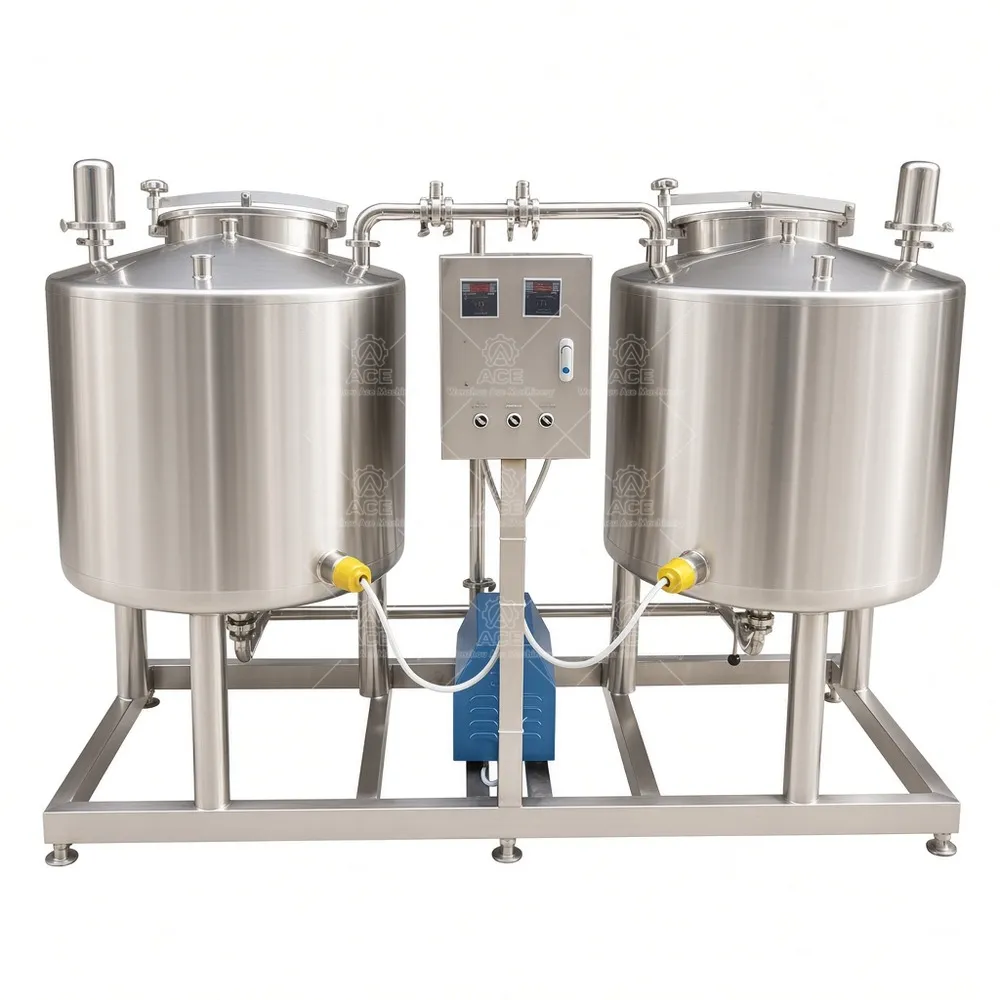

300L Movable Stainless Steel Dual Tank CIP System with Motor Washer Pump
This 300L movable dual tank CIP system delivers flexible cleaning for multiple production lines. Stainless steel construction with a motor washer pump, it keeps acid and caustic solutions separate to reduce changeover time. Ideal for dairy, beverage, brewery, and pharmaceutical applications. Customizable tanks, heating, and controls available. Request a quote with your process details.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,367.76 through $7,873.10
Guaranteed Safe Checkout
This 300L movable dual tank CIP device is for plants that clean multiple lines without fixed installation. Dual tanks keep acid and caustic separate, cutting changeover time and water use. The motor washer pump must deliver enough flow and pressure to reach every spray ball and pipe run. We build the frame and tanks in stainless steel—304 standard, 316L for aggressive chemicals or pharmaceutical use.
CIP circulates cleaning solution through tanks, piping, and spray balls. Temperature, concentration, and flow rate determine cleaning effectiveness. With two tanks, you prepare alkaline and acid washes ahead of time. The pump must overcome pressure drop across the longest circuit. We size it based on your pipe layout, spray ball specifications, and soil load.
Don\’t select by tank volume alone. Consider number of circuits, total pipe length, largest tank size, and soil type. Dairy and brewery often need higher flow and temperature; pharmaceutical may require 316L and documentation. Common mistakes: undersizing the pump, ignoring pressure drop, and choosing 304 where 316L is needed. We offer electric or steam heating, manual or PLC controls, and monitoring for temperature, flow, pressure, and level.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cleaning tank capacity | 300L total (dual tank) |
| Number of cleaning tanks | 2 (acid/caustic) |
| Stainless steel grade | 304 standard, 316L optional |
| Heating method | Electric or steam (optional) |
| Pump flow and pressure | Motor washer pump – sized to application |
| Operating temperature | Up to 80°C (depending on heating) |
| Control system | Manual, semi-auto, or PLC |
| Cleaning circuits | Dual tank for separate solutions |
| Power supply | 380V/50Hz or 480V/60Hz |
| Dimensions | Movable frame – varies with configuration |
| Customization options | Tank capacity, heating, controls, monitoring |
Applications
Used in dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical production. Requirements vary—dairy often needs higher flow and temperature; pharmaceutical may need 316L and documentation.
FAQ
What\’s the difference between single and dual tank CIP? Dual tank keeps acid and caustic separate, reducing changeover time and water use. Single tank requires draining and refilling.

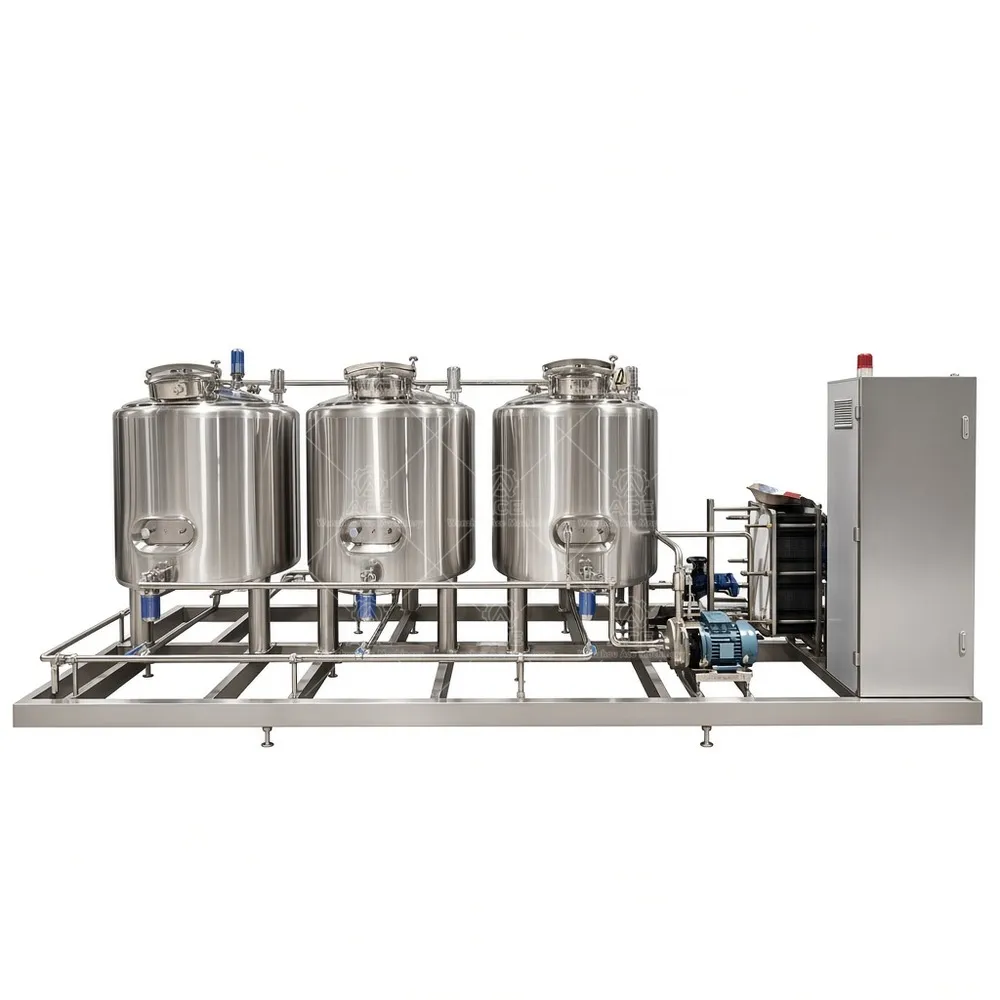

Can I add a third tank? Yes, we offer multi-tank configurations.
How do I determine the right pump size? We need total pipe length, elevation changes, spray ball specs, and required flow at the furthest point.
Tell us your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless steel grade, and installation location. We\’ll recommend the right configuration and provide a custom quote.
