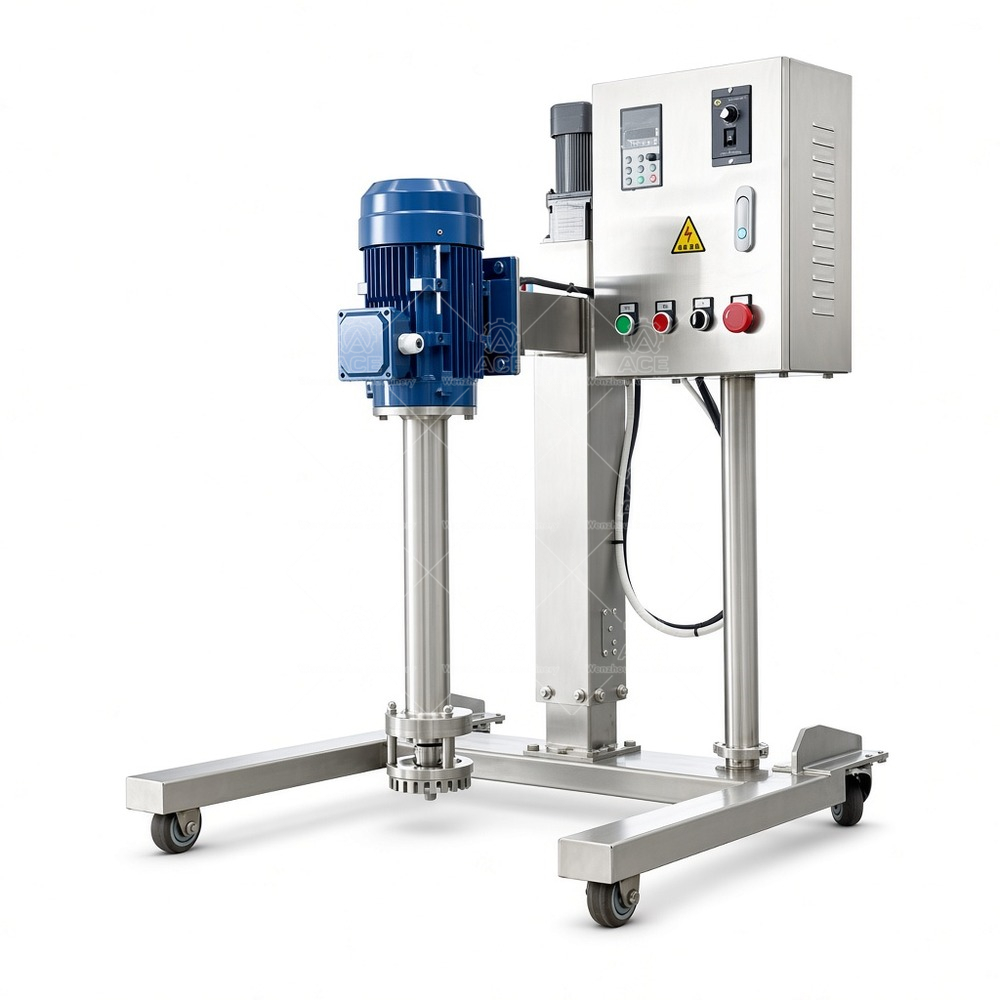

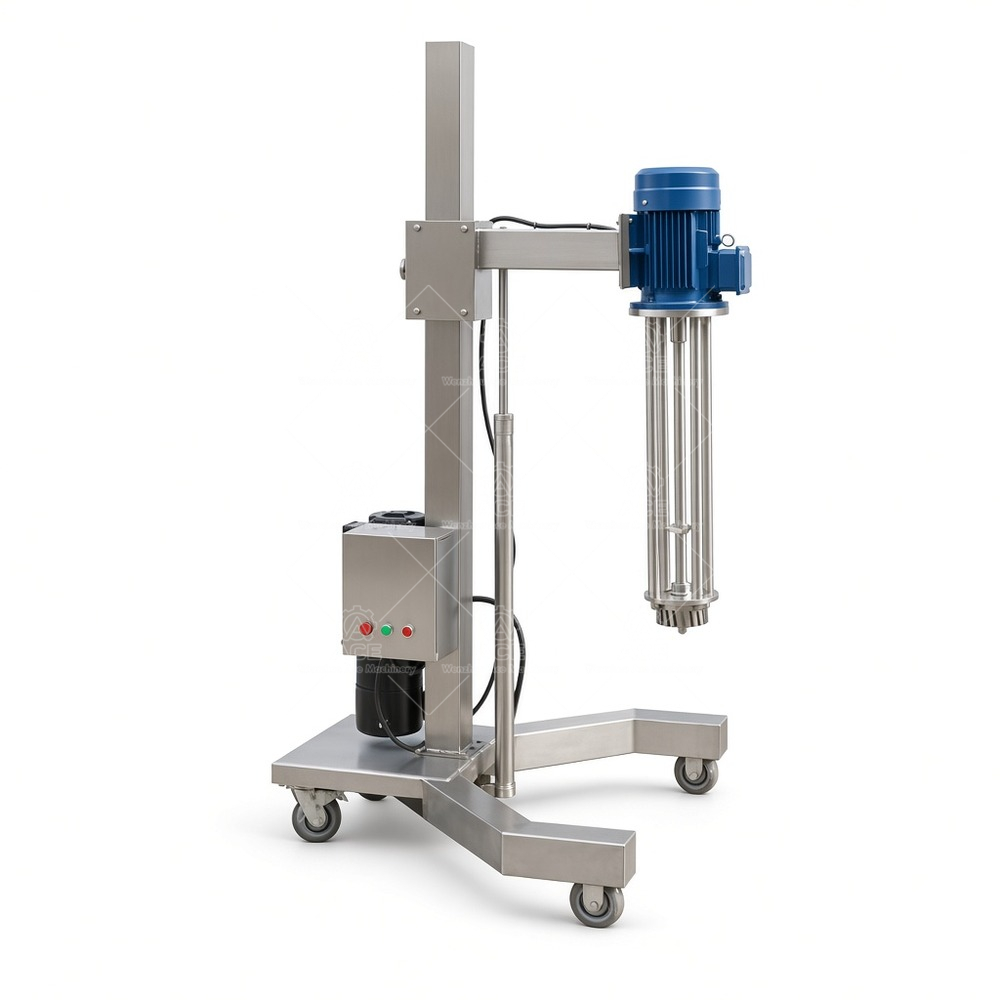

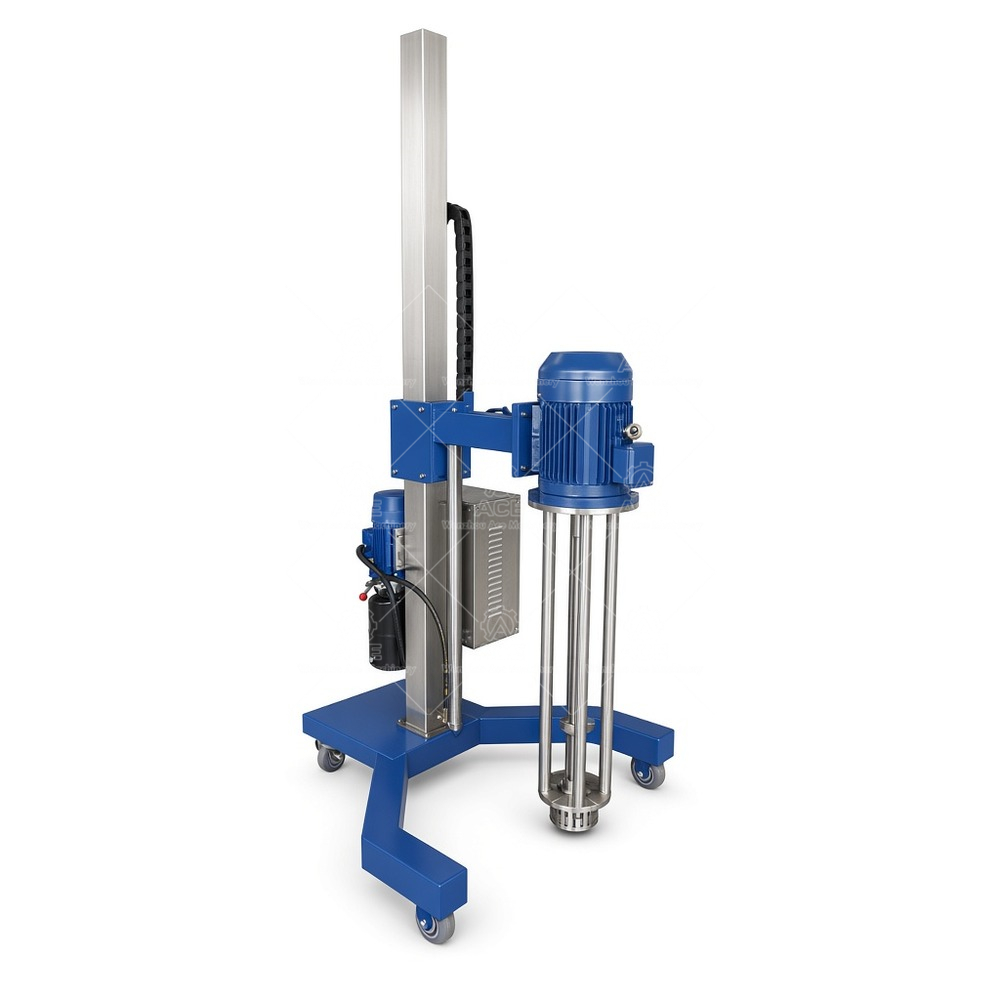

1.5–11 kW 304/316 SS Mobile High Shear Disperser Homogenizer, Pneumatic Lift
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,103.69 through $3,207.14
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Mobile Batch High Shear Mixer for Multi-Vessel Production
This 1.5–11 kW unit is a mobile high shear mixer for plants that need one machine across several vessels, transfer points, or trial runs. A pneumatic lift raises and lowers the mixing head; rollers let operators move the frame where layout and services allow. We build it as an industrial high shear mixer for dispersing, emulsifying, and powder wet-in.
Motor power spans 1.5 to 11 kW. Voltage is confirmed at order from 220V to 480V, including frequency and phase. An optional VFD turns it into a high shear mixer with VFD control up to 3000 rpm depending on motor and configuration. That covers many batch high shear mixing tasks, but shaft, stator, and speed must match viscosity, solids loading, and powder addition behavior.
Configurable Details
- Mobile frame with rollers for moving between production areas when utilities permit.
- Optional VFD for a variable speed high shear mixer, 0–3000 rpm depending on selected motor and setup.
- Motor, voltage, controls, and mixing head selected around batch size, container geometry, and product viscosity.
- Wetted stainless steel components, including 304 or 316 options, specified against the media and cleaning routine.
- High shear mixing equipment for emulsification, dispersion, and powder dispersion into liquids, including high shear mixer for powder dispersion duties.
Food, cosmetic, pharmaceutical, chemical, paint, and coating work puts contact parts and cleaning needs alongside horsepower. Share vessel dimensions, product viscosity, target speed, solids addition method, and local electrical supply. Ace Mixer will recommend the configuration and quote the stainless steel high shear mixer.
FAQ
Can one unit handle different batch sizes? Often within limits, but container size and head position must be checked. Too small a vessel can create poor vortexing; a very large one may need a different shaft length.
Is a VFD necessary? Not always. It helps when shear must change with viscosity or powder dispersion. Fixed speed can work for repeat formulations.
Mobile or fixed? Choose mobile when the mixer serves multiple vessels and services allow. Fixed mounting suits dedicated lines and tighter hygiene control.
What should I send for a quote? Batch size, vessel dimensions, viscosity, target rpm, motor power, additions, contact material, and voltage/frequency/phase.
Send those details to Ace Mixer for a confirmed build and quote.
Ace Mixer builds this 1.5–11 kW mobile batch high shear mixer with pneumatic lift and optional VFD speed control for dispersing, emulsifying, and powder wet-in. Confirm voltage from 220–480V, wetted 304 or 316 stainless steel parts, mixing head, and controls around your batch size, viscosity, vessel geometry, and local electrical supply.
