Jacketed Liquid Mixing Tank for Fermentation, Polymerization, Heating & Cooling

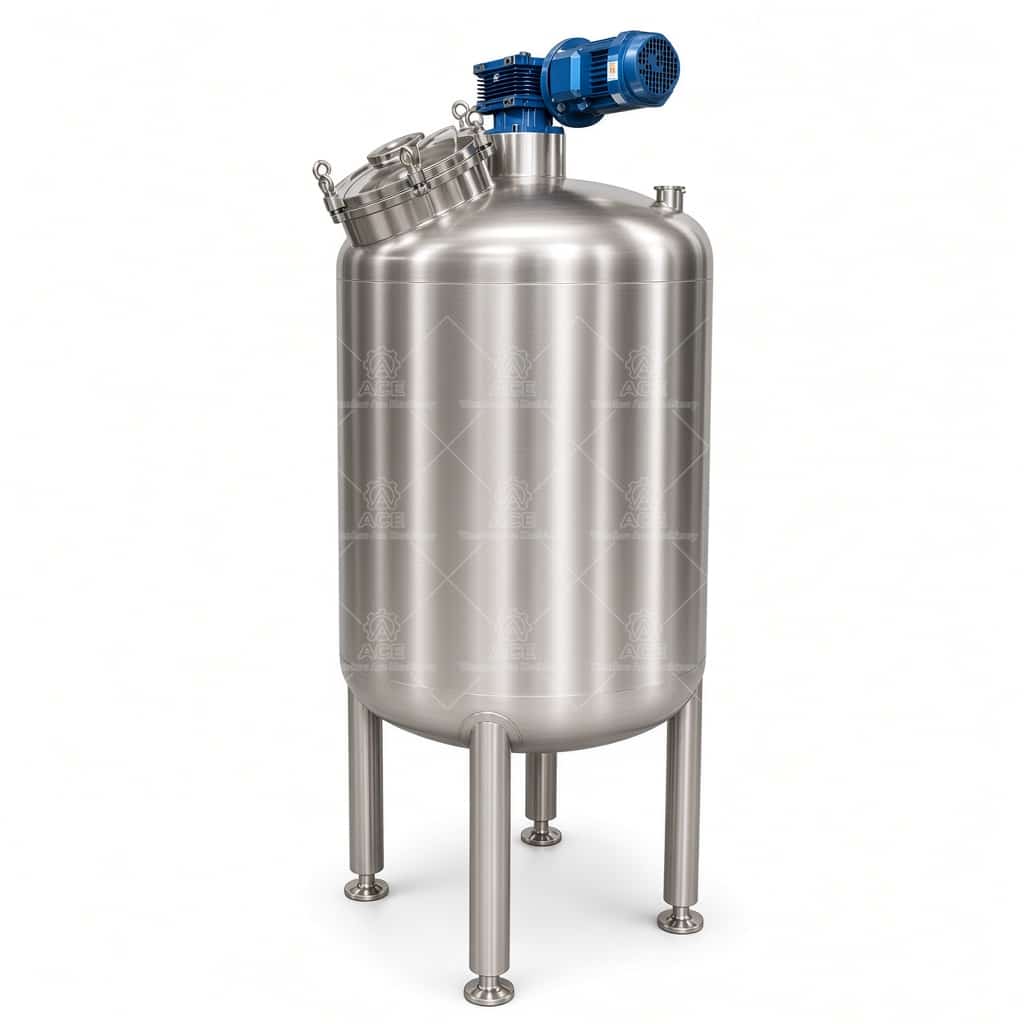

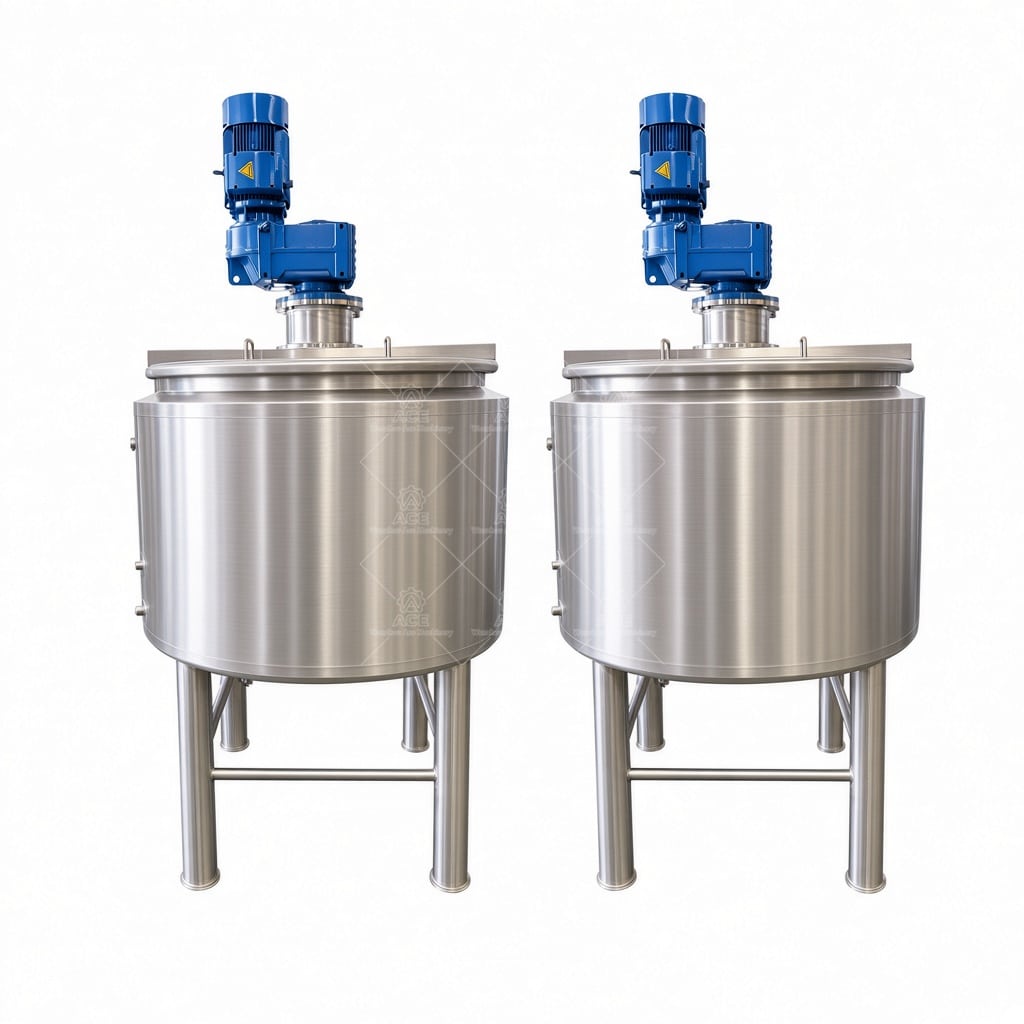

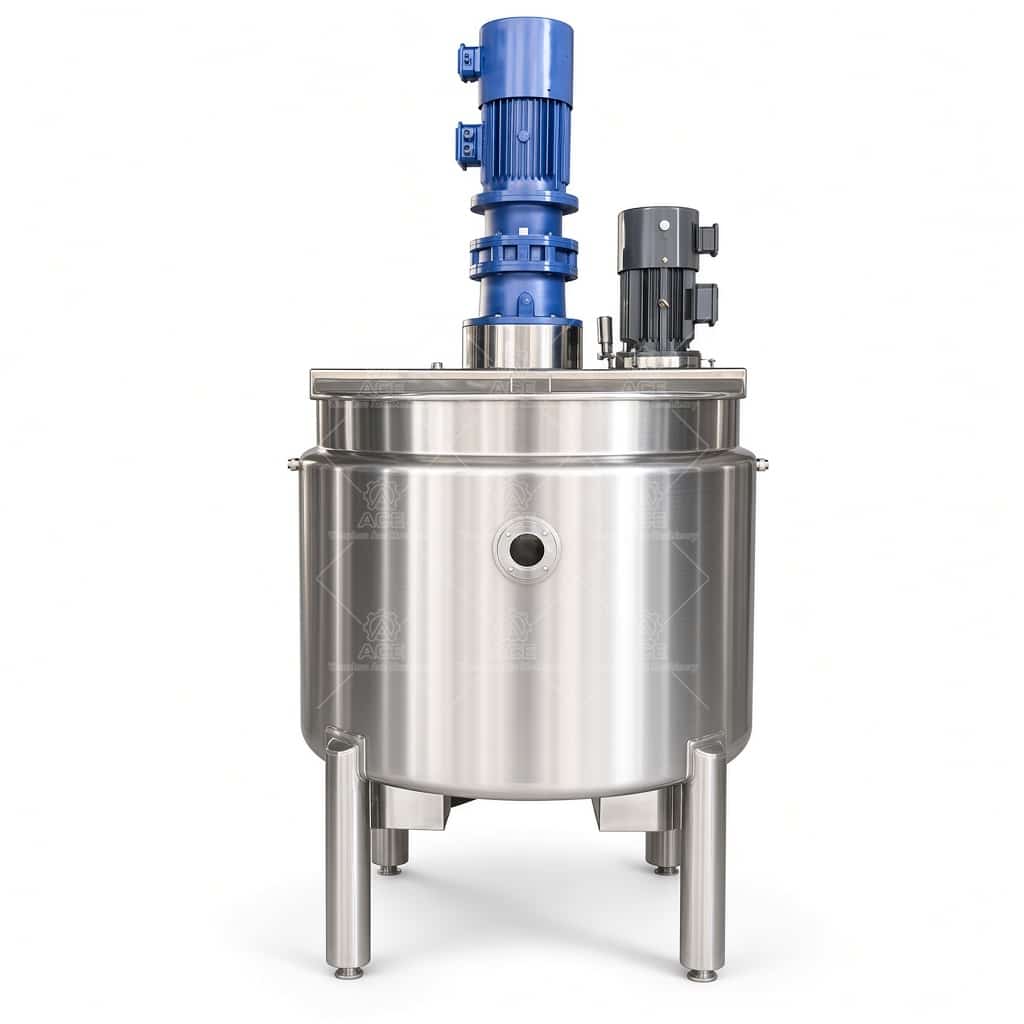

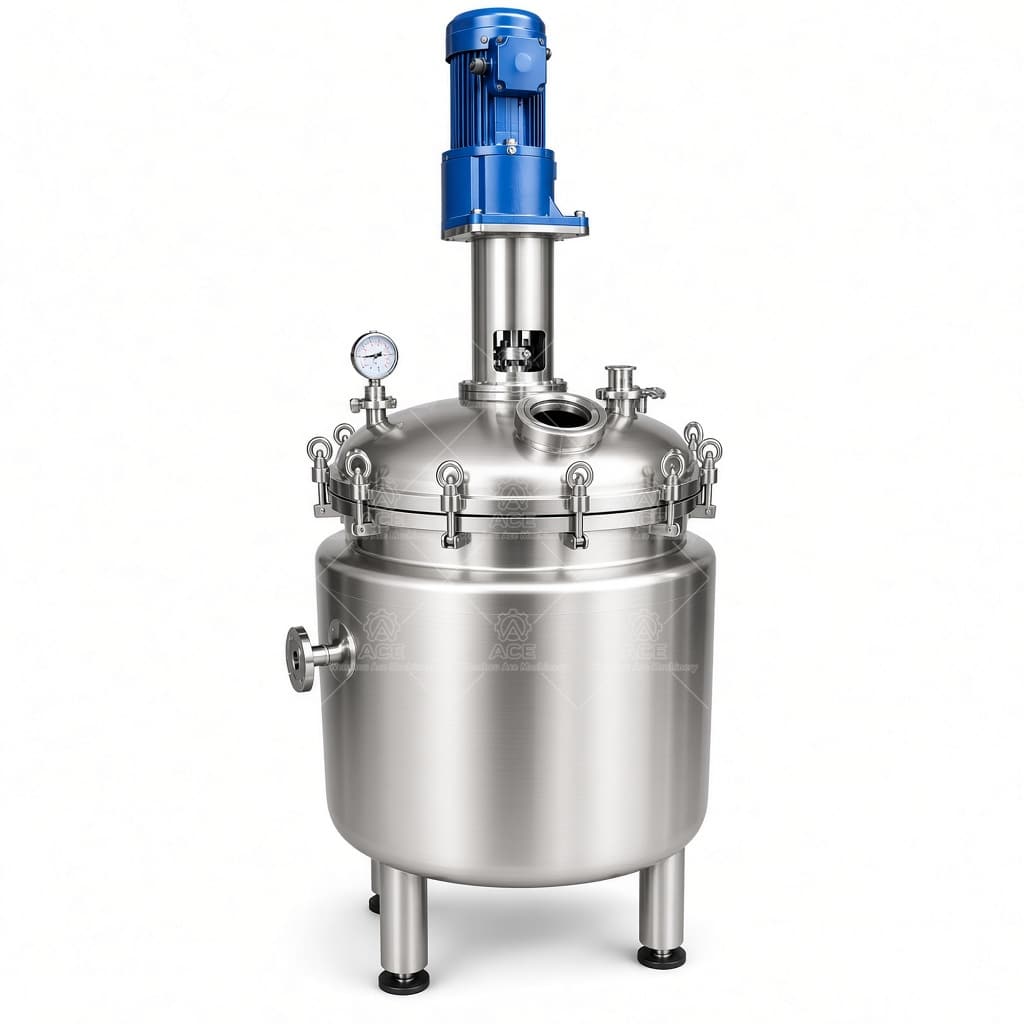

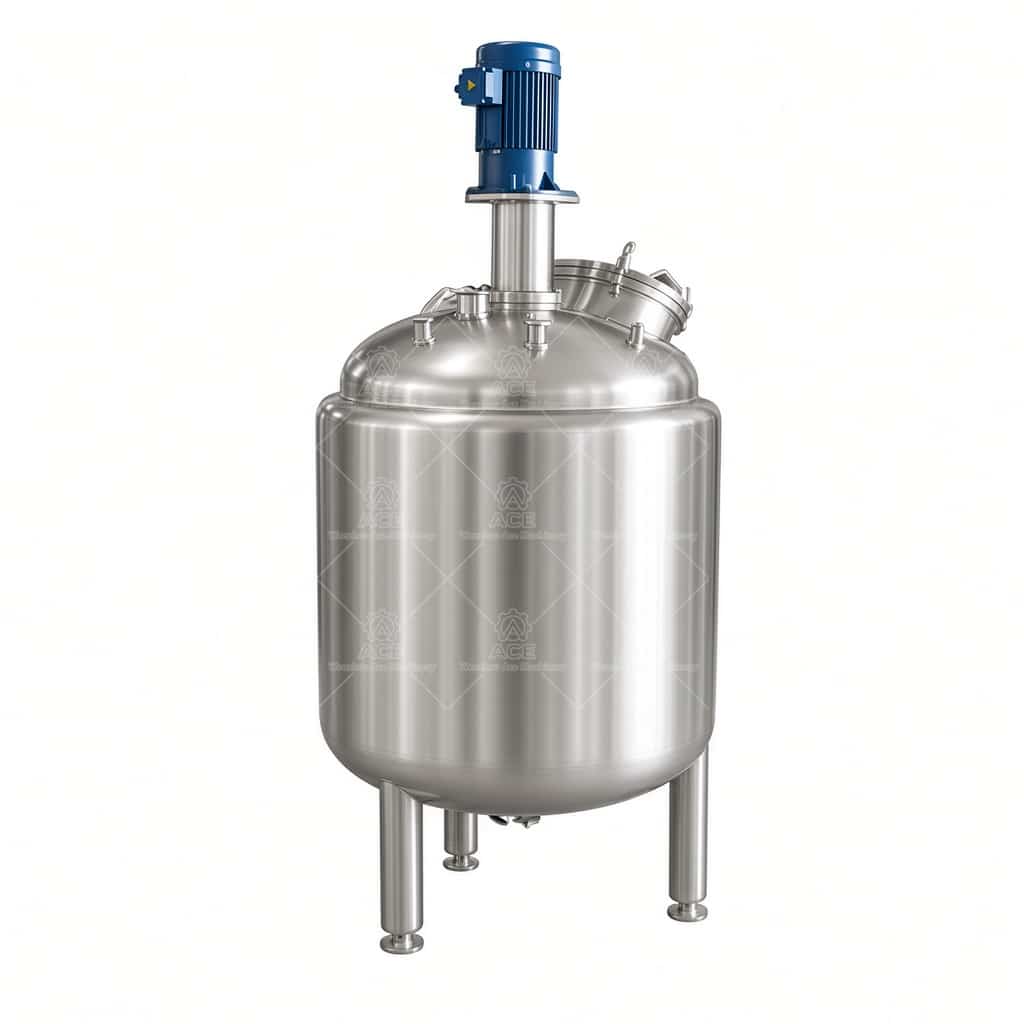

Process-Fitted Jacketed Mixing Tank

We build this automatic liquid mixing tank around the process, not a preset vessel size or agitator arrangement. It can be configured for liquid blending, temperature-controlled milk processing, and polymerization duties. The jacket supports heating or cooling through a selected utility circuit; performance depends on batch volume, product viscosity, target temperature, heat-transfer area, and available utility conditions. Fermentation service may require additional controls and hygienic features beyond standard mixing.

Construction and configuration

Product-contact parts can be specified in stainless steel grades selected for the liquid’s chemistry, cleaning method, and regulatory needs. The grade, weld finish, internal polishing level, and seal materials should be confirmed against the actual product and cleaning agents. We review weld access and drainability during design, since difficult-to-clean crevices or low points can create problems in food and pharmaceutical environments. Jacket construction and pressure requirements are defined from the heating or cooling medium and applicable operating conditions.

Agitator selection depends on viscosity, solids, shear sensitivity, and whether the batch needs turnover, suspension, or surface movement. A propeller, pitched-blade, anchor, or other arrangement may be considered; no single impeller suits every liquid. Motor and gearbox sizing follow the required speed, torque, batch behavior, and duty cycle. Variable-speed control may be appropriate where recipes change or startup viscosity is high. Seal selection also depends on product compatibility, operating pressure, temperature, and cleaning procedure.

Typical specification basis

Applications and purchasing questions

Potential applications include dairy liquids, beverage bases, cosmetic batches, chemical blends, and polymerization processes, subject to material and process review. For milk, clarify sanitation standards and cleaning-in-place expectations. For polymerization, provide reaction data and any heat-release or pressure considerations before equipment selection.

FAQ

Can one tank both heat and cool? Yes, when the jacket and utility connections are designed for the specified services; changeover and control requirements should be stated.

What should we send for a quote? Provide batch and working volumes, product properties, target temperatures, heating and cooling times, mixing objective, cleaning method, site utilities, and applicable standards. These details let our engineers recommend a practical vessel, drive, seals, and controls rather than guess at a configuration.
