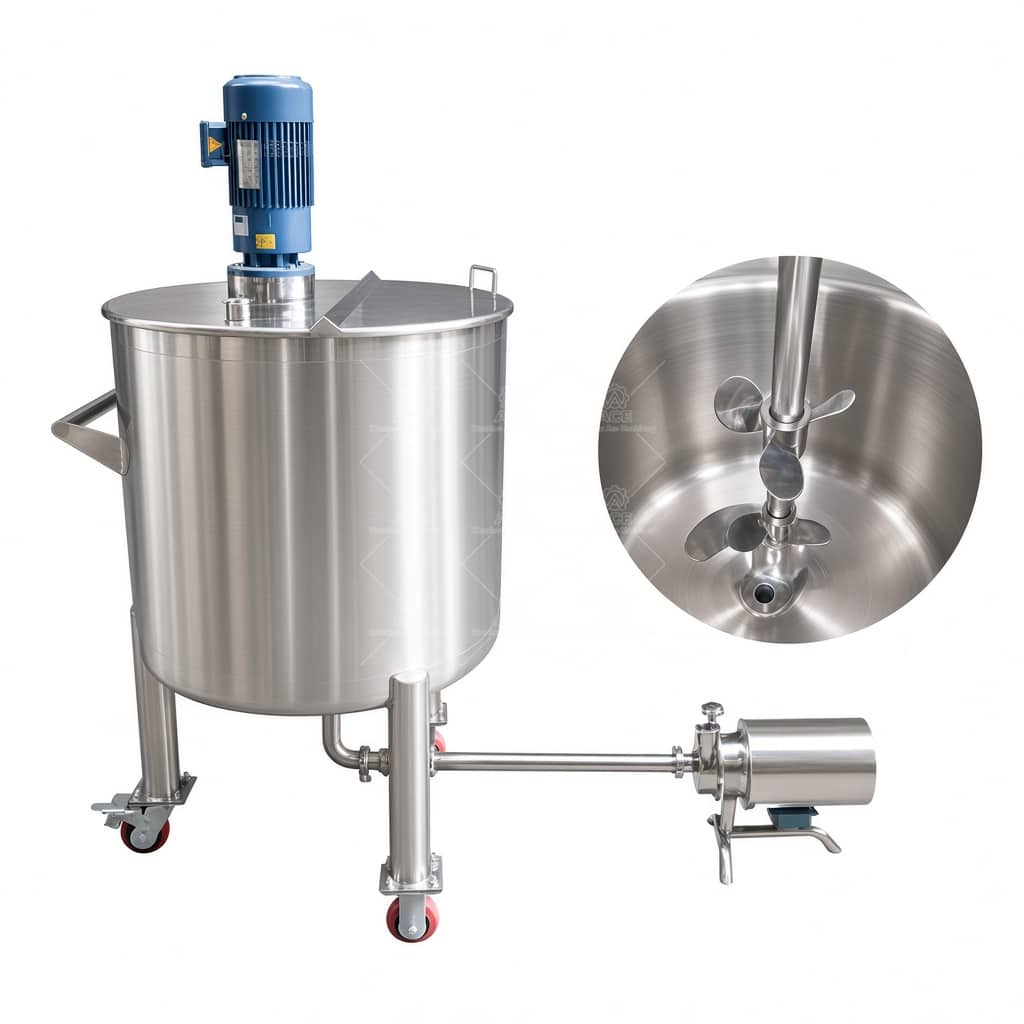

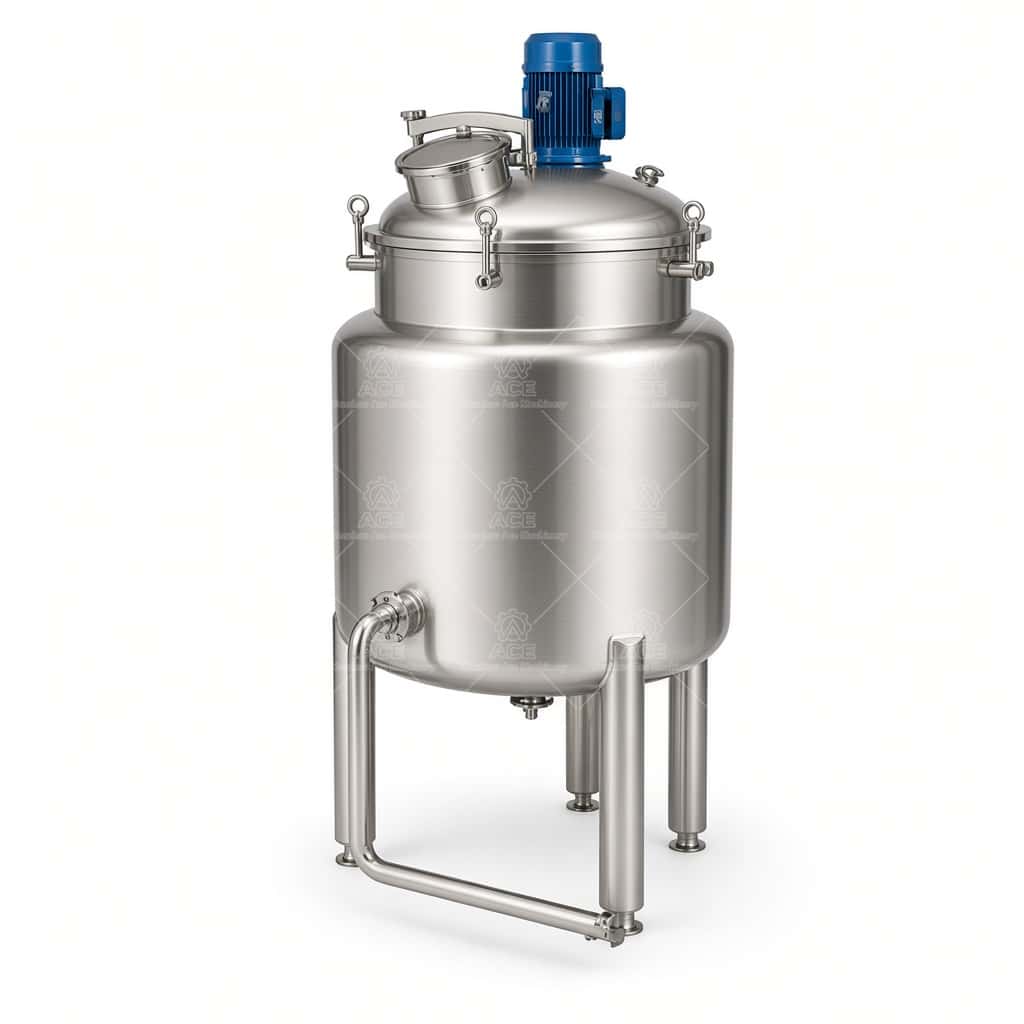

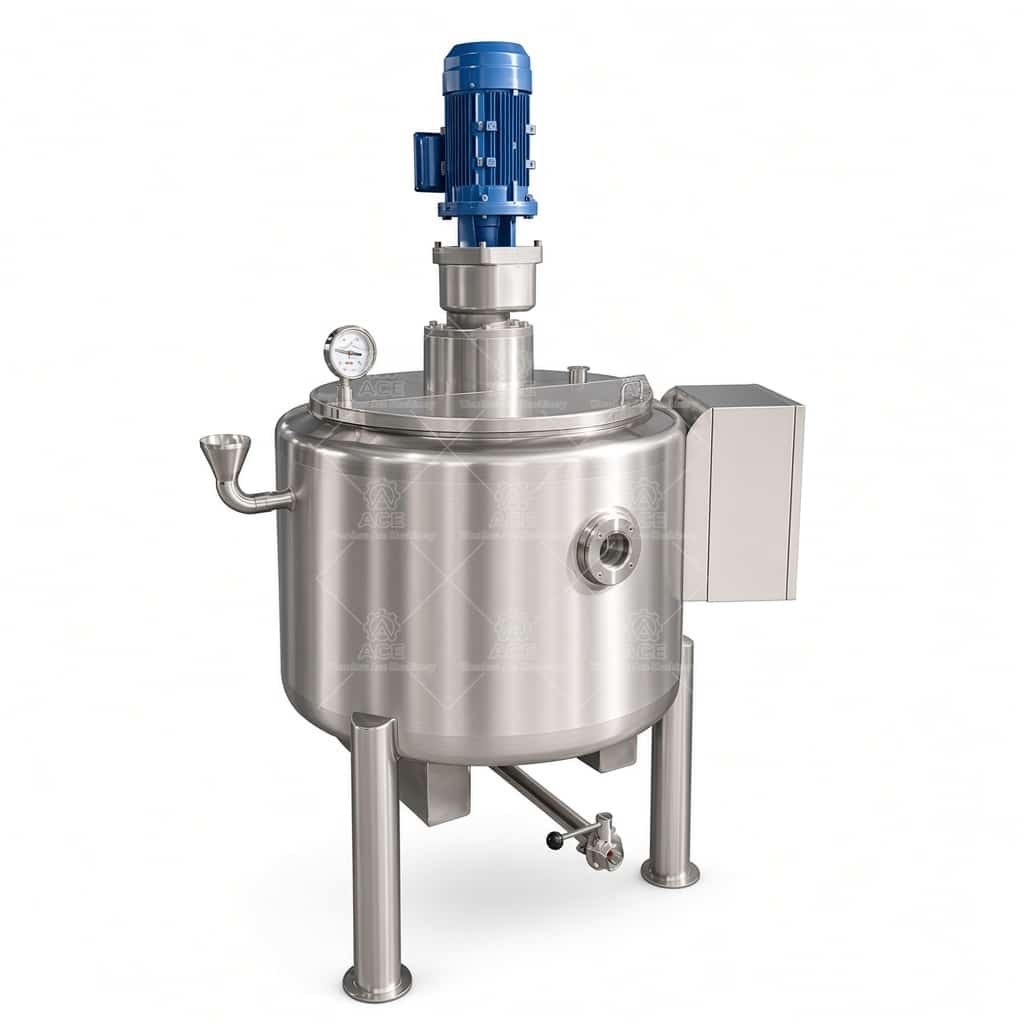

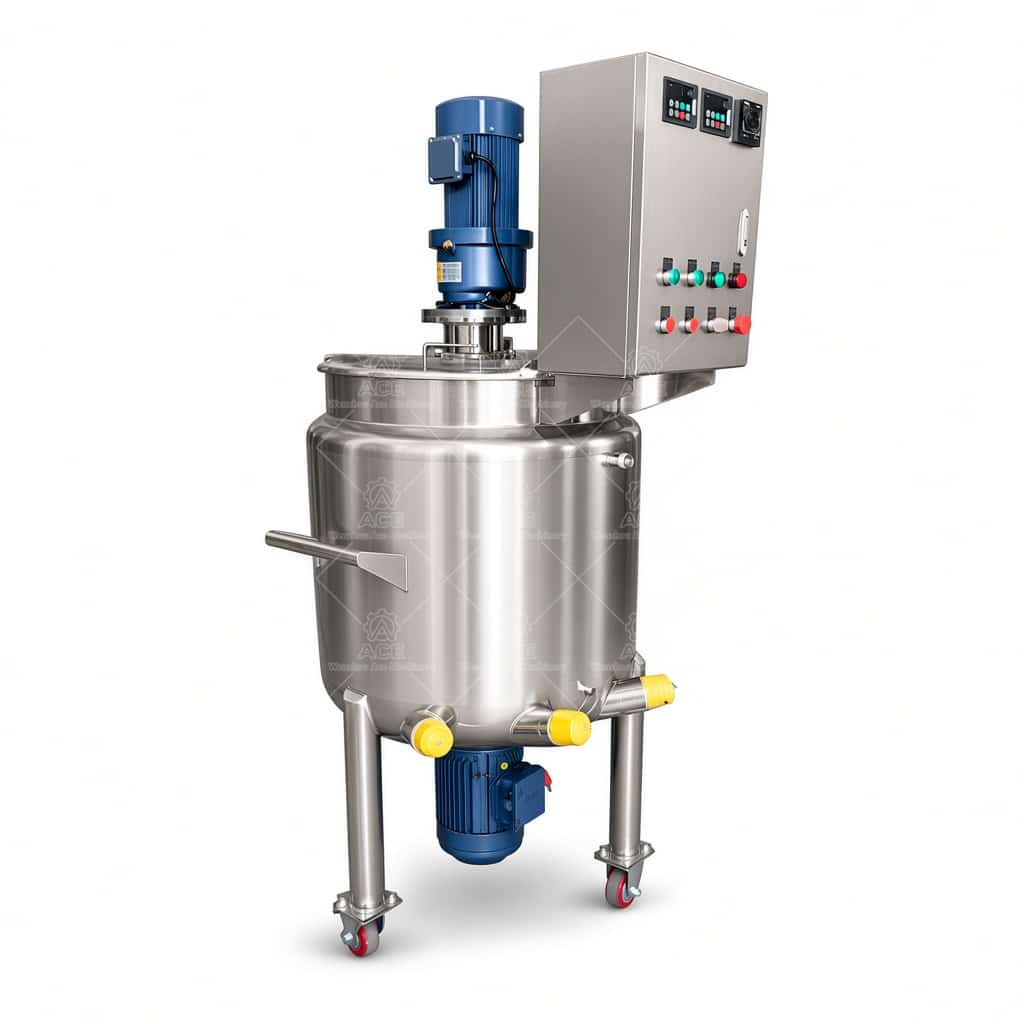

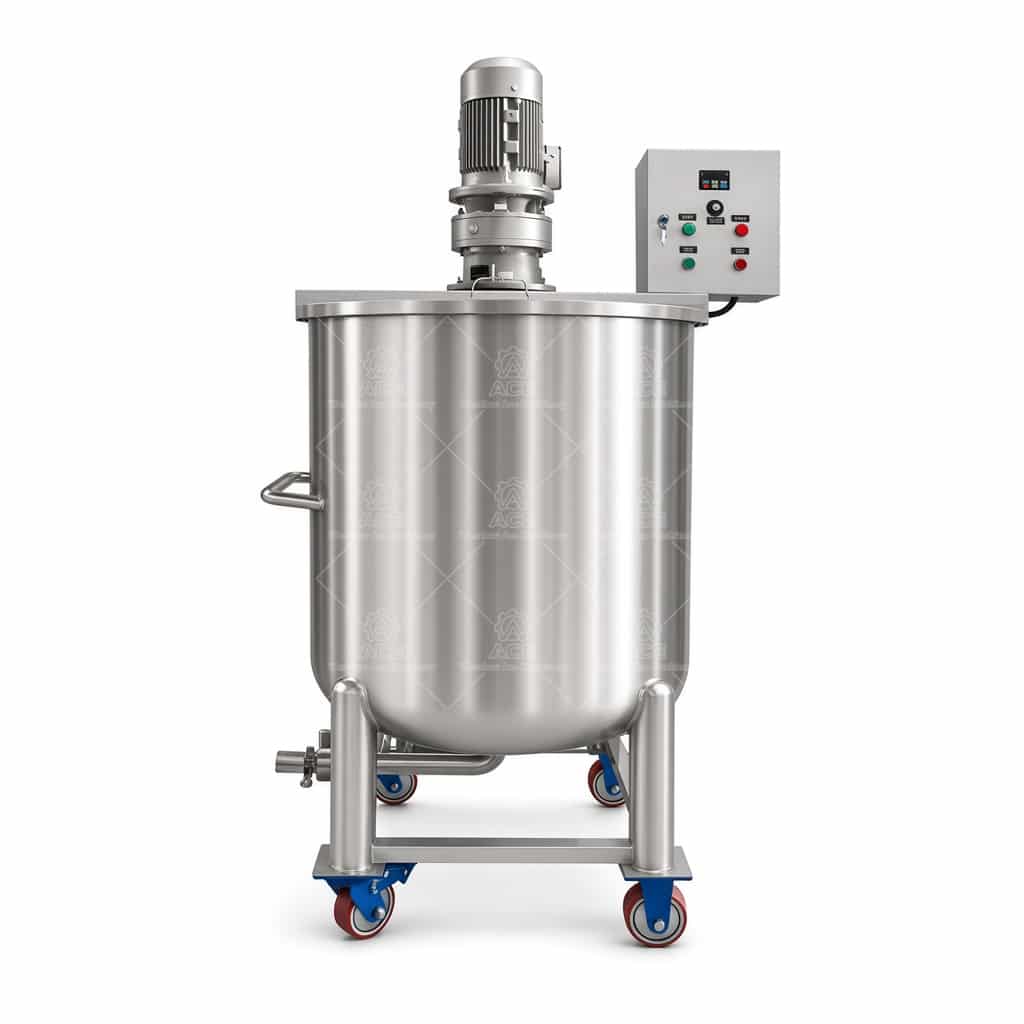

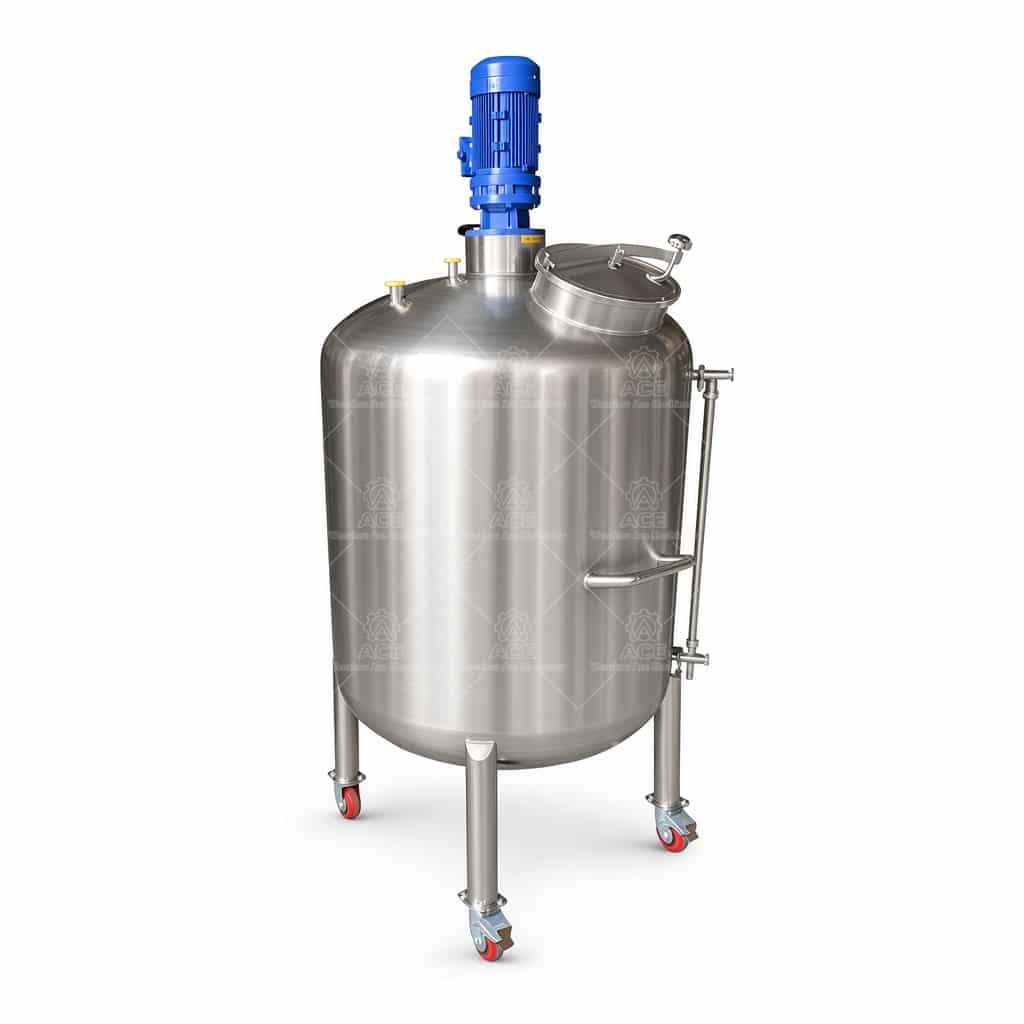

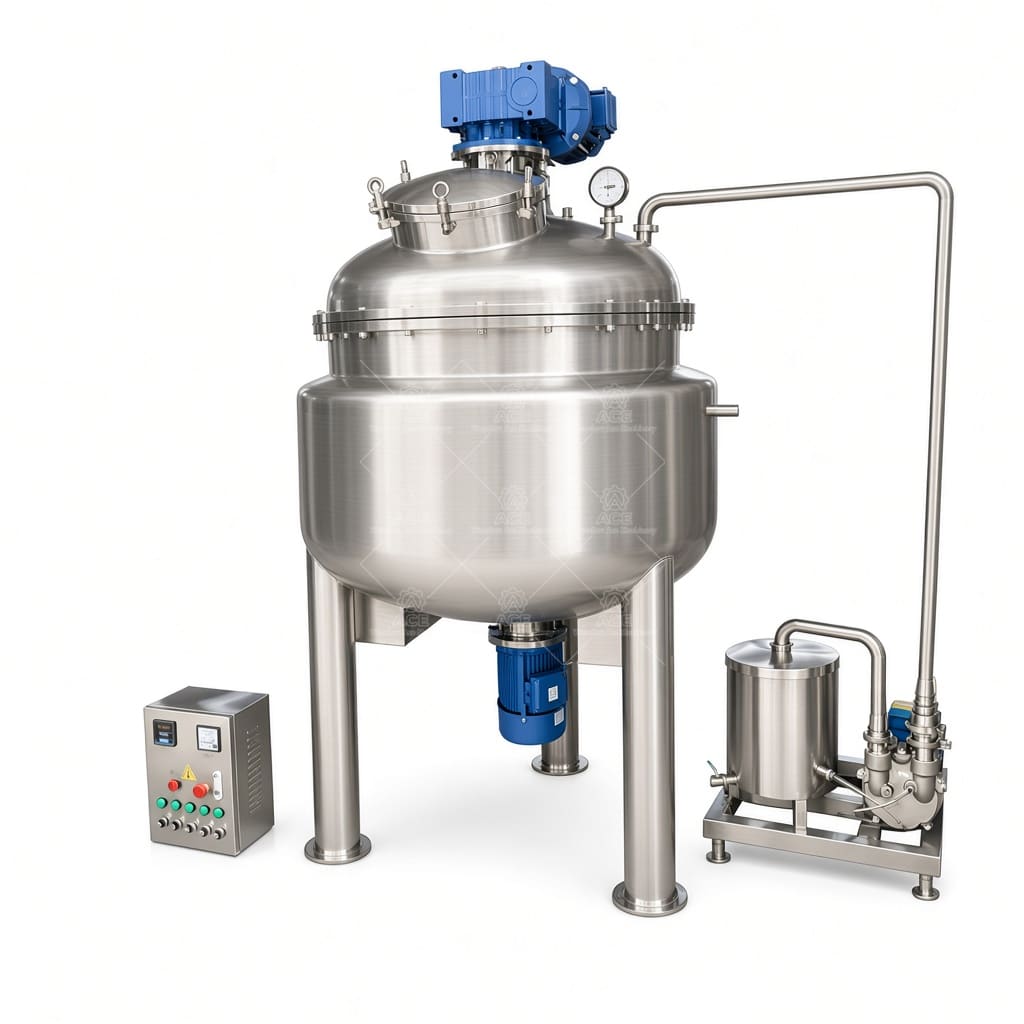

Automatic Liquid Soap and Food Emulsifying Mixer Homogenizer Tank

Name: Automatic Liquid Soap and Food Emulsifying Mixer Homogenizer Tank - Ace Mixer
SKU: ACE-JBG-0757
Availability: InStock
Rating: 5.00 (2 reviews)

Configurable stainless steel mixing equipment for liquid soap, cosmetic bases, mayonnaise, yogurt mixes, and flavored milk. Agitator and homogenizer selection depends on batch size, viscosity, texture, and process sequence. Optional heating or cooling, contact materials, seals, and surface finish can be specified around product chemistry and cleaning requirements. Share your process details to define a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,055.05 through $2,442.22

Ask For A Quotation

Guaranteed Safe Checkout

Process-focused mixing for liquids and emulsions

This configurable mixing tank is designed for batches that need controlled blending, dispersion, or emulsification. Typical applications include liquid soap and cosmetic bases, as well as food products such as mayonnaise, yogurt mixes, and flavored milk. These products do not share identical hygiene requirements: we configure product-contact surfaces, seals, cleanability, and controls for the intended process rather than assuming one standard fits every use.

For mayonnaise or other oil-in-water emulsions, the homogenizer head, batch volume, ingredient addition method, and target texture all affect the result. A high-shear unit can improve dispersion, but it does not replace suitable formulation, process timing, or temperature control. For soap, viscosity and foaming behavior guide the impeller choice and mixing speed. We review the product and batch sequence before recommending a drive arrangement.

Construction and configuration

Product-contact construction can be specified in 304 or 316L stainless steel. The choice depends on ingredients, cleaning chemicals, chloride exposure, and the required corrosion resistance. Welds, internal corners, surface finish, and passivation should be defined for the cleaning method and applicable food or cosmetic requirements. Seal materials also need to match product chemistry and operating temperature.

Agitator style, motor and gearbox sizing, and homogenizer placement are selected around viscosity, batch size, and shear needs. Optional jacket heating or cooling can support temperature-sensitive processing; the heating medium, required temperature range, heat-up time, and control method determine the jacket and instrumentation design. A recipe that needs gentle circulation may not benefit from continuous high shear.

Configuration details

Item	Specification basis
Working capacity	Configured to batch size and usable headspace
Contact material	304 or 316L stainless steel, selected for product conditions
Mixing system	Agitator and optional homogenizer selected for viscosity and texture
Heating or cooling	Optional; jacket and controls depend on process requirements
Surface finish and seals	Specified to suit cleaning, hygiene, and chemical compatibility

Questions to resolve before ordering

Can one tank make both soap and food? It may be technically possible, but shared use raises cleaning validation and contamination concerns. Dedicated product-contact equipment is often the safer production choice.

What should we provide for a quotation? Send batch volume, ingredient list or product properties, viscosity range, target temperature, mixing time, cleaning method, power supply, and required hygienic standard. Also identify whether the process needs vacuum, transfer pumping, load cells, or automated recipe control. Those details let our engineers recommend a practical configuration instead of sizing from the product name alone.
