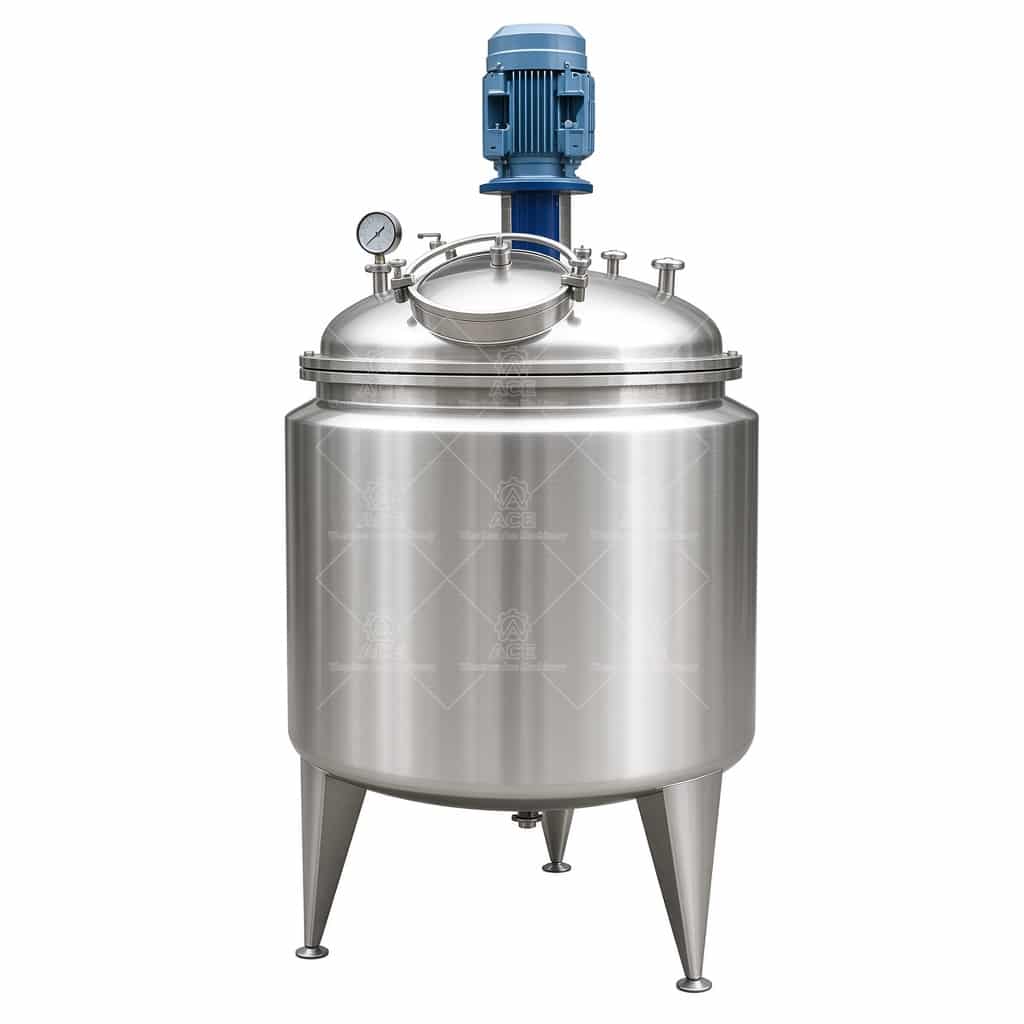

1000L Industrial Mixing Tank for Syrup Grease Shampoo and Cream
This 1000L industrial mixing tank is configured for products ranging from syrup and shampoo to grease and cream. Tank materials, weld finish, seals, agitator geometry, drive torque, heating, and temperature control are selected according to viscosity, chemistry, shear sensitivity, cleaning method, and batch requirements. Share your process data before requesting a quotation so the configuration matches production conditions.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,871.61 through $3,369.26
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
1000L Industrial Mixing Tank for Syrup Grease Shampoo and Cream
A 1000L mixing tank is typically specified when a process needs controlled blending, repeatable batch volume, and enough working capacity for viscous products. Syrup, grease, shampoo, and cream do not behave the same way, so the tank should be engineered around viscosity, solids content, shear sensitivity, filling level, and cleaning requirements rather than selected by volume alone.
Construction and Materials
We normally review the product chemistry before recommending the wetted material. Stainless steel grades such as 304 or 316L may be considered according to chloride exposure, cleaning chemicals, acidity, and hygiene requirements. Product-contact welds should be continuous and properly finished, with surface polishing specified by the process rather than treated as a cosmetic detail. Gasket material must match the formulation, temperature, and cleaning agents. Sanitary applications may require smooth internal transitions, suitable drainability, and hygienic fittings.
Agitation and Temperature Control
The agitator is selected from actual rheology data. A propeller or pitched-blade impeller may suit lower-viscosity syrup, while an anchor, paddle, or anchor with scraper arrangement is more appropriate for creams and grease. High-speed agitation can improve dispersion, but it may also entrain air or damage shear-sensitive ingredients. Motor and gear reducer sizing depends on viscosity, batch level, impeller diameter, target speed, and starting torque.
If heating is required, the available method may include a jacket or another process-specific arrangement. Temperature control depends on the product, heating medium, operating range, insulation, and whether cooling is also needed. A controller, sensor location, and mixing speed should be coordinated so the measured temperature represents the actual batch.
Typical Applications
- Food and beverage syrup blending
- Industrial grease and lubricant compound preparation
- Shampoo and personal care manufacturing
- Cosmetic cream and lotion processing
Technical Specification Guide
| Item | Basis for Configuration |
|---|---|
| Nominal capacity | 1000 L |
| Tank material | Selected by chemistry and hygiene requirements |
| Agitator | Selected by viscosity, shear, and solids content |
| Drive system | Motor and reducer sized for torque and speed |
| Heating | Optional; based on process temperature requirements |
FAQ
Can one agitator handle all four products?
Usually not without compromise. A shared tank may work, but impeller geometry and speed range should be checked for every formulation.
What information should accompany a quote request?
Provide batch size, working level, viscosity, density, temperature, solids, formulation chemistry, cleaning method, mixing time, and any sanitary or hazardous-area requirements.
How do we confirm the correct configuration?
Our engineers use these process details to review material grade, tank geometry, agitator type, motor torque, heating needs, access, discharge, and maintenance clearance before preparing a quotation.
